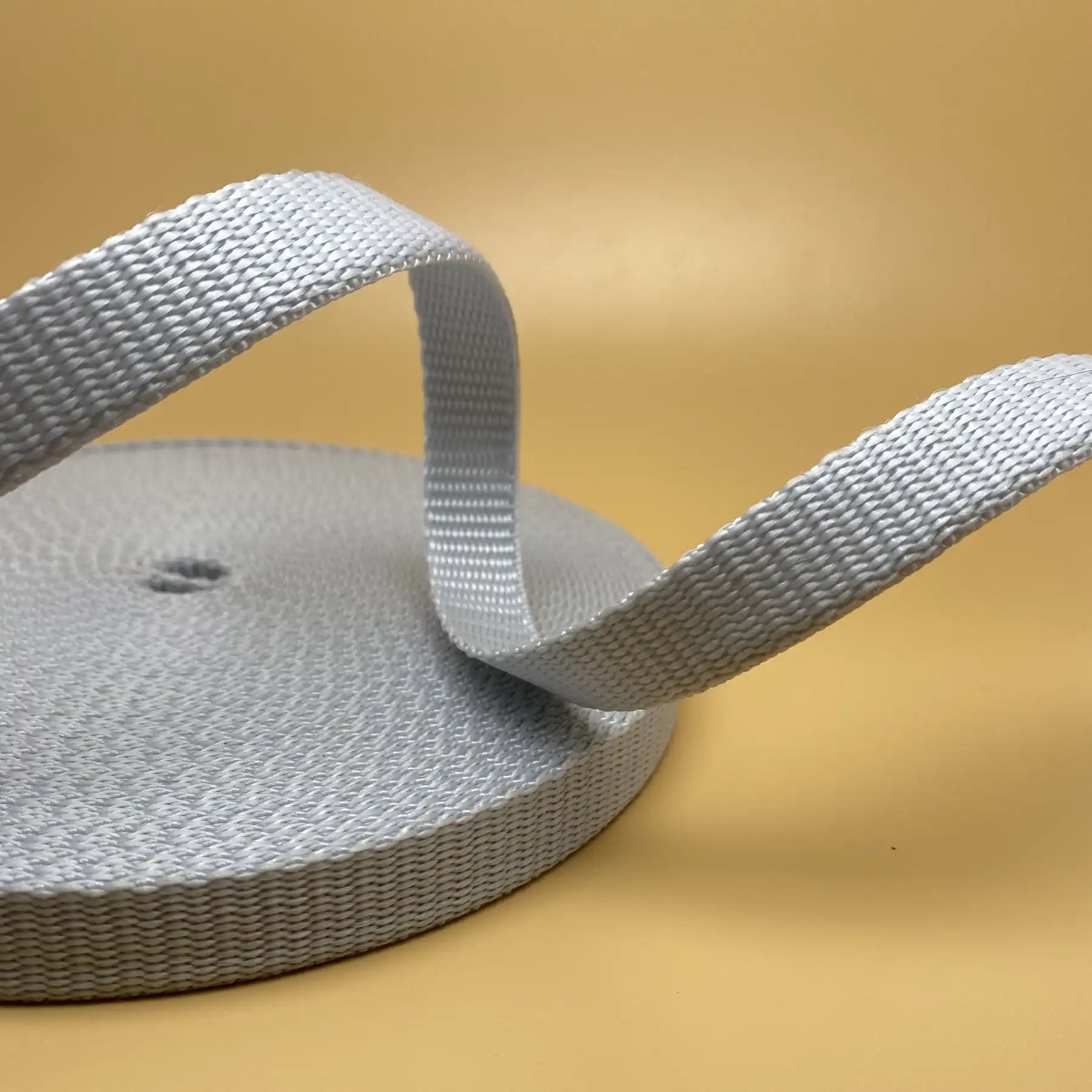

Polypropylene Webbing Tape No 20
The lightest webbing in common use, dope dyed for colour that cannot wash out and priced for high volume assembly.
What This Item Is
Polypropylene Webbing Tape No 20 is woven, dyed and packed in one mill, which is why the specification does not drift between steps. Thickness runs from 0.65 mm to 2.5 mm, or to your own figure, and width is set by your drawing. Pantone matching is standard, and reserving a single dye lot is what keeps the shade steady from first roll to last. Sampling runs 3 to 7 days; the production window is 7 to 15 days from approval.
Key Benefits
- Moisture regain under 0.03 per cent, so the tape is quick to wash and quick to dry
- Woven to your width and to a thickness anywhere from 0.65 mm to 2.5 mm
- Pantone colour matching against a number or against a swatch you send us
- One dye lot reserved for the whole order so shade does not drift mid-run
- Computer jacquard logo weaving available on the same tape
Problems It Solves
- Freight cost driven up by heavy hardware and heavy webbing
- Straps that rot or mildew in damp storage or outdoor use
- Dyed tape that bleeds colour onto a light coloured shell fabric
Who It Is For
- Buyers who need the second order to match the first exactly
- Brands running their own label through a contract assembler
- Production planners who need a delivery date quoted with the price
Application Scenarios
- Garden furniture and deckchair webbing
- Low cost lanyards and promotional straps
- Cargo and luggage tie-downs
- Tote and shopping bag handles
Technical Features
- Naturally resistant to microbial attack and immune to wormhole damage
- Chemical resistance better than ordinary textile fibres
- Moisture regain under 0.03 per cent, so the tape is quick to wash and quick to dry
- Thickness woven from 0.65 mm to 2.5 mm, or to your own figure
What Is On The Specification Sheet
Everything below comes from our own specification table for this item. Width is made to your request, so it is quoted rather than listed.
| Product Type | Polypropylene Webbing |
|---|---|
| Catalogue Reference | polypropylene-webbing-20 |
| Material | PP, cotton, polyester, nylon; eco-friendly and non-toxic yarns |
| Colour | Pantone matched or to your own reference |
| Thickness | 0.65 mm to 2.5 mm or custom |
| Width | Made to your request |
| Logo Method | Computer jacquard |
| Testing | SGS |
| OEM | Welcome |
| Payment Terms | T/T, Western Union, PayPal |
| Shipping Terms | EXW, FOB, CIF |
| Sample Time | 3 to 7 days |
| Production Time | 7 to 15 days |
| Packing | 50 yards for one roll 30 rolls for one carton or by your request |
| Minimum Order | 1000 metres |
Materials
- Polypropylene filament, dope dyed with pigment added to the melt
- Anti-ageing agent added at spinning where the strap will live outdoors
- Fine denier polypropylene where wicking and fast drying matter
Quality Control
- Heat setting held well below the 165 to 173 degree melting range to protect the hand
- Tensile checked on the finished tape rather than on the yarn alone
- Pigment lot recorded against your order so a repeat matches the first run
- SGS testing arranged on request before shipment
What You Can Change
- Computer jacquard logo or post-weave silk screen printing
- Soft or firm hand set during finishing
- Bulk packing to your carton and roll specification
- Any width to your drawing, thickness 0.65 mm to 2.5 mm
How This Item Is Made
- Pigment selection and melt dyeing
- Filament spinning and drawing
- Warping and weaving
- Controlled heat setting below the melt point
- Width and tensile check
- Rolling, measuring and packing
How It Compares
Polypropylene saves roughly 30 per cent of the weight and costs less, but its melting point is only 165 to 173 degrees Celsius and its light and heat ageing resistance is poorer. Choose polyester where the strap lives in sunlight.
Polypropylene will not mildew and dries almost instantly, which cotton cannot do. Cotton still wins where a natural hand or later garment dyeing is required.
Polypropylene is 20 per cent lighter and far cheaper, with similar wet strength. Nylon has the better abrasion life and takes conventional dye.
Use Guide
- Specify an anti-ageing additive when the strap will be permanently outdoors
- Expect some static during cutting and sewing and earth your equipment accordingly
- For light shell fabrics ask for dope dyed rather than surface dyed tape
- Do not iron or hot press the tape; the fibre softens close to 165 degrees Celsius
Other PP Tape References
Related Products
Questions Buyers Ask About Polypropylene Webbing Tape No 20
Will polypropylene webbing fade outdoors
Its light and heat ageing resistance is weaker than polyester. Adding an anti-ageing agent during spinning improves it considerably, and we do that as standard for straps you tell us will live outside.
Can polypropylene webbing be dyed after weaving
Not reliably. The fibre has almost no moisture regain, under 0.03 per cent, and is the hardest of the chemical fibres to dye conventionally. We colour it by adding pigment to the melt before spinning, which is why the colour cannot wash out.
What is the minimum order for this item
1000 metres per colour and width on standard production. Some constructions run from 100 metres, so tell us what you need and we will confirm rather than quote a blanket figure.
How quickly can we see a physical sample
3 to 7 days. Production follows in 7 to 15 days once you approve the sample and the colour.
Can you match our colour reference
Yes, to a Pantone number or to a swatch you post to us. You approve a woven sample before the bulk dye lot is committed.
Ask About Polypropylene Webbing Tape No 20
Quote the catalogue reference with your width, thickness and colour and we will come back with price, minimum quantity and a delivery date.
