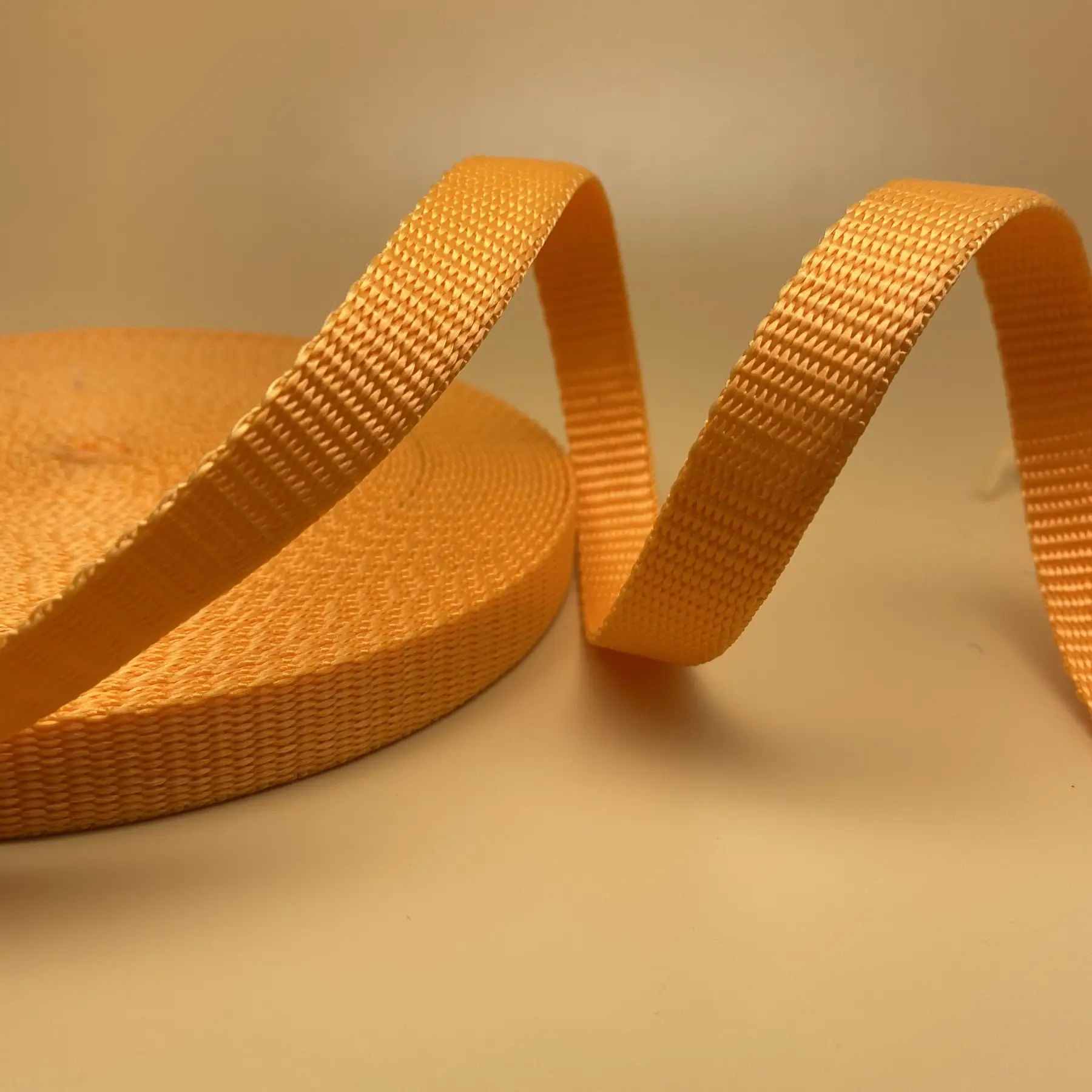

Polypropylene Webbing Tape No 15
The lightest webbing in common use, dope dyed for colour that cannot wash out and priced for high volume assembly.
What This Item Is
Polypropylene Webbing Tape No 15 is produced to a customer drawing, not to a catalogue size. Thickness runs from 0.65 mm to 2.5 mm, or to your own figure, and width is set by your drawing. Pantone matching is standard, and reserving a single dye lot is what keeps the shade steady from first roll to last. Samples take 3 to 7 days and production 7 to 15 days once the sample is approved.
Key Benefits
- Pantone colour matching against a number or against a swatch you send us
- One dye lot reserved for the whole order so shade does not drift mid-run
- Computer jacquard logo weaving available on the same tape
- Screen printing available after weaving when tooling cannot be justified
- SGS testing arranged on request before shipment
Problems It Solves
- Width variation that stops hardware sliding cleanly on the finished strap
- Repeat orders that no longer match the original because nothing was archived
- Branding that wears off a component long before the product does
Who It Is For
- Production planners who need a delivery date quoted with the price
- Bag and case factories controlling shipped weight per unit
- Packaging and strapping converters buying by the tonne
Application Scenarios
- Garden furniture and deckchair webbing
- Low cost lanyards and promotional straps
- Cargo and luggage tie-downs
- Tote and shopping bag handles
Technical Features
- Naturally resistant to microbial attack and immune to wormhole damage
- Chemical resistance better than ordinary textile fibres
- Moisture regain under 0.03 per cent, so the tape is quick to wash and quick to dry
- Thickness woven from 0.65 mm to 2.5 mm, or to your own figure
What Is On The Specification Sheet
Everything below comes from our own specification table for this item. Width is made to your request, so it is quoted rather than listed.
| Product Type | Polypropylene Webbing |
|---|---|
| Catalogue Reference | polypropylene-webbing-15 |
| Material | PP, cotton, polyester, nylon; eco-friendly and non-toxic yarns |
| Colour | Pantone matched or to your own reference |
| Thickness | 0.65 mm to 2.5 mm or custom |
| Width | Made to your request |
| Logo Method | Computer jacquard |
| Testing | SGS |
| OEM | Welcome |
| Payment Terms | T/T, Western Union, PayPal |
| Shipping Terms | EXW, FOB, CIF |
| Sample Time | 3 to 7 days |
| Production Time | 7 to 15 days |
| Packing | 50 yards for one roll 30 rolls for one carton or by your request |
| Minimum Order | 1000 metres |
Materials
- Polypropylene filament, dope dyed with pigment added to the melt
- Anti-ageing agent added at spinning where the strap will live outdoors
- Fine denier polypropylene where wicking and fast drying matter
Quality Control
- Heat setting held well below the 165 to 173 degree melting range to protect the hand
- Tensile checked on the finished tape rather than on the yarn alone
- Pigment lot recorded against your order so a repeat matches the first run
- SGS testing arranged on request before shipment
What You Can Change
- Computer jacquard logo or post-weave silk screen printing
- Soft or firm hand set during finishing
- Bulk packing to your carton and roll specification
- Any width to your drawing, thickness 0.65 mm to 2.5 mm
How This Item Is Made
- Pigment selection and melt dyeing
- Filament spinning and drawing
- Warping and weaving
- Controlled heat setting below the melt point
- Width and tensile check
- Rolling, measuring and packing
How It Compares
Polypropylene saves roughly 30 per cent of the weight and costs less, but its melting point is only 165 to 173 degrees Celsius and its light and heat ageing resistance is poorer. Choose polyester where the strap lives in sunlight.
Polypropylene will not mildew and dries almost instantly, which cotton cannot do. Cotton still wins where a natural hand or later garment dyeing is required.
Polypropylene is 20 per cent lighter and far cheaper, with similar wet strength. Nylon has the better abrasion life and takes conventional dye.
Use Guide
- For light shell fabrics ask for dope dyed rather than surface dyed tape
- Do not iron or hot press the tape; the fibre softens close to 165 degrees Celsius
- Specify an anti-ageing additive when the strap will be permanently outdoors
- Expect some static during cutting and sewing and earth your equipment accordingly
Other PP Tape References
Related Products
Questions Buyers Ask About Polypropylene Webbing Tape No 15
Is polypropylene webbing strong enough for load bearing straps
Its strength is similar to polyester and nylon and it is the same wet as dry, which is why the fibre is used for fishing net and cable. Dimensional stability is the weaker point, so we do not recommend it where a fixed length under tension is critical.
How much lighter is polypropylene webbing than polyester
About 30 per cent. Polypropylene sits at 0.90 to 0.92 grams per cubic centimetre against polyester at roughly 1.38 to 1.40, which is why it is the lightest fibre in general textile use.
Can you supply a test report
SGS testing is arranged on request before shipment. Tell us at quotation stage which properties need to be reported.
Will a repeat order match this one
Yes, provided you quote the same order reference. The colour reference and any jacquard plate stay on file here for exactly that reason.
Do you weave to a drawing
That is the normal case. Width and thickness come from your specification rather than from a standard size list.
Ask About Polypropylene Webbing Tape No 15
Quote the catalogue reference with your width, thickness and colour and we will come back with price, minimum quantity and a delivery date.
