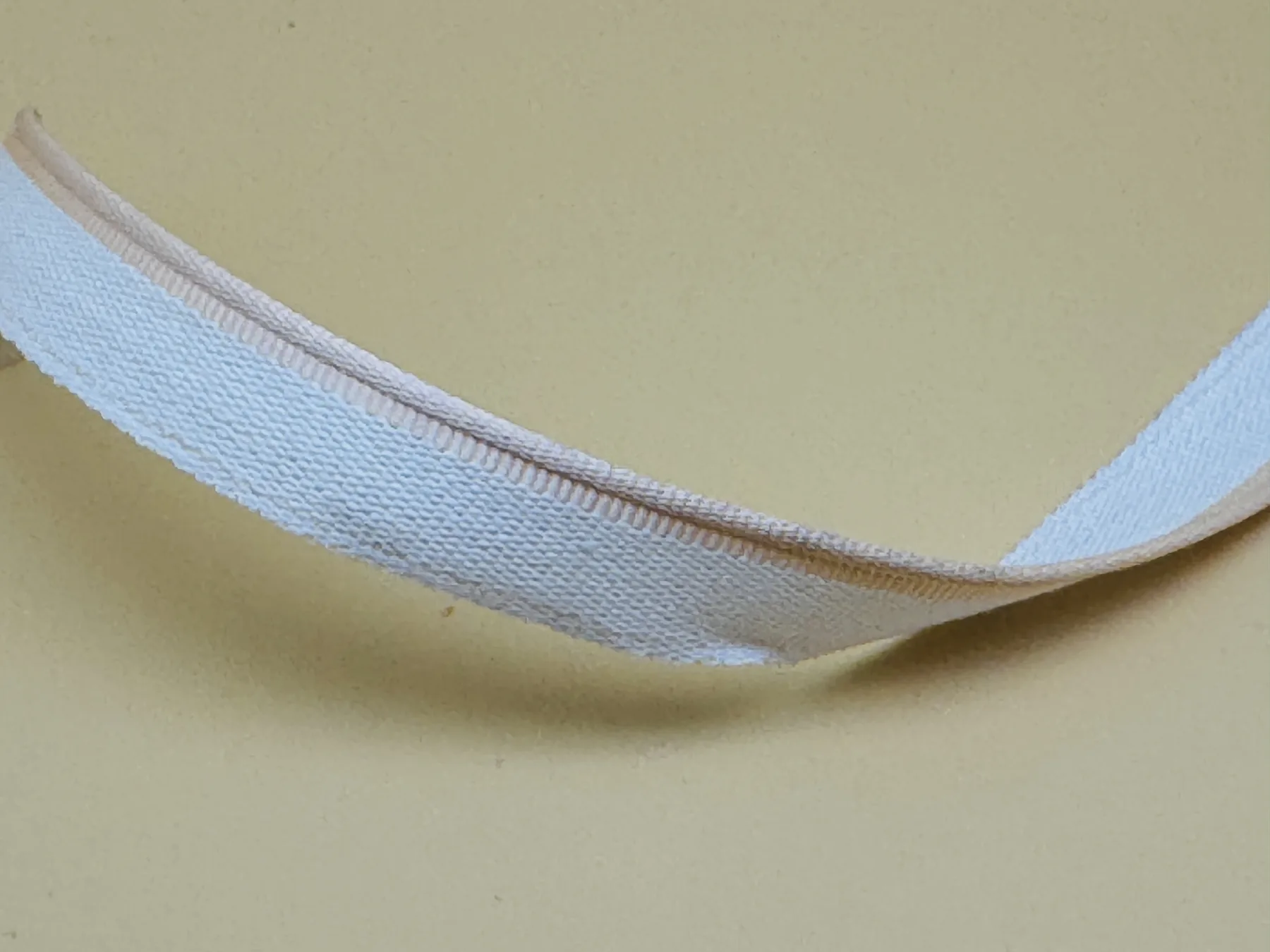

Bookbinding Head and Tail Band No 22
Bookbinding headbands and endbands that finish the head and tail of a hardcover block, in cotton, linen and polyester.
What This Item Is
Bookbinding Head and Tail Band No 22 is produced to a customer drawing, not to a catalogue size. The usable thickness range is 0.65 mm to 2.5 mm and custom thicknesses are quoted case by case. Colour is matched to a Pantone number or to a swatch you post to us, and one dye lot is reserved for the whole order. Sampling runs 3 to 7 days; the production window is 7 to 15 days from approval.
Key Benefits
- Linen bands offer higher strength and durability for demanding hardcover work
- Decorative edge stitching supplied in matched or contrasting colours
- Widths and thicknesses cut to your block and case specification
- Pantone matched to case cloth, endpaper or a printed cover
- Supplied on rolls sized to your case-in line
Problems It Solves
- Weak material chosen for a hardcover that has to survive library use
- Shade that drifts between the approved sample and the delivered rolls
- Suppliers who quote a price without committing to a date
Who It Is For
- Print finishers and book manufacturers
- Publishers specifying trim details on a series
- Stationery and notebook producers building cased products
Application Scenarios
- Library and reference editions
- Boxed sets and slipcased editions
- Menu covers and cased stationery
- Head and tail of a sewn hardcover book block
Technical Features
- Cotton bands are flexible and easy to adhere, so they go on in one application
- Linen bands offer higher strength and durability for demanding hardcover work
- Decorative edge stitching supplied in matched or contrasting colours
- Widths and thicknesses cut to your block and case specification
What Is On The Specification Sheet
Everything below comes from our own specification table for this item. Width is made to your request, so it is quoted rather than listed.
| Product Type | Book Head and Tail Bands |
|---|---|
| Catalogue Reference | ht-bands-hand-and-tail-10 |
| Material | PP, cotton, polyester, nylon; eco-friendly and non-toxic yarns |
| Colour | Pantone matched or to your own reference |
| Thickness | 0.65 mm to 2.5 mm or custom |
| Width | Made to your request |
| Logo Method | Computer jacquard |
| Testing | SGS |
| OEM | Welcome |
| Payment Terms | T/T, Western Union, PayPal |
| Shipping Terms | EXW, FOB, CIF |
| Sample Time | 3 to 7 days |
| Production Time | 7 to 15 days |
| Packing | 500 yards for one roll 30 rolls for one carton or by your request |
| Minimum Order | 1000 metres |
Materials
- Cotton, which is flexible and easy to adhere
- Linen, which is stronger and more durable though less pliable
- Polyester, which offers lower structural support and is not recommended where hardcover durability is critical
Quality Control
- Width checked against the block thickness it has to cover
- Edge stitch density inspected along the roll
- Adhesion trialled on your own board and cloth before bulk despatch
- Shade checked against the approved case cloth or endpaper swatch
What You Can Change
- Roll length set to your case-in line changeover
- Cotton, linen or polyester construction
- Striped, two-tone or solid colour edge stitching
- Widths cut to your block specification
How This Item Is Made
- Material and colour selection
- Ground weaving
- Decorative edge stitching
- Setting and width inspection
- Adhesion check on a sample block
- Rolling and packing
How It Compares
Linen carries higher strength and durability but is less pliable and may need a second application to lie flat. Cotton goes on in one pass, which is usually the deciding factor on a running line.
Polyester provides relatively lower structural support and we do not recommend it for hardcover binding where durability matters. It has a place on lighter cased stationery.
A woven band with stitched edges shows a genuine textile edge at the head of the block. Printed paper reads flat and wears at the corners.
Use Guide
- Trial adhesion on your own board and cloth before committing a run
- Choose cotton where the line applies in a single pass
- Specify linen where the finished book will see library or archive handling
- Match the band width to the thickness of the trimmed block, not to the case
Other Headband References
Related Products
Where It Is Used
Capabilities
Background Reading
Questions Buyers Ask About Bookbinding Head and Tail Band No 22
Should I choose cotton or linen headbands
Cotton is flexible and easy to adhere, so it is convenient to apply. Linen offers higher strength and durability but is less pliable and may require a second application to achieve a smooth finish. Line speed usually decides it.
Are polyester headbands suitable for hardcover books
Polyester provides relatively lower structural support and is generally not recommended for hardcover binding where higher durability is required. We will say so rather than sell you the cheaper option.
Can our logo be added to this tape
Either woven in with a computer jacquard plate, which survives washing and abrasion, or screen printed after weaving, which costs less to set up on short runs.
How is this item packed for export
50 yards per roll and 30 rolls per carton as standard, with some items on 500 yard rolls. We pack to your own list when you have one.
Which shipping and payment terms do you work on
EXW, FOB or CIF for shipping. Payment by T/T, Western Union or PayPal.
Ask About Bookbinding Head and Tail Band No 22
Quote the catalogue reference with your width, thickness and colour and we will come back with price, minimum quantity and a delivery date.
