TTM Solar Panel 530-550W
A 182 mm monocrystalline half-cell module in a 144 (6x24) layout, 2279 x 1134 x 35 mm, 32.2 kg, with 2.0 mm AR-coated front glass and an IP68 junction box.
Product Overview
The TTM 530-550 W is the general-purpose module in the TITAN X POWER range and the one most residential and light commercial systems are built from. It uses 144 half-cells cut from 182 mm monocrystalline wafers - the same platform the homepage calls the TTM-144 Series - behind a 2.0 mm anti-reflective semi-tempered front glass, with a 2.0 mm glazed semi-tempered rear glass and an anodised aluminium alloy frame.
What makes it the default choice is the 1134 mm width. A pitched domestic roof is broken up by ridges, valleys, vents and setback rules, and a narrower module lets you land more full rows before you run out of clean rectangle. The thinner glass stack also keeps the module at 32.2 kg, which matters when the crew is carrying panels up a ladder rather than across a flat deck.
What This Product Fixes on Site
Wide modules waste pitched-roof area
At 1134 mm the module fits more layouts between obstructions, so fewer part-rows are abandoned.
Shading from chimneys and dormers
The 144 (6x24) half-cell layout with 3 or 6 bypass diodes contains the loss instead of dragging a whole string down.
Freight cost per watt on small projects
620 pieces per 40HQ is the highest module count in this range, which spreads container cost across more watts.
Heavy panels slow rooftop work
32.2 kg keeps the module inside normal two-person handling for ladder and scaffold work.
Why Buyers Specify This Product
Narrow 1134 mm footprint
Lays out cleanly on pitched roofs where the larger 1303 mm module would strand rows.
620 pcs per 40HQ
The best container density in the range, published so you can model landed cost.
144 half-cell layout
182 mm monocrystalline cells in a 6 x 24 arrangement with 3 or 6 bypass diodes.
Light glass stack
2.0 mm AR-coated front glass and 2.0 mm glazed rear glass.
IP68 junction box
Same sealed junction box specification as the rest of the TTM range.
Cable to suit the layout
300 mm portrait, 1200 mm landscape, or customised at order.
Where It Is Installed
Pitched residential roofs
Tiled and metal roofs on houses, as installed on the Lithuanian and Norwegian projects in this range.
Small commercial rooftops
Shops, workshops and offices where the array is 10-100 kW.
Rooftop retrofits
Existing buildings where the roof layout was never designed around PV.
Off-grid and hybrid systems
Residential systems paired with inverters and storage.
The Buyers This Product Was Designed Around
- Residential solar installers working on pitched roofs
- Distributors who want one high-volume SKU that fits most jobs
- Integrators assembling 5-30 kW residential kits
- Contractors doing rooftop retrofits on existing buildings
How It Is Built
- Cell technology — Monocrystalline half-cell, 182 x 182 mm wafer, 144 cells in a 6 x 24 arrangement.
- Front glass — 2.0 mm (0.08 in) AR-coated semi-tempered glass.
- Rear glass — 2.0 mm (0.08 in) glazed semi-tempered glass.
- Frame — Anodised aluminium alloy.
- Junction box — IP68, with 3 or 6 bypass diodes.
- Cable — TUV 4 mm2 (0.006 in2) or UL 12 AWG; portrait 300 mm, landscape 1200 mm, or customised.
Full Mechanical Specification
Values below are as published for this product. Anything that was never published is marked TBC rather than estimated.
| Cell Type | Monocrystalline |
|---|---|
| Cell Dimensions | 182 x 182 mm |
| Cell Arrangement | 144 (6 x 24) |
| Module Dimensions | 2279 x 1134 x 35 mm (89.7 x 44.6 x 1.4 in) |
| Weight | 32.2 kg (71 lbs) |
| Front Glass | 2.0 mm (0.08 in) AR coating semi-tempered glass |
| Rear Glass | 2.0 mm (0.08 in) glazed semi-tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68 |
| No. of Bypass Diodes | 3 / 6 |
| Cable Length | Portrait 300 mm / Landscape 1200 mm / customized |
| Cable Cross Section Size | TUV: 4 mm2 (0.006 in2) / UL: 12 AWG |
| Packing Configuration | 31 pcs / carton, 620 pcs / 40HQ |
| Power Class | 530-550 W |
| Power Tolerance | TBC - confirm per production batch |
| Module Efficiency | TBC - confirm per power bin |
| Operating Temperature Range | TBC |
| Product and Performance Warranty | TBC - confirm in writing at order |
What It Is Made Of
Monocrystalline silicon cells cut from 182 mm wafers; 2.0 mm anti-reflective semi-tempered front glass; 2.0 mm glazed semi-tempered rear glass; encapsulant and backing per the glass-glass build; anodised aluminium alloy frame; IP68 polymer junction box with bypass diodes; TUV 4 mm2 or UL 12 AWG PV cable.
CertificationsCertification Status
TBC. No certificate list was published for this module, so none is claimed here. Ask us by email for the current document pack and we will send only what is held for the module and bin you are quoting.
What Can Be Changed
- Cable length - 300 mm portrait, 1200 mm landscape, or custom
- Cable standard - TUV 4 mm2 or UL 12 AWG
- Bypass diode count - 3 or 6
- Power bin selection within the 530-550 W class
- Carton and container plan for the destination port
From Cell to Crate
Cell cutting and sorting
182 mm monocrystalline cells are cut to half-cell format and sorted.
Stringing and lay-up
144 half-cells are strung and laid up in a 6 x 24 arrangement on the automated line.
Lamination
The stack is laminated and trimmed at the lamination workstation.
Framing and junction box
Anodised aluminium frame fitted, IP68 junction box bonded and sealed.
Test and sort
Flash test, then sorting into power bins.
Packing
31 pieces per carton, 620 pieces per 40HQ.
What Is Checked Before Packing
- Automated module line reduces manual handling of bare laminates
- Flash test and power binning before packing
- Frame, glass and junction box seal inspected before crating
- Export crates sealed and marked before container loading
How It Compares With the Rest of the Range
| TTM 530-550 W | TTM 585-605 W | Mounting Structure | |
|---|---|---|---|
| Cell size | 182 x 182 mm | 210 x 210 mm | n/a |
| Cell count | 144 (6 x 24) | 120 (6 x 20) | n/a |
| Module size | 2279 x 1134 x 35 mm | 2172 x 1303 x 35 mm | Configured to site |
| Weight | 32.2 kg | 31.6 kg | Aluminium alloy, light |
| Front glass | 2.0 mm AR | 3.2 mm AR | n/a |
| Pcs per 40HQ | 620 | 558 | n/a |
| Best fit | Pitched residential roof | Flat roof, ground mount | Roof and ground racking |
Getting It Right on Site
Lay out around obstructions first
Mark chimneys, vents and setbacks, then fit full 1134 mm rows into what is left. Do not start from the ridge.
Pick the cable length before you order
300 mm for portrait rows, 1200 mm for landscape. Getting this right removes most of the cable management work on the roof.
Respect the 32.2 kg lift
Two people per module on ladders and scaffolds. Stage pallets near the working row.
Keep bypass diodes in mind when stringing
With 3 or 6 diodes per module, group shaded areas into the same string rather than spreading them across all strings.
Order in carton multiples
31 pieces per carton, 620 per 40HQ. Round your order to whole cartons.
Also in the Range
TTM Solar Panel 585-605W
A 210 mm monocrystalline half-cell module in a 120 (6x20) layout, 2172 x 1303 x 35 mm, 31.6 kg, with 3.2 mm AR-coated front glass and a...
View Specification
Mounting Structure
Solar racking and mounting structure in aluminium alloy, designed with flexibility for commercial and residential systems, suitable for...
View SpecificationProjects Using This Product
10 kW Residential Rooftop in Lithuania
A domestic tiled roof with dormers and a chimney is the hardest kind of surface to lay out cleanly, and a Baltic climate adds wint...
Read the Case Study
100 kW Rooftop Array in Thailand
Tropical conditions - high ambient temperature, intense sun and monsoon rain - and a roof structure that carries a decorative cano...
Read the Case StudyGuides Worth Reading First
Monocrystalline vs Multicrystalline vs Thin Film Solar Panels
The three panel technologies you will be quoted, what each one costs you in area and budget, and which one belongs on your project.
Read the Guide

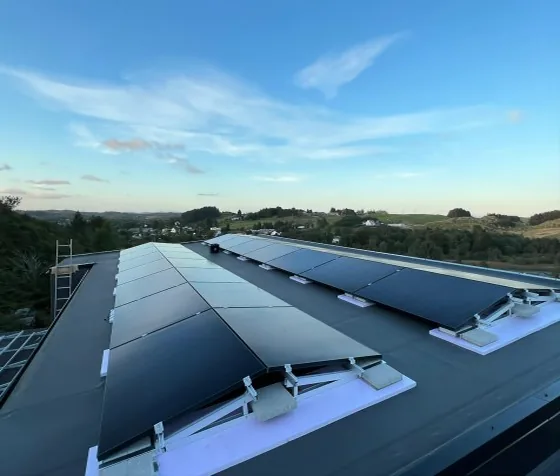

Sizing a Residential Solar Array on a Real Roof
How to get from a roof plan to a module count without discovering on install day that three rows do not fit.
Read the GuideTTM Solar Panel 530-550W FAQ
What power will I actually get
The module ships in the 530-550 W class and is sorted into bins after flash test. Specify the bin you need and we will confirm what that batch can supply.
Why is this heavier than the larger 585-605 W module
Because it is longer - 2279 mm against 2172 mm - so it covers a slightly different area even with thinner glass.
How many fit in a 40HQ
620 pieces, 31 per carton.
Is this the TTM-144 series
Yes. The 144 (6x24) half-cell layout on 182 mm monocrystalline cells is the TTM-144 platform.
Can I order UL-spec cable instead of TUV
Yes. The module is offered with TUV 4 mm2 or UL 12 AWG cable. State which at order.
Do you sell the inverter too
TITAN X POWER supplies branded third-party inverters alongside the modules rather than manufacturing them. Tell us the system size and we will quote what we can source.
Get a Price for the TTM Solar Panel 530-550W
Email the quantity, the power bin and your destination port. We reply with availability, the carton count and the container plan.
