Two Production Routes
Stamping press hemispheres cover Φ20 mm to Φ700 mm with 0.6 mm to 3 mm thickness. Welded and assembled hemispheres cover Φ200 mm to Φ3500 mm with the same thickness range. Weld seams on assembled domes are finished so they are invisible.
Materials include stainless steel, carbon steel, brass and aluminium.
Finishes

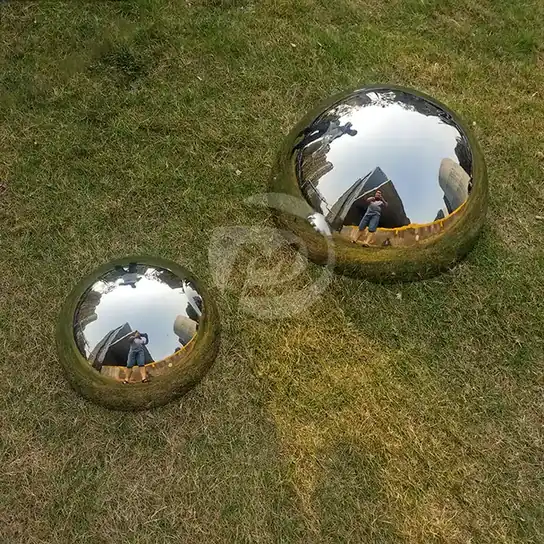

Mirror polish, mill finish, brush, electroplating, sandblasting, etching and silk printing are all available. Double sided polishing is possible where both faces are seen, and internal plus external polishing is offered on dome work.
Choosing Between Them
Small repeat quantities suit stamping, because the press gives consistent geometry batch after batch. Large architectural domes have to be assembled and welded, and the work then moves into seam finishing and polishing.
Specification Reference
| Sphere diameter | 19 mm to 5000 mm |
|---|---|
| Wall thickness | 0.6 mm to 6 mm |
| Stainless grades | AISI 201, 304, 316, 316L |
| Other metals | Carbon steel, brass, copper, aluminium, corten steel |
| Finishes | Mirror polish, Mill finish, Brushed, Electroplating, Sandblasting, Etching, Silk printing, Spray painted RAL colour |
| Forming | Water pressure forming, mould pressing, spinning |
| Freight limit | 7 feet by conventional freight |
