Mirror Polished Metal Spheres and Sculpture Built to Your Drawing
We manufacture hollow stainless steel spheres, hemispheres, concave discs and custom metal sculpture for designers, artists, architects and landscape contractors. No standard die limits the size, and the weld seam does not show in the reflection.
What We Make
Spheres Hemispheres Discs and Sculpture
Hollow metal spheres, stamped and welded hemispheres, mirror concave discs, VFX reference balls, fountain spheres, corten and stainless sculpture.
Who We Serve
Artists Architects Designers and Contractors
Sculptors and studios, architects and developers, landscape and interior designers, garden retailers and film production teams.
What Problem We Solve
Sizes and Surfaces Nobody Else Will Quote
Diameters with no existing tooling, mirror reflections that break at the weld line, and mounting details left unresolved until installation day.
Why Buy From Us
One Workshop From Drawing to Freight
A 3D drawing team, three forming routes, eight finishing routes and express, air or sea freight arranged from here.
Product Categories
What We Build
Eleven categories, all built to order. Nothing here is limited to a catalogue size.
Selected Products
Work Leaving the Workshop

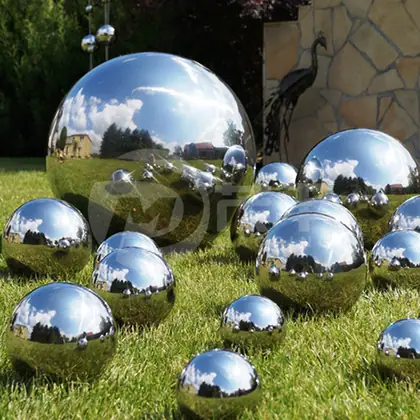

100 200 300 400 500 600mm Stainless Steel Garden Ball Hollow Steel Sphere
View Product

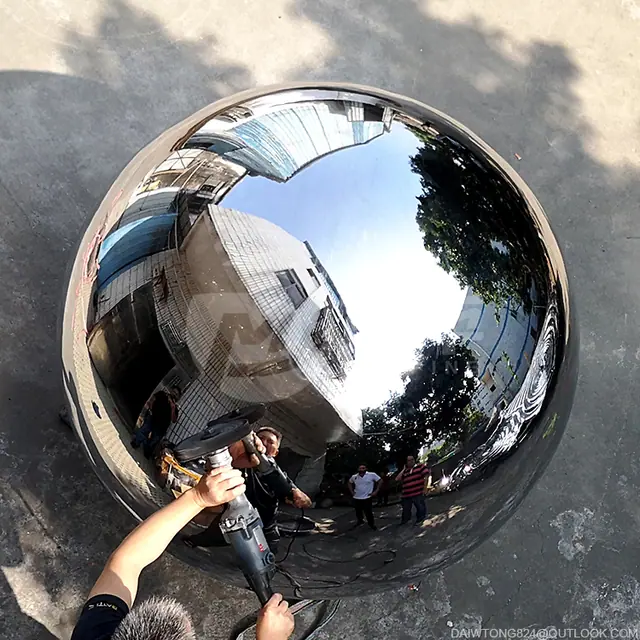

1.6M Stainless Steel Huge Hollow Mirror Sphere
View Product

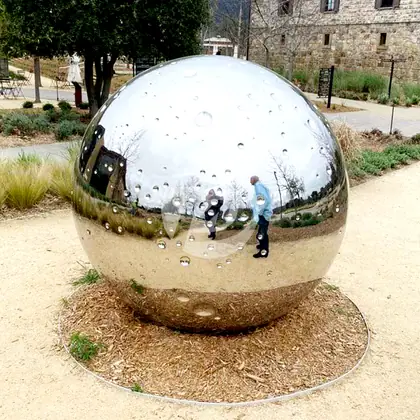

1600mm Garden Decoration Large Metal Sphere Moon Sculpture Polished Mirror
View Product

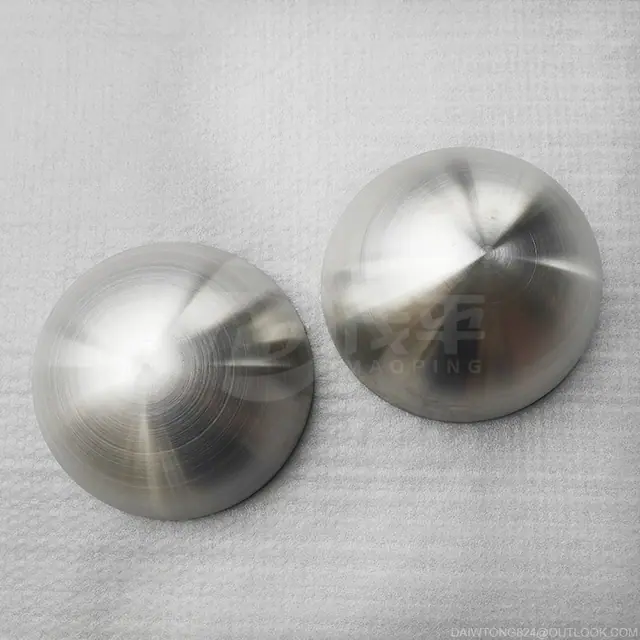

12 Inch 24 Inch 36 Inch Steel Hemisphere Brushed Metal Dome
View Product

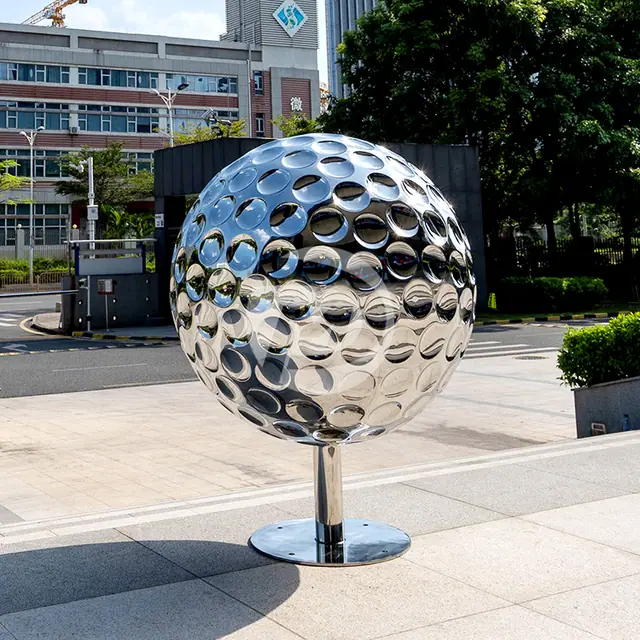

36 Inch Stainless Steel Golf Ball Sculpture
View Product

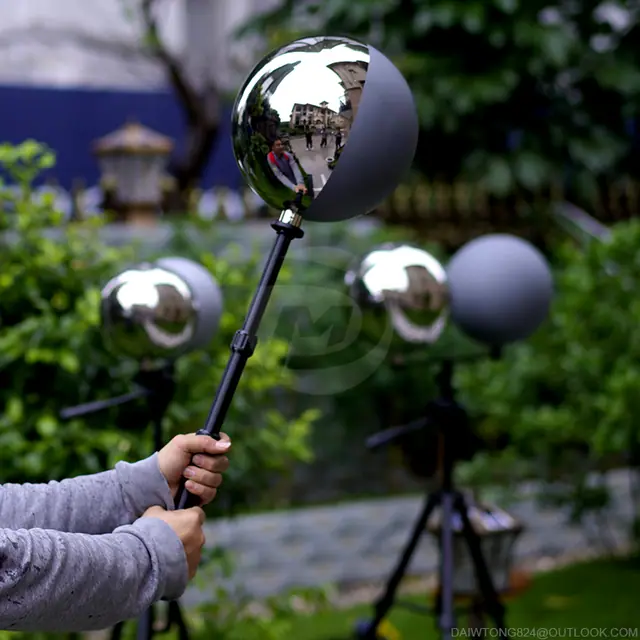

10 Inch Chrome and Grey VFX Ball 18% Reflective Grey Ball
View Product

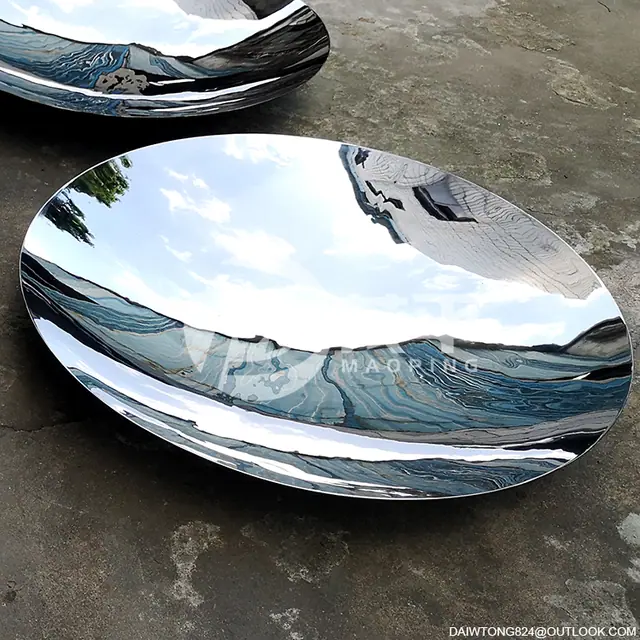

1000mm Mirror Stainless Steel Concave Disc
View Product

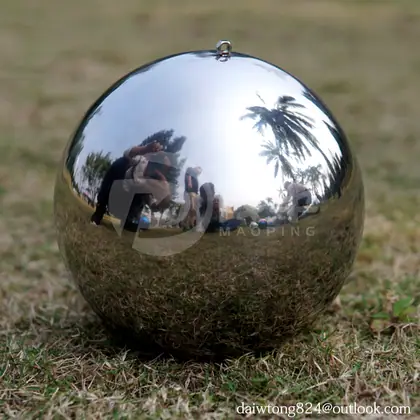

200mm Garden Decoration Stainless Steel Hollow Steel Balls
View Product
Capability
What the Workshop Can Actually Do
These are the ranges we quote against every day. If a size sits outside them we will tell you before you commit to a design.
- Sphere diameter
- 19 mm to 5000 mm
- Wall thickness
- 0.6 mm to 6 mm
- Stamped hemispheres
- Φ20 mm to Φ700 mm
- Assembled hemispheres
- Φ200 mm to Φ3500 mm
- Stainless grades
- AISI 201, 304, 316, 316L
- Other metals
- Carbon steel, brass, copper, aluminium, corten
- Finishes
- Mirror, mill, brushed, plated, sandblasted, etched, printed, RAL sprayed
- Freight
- 7 feet by conventional freight, larger by arrangement
Manufacturing Process
How a Mirror Sphere Is Formed
Three routes, chosen by diameter, wall thickness and quantity.
Water Pressure Forming
Technicians calculate the exact developed size for each steel sheet, the sheet is bent into leaf shapes, welded into an approximate spherical cube and then expanded into a true sphere under water pressure. Weld seams are ground off and the surface is mirror polished. There is no standard die limiting the size, so any diameter can be built to a drawing.
Best for: Large and giant spheres, one-off commissions, sizes with no existing tooling
Mould Pressing
Sheet is deformed against a mould, two hemispheres are welded together, the weld seam is ground back and the ball is polished or brushed. Available from 5 mm to 500 mm diameter with 0.6 mm to 6 mm wall thickness, with drilling and tapping to your drawing and invisible weld seams.
Best for: Repeat batches of small and medium balls, gazing balls, drilled and tapped balls
Spinning
Two hemispheres are metal spun and then welded together, ground and polished. This is the route that produces the thickest wall sections we offer.
Best for: Heavy wall spheres and hemispheres, structural or high impact locations
Applications
Where the Work Is Installed
Public Art and Urban Landscape
Sphere and sculpture commissions for plazas, parks and civic landmarks
Read More
Garden and Landscape Design
Gazing balls, garden spheres and hemispheres for residential and estate landscape
Read More
Architecture and Interiors
Mirror spheres, hemispheres and concave discs for lobbies, retail and hospitality
Read More
Water Features and Fountains
Sphere fountains with the pipe, funnel and base plate built into the ball
Read More
Film and VFX Production
Chrome and 18 percent grey reference balls for on set lighting capture
Read More
Artist and Designer Commissions
Fabrication for sculptors, studios and design practices working in mirror steel
Read More
Global Projects
Commissions We Have Delivered
Sizes, materials and locations exactly as the client recorded them.

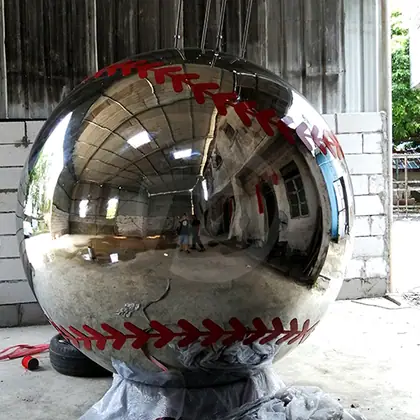

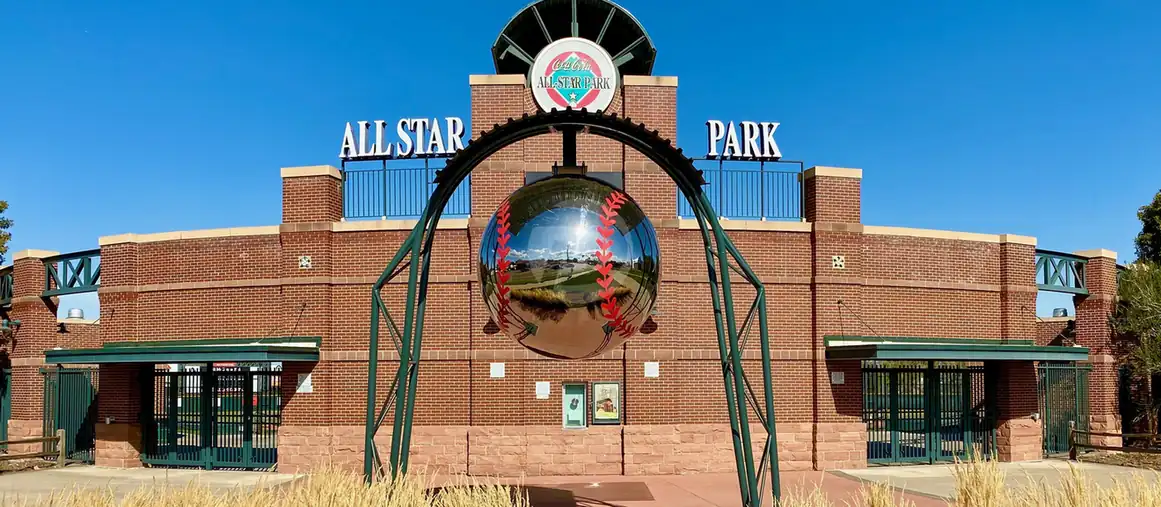

Eye on the Ball at Coca-Cola All-Star ParkLakewood, Colorado, United States

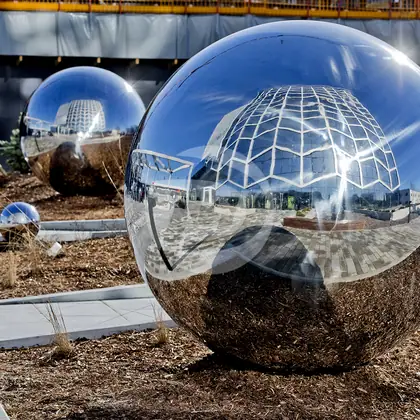

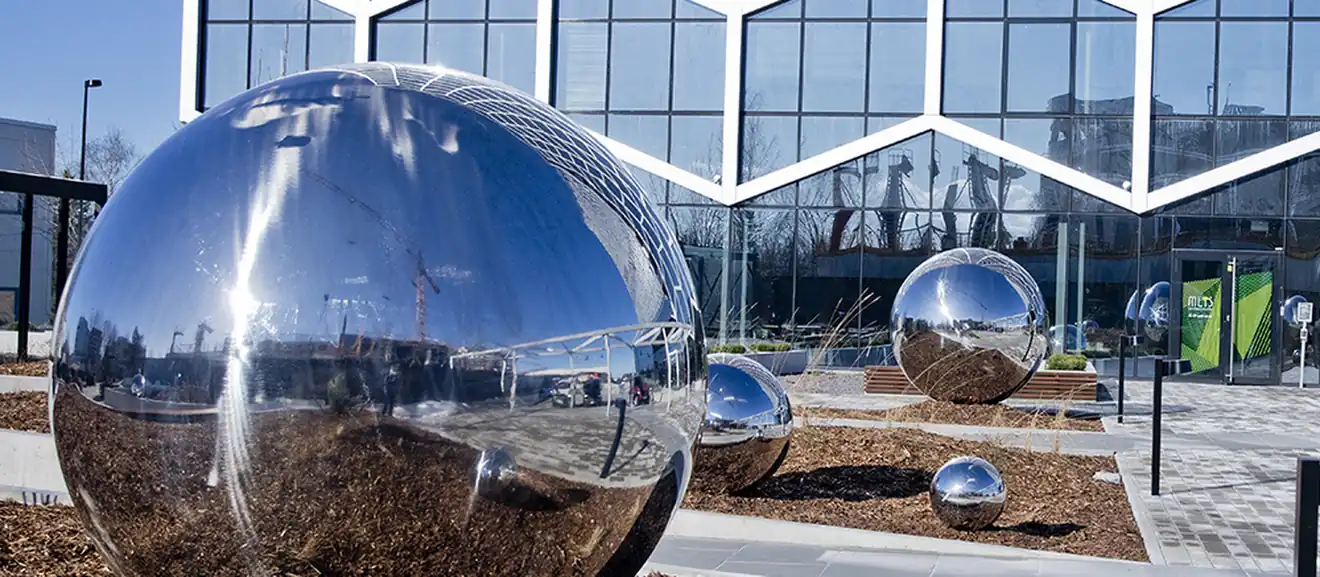

Stainless Steel Ball Group in EstoniaEstonia

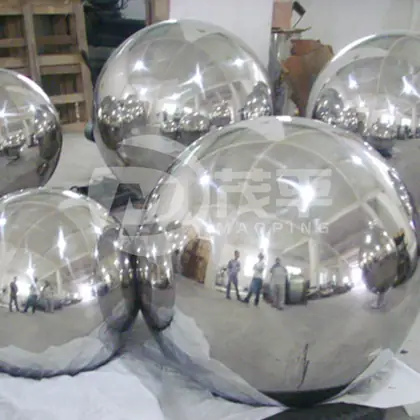

Ten Sphere Installation in TaiwanTaiwan, China

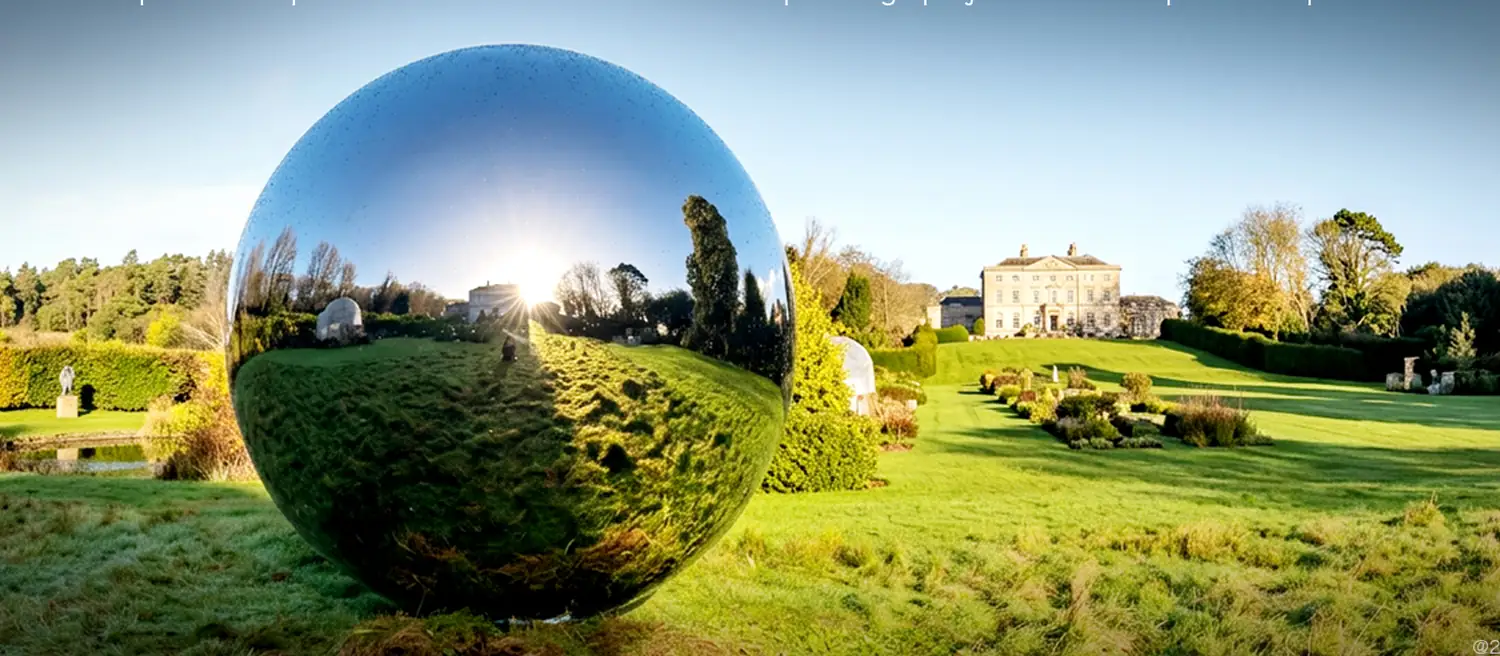

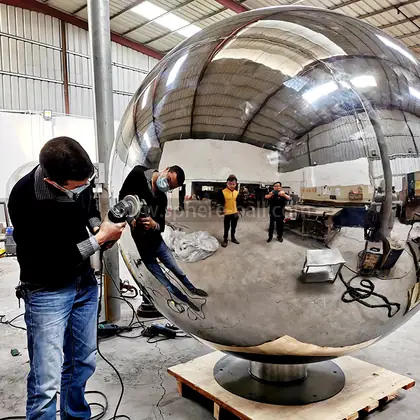

84 Inch Garden Mirror Sphere in CorkCork, Ireland

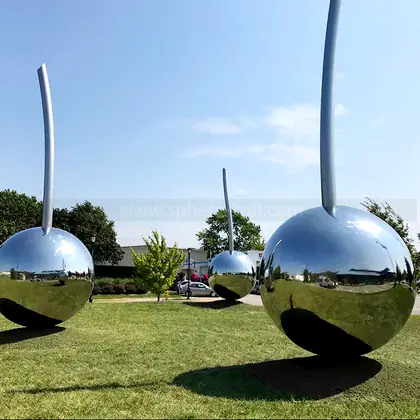

Three 2400 mm Spheres at Merriam MarketplaceMerriam Marketplace, United States

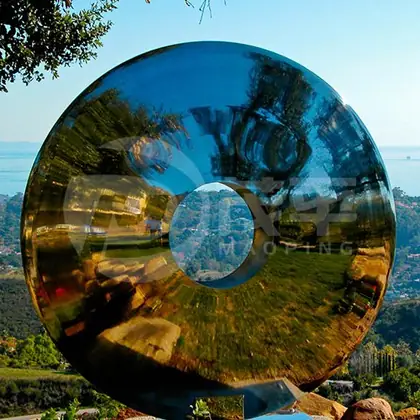

2000 mm Eye Sculpture in the United KingdomUnited KingdomKnowledge Center
Specify Before You Commit
Material Guide Stainless Steel Grades for Spheres and Sculpture
Which grade to specify for an indoor lobby, a coastal plaza or a fountain basin, and what changes when you mov
Process Guide How a Mirror Polished Sphere Is Made
The three forming routes we use, why there is no standard die limiting the diameter, and how the weld seam is
Design Guide Specifying a Sphere for Your Project
The eight things to put on a drawing so a sphere can be quoted, built and installed without a second round of
Guide to Metal Hemispheres and Domes
Stamping, spinning and welded assembly, with the size ranges each route covers.
FAQ
Frequently Asked Questions
The questions buyers ask before they send a drawing.
What exactly do you manufacture?
Hollow metal spheres, hemispheres and domes, mirror concave discs, chrome and grey VFX reference balls, sphere water features, corten steel sculpture and custom stainless steel sculpture. Diameters run from 19 mm to 5000 mm with 0.6 mm to 6 mm wall thickness.
Who do you normally work with?
Sculpture artists and studios, architects, real estate developers, landscape designers, interior designers, art consultants, garden retailers and film production teams.
Can you build from my own design?
Yes. Our factory keeps a 3D drawing design team and an in house artist team, and we work from a small sample, an idea, a 3D drawing or detailed photographs. OEM and ODM orders are welcome.
Which stainless steel grade do you recommend?
AISI 304 for indoor sculpture and AISI 316 or 316L outdoors, particularly in coastal cities and acid rain regions where corrosion resistance matters. We do not recommend 201 for sculpture.
How large a piece can you ship?
7 feet is the largest sphere diameter that ships by conventional freight. Larger sizes can be produced with special shipping arranged in advance.
How do I get a price?
Send the diameter, grade, finish, quantity and destination country on WhatsApp or by email. There is no form on this site.
Next Step
Send Us A Size And A Drawing
Diameter, grade, finish, quantity and destination country are enough for a price and a lead time. There is no form here, just WhatsApp and email.
