20W LED Track Light Built-In Driver
The CH-GD8812 is a 20W LED track light with a built-in Lifud flicker-free driver, designed for retail and commercial interiors where consistent lumen output and colour accuracy are required. It operates on 220-240VAC, delivers 1800 lumens at 90lm/w, and uses a CREE LED chip with CRI above 90, ensuring accurate colour rendering for merchandise and interior surfaces. The head rotates 355 degrees horizontally and tilts 90 degrees vertically, allowing re-aiming after installation. The beam angle is selected at order from 15, 24, 36, 45 or 60 degrees. Dimming is optional via Triac or DALI and must be specified at order. The adapter is available in 2, 3 or 4 wire versions to match existing track systems.
Ask for the IES file or a Dialux calculation with your enquiry.
What This Fixture Does For You
- CRI above 90 ensures accurate colour rendering for retail displays and interior finishes
- 1800 lumens from 20W means high output without excessive power draw
- 90lm/w efficiency matches or exceeds many lower-cost alternatives
- Built-in Lifud driver provides stable output and avoids flicker on camera
- 355 degree rotation and 90 degree tilt allow re-aiming when layout changes
- Beam angle selected at order ensures precise lighting control per zone
- 2, 3 or 4 wire adapter supports compatibility with existing track systems
| Model | CH-GD8812 |
|---|---|
| Input Voltage | 220-240VAC |
| Frequency | 50Hz / 60Hz |
| System Power | 20W |
| Driver | Lifud flicker free, DC30-40V 500mA output |
| LED Chip | CREE |
| CRI | >90 |
| System Lumen | 1800lms |
| Efficiency of Fixture | 90lm/w |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 6000K |
| Beam Angle | 15°, 24°, 36°, 45°, 60° |
| Housing Material | Extrusion aluminium |
| Adapter | 2 / 3 / 4 wires |
| Dimming | Triac or DALI optional |

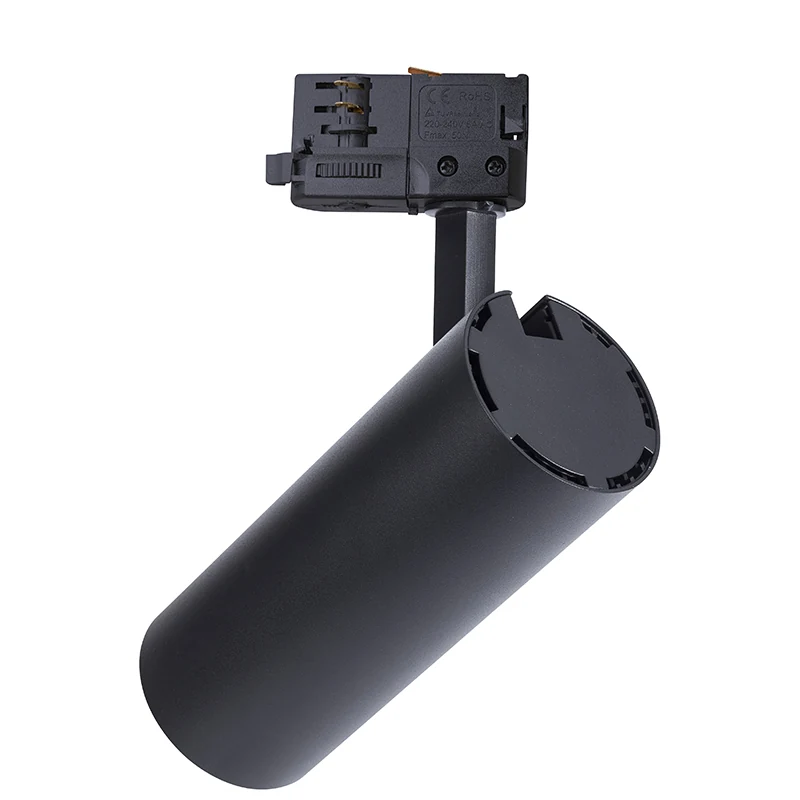

| Adjustment | 355° rotatable, 90° vertical |
| Heatsink Size | Ø72x178mm |
Buyers And Applications
Who Buys It
- Lighting importers sourcing commercial track lights for retail contractors
- Electrical wholesalers needing 2, 3 and 4 wire options from one supplier
- Lighting designers specifying beam angle and dimming per zone in a layout
- Shopfitting contractors replacing halogen spots with lower-power LED
- Hospitality FF&E buyers upgrading lighting in hotels and private residences
Where It Is Used
- Retail shop floors where product colour must match in-store and online images
- Showrooms and galleries needing precise beam control for vehicles and displays
- Supermarket aisles lit on a separate circuit with dimming for evening hours
- Hotel lobbies and reception areas where fittings are re-aimed for seasonal layouts
- Villas and high-end residential spaces where adjustable lighting enhances ambiance
What Goes Wrong Without It
- Halogen track lights that draw more power for the same visual brightness
- Low-CRI LED spots that make red and brown products look dull and flat
- Fixed beam fittings that cannot be re-aimed when the store layout changes
- Cheap drivers that flicker on camera or fail early in warm ceiling voids
- Mismatched adapters when retrofitting existing track systems with new fixtures
How It Is Built
- CREE LED chip with CRI above 90 for colour-critical commercial lighting
- Lifud flicker-free driver with DC30-40V 500mA output for stable performance
- Power factor above 0.95 to reduce reactive load on the electrical circuit
- Extruded aluminium housing acting as the primary heatsink for long-term output
- Optional Triac or DALI dimming declared at order
- 355 degree horizontal rotation and 90 degree vertical tilt for re-aiming
- 2, 3 or 4 wire adapter to suit single or multi-circuit track systems
- Beam angle selected at order from 15, 24, 36, 45 or 60 degrees
Materials
- Extruded aluminium housing and heatsink
- Polycarbonate and aluminium optical assembly
- Powder coated finish applied in our own coating plant
Certifications
- CE
- RoHS
- CCC
- CQC
- ISO 9001:2015 quality system
How It Is Made And Checked
Manufacturing Process
- Aluminium extrusion cut and machined to the CH-GD8812 heatsink profile
- Powder coating in house so finish colour is matched batch to batch
- LED board mounted and thermally bonded to the extrusion
- Lifud driver wired and the adapter fitted to the ordered wire count
- Optic and beam angle lens fitted per order
- Aging test on an automatic aging line before packing
Quality Control
- Incoming inspection of LED chips, drivers and extrusions before assembly
- Photometric testing to confirm lumen output and colour temperature
- Temperature testing on the assembled fixture
- Aging test on one of two automatic aging lines
- Reliability testing before the batch is released
- 100% inspection of every fixture before shipment
What We Can Change For You
- Beam angle selected from 15, 24, 36, 45 or 60 degrees at order
- Colour temperature selected from 2700K to 6000K
- Adapter supplied in 2, 3 or 4 wire configuration
- Triac or DALI dimming version
- Housing colour changed in our own powder coating plant
- 3D drawing within 2 days and mock-up sample within 3 days for OEM designs
How It Compares With The Alternatives
| Halogen track spotlight | Draws 20W against several times that for similar visual output, but the initial fixture cost is higher |
|---|---|
| 15W zoomable track light | Higher output for larger retail zones, but the beam angle is fixed at order rather than adjustable on site |
| Recessed COB downlight | Re-aimable and surface mounted, so better for changing layouts, though it is visible rather than flush in the ceiling |
| Integrated linear rail systems | Individually aimed heads give sharper accent control, but need more setting out on site |
Before You Order And Before You Install
- Confirm the installed track is 2, 3 or 4 wire before ordering the adapter
- Use 15 or 24 degrees for accent on merchandise and 45 or 60 degrees for general wash
- Mount the rail 2.8 to 3.5 metres above the floor for typical commercial ceiling heights
- Group heads on the same circuit if you plan to dim them together
- Specify Triac or DALI at order because dimming is not field-retrofittable
- Ask for a Dialux calculation before finalising head count and spacing
Other Fixtures For The Same Ceiling
2 Wire 30W LED Track Light
4 Wire 40W LED Track Light
4 Wire 10W LED Track Light
30W Zoomable LED Track Light
Frequently Asked Questions
What beam angles can I order for this track light?
15, 24, 36, 45 and 60 degrees. The beam angle is set at production, so tell us the mix per container when you place the order.
Does it work on my existing track?
The adapter is made in 2, 3 and 4 wire versions. Send a photo of the rail end and adapter and we will confirm the match before production.
Is it dimmable?
Triac and DALI versions are both available and must be chosen at order. The standard version is not dimmable.
What CRI and lumen output can I expect?
CRI above 90 with 1800 system lumens at 20W, which is 90 lumens per watt at fixture level.
Which certifications do you hold?
Our fixtures are certified to CE, RoHS, CCC and CQC, and the factory is certified to ISO 9001:2015.
Can you make an OEM version with our housing colour?
Yes. We run our own powder coating plant, so housing colour changes are done in house. We can send a 3D drawing in 2 days and a mock-up sample in 3 days.
Can you supply photometric files for our lighting design?
Yes, we supply IES files and can run Dialux calculations for your layout.
Request A Quote On The 20W LED Track Light Built-In Driver
Send the quantity, colour temperature and beam angle. If you are matching an existing installation, send a photo of the rail end or the ceiling aperture with the enquiry.
