Soxhlet Extractor

The Soxhlet extractor is a laboratory apparatus used for continuous solvent extraction of solid samples. It operates on the principle of solvent reflux and siphon action, enabling efficient and solvent-saving extraction of compounds from solid matrices. The system consists of a condenser, extraction tube, and extraction flask, all connected via standard taper joints. Available in volumes from 60 ml to 2000 ml, it supports both ball-shaped and snake-shaped condensers for different application needs.

Continuous extraction with minimal solvent use, reducing reagent cost and waste
High extraction efficiency due to repeated solvent reflux and siphon cycles
Standard taper joint compatibility ensures secure, leak-free assembly across all components
Available in multiple sizes (60 ml to 2000 ml) to match sample volume and throughput requirements

Key Benefits

What This Product Gives You

Continuous extraction with minimal solvent use, reducing reagent cost and waste
High extraction efficiency due to repeated solvent reflux and siphon cycles
Standard taper joint compatibility ensures secure, leak-free assembly across all components
Available in multiple sizes (60 ml to 2000 ml) to match sample volume and throughput requirements
Clear separation of condenser, extraction tube, and flask allows for easy setup and cleaning

Standard taper joint connections for secure, leak-resistant assembly

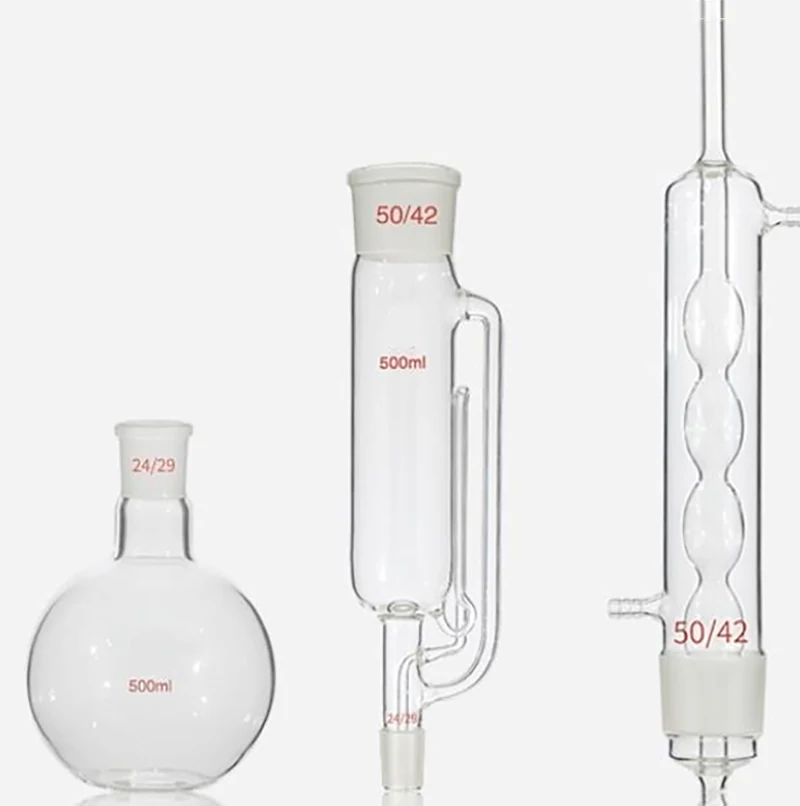

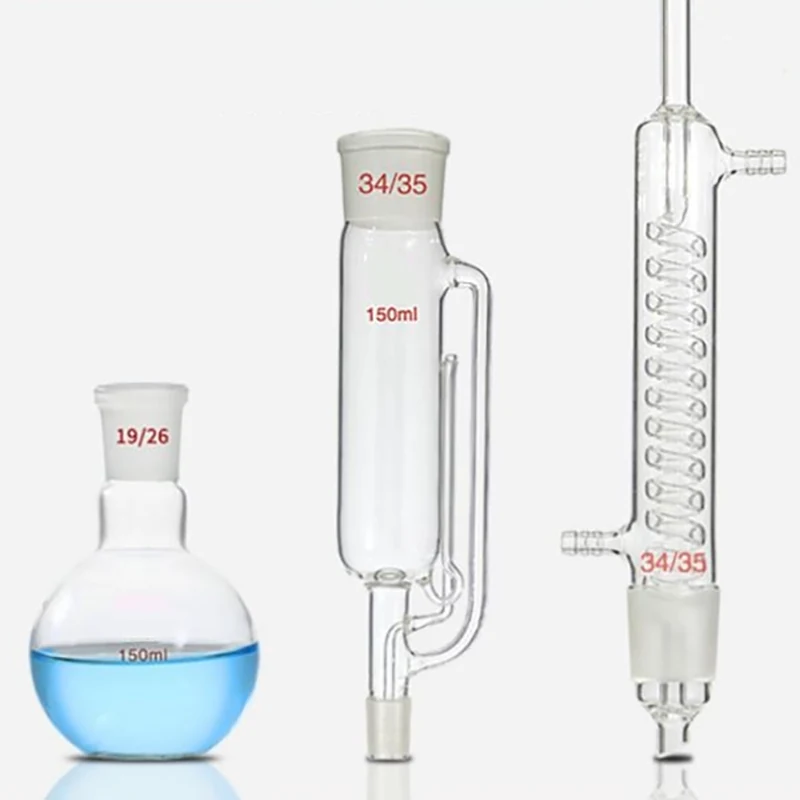

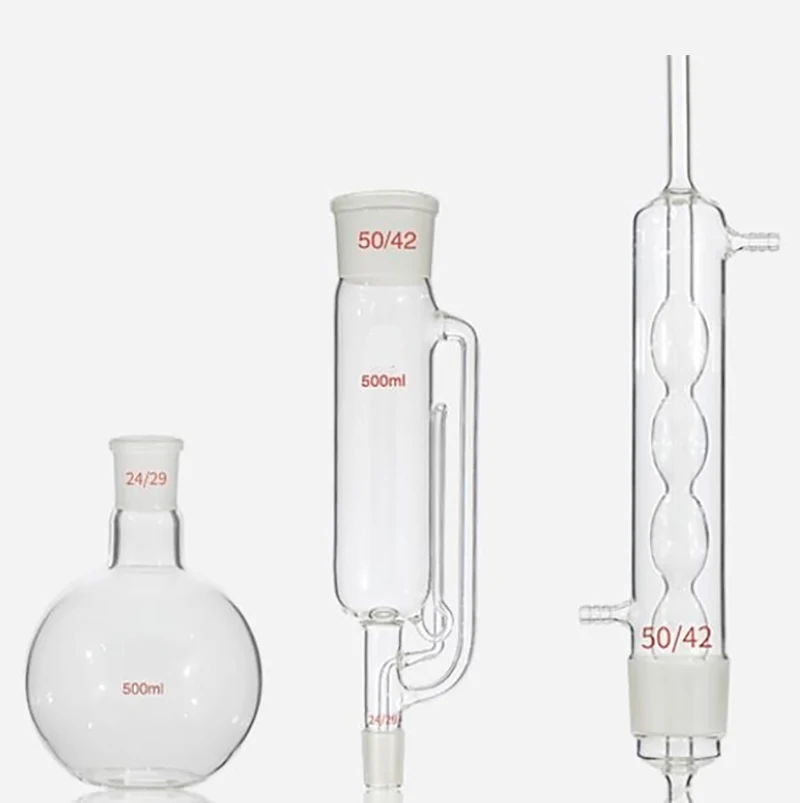

Ball-shaped and snake-shaped condenser options for different condensation efficiency needs
Siphon tube with Φ6 mm diameter to ensure consistent liquid return
Effective condenser length from 230 mm to 370 mm depending on size
Extraction tube length from 230 mm to 445 mm, with upper and lower taper joints matching flask and condenser

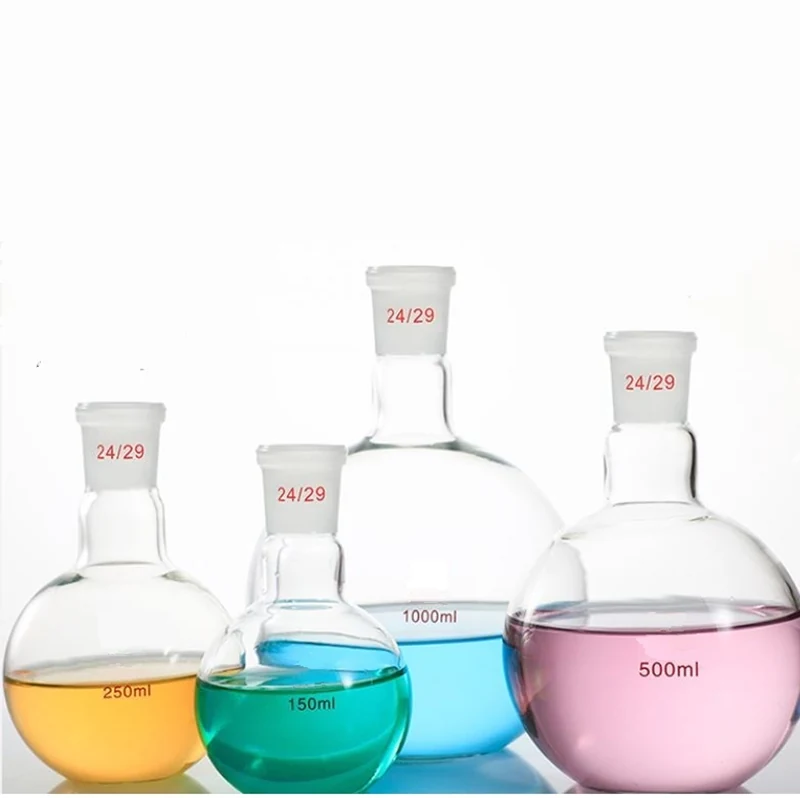

Flask capacities: 60 ml, 150 ml, 250 ml, 500 ml, 1000 ml, 2000 ml
Extraction tube effective length: 230 mm (60-250 ml), 260 mm (500 ml), 300 mm (1000 ml), 370 mm (2000 ml)
Condenser effective length: 230 mm (60-250 ml), 260 mm (500 ml), 300 mm (1000 ml), 370 mm (2000 ml)
Siphon tube length: 75 mm (60 ml), 90 mm (150 ml), 100 mm (250 ml), 130 mm (500 ml), 170 mm (1000 ml), 200 mm (2000 ml)

Where It Is Used

Applications And Buyers

Application Scenarios

Extracting lipids from food samples in quality control laboratories
Isolating active compounds from plant materials in pharmaceutical research
Analyzing environmental samples for organic pollutants in soil and sediment
Recovering trace analytes from solid-phase extraction matrices in forensic testing
Processing bulk samples in industrial R&D where high throughput is required

Who It Is For

Pharmaceutical and biotechnology labs conducting natural product isolation
Environmental testing labs analyzing soil and water samples for contaminants
Food and beverage labs extracting oils, fats, or flavor compounds
Academic and university laboratories performing teaching and research experiments
Industrial R&D departments requiring reproducible, large-scale extraction processes

Problems It Solves

Inefficient extraction with batch solvent methods that require multiple changes
High solvent consumption and waste generation from repeated manual extraction steps
Inconsistent recovery due to incomplete solvent contact with solid samples
Leakage or misalignment in non-standard joint systems during prolonged heating
Difficulty in scaling up extraction from small to large sample volumes without revalidation

Data

Specifications

Flask Capacity	60 ml, 150 ml, 250 ml, 500 ml, 1000 ml, 2000 ml
Condenser Type	Ball-shaped, Snake-shaped
Condenser Effective Length	230 mm (60-250 ml), 260 mm (500 ml), 300 mm (1000 ml), 370 mm (2000 ml)
Extraction Tube Length	230 mm (60-250 ml), 280 mm (250 ml), 320 mm (500 ml), 395 mm (1000 ml), 445 mm (2000 ml)
Siphon Diameter	Φ6 mm
Siphon Tube Length	75 mm (60 ml), 90 mm (150 ml), 100 mm (250 ml), 130 mm (500 ml), 170 mm (1000 ml), 200 mm (2000 ml)
Upper Taper Joint	34/35 mm (60-150 ml), 40/38 mm (250-500 ml), 60/45 mm (1000 ml), 70/50 mm (2000 ml)
Lower Taper Joint	19/26 mm (60-150 ml), 24/29 mm (250-500 ml), 29/32 mm (1000-2000 ml)
Assembly Type	Standard taper joint system
Packing	1 set per pack

Materials

Taper joints: Precision-ground glass with standard taper fit

Customization Options

OEM private-label packing available through the Microlab OEM division
Custom packaging formats can be arranged for bulk orders
Component-specific part numbers available for traceability and procurement

How It Is Made

Manufacturing And Quality Control

Manufacturing Process

Assembly of condenser, extraction tube, and flask with matching taper joints
Final inspection for joint fit, surface smoothness, and structural integrity
Packing in sets with clear labeling of size and configuration

Quality Control

Taper joint fit tested for smooth assembly and leak resistance
Visual inspection of glass surfaces for cracks, bubbles, or defects
Dimensional verification of condenser length, tube length, and siphon size
Functional test of siphon action using water to confirm proper flow
Labeling accuracy checked against part number and configuration

Comparison

Compared With The Alternatives

Versus Batch solvent extraction

Soxhlet provides continuous extraction with lower solvent use and higher recovery efficiency, reducing time and material costs

Versus Ultrasonic extraction

Soxhlet offers better reproducibility and higher yield for thermally stable compounds, though it requires longer run times

Versus Soxhlet with non-standard joints

Standard taper joints ensure compatibility and leak resistance, unlike improvised or non-precision fittings

Versus Single-use extraction kits

Soxhlet is reusable and cost-effective for high-volume or repetitive extraction tasks

Use Guide

How To Use It

Assemble components using standard taper joints, ensuring a tight fit without over-tightening
Fill the extraction flask with solvent and place the solid sample in the extraction tube
Attach the condenser and ensure the siphon tube is correctly positioned
Heat the flask gently to initiate solvent reflux; monitor for consistent siphon action
Run the extraction for the required duration-typically several hours to overnight
Stop heating, disassemble, and collect the extract from the flask for analysis
Clean all glass components with appropriate solvents after use to prevent residue buildup

FAQ

Questions Buyers Ask

What is the difference between ball-shaped and snake-shaped condensers?

Ball-shaped condensers offer compact design and moderate cooling efficiency. Snake-shaped condensers provide longer surface area for better heat exchange, improving condensation in high-volume or high-temperature applications.

Can I use different flask sizes with the same condenser?

No. Condensers are sized to match specific flask taper joints. Use only condensers with matching upper taper joints (e.g., 34/35 mm for 60 ml flask).

What is the siphon tube diameter and why is it important?

The siphon tube has a diameter of Φ6 mm. This size ensures consistent liquid return and prevents clogging during extraction.

How do I know which components to order for a 500 ml system?

For a 500 ml system, order: SE0500B or SE0500S (extractor), SE0500BC or SE0500SC (condenser), SE0500ET (extraction tube), and SE0500F (flask).

Are the components reusable?

Yes. All glass components are reusable and can be cleaned and reassembled after each use.

Do you offer custom sizes beyond 2000 ml?

The standard range goes up to 2000 ml. Custom sizes are available through the Microlab OEM division for bulk or special applications.
