VMP7000 Waterproof Walk Through Metal Detector
The VMP7000 is the gate to put outdoors. Its waterproof construction keeps it working in rain, humidity and coastal air, where an ordinary door frame fails within a season. It runs 18 zones through a 2000 x 700 mm passage at 30 W, weighs 32 kg net, and is built for rapid deployment at temporary events as well as permanent positions.
Key benefits
- Waterproof construction for outdoor, humid and coastal positions
- 18 detection zones through a 2000 x 700 mm passage
- Only 30 W working power and 32 kg net weight
- Rapid deployment for temporary events and high-traffic areas
- Operates from -20°C to 55°C on 110 to 220 V AC
Problems it solves
- Standard gates stop working the first time it rains
- Humidity and salt air corrode indoor-rated equipment
- Heavy gates are impractical to move between event sites
- False alarms from poor discrimination slow an outdoor queue
Who it is for
- Event operators screening outdoors
- Coastal and port facilities where salt air destroys equipment
- Security teams redeploying gates between sites
Application scenarios
- Outdoor concerts and open-air events
- Maritime and coastal facilities
- Temporary checkpoints exposed to weather
- Venues where traditional gates fail in the rain
Technical features
- 18 detection zones
- Sensors that differentiate between metals to limit false alarms

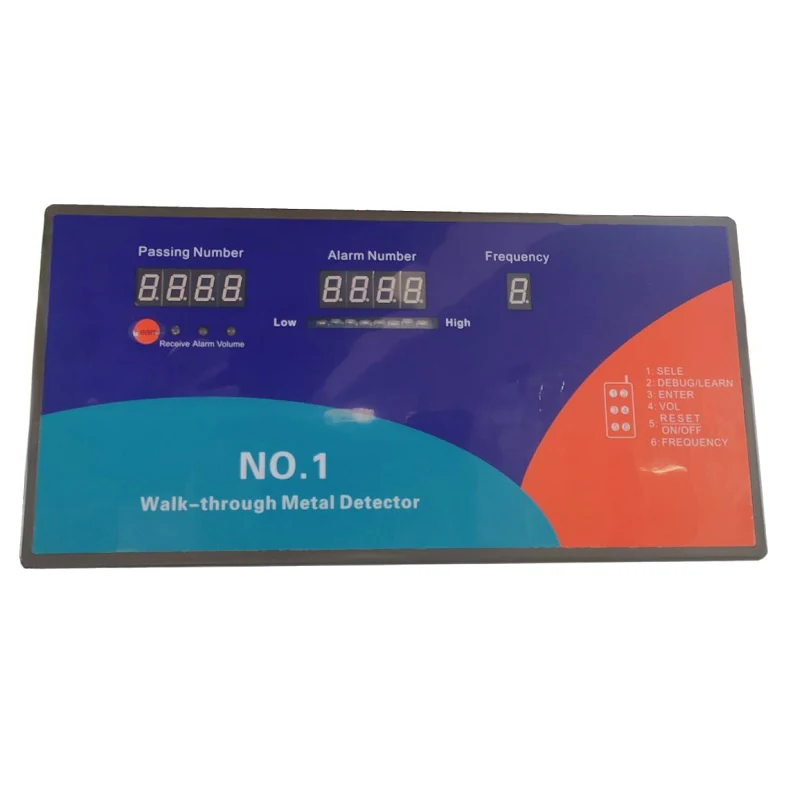

- Customisable settings with a user-friendly display
- Quick setup for temporary deployment
Specifications
| Detection Zones | 18 |
|---|---|
| Working Power | 30 W |
| Voltage | AC 110 V to 220 V |
| Working Temperature | -20°C to 55°C |
| External Dimension | 2230 x 940 x 270 mm |
| Passage Dimension | 2000 x 700 x 270 mm |
| Door Frame Packing Dimension | 2280 x 420 x 410 mm |
| Net Weight | 32 kg |
| Door Frame Gross Weight | 38 kg |
| Construction | Waterproof |
Figures are those published by the factory for this model. Where a value is shown as TBC it is not published, and we will confirm it with the factory before you order rather than estimate it.
Customisation options
- Customisable sensitivity and operating settings
Compared with other models in the range
An indoor multi-zone gate is cheaper and covers the same screening job, but only until the weather reaches it. Specify the VMP7000 where the gate sits outdoors, near the coast, or has to travel between exposed event sites.
Use guide
- Site outdoors without additional weather protection
- Connect to 110 to 220 V AC, drawing 30 W
- Tune the 18 zones for the items being screened at that venue
- Pack into the 2280 x 420 x 410 mm crate for transport between sites
- Operate between -20°C and 55°C
Product images
Where this product is used
Part of Multi-Zone Walk-Through Metal Detectors · typically specified for:
VMP7000 Waterproof Walk Through Metal Detector FAQ
Can it really be used in the rain
Yes, waterproof construction for outdoor, humid and coastal environments is the reason for this model.
How many zones does it have
18.
How much power does it draw
30 W, from 110 to 220 V AC.
How heavy is it to move
32 kg net, 38 kg gross for the door frame.
What is the passage size
2000 x 700 x 270 mm, in a 2230 x 940 x 270 mm frame.
What temperature range does it tolerate
-20°C to 55°C.
How quickly can it be set up at an event
It is engineered for quick deployment. Send your event schedule on WhatsApp and we will advise on quantities and logistics.
Quotation for the VMP7000 Waterproof Walk Through Metal Detector
Send your destination port and quantity. We will come back with price, lead time and what documentation the factory can supply for your market.
