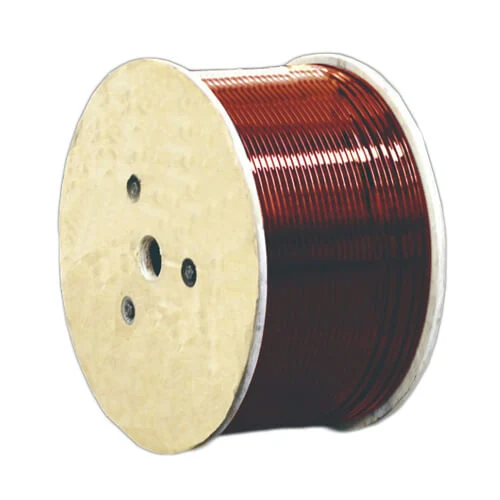

Conductor wire with a baked insulating enamel coating, wound into coils for motors, transformers and electromagnetic devices.
Enamelled wire is insulated by a thin baked coating rather than a sleeve, which is what lets thousands of turns fit into a slot. Everything depends on that coating surviving the winding machine: if it scrapes off against a guide or a sharp former edge, the coil shorts and the fault only appears at test. Wire is specified by conductor diameter, enamel grade and thermal class, and those three have to stay the same batch after batch or the winding process needs retuning each time.
Enamel scraping off against guides and causing shorted turns at test
Thermal class too low for the temperature the finished coil actually reaches
Diameter variation changing how many turns fit the available slot
Wire breaking on the winder and stopping production mid coil
Batch changes forcing the winding machine to be retuned
Conductor diameter enamel grade and thermal class specified together
Wire selected for the abrasion it will meet on your winding machine
Spool type and size matched to the equipment in use
Specification held constant across repeat orders
Thermal class matched to the operating temperature of the finished coil
Copper Foil and Strip
Rolled copper in foil and strip form used as winding conductor in transformers and similar...
View Category →
Aluminium Foil for Transformers
Rolled aluminium foil used as a lighter and lower cost winding conductor where copper is n...
View Category →
Silicon Steel for Transformers
Electrical steel used to build transformer cores, where magnetic properties rather than me...
View Category →Conductor material, diameter, enamel grade, thermal class, spool type and annual quantity.
Yes. Send the current specification or a spool label and we will source to the same requirement.
It depends on diameter and quantity and is confirmed with the quotation.
Available documentation depends on the manufacturer and is confirmed on request.
It is driven by spool size and diameter and is confirmed with the quotation.
Send the capacity duty or drawing you need for enamelled wire and we will match it to the factory that builds it and quote it in writing.
