Suction Hose
Green Suction Hose
Green suction hose is a rigid-helix PVC hose in a single high-visibility green, used for suction and delivery of liquids, powder and granules.
Product Overview
What This Hose Is Built To Do
Green suction hose is a rigid-helix PVC hose in a single high-visibility green, used for suction and delivery of liquids, powder and granules. It is produced from 3/4 inch to 16 inch in lengths to 50 m (164 ft) and runs from -10°C to 70°C. The colour is the point: on a busy site a green line is instantly separated from clean-water and slurry duty.
Key Benefits
- Single green colour makes duty separation obvious across a mixed hose fleet
- Light weight and small bending radius for hand-laid runs
- Smooth bore handles powder and granules as well as liquid
- Same size range as our clear and fabric reinforced hose, so a fleet can standardise on one bore
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Wall | High quality PVC |
|---|---|
| Reinforcement | Rigid PVC helix |
| Color | Green |
| Size | 3/4 inch-16 inch |
| Length | up to 50m(164ft) or as required |
| Temperature | -10°C(14°F)-70°C(158 °F) |
Problems It Solves
Why Buyers Move To This Product
- Cross-contamination when the same-looking hose is used for two different products
- Hose kinking where it has to turn inside a plant skid
- Wall wear on hose dragged between silo and mixer several times a day
Who It Is For
- Agricultural contractors handling fertiliser and feed
- Construction sites moving water and slurry
- Landscaping and groundcare operations
- Industrial plants transferring dry granules

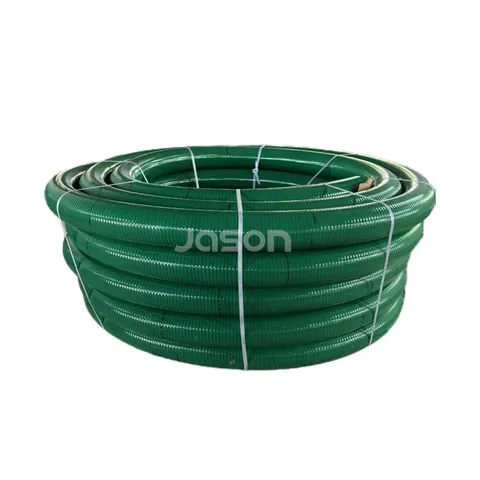

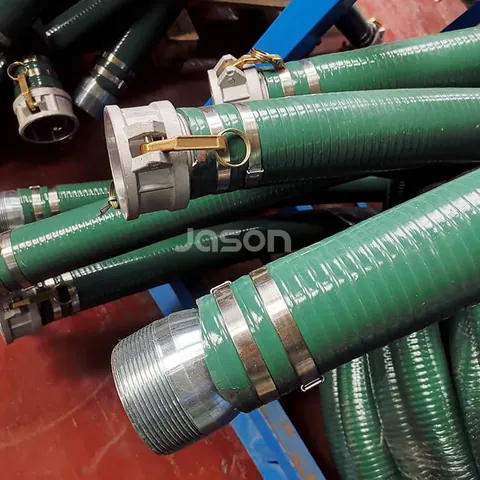

Photographs
The Product as It Ships
Technical Features
- High abrasion resistance
- Flexibility
- Light weight
- Small bending radius
- Smooth inner construction for unrestricted flow of materials
Application Scenarios
- For suction and delivery of liquids
- Powder
- Granules in industry
- Agriculture and construction
Manufacturing and Quality
How It Is Made and Checked
Production Process of Suction Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Assign each colour to one product and keep that assignment across the fleet
- Clamp between helix turns rather than over the crown
- Avoid tight bends at the pump inlet where vacuum is highest
- Blow through after granule transfer so nothing bridges in the corrugations
- Coil and store off the ground
Comparison
How It Compares With Our Other Products
| Clear Suction Hose | Green gives identification at distance where clear gives flow visibility, and construction is otherwise the same |
|---|---|
| Fabric Reinforced Suction Hose | Green hose is lighter and cheaper, but the fabric reinforced wall should be used where discharge pressure is significant |
Related Products
Other Products in the Suction Hose Range
10 Inch Suction Hose
The 10 inch suction hose is a DN250 PVC suction line for trash pumps and dewatering sets working in mud, flood water and abrasive slurry.
View specifications
8 Inch Suction Hose
The 8 inch suction hose is a DN200 rigid-helix PVC hose sized for the most common heavy-duty pump on a construction or farm site.
View specifications
Fabric Reinforced Suction Hose
Fabric reinforced suction hose adds a polyester fabric layer to the rigid PVC helix, so the wall carries pressure on the discharge stroke as well as vacuum on the inlet.
View specificationsFAQ
Questions About the Green Suction Hose
What sizes do you produce
3/4 inch through 16 inch.
What is the maximum length
Up to 50 m (164 ft), or as required.
Can it handle dry powder and granules
Yes. It is used for suction and delivery of liquids, powder and granules.
Is the green colour through the wall or a surface coating
The PVC compound is pigmented, so the colour runs through the wall.
Can I order a different colour
Yes. Colour is made to order alongside the standard range.
How do I get a price
Send the bore size, length and quantity on WhatsApp or by email and we will quote.
Request a Quote on the Green Suction Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
