Suction Hose
10 Inch Suction Hose
The 10 inch suction hose is a DN250 PVC suction line for trash pumps and dewatering sets working in mud, flood water and abrasive slurry.
Product Overview
What This Hose Is Built To Do
The 10 inch suction hose is a DN250 PVC suction line for trash pumps and dewatering sets working in mud, flood water and abrasive slurry. The rigid PVC helix is bonded into the wall so the hose resists collapse on the inlet side, and lengths run up to 30 m (100 ft) so a pump can be sited well back from a soft bank. Temperature range is -10°C to 70°C.
Key Benefits
- Lengths up to 30 m let the pump sit on firm ground away from a collapsing bank
- Rigid helix resists flattening when the strainer partly blocks and vacuum spikes
- Abrasion-resistant bore stands up to grit carried in flood and mine water
- Light enough at DN250 for a two-person crew to reposition without lifting gear
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Wall | High quality PVC |
|---|---|
| Reinforcement | Rigid PVC helix(polyester fabric as required) |
| Color | Orange, red, green or as required |
| Size | 10 inch(DN250) |
| Length | up to 30m(100ft) |
| Temperature | -10°C(14°F)-70°C(158 °F) |
Problems It Solves
Why Buyers Move To This Product
- Pumps losing prime when a soft-wall hose collapses under vacuum
- Hose wall wearing through where it is dragged over rock and spoil
- Having to site a pump close to an unstable excavation edge because the suction hose is too short
Who It Is For
- Civil contractors dewatering excavations and cofferdams
- Municipal flood response teams
- Farms running 10 inch irrigation pumps from rivers and canals
- Quarry and wash plant operators moving silt-laden water

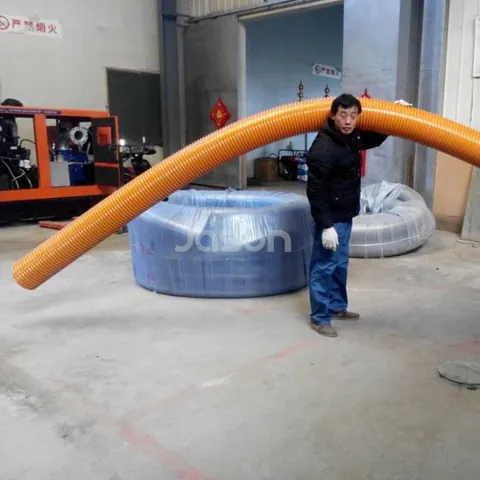

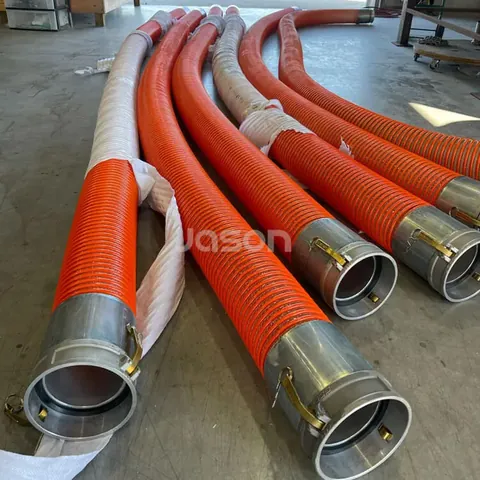

Photographs
The Product as It Ships
Technical Features
- Large size
- Heavy duty
- Durability
- High abrasion resistance
- Flexibility
- High negative pressure
- Smooth inner construction for unrestricted flow of materials
Application Scenarios
- Irrigation lines
- Pumps
- Rental and construction dewatering
- Trash pumps
- Suction and discharge
- Water suction – heavy duty
Manufacturing and Quality
How It Is Made and Checked
Production Process of Suction Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Prime the pump fully before starting so the wall is not pulled against a dry bore
- Clamp between helix turns and check the clamp again after the first hour of running
- Fit a strainer sized for the solids on site to stop the bore blocking
- Lay the hose on a straight run rather than a tight bend at the pump inlet
- Rinse and drain before coiling so grit is not stored inside the helix
Comparison
How It Compares With Our Other Products
| 12 Inch Suction Hose | The 10 inch is supplied in lengths up to 30 m against 10 m for the 12 inch, so it suits longer suction runs at a lower flow |
|---|---|
| Clear Suction Hose | This hose is opaque and built for heavy duty, where the clear version trades some wall strength for visible flow monitoring |
Related Guides
Related Products
Other Products in the Suction Hose Range
8 Inch Suction Hose
The 8 inch suction hose is a DN200 rigid-helix PVC hose sized for the most common heavy-duty pump on a construction or farm site.
View specifications
Fabric Reinforced Suction Hose
Fabric reinforced suction hose adds a polyester fabric layer to the rigid PVC helix, so the wall carries pressure on the discharge stroke as well as vacuum on the inlet.
View specifications
Clear Suction Hose
Clear suction hose is a transparent PVC hose with a rigid PVC helix, used where the operator needs to see what is moving through the line.
View specificationsFAQ
Questions About the 10 Inch Suction Hose
What length can you supply in 10 inch
Up to 30 m (100 ft) per length, or cut to the length you specify.
What is the bore size in metric
DN250.
Which colours are standard
Orange, red and green. Other colours are produced to order.
Is it suitable for trash pumps
Yes. It is built for heavy duty suction and discharge including trash pump duty and abrasive slurry.
Can it be used on the discharge side as well
It can, but for discharge-only duty a PVC layflat discharge hose is lighter and cheaper to store.
Do you supply matching couplings
Yes. Camlock, Bauer, Storz and multilug couplings are made in our own coupling line.
Request a Quote on the 10 Inch Suction Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
