8 Inch Suction Hose
The 8 inch suction hose is a DN200 rigid-helix PVC hose sized for the most common heavy-duty pump on a construction or farm site.
Product Overview
What This Hose Is Built To Do
The 8 inch suction hose is a DN200 rigid-helix PVC hose sized for the most common heavy-duty pump on a construction or farm site. It is supplied in lengths up to 30 m (100 ft), carries a smooth bore for unrestricted flow and works from -10°C to 70°C. At DN200 it is the point where one operator can still handle the hose while moving serious volume.
Key Benefits
- DN200 is light enough for one operator to drag and reposition on site
- Up to 30 m in a single length removes couplings from the suction run
- Smooth bore keeps the pump curve close to its rated duty point
- Available in orange, red or green for fleet identification
Specifications
Published Specification
These are the figures published for this product. Working pressure, colour, length and coupling type are made to order, so confirm the final specification with us before purchase.
| Wall | High quality PVC |
|---|---|
| Reinforcement | Rigid PVC helix(polyester fabric as required) |
| Color | Orange, red, green or as required |
| Size | 8 inch(DN200) |
| Length | up to 30m(100ft) |
| Temperature | -10°C(14°F)-70°C(158 °F) |
Problems It Solves
Why Buyers Move To This Product
- Suction-side leaks at made-up joints causing repeated loss of prime
- Hose kinking at the inlet elbow and choking flow
- Wall abrasion from dragging the hose across hardcore between set-ups
Who It Is For
- Groundworks and drainage contractors
- Pump hire depots stocking a standard 8 inch inlet hose
- Irrigation contractors feeding travelling reels
- Wash plant and aggregate operators
Photographs

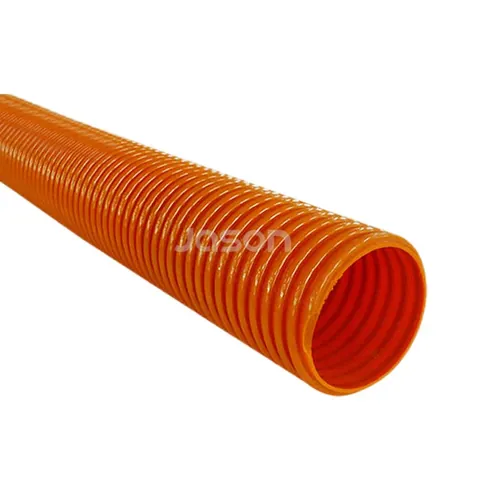

The Product as It Ships
Technical Features
- Large size
- Heavy duty
- Durability
- High abrasion resistance
- Flexibility
- High negative pressure
- Smooth inner construction for unrestricted flow of materials

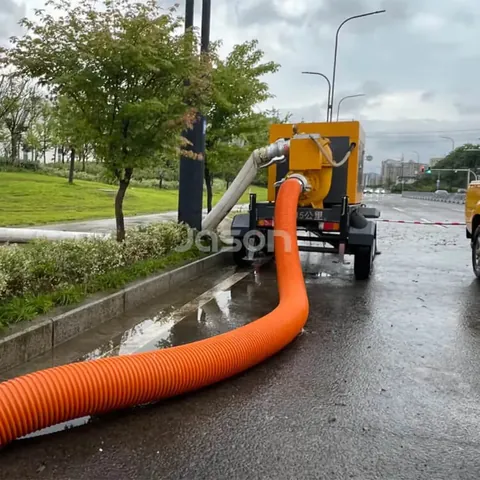

Application Scenarios
- Irrigation lines
- Pumps
- Rental and construction dewatering
- Trash pumps
- Suction and discharge
- Water suction – heavy duty
Manufacturing and Quality
How It Is Made and Checked

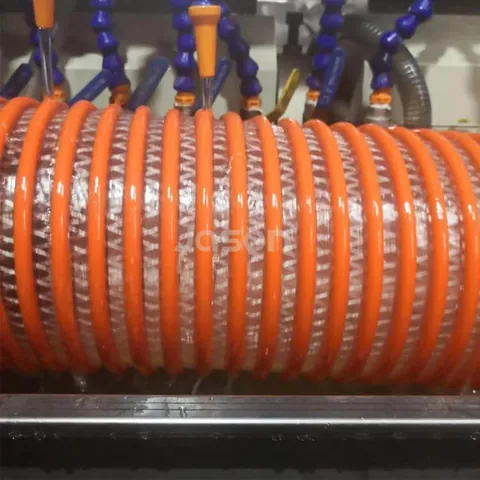

Production Process of Suction Hose. Every manufacturing process complies with the ISO 9001 standard.
- All raw materials approved by the Department of Quality Control
- Yarn strength and skein consistency verified before weaving
- Every manufacturing process complies with the ISO 9001 standard
- All hoses tested at the test pressure
- Layflat hose held at 1.5 times working pressure for 2 hours before shipment
- Trace number recorded for production date, employees and raw material sources
Customization Options
- Colour made to order alongside the standard range
- OEM and ODM printing of your brand, with exclusive protection of your designs
- Length cut to the run you specify rather than a fixed stock length
- Couplings fitted before shipment and pressure tested as one assembly
Use Guide
- Match the hose bore to the pump inlet rather than reducing at the pump
- Use full-bore fittings so the helix does not sit proud inside the joint
- Keep the run clear of sharp spoil edges or lay a board under the hose
- Check the bore for embedded grit after abrasive duty
- Coil rather than fold for storage and transport
Comparison
How It Compares With Our Other Products
| 10 Inch Suction Hose | Same construction and temperature range with a smaller DN200 bore, so it is lighter to handle but moves less volume per hour |
|---|---|
| Fire Suction Hose | The fire suction hose is supplied in short 2 m and 4 m lengths for appliance use, where this one is supplied in long site lengths |
Related Guides
Related Products
Other Products in the Suction Hose Range
10 Inch Suction Hose
The 10 inch suction hose is a DN250 PVC suction line for trash pumps and dewatering sets working in mud, flood water and abrasive slurry.
View specifications
Fabric Reinforced Suction Hose
Fabric reinforced suction hose adds a polyester fabric layer to the rigid PVC helix, so the wall carries pressure on the discharge stroke as well as vacuum on the inlet.
View specifications
Clear Suction Hose
Clear suction hose is a transparent PVC hose with a rigid PVC helix, used where the operator needs to see what is moving through the line.
View specificationsFAQ
Questions About the 8 Inch Suction Hose
What is the bore of the 8 inch hose
DN200.
How long is each length
Up to 30 m (100 ft), or cut to your specified length.
What temperature range does it cover
-10°C (14°F) to 70°C (158°F).
Can it handle sand and grit
Yes. The wall has high abrasion resistance and is used for trash pump and dewatering duty.
What is the minimum order quantity
Order quantity depends on size and colour. Send the size and length you need on WhatsApp and we will confirm.
Do you produce OEM colours and printing
Yes. We have produced OEM and ODM hose since our own production line started in 2010.
Request a Quote on the 8 Inch Suction Hose
Send the size, length, working pressure, colour and quantity you need. Our team replies within 24 hours.
