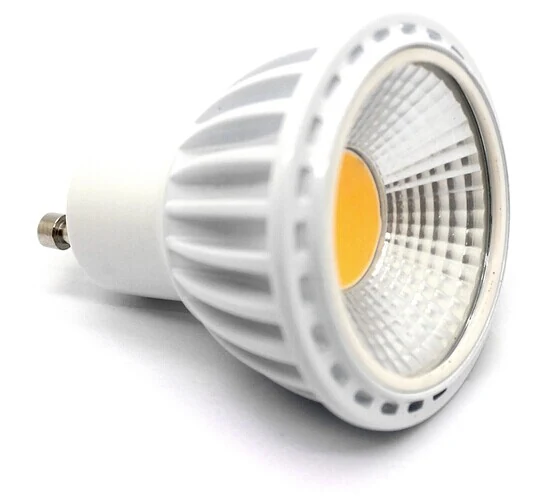

GU10 5W COB LED Spotlight 60 Degree Beam
Part number CRSP-GU-04
This model is a COB LED spotlight specified for retail display, gallery accent lighting and track systems. It draws 5W, with a body of 50x56mm, a 60° beam angle and an input of AC 180-265V 50/60Hz. Beam angle is the specification that decides whether a display works. It is catalogued as CRSP-GU-04.
- Power
- 5 Watt
- Size
- 50x56mm
- Beam Angle
- 60°
- Input Voltage
- AC 180-265V 50/60Hz
What This Model Gives You
Aluminum +PC construction
The material is what gives the LED a heat path, and heat is what decides how long the product actually lasts.
Body dimensions 50x56mm
Physical fit can be checked on paper before the order is placed, not after the goods land.
60° beam angle
Beam angle is specified as part of the product rather than left as a surprise on site.
Stated LED life of 50,000Hours
A published life figure gives a maintenance interval you can plan replacement stock around.
Technical Data For GU10 5W COB LED Spotlight 60 Degree Beam
Every figure below is taken from the manufacturer's specification for this model. Where a value is not listed it is not published, and we will confirm it against current production before you order.
| P/N | CRSP-GU-04 |
|---|---|
| Luminous Flux(lm) | 520lm Cool White |
| Type | Dimmable Or Non-Dimmable |
| Size | 50x56mm |
| Input Voltage | AC 180-265V 50/60Hz |
| Power | 5 Watt |
| LED Type | COB 1PCS |
| Beam Angle | 60° |
| Material | Aluminum +PC |
| Option Base | GU10 |
| Operating Temperature | 0°C to 40°C |
| Lifespan | 50,000Hours |
| Packing Information | One bulb per box |
| Inner Box Size | 52x52x65mm, Gross Weight: 90G, Net Weight: 75G |
How It Is Built
- Light source: COB 1PCS
- Electrical input: AC 180-265V 50/60Hz
- Operating temperature: 0°C to 40°C
- Construction: Aluminum +PC
Materials
- Aluminum
Buyers This Model Suits
- Retail and showroom fit-out contractors
- Museum, gallery and display lighting specifiers
- Distributors stocking GU10 and MR16 track lamps
- Hospitality projects with accent lighting schemes
Application Scenarios
- Hospitality wall washing and feature lighting
- Residential track lighting
- Retail product and window display lighting
- Gallery and exhibition accent lighting
Objections This Model Removes
General-purpose bulbs cannot give a retail display any punch
Existing track and display systems use several different lamp holders
Colour accent lighting normally means introducing a second supplier
Beam angle is treated as a detail and the display ends up flat
How This Product Is Made
Production runs at our Shenzhen plant, Shenzhen Chiclits Technology Co., Ltd..
COB chip-on-board module mounting to the heat sink
Reflector and lens assembly to the specified beam angle
Driver assembly matched to mains or low-voltage operation
Lamp holder fitting, beam verification and packing
What Gets Checked
- Beam angle verification against the ordered specification
- Colour consistency check across the production batch
- Thermal performance test on the heat sink assembly
- Electrical safety and holder retention test
What You Can Change
- Beam angle selected from the published options
- GU10, MR16 or AR111 lamp holder
- Colour temperature selected at order stage
- RGB versions where colour accent lighting is required
Certification
Our LED bulb line holds CE (LVD) and RoHS certificates issued by Shenzhen BST Technology, with the numbers published on our Trust page. Ask us in writing for the certification position on this specific model before you quote it into a regulated market - we will tell you what is held and what is not.
How It Compares With The Alternatives
| Compared with | What changes |
|---|---|
| A wide-beam general bulb in a track fitting | A controlled beam angle puts light on the product instead of spilling it across the floor |
| A halogen spotlight of equivalent beam | Comparable beam control at a fraction of the load and without the heat on the display |
| An SMD LED spotlight | A COB emitter behaves as a single source, giving a cleaner beam edge for accent work |
Getting It Right On Site
Check whether the track is mains voltage or low voltage before ordering
Allow airflow around the lamp in a closed display case
Choose the beam angle from the distance between the lamp and the object
Keep the beam angle consistent across a run of display lamps
Other Models In COB LED Spotlights
GU10 6W COB LED Spotlight
MR16 6W COB LED Spotlight
5W RGB LED Spotlight
AR111 7W COB LED Spotlight
AR111 9W COB LED Spotlight
GU10 5W COB LED Spotlight 24-36 Degree Beam
3W RGB LED Spotlight
GU10 5W COB LED Spotlight 45 Degree Beam
Where This Product Fits A Build
Guides That Cover This Product
Beam Angle Guide For Retail And Display Spotlighting
Choosing between 24, 36, 45 and 60 degree beams, and calculating the pool of light you will get.
Design GuideHow To Choose The Right LED Lamp Base For Your Market
E27, E26, B22, E14, GU10 and MR16 explained, with the export mistakes that cost importers money.
Buying GuideLumens Not Watts How To Compare LED Bulbs Properly
Why wattage stopped being a measure of brightness, and what to ask a supplier instead.
Buying GuideGU10 5W COB LED Spotlight 60 Degree Beam Questions
What are the physical dimensions?
50x56mm. Check that against the fitting or the ceiling opening before you order in quantity.
What beam angle is this model?
60°. Beam angle is a separate part number in this range, so order the angle you need rather than adjusting on site.
Which beam angle suits my display?
Narrow beams for individual products at close range, wider beams for wall washing. Tell us the mounting distance and what you are lighting and we will recommend one.
Can I mix beam angles on one track?
Yes, and on a well-designed display you usually should - narrow beams on the products and a wider beam on the backdrop.
Is the colour consistent between lamps?
Colour consistency is checked across the production batch. Order all lamps for one display area together so they come from the same batch.
What is the minimum order quantity and lead time for this model?
Both depend on the configuration, the packaging and the quantity, and neither is published as a blanket figure. Send us the model and quantity by email and we will confirm in writing.
Get Pricing For GU10 5W COB LED Spotlight 60 Degree Beam
Send the quantity and destination market. We reply with pricing, packaging options, lead time and a written position on certification.
