Vatech PAX-400C Dual-Sensor Pan + Ceph Dental X-Ray

DualTwo dedicated detectors — no swap wear, no drift between modalities 400 kHzHigh-frequency generator — stable kV, short exposure, low dose AIBuilt-in noise reduction + edge enhancement applied on acquisition CBCT-readyOptional upgrade path to 3D CBCT when your practice is ready

The Dual-Sensor Advantage

Most combo pan/ceph machines save cost by using a single detector on a motorized slide that moves between the panoramic position and the ceph arm. It works — until the motor wears, the alignment drifts, or a technician needs to re-calibrate before every ceph. PAX-400C eliminates the problem by giving each modality its own dedicated, permanently mounted detector.

× Conventional

Single-detector combo

• ×Detector physically slides between pan and ceph positions
• ×Sliding mechanism wears over time → alignment drift
• ×Re-calibration typically required when switching modalities
• ×Workflow pause while detector travels and re-positions

✓ PAX-400C

Dual dedicated detectors

• ✓Pan detector is fixed to the rotating OPG arm
• ✓Ceph detector is fixed to the cephalostat arm
• ✓Each detector optimized for its own modality (ceph detector larger, higher resolution)
• ✓No sliding = nothing to drift, wear, or re-calibrate
• ✓Operator switches modality in software only — zero mechanical wait

Warehouse Videos

Both videos were recorded on the actual unit in our Shanghai facility.

VIDEO 01 · 0:33 Operation Demo — live machine running

Power-up, gantry rotation and sensor alignment demonstration.

VIDEO 02 · 0:12 Column & Gantry Movement

Column height adjustment and rotating gantry at working speed — quiet mechanical operation.

Imaging Programs

Covers the full clinical workflow — routine adult OPG, pediatrics, TMJ assessment, orthodontic ceph, sinus imaging, and carpus-based skeletal-age analysis.

PANORAMIC · 5 PROGRAMS

Panoramic (OPG)

Standard

Full upper and lower arch including TMJs — the daily workhorse.

Pediatric

Reduced arc and lower dose for children and small patients.

TMJ

Focused bilateral TMJ view for joint and condyle assessment.

Anterior

Segmented anterior-only view — lower dose for incisor/canine focus.

Posterior

Segmented posterior view — molar, third-molar, and quadrant imaging.

60–90 kV · 2–15 mA · ≤ 12 s · 2.5 lp/mm

CEPHALOMETRIC · 5 PROJECTIONS

Cephalometric

Lateral

Standard ortho-ceph — sagittal profile, airway, growth analysis.

PA

Posterior-anterior — facial symmetry, transverse analysis.

Waters View

Dedicated sinus imaging — maxillary sinus clarity, trauma assessment.

Carpus

Hand-wrist view for orthodontic skeletal age / growth timing.

SMV

Submentovertex — skull base, zygomatic arches, mandibular symmetry.

60–100 kV · 2–20 mA · ≤ 8 s · 3.0 lp/mm

The "Lateral / PA·Waters·Carpus / SMV" projection-position labels are visible on the cephalometric detector housing itself — see gallery photo #3.

AI Imaging Pipeline

Every image from the PAX-400C is processed through Vatech's built-in AI pipeline the moment it's captured. No separate Photoshop-style post-processing step. No technician guesswork. The scan arrives at your workstation already optimized.

Noise Reduction

AI-based denoise filters suppress detector read noise and quantum noise without softening anatomical edges.

Edge Enhancement

Adaptive sharpening emphasizes bone trabeculae and root apex detail — key for caries and periapical diagnosis.

Gray Scale Mapping

Automatic histogram optimization maps the full bit-depth to diagnostic gray range — no washed-out or crushed images.

Unit Gallery

Every FOB Dental PAX-400C is photographed on-site. Note photo #3: you can read the "Lateral / PA·Waters·View·Carpus / SMV" labels molded into the ceph detector housing — evidence that all 5 projections are hardware-supported.

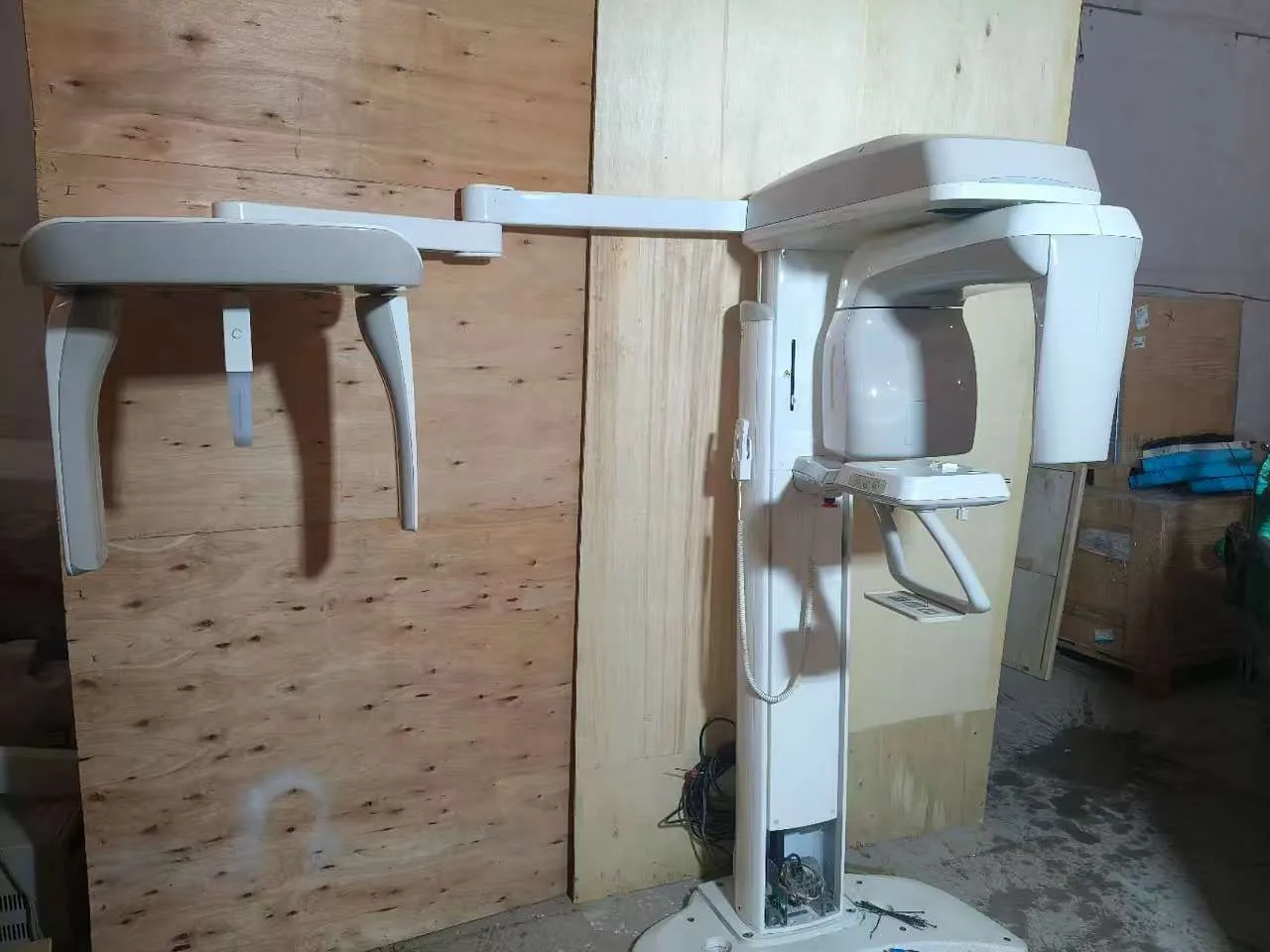

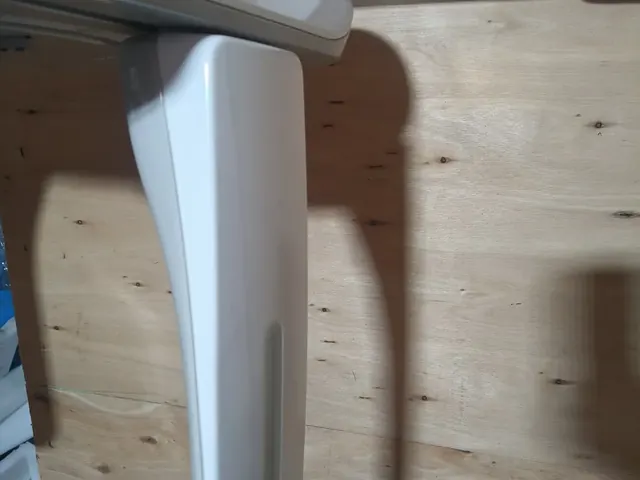

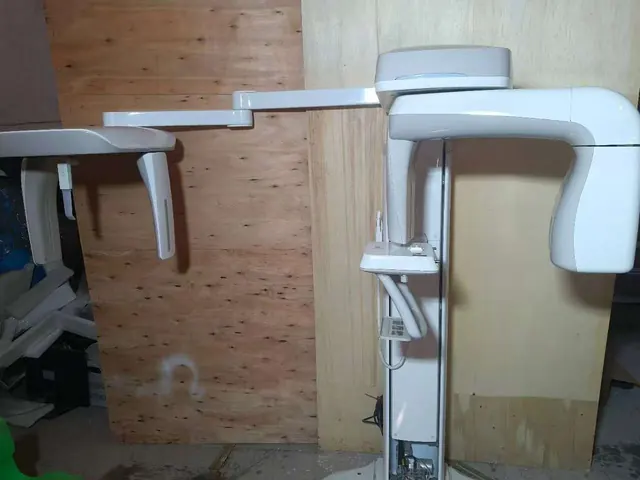

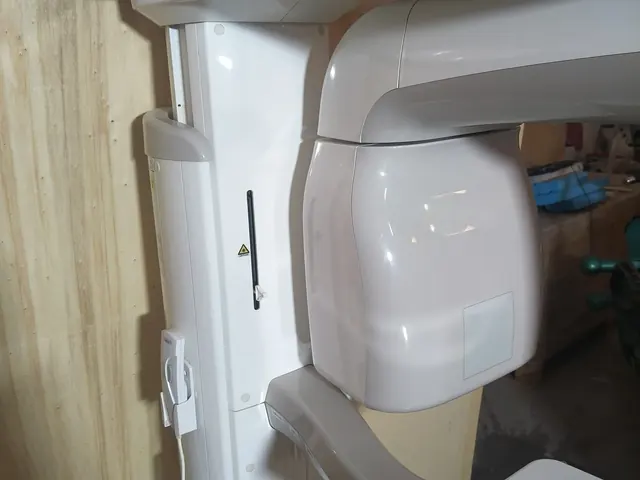

01 / Dual Arms Pan arm (right) + Ceph arm (left) visible together 02 / Pan Unit Rotating yoke, chin rest, bite stick assembly 03 / Ceph Labels · KEY SHOT "Lateral / PA·Waters·Carpus / SMV" — all 5 projections labeled on hardware 04 / Handheld Remote Vatech-branded column lift remote — UP / DOWN 05 / Ceph Arm Ceph arm underside with patient-facing housing 06 / Gantry Panoramic rotating gantry housing 07 / Tube Head Panoramic X-ray tube head front face 08 / Control Panel Column-mounted lift, power, and emergency-stop 09 / Installed Reference photo — PAX-400C installed in a clinic

Technical Specifications

As published by Vatech for the PAX-400C dual-sensor platform. Actual firmware and module configuration of stocked units confirmed per-unit at quote stage.

Imaging

Architecture

Dual fixed flat-panel detectors

Detector type

Amorphous silicon (a-Si)

Pan resolution

Up to 2.5 lp/mm

Ceph resolution

Up to 3.0 lp/mm

Pan tube voltage

60 – 90 kV

Pan tube current

2 – 15 mA

Pan exposure time

≤ 12 seconds

Ceph tube voltage

60 – 100 kV

Ceph tube current

2 – 20 mA

Ceph exposure time

≤ 8 seconds

Image processing

AI NR · edge enh · gray map

Generator & Power

Generator

High-frequency, 400 kHz

Power supply

AC 220 V ±10%, 50/60 Hz

Phase

Single-phase

AEC

Automatic Exposure Control

Patient Positioning

Positioning system

3-point: chin · forehead · bite block

Bite block

Adjustable

Pan laser

2D laser guide

Ceph laser

3D laser guide

Patient height range

100 – 200 cm

Patient weight capacity

≤ 150 kg

Chair compatibility

Most dental chairs

Form Factor & Software

Dimensions (L×W×H)

180 × 80 × 220 cm

Net weight

≈ 250 kg

Output format

DICOM-compatible

Optional modules

CBCT · Implant Planning · Airway

Compliance

Standards

IEC 60601-1 · IEC 61223

US FDA

21 CFR Part 1020

Dose principle

ALARA — AEC optimized

"Vatech" and "PAX" are trademarks of Vatech Co., Ltd. FOB Dental is an independent equipment exporter and is not affiliated with or endorsed by Vatech Co., Ltd.

Where PAX-400C fits in the FOB Dental lineup

PAX-400C is the answer when CBCT is tempting but not yet justified — you get Vatech build quality and a frictionless upgrade path, without paying for 3D today.

Frequently Asked Questions

What is the Vatech PAX-400C?

+

The PAX-400C is a dedicated 2-in-1 dental X-ray imaging system combining panoramic (OPG) and cephalometric (ceph) modalities, manufactured by Vatech Co., Ltd. of South Korea. Its defining feature is a dual-sensor architecture — one flat-panel detector permanently mounted on the panoramic arm, and a second permanently mounted on the cephalometric arm. No sensor swap between modalities.

What does "dual sensor" actually mean?

+

Most combo pan-ceph machines save on cost by using a single detector on a motorized slide that shuttles between the panoramic position and the cephalometric position. It works, but the sliding mechanism wears, alignment drifts, and each modality switch typically requires a re-calibration routine.

The PAX-400C uses two separate, fixed detectors — one permanently mounted on the rotating pan arm, one permanently mounted on the ceph arm. No sliding, no wear, no drift, no re-cal between modalities, and each detector can be purpose-optimized for its own modality.

What imaging programs are supported?

+

Panoramic (5): Standard · Pediatric · TMJ · Anterior · Posterior.

Cephalometric (5): Lateral · PA · Waters View · Carpus · SMV. These 5 positions are physically labeled on the ceph detector housing itself — see the gallery photo showing the "Lateral / PA·Waters·Carpus / SMV" moulded markings.

What are the key technical specs?

+

Panoramic: 60–90 kV, 2–15 mA, exposure ≤12 s, resolution up to 2.5 lp/mm. Cephalometric: 60–100 kV, 2–20 mA, exposure ≤8 s, resolution up to 3.0 lp/mm. Both detectors are amorphous silicon (a-Si) flat panel. Generator: high-frequency 400 kHz. Power: AC 220 V ±10%, 50/60 Hz single-phase. Dimensions approx. 180×80×220 cm, 250 kg.

Can it be upgraded to CBCT?

+

Yes — CBCT is listed as an optional module on the PAX-400C platform. Implant planning and airway analysis modules are also optional. Exact upgrade availability depends on the firmware revision of your specific unit; we confirm options per-unit at quote stage. If you think you might want CBCT within 2–3 years, PAX-400C keeps that door open.

What image-processing features are built in?

+

Vatech's built-in imaging pipeline includes AI-based noise reduction, adaptive edge enhancement, and automatic gray-scale mapping — applied at acquisition time, not as manual post-processing. Output is DICOM for integration with third-party practice-management systems, PACS, and implant planning software (coDiagnostiX, Simplant, Blue Sky Plan, etc.).

Does it meet international safety standards?

+

Yes. The PAX-400C complies with IEC 60601-1 (medical electrical equipment general safety), IEC 61223 (evaluation and routine testing of imaging X-ray equipment), and FDA 21 CFR Part 1020 (US performance standards for diagnostic X-ray). Automatic Exposure Control (AEC) is included for dose optimization per the ALARA principle.

What is the condition of the stock units?

+

Pre-owned Grade-A tested units in our Shanghai warehouse. Each has been powered on, calibrated, pan- and ceph- test-scanned, and photographed before crating. The videos on this page are of the actual inventory. Cosmetic condition, warranty terms and specific software license are confirmed per-unit on request.

How do I order from FOB Dental?

+

Message us on WhatsApp at or email . Tell us your destination port and any upgrade preferences (CBCT module, implant planning license). We'll send current unit photos, test images, full FOB quote and lead time — same business day. No contact forms, direct chat only.
