Vatech PAX-i3D Panoramic + CBCT 3D + Cephalometric
Three modalities in one footprint. Multi-FOV CBCT, One-Shot ceph in 0.9 s, 0.12 mm voxel.
Overview
PaX-i3D — what it is and who buys it
Vatech PAX-i3D — premium 3-in-1 dental imaging: panoramic, CBCT cone beam 3D, and cephalometric (One Shot Ceph 0.9s). Multi-FOV CBCT up to 12×9 cm, 0.12 mm voxel, 14-bit gray scale. FOB China, WhatsApp +86 159 5127 6160.
This is a pre-owned unit held in our Shanghai warehouse and refurbished before dispatch. Pricing is quoted FOB Shanghai, with CIF to your destination port available on request; minimum order is 1 pc/set and typical lead time is 3–14 days.
3-in-1 Pan, CBCT and Ceph — one footprint, one software, one installation Multi-FOV 5×5 / 8×5 / 8×8 / 12×9 — right volume for every diagnostic task Endo-grade 0.12 mm voxel reveals root canals, fractures, fine periapical detail Vatech The world's largest dedicated dental CBCT manufacturer
See the unit running in our warehouse.
Live Demo Videos
Both videos were filmed on the actual unit currently in our Shanghai facility — no marketing reels. Watch full power-up, rotation, and imaging sequences below.
VIDEO 01 · 1:43 Operation Demo — Power-up, rotation and positioning
Shows system start-up sequence, gantry movement, laser positioning, and patient-position adjustments.
VIDEO 02 · 3:16 Imaging Sequence — Pan / CBCT / Ceph capture
Full imaging cycle demonstrating exposure workflow and image reconstruction on the workstation.
Everything from routine OPG to implant planning to orthodontics.
Three Modalities · One Machine
PAX-i3D replaces the 2D panoramic unit, the separate CBCT, and the dedicated cephalostat that a growing practice would otherwise need to buy and maintain in three different rooms.
MODE · 2D PANORAMIC
Panoramic
Full-arch 2D view for routine exams, third-molar assessment, and pre-implant site evaluation. HD mode for maximum sharpness when ortho or endo detail matters.
- HD scan
- 13.5 s
- Normal scan
- 10.1 s
- Typical programs
- Pan · Ped · TMJ
MODE · 3D · HERO CBCT
Cone Beam CT (3D)
True 3D volumetric imaging for implant planning, endodontics, impacted third molars, TMJ, and maxillofacial analysis. Multi-FOV lets you match radiation dose to anatomy of interest.
- Standard scan
- 15 s
- High-res scan
- 24 s
- Voxel
- 0.12 / 0.2 / 0.3 mm
MODE · 2D CEPHALOMETRIC
Cephalometric
Lateral, PA, SMV, Waters, and carpus projections — both traditional Scan Ceph and industry-leading One Shot Ceph in under 1.2 seconds for pediatric orthodontics.
- One Shot Ceph
- 0.9 – 1.2 s
- Scan Ceph
- 12.9 s
- Max FOV
- 30 × 25 cm
The right 3D volume for the case in front of you.
Multi-FOV CBCT
A fixed-FOV CBCT forces you to irradiate anatomy you don't need. PAX-i3D gives you four nested volumes — dial the scan down to just the tooth, or up to the full maxillofacial complex, in the same machine.
12 × 9 cm · full maxillofacial
8 × 8 · full arch + TMJ
8 × 5 · arch
5 × 5 · tooth / endo
Nested FOV volumes at a glance
| FOV | Voxel (small / big) | Typical Use Case |
|---|---|---|
| 5 × 5 cm | 0.12 / 0.2 mm | Single-tooth endo, periapical, fractured root, impacted canine |
| 8 × 5 cm | 0.12 / 0.2 mm | Implant planning single arch, quadrant view, mandibular canal |
| 8 × 8 cm | 0.2 / 0.3 mm | Full arch (upper + lower), bilateral TMJ |
| 12 × 9 cm | 0.2 / 0.3 mm | Full maxillofacial, airway analysis, surgical planning |
8×8 configuration ships with the first three volumes; the 12×9 configuration adds the large 12×9 cm FOV. Available voxel sizes listed in "small / big" correspond to high-resolution mode / standard mode within each FOV.
The full Vatech software stack. Included.
ACTUAL SOFTWARE SCREENSHOT · MPR VIEW EZDENT-I / EZ3D-I EzDent-i & Ez3D-i
PAX-i3D ships with Vatech's proprietary EzDent-i (patient database + 2D viewer) and Ez3D-i (CBCT reconstruction, MPR, 3D rendering, implant planning). The screenshot shows the standard 4-panel MPR layout: coronal, sagittal, axial, and 3D.
- →DICOM output. Export any scan as DICOM for third-party implant planning (coDiagnostiX, Simplant, Blue Sky Plan) or hospital PACS.
- →Multi-language UI. English, Chinese, Spanish, Arabic available out of the box.
- →Implant library. Virtual implant placement tool with a large catalog of standard implant brands.
- →TMJ & airway modules. Dedicated analysis panels included in Ez3D-i.
Actual units. Actual photos.
Unit Gallery
We currently have multiple PAX-i3D generations in stock. Photos below are from live unit inspections — message us for the latest set matching your spec.

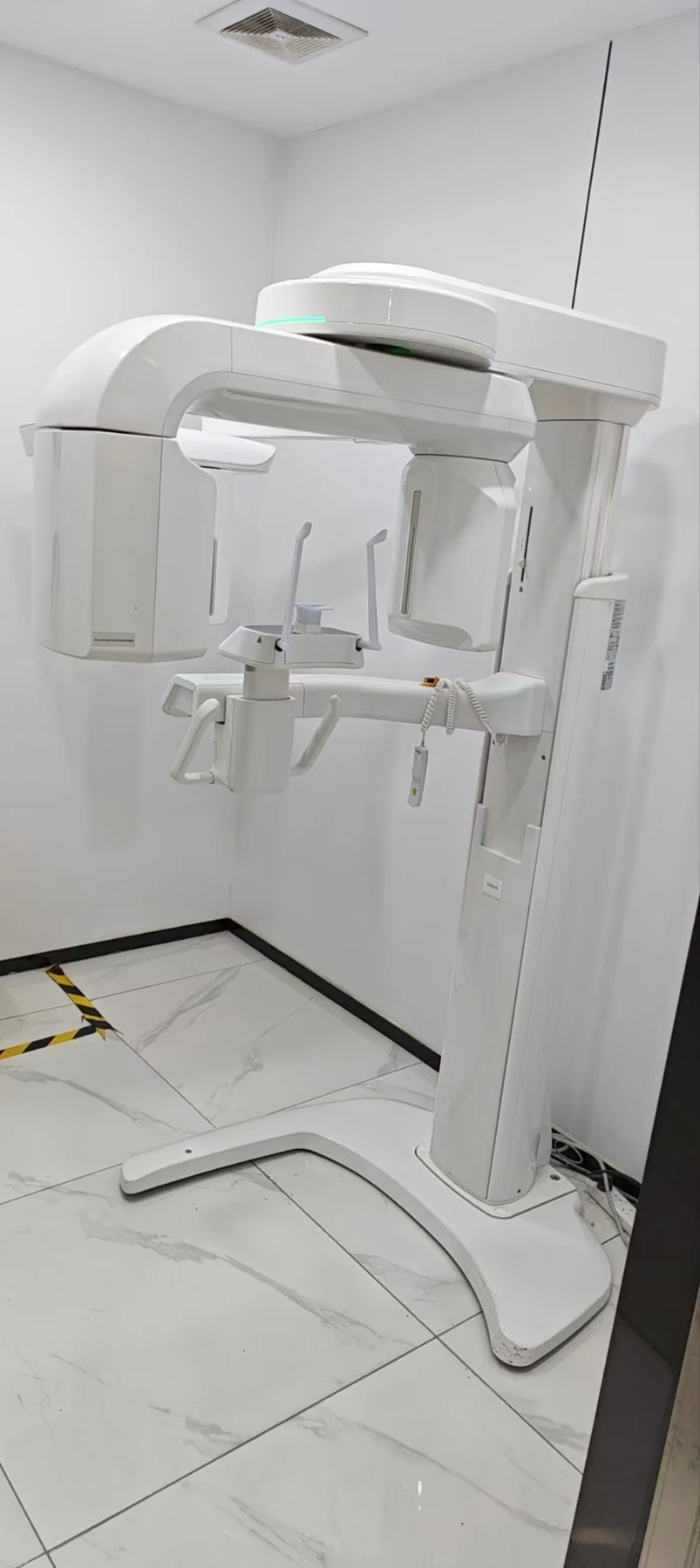

01 / Full System PAX-i3D newer generation · curved pedestal base 02 / Pan + Ceph Arm PAX-i3D earlier generation · ceph arm extended
Complete data sheet.
Technical Specifications
As published by Vatech Co., Ltd. for the PAX-i3D family. Exact FOV and voxel options depend on the configuration you order.
Modalities & CBCT
- Function
- Pan + CBCT + Ceph
- CT FOV (std)
- 8 × 8 — [5×5 / 8×5 / 8×8]
- CT FOV (extended)
- 12 × 9 — [5×5 / 8×5 / 8×8 / 12×9]
- Voxel (5×5, 8×5)
- 0.12 / 0.2 mm
- Voxel (8×8, 12×9)
- 0.2 / 0.3 mm
- CBCT scan time
- Standard 15 s · High 24 s
- Gray scale
- 14-bit (16 384 levels)
Panoramic & Cephalometric
- Pano HD scan
- 13.5 s
- Pano Normal scan
- 10.1 s
- Scan Ceph time
- 12.9 s
- One Shot Ceph time
- 0.9 – 1.2 s
- Scan Ceph FOV
- 21×23 · 27×23 cm (Full LAT)
- One Shot Ceph FOV
- 20×20 / 23×25 / 30×25 cm
Generator, Tube & Environment
- Tube voltage
- 50 – 90 kVp
- Tube current
- 4 – 10 mA
- Patient position
- Standing
- Wheelchair access
- Yes — accessible
Cephalometric Projections
- Scan Ceph (21×23)
- LAT · PA · SMV · Waters · Carpus
- Scan Ceph (27×23)
- Full LAT
- One Shot (20×20)
- LAT · PA
- One Shot (23×25)
- LAT · PA
- One Shot (30×25)
- LAT · PA · SMV · Waters · Carpus
Software
- 2D viewer
- EzDent-i
- 3D / CBCT viewer
- Ez3D-i
- Output standard
- DICOM
- Languages
- EN · CN · ES · AR · more
"Vatech", "PAX-i3D", "EzDent-i", "Ez3D-i" are trademarks of Vatech Co., Ltd. FOB Dental is an independent equipment exporter and is not affiliated with or endorsed by Vatech.
Genuine Vatech. Pre-tested. CBCT ready on day one.
Sourcing Through FOB Dental
CBCT is a serious capital investment. For the PAX-i3D specifically, every unit we ship has been powered on, rotated through full pan / ceph / CBCT cycles, and test-scanned against a phantom in our Shanghai facility — documented with both photos and video before crating.
We also include installation guidance and remote commissioning to help your engineer get to first image capture on site.
01 · AUTHENTICITY
Genuine Vatech factory unit
Original Vatech chassis, detector and tube — OEM firmware, OEM software license.
02 · TEST IMAGES
Sample DICOM before payment
Pan + CBCT + Ceph test images from the actual unit sent to you in DICOM before you commit.
03 · LOGISTICS
Crated for CBCT shipping
Custom wooden crate with shock indicators, tilt indicators, and foam interior for sensor protection.
04 · COMMISSIONING
Remote install support
Video commissioning sessions with your engineer, full service manuals, and Vatech partner referrals.
Answers to what buyers actually ask us.
Frequently Asked Questions
What is the Vatech PAX-i3D?
+
The PAX-i3D is a premium 3-in-1 dental X-ray imaging system that combines 2D panoramic (OPG), 3D cone beam CT (CBCT), and cephalometric (Scan Ceph and 0.9-second One Shot Ceph) modalities in a single floor-standing machine. It is made by Vatech Co., Ltd. of South Korea — a global market leader in dental CBCT imaging.
What CBCT field of view sizes are available?
+
The PAX-i3D offers multi-FOV CBCT. The 8×8 configuration supports 5×5, 8×5, and 8×8 cm volumes. The 12×9 configuration adds an additional 12×9 cm volume. Smaller FOVs are used for single-tooth, endodontic and implant-site imaging; larger FOVs cover full arch, bilateral TMJ, and full maxillofacial / airway analysis.
What voxel sizes can I choose?
+
For the 5×5 and 8×5 cm FOVs: 0.12 mm or 0.2 mm voxel. For the 8×8 and 12×9 cm FOVs: 0.2 mm or 0.3 mm.
A voxel is a 3D pixel — smaller voxels produce higher-resolution reconstructions but larger file sizes and slightly higher dose. 0.12 mm is endodontic-grade (root-canal detail); 0.2 mm is standard implant-planning grade; 0.3 mm is used for wide-FOV airway or orthognathic planning where overall anatomy matters more than fine detail.
What is One Shot Ceph and why does it matter?
+
One Shot Ceph uses a large-area digital sensor to capture the entire cephalometric view in a single 0.9–1.2 second exposure, versus Scan Ceph which sweeps the sensor across the patient over 12.9 seconds. Advantages: essentially no motion artifact (critical for children and uncooperative patients), and lower patient dose. PAX-i3D supports both modes — choose per patient / per projection.
Is the unit wheelchair-accessible?
+
Yes. The patient is imaged in a standing position on a floor-standing column. The base design and patient-positioning frame accept a wheelchair directly — no patient transfer required, no separate stool or chair needed. Useful for accessibility compliance and for patients with mobility limitations.
What software is included?
+
Vatech's EzDent-i (2D viewer, patient database) and Ez3D-i (CBCT reconstruction, MPR, 3D rendering, implant planning). Output is fully DICOM-compliant for integration with third-party implant planning software (coDiagnostiX, Simplant, Blue Sky Plan, Nobel Clinician) and any standard PACS or practice-management system. Multi-language UI including English, Chinese, Spanish, and Arabic.
What is the condition of the units in stock?
+
We currently hold several pre-owned Grade-A tested PAX-i3D units from different generations. Each has been powered on, calibrated, test-scanned across all three modalities, and photographed. The live operation and imaging demo videos higher up this page are from our warehouse. Exact condition, warranty, and software license of each unit are confirmed on request.
How do I order a PAX-i3D from FOB Dental?
+
Message us on WhatsApp at or email . Tell us your target FOV config (8×8 or 12×9), destination port, and any software requirements — we'll send matching unit photos, test DICOM samples, and a full FOB quote. We don't use contact forms; direct chat is faster for sharing large files.
Actual unit · 3 photographs
The machine you would receive
Photographed in our Shanghai warehouse. We send additional angles, serial-number close-ups and a powering-up video on request, before any payment.
Factory datasheet
Technical specification
Values as published by Vatech Co., Ltd. for this platform. Configuration of the individual unit is confirmed on quotation.
| CBCT FOV max | 12×9 cm |
|---|---|
| Voxel min | 0.12 mm |
| One-Shot Ceph | 0.9 s |
| Gray scale | 14-bit |
Refurbishment
What we do to a unit before it ships
Source audit
Clinic of origin verified and serial number recorded, so the machine's service history is traceable rather than anonymous.
Mechanical & electrical
Rotation, positioning, column travel and safety interlocks checked; electrical and dose behaviour verified against the platform's published figures.
Image QC and export packing
Test captures reviewed for artefact and geometry, then professional crating, export documentation and container loading at Shanghai or Ningbo.
Before you pay: we send live video of this specific unit powering up, rotating and capturing, plus a sample DICOM scan. Warranty terms are agreed in writing on the proforma invoice — ask us for the current terms on this unit.
FAQ
PaX-i3D: buyer questions
What is the Vatech PAX-i3D?
The Vatech PAX-i3D is a premium 3-in-1 dental X-ray imaging system that combines three modalities in a single floor-standing machine: 2D panoramic (OPG), 3D cone beam computed tomography (CBCT), and cephalometric (lateral and PA ceph with both Scan Ceph and 0.9-second One Shot Ceph options). It is made by Vatech Co., Ltd. of South Korea, a global market leader in dental CBCT.
What CBCT field of view (FOV) sizes are available?
The PAX-i3D offers multi-FOV CBCT scanning. The 8×8 configuration supports 5×5, 8×5, and 8×8 cm volumes. The 12×9 configuration adds an additional 12×9 cm volume on top. Smaller FOVs (5×5, 8×5) are used for single-tooth, endodontic and implant-site imaging. Larger FOVs (8×8, 12×9) cover full arch, TMJ, maxillofacial, and airway analysis.
What voxel sizes are available?
For 5×5 and 8×5 cm FOV: 0.12 mm or 0.2 mm. For 8×8 and 12×9 cm FOV: 0.2 mm or 0.3 mm. A voxel is a 3D pixel — the smaller the voxel, the higher the resolution and the more detail visible in the reconstructed volume. 0.12 mm voxel is endodontic-grade; 0.2 mm is standard implant-planning grade; 0.3 mm is used for larger maxillofacial volumes where acquisition speed and lower dose matter more than maximum resolution.
What is One Shot Ceph and why does it matter?
One Shot Ceph uses a large-area digital sensor to capture an entire cephalometric view in a single 0.9–1.2 second exposure — versus Scan Ceph which sweeps the sensor across the patient over 12.9 seconds. The advantage of One Shot is almost no motion artifact (critical for children and uncooperative patients) and significantly lower patient dose per exam. The PAX-i3D supports both modes, so you can choose per patient.
What are the scan times?
Panoramic: HD mode 13.5 s, Normal mode 10.1 s. Scan Cephalometric: 12.9 s. One Shot Cephalometric: 0.9–1.2 s. CBCT: Standard 15 s, High-resolution 24 s.
What tube voltage and current does it use?
50–90 kVp and 4–10 mA. The wide kV range allows optimization per patient size and imaging task. 14-bit gray scale means 16,384 distinct gray levels per pixel — essential for diagnostic confidence on dense structures like bone trabeculae and fine caries.
Is the unit wheelchair-accessible?
Yes. The patient is scanned in a standing position, and the column base and patient-positioning frame are specifically designed to accept a wheelchair — important for accessibility compliance and for patients with mobility limitations. No separate stool or chair is required.
What software does it run?
Vatech's proprietary EzDent-i (2D viewer and management) and Ez3D-i (CBCT MPR, 3D reconstruction, implant planning) are the standard software bundle. Output is fully DICOM-compliant for third-party integration with implant planning software (coDiagnostiX, Simplant, Blue Sky Plan) and general PACS/practice-management systems. Multi-language UI including Chinese, English, Spanish, Arabic.
What is the condition of the unit currently in stock?
The PAX-i3D units in stock are pre-owned Grade-A tested units in our Shanghai warehouse. Each unit has been powered on, calibrated, test-scanned (pan + CBCT + ceph), and photographed. We can also share the live operation and imaging demo videos on request. Condition, warranty terms and software license specifics are confirmed per-unit at quote stage.
How do I order from FOB Dental?
Message us on WhatsApp at +86 159 5127 6160 or email [email protected]. We will send the latest unit photos, recent test images (pan + CBCT slices + ceph), videos, and a full FOB China quote including shipping options to your port. Same-business-day response typical. No contact forms — direct chat only.
