Genoray PAPAYA Plus Panoramic & Cephalometric Dental X-Ray System

2-in-1 Panoramic and full lateral cephalometric on the same chassis CdTe Direct-conversion CMOS — the premium sensor class over Cs:I scintillators Giga Eth Gigabit Ethernet interface — full-resolution images land on the PC in seconds Korea Designed and manufactured by Genoray Co., Ltd. — a Korean imaging specialist

Why PAPAYA Plus

For general practices stepping up into orthodontics — or ortho specialists replacing aging equipment — PAPAYA Plus delivers hospital-grade image quality at a competitive pan-ceph price point.

CdTe Direct Conversion

X-ray photons hit a cadmium telluride (CdTe) semiconductor and convert directly into an electrical signal — skipping the scintillator → light → silicon conversion step that softens images on legacy Cs:I detectors. Result: sharper edges, higher MTF, lower required dose.

Two Modalities, One Workflow

Flip a single-tap selector between panoramic and cephalometric mode. No sensor swap, no arm repositioning drama — the ceph arm rides on the same column, detector repositions automatically.

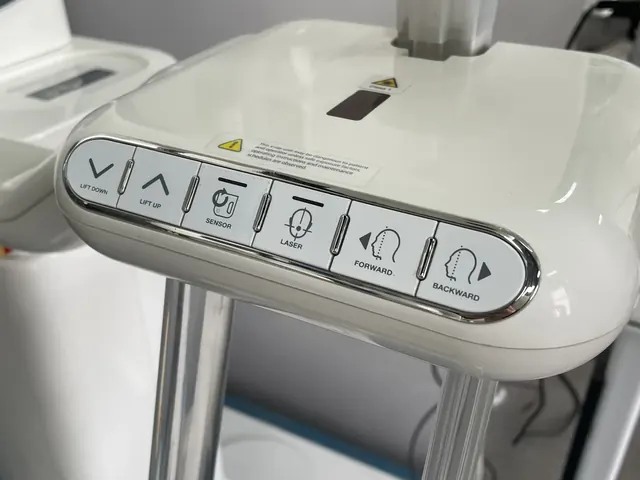

Tactile Operator Controls

Physical silver-trimmed keys for lift up/down, sensor position, laser, and forward/backward patient positioning — built to survive years of daily clinic use. Glove-friendly, no capacitive touchscreens to miscalibrate.

DQE ≥ 0.8 at 70 kV

Detective Quantum Efficiency ≥ 0.8 at the typical pan exposure point means the detector converts X-ray photons into signal with minimal noise penalty — you can lower the kV and still get diagnostic-grade images. Real ALARA in practice.

Giga Ethernet Transfer

Full-resolution 100 µm pan or ceph images move to the workstation over Giga Ethernet — no USB bottleneck, no proprietary grabber card, no long reconstruction wait. Plugs into any standard dental PC.

DICOM-Ready Imaging

Outputs DICOM-compliant files — straight into your PACS, dental practice-management or cloud storage. Works with Genoray's own Triana workstation software as well as generic DICOM viewers.

Unit Inspection

Every PAPAYA Plus listed by FOB Dental is photographed on-site before crating. Serial number, detector label, cosmetic condition — what you see is what ships.

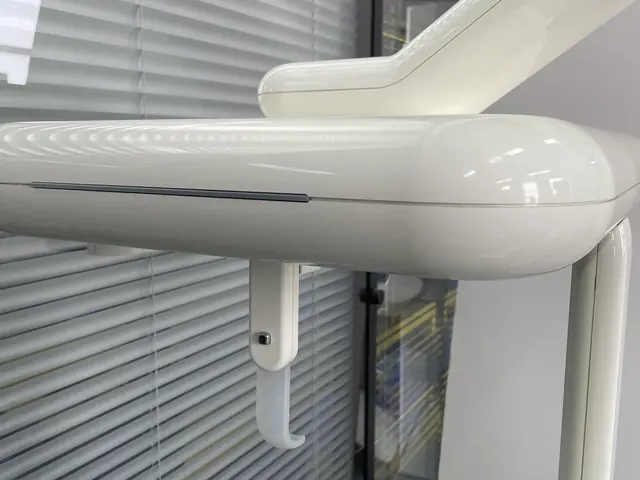

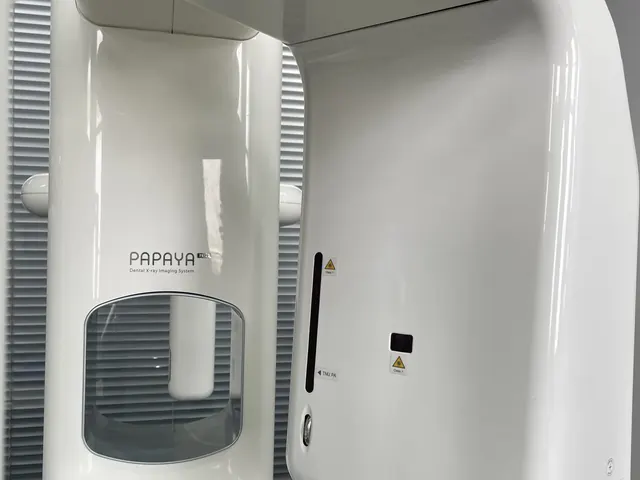

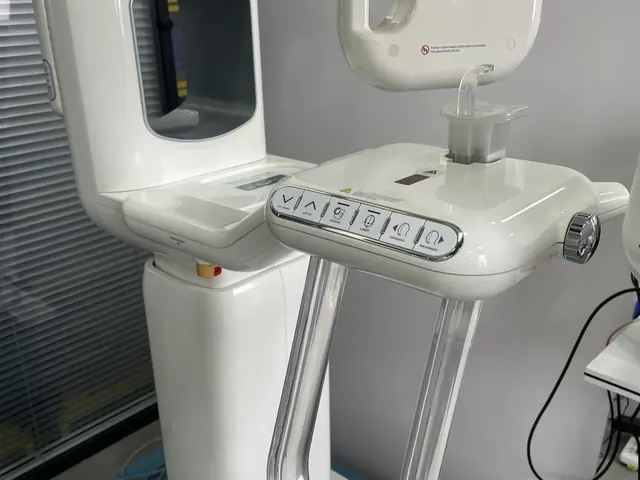

01 / Patient Area Chin-rest post, bite stick, stability handle 02 / Operator Keys Silver-trimmed tactile key panel 03 / Detector Label XID-C24DC · I3 System · Active 4.8×240 mm 04 / Ceph Sensor Module TMJ PA / lateral / carpus positions 05 / Yoke & Ceph Arm Rotating head and cephalometric arm housing 06 / Brand Panel Genoray-branded detector housing

Imaging Modalities

PAPAYA Plus fully covers the daily diagnostic and orthodontic workflow of a general or multi-specialty dental practice.

MODE · A PANORAMIC

Panoramic Imaging

Full upper-and-lower arch view including TMJs — the workhorse exposure for routine check-ups, third-molar assessment, and pre-implant site evaluation.

Exposure time

9 – 17 s

Image field height

150 mm

Typical programs

Pan · Pediatric · TMJ

Pixel pitch

100 µm

MODE · B CEPHALOMETRIC

Cephalometric Imaging

Full lateral, PA and carpus ceph views for orthodontic diagnosis, treatment planning, growth assessment and airway analysis — all at a lower dose than traditional analog ceph.

Exposure time

4 – 12 s

Image field height

240 mm

Typical projections

Lateral · PA · Carpus

Pixel pitch

100 µm

Technical Specifications

Specifications as published by Genoray Co., Ltd. for the PAPAYA Plus model. Subject to revision; latest figures confirmed at quotation.

Generator, Tube & Exposure

Panoramic exposure

Yes

Cephalometric exposure

Yes

Panoramic exposure time

9 – 17 sec

Cephalometric exposure time

4 – 12 sec

Panoramic image field height

150 mm

Cephalometric image field height

240 mm

Focal spot size

0.5 mm

Target angle

5°

Maximum tube voltage

90 kV

Minimum tube voltage

60 kV

Anode heat storage capacity

35 kJ

Max anode heat dissipation rate

250 W

Line voltage

220 V, 50 / 60 Hz

Sensor & Connectivity

Sensor type

Direct Conversion

Detector technology

CdTe + CMOS

Detector model

XID-C24DC (I3 System)

Pixel pitch

100 µm × 100 µm

MTF

Up to 80% @ 2.5 lp/mm

Dynamic range

≥ 72 dB

DQE (70 kV, 0 lp/mm)

≥ 0.8

Data interface

Giga Ethernet

Safety & Compliance

Laser class

Class 1 (positioning)

Emergency stop

Yes · front-panel

Output format

DICOM

Mounting

Floor-standing column

"PAPAYA" and the Genoray wordmark are trademarks of Genoray Co., Ltd. FOB Dental is an independent equipment exporter and is not affiliated with or endorsed by Genoray.

Model Comparison

Sourcing Through FOB Dental

FOB Dental sources original Korean Genoray equipment and consolidates it in our Shanghai warehouse. Every PAPAYA Plus is powered on, calibrated, test-imaged, and photographed before crating for export.

We specialize in premium pre-owned dental imaging — real OEM units with original detectors and factory firmware, not clones. If you want new-in-box, we can also quote that on request.

01 · AUTHENTICITY

OEM detector included

Original I3 System XID-C24DC CdTe detector with serial number visible. No third-party retrofits.

02 · INSPECTION

Test image before shipment

We'll send you a panoramic test image taken in our warehouse before you pay. Confirm image quality first.

03 · LOGISTICS

Sea / air / DDP door

FOB Shanghai or Ningbo by default. CIF and DDP door-to-door available to EU, NA, MENA, LATAM, SEA.

04 · SUPPORT

Remote install guidance

Service manuals, remote commissioning over video call, and Genoray service-partner referrals in most regions.

Frequently Asked Questions

What is the Genoray PAPAYA Plus?

+

The Genoray PAPAYA Plus is a digital 2-in-1 dental X-ray imaging system that combines panoramic (OPG) and cephalometric (Ceph) imaging in a single floor-standing unit. It is manufactured by Genoray Co., Ltd. of South Korea, uses a CdTe + CMOS direct-conversion detector (model XID-C24DC by I3 System), and connects to the workstation over Giga Ethernet — delivering DICOM-compliant images to your practice-management or PACS software.

What is the difference between PAPAYA and PAPAYA Plus?

+

PAPAYA (base model) is panoramic-only. PAPAYA Plus adds a cephalometric arm with 240 mm image field height for lateral, PA and carpus ceph views — making it a true 2-in-1 pan + ceph unit. The Plus model also has slightly larger anode heat storage (35 kJ vs 30 kJ) to handle longer ceph exposures. Both share the same 60–90 kV tube, 0.5 mm focal spot, and CdTe direct-conversion detector.

What detector does it use, and why does it matter?

+

A direct-conversion CdTe (cadmium telluride) + CMOS detector — specifically the XID-C24DC by I3 System.

Why it matters: most dental panoramic units on the market use indirect-conversion sensors that rely on a scintillator (usually Cs:I) to convert X-rays into visible light first, which is then captured by an a-Si or CMOS array. That intermediate step spreads photons and softens the image.

Direct-conversion CdTe skips the scintillator — X-rays generate an electrical signal directly inside the semiconductor. Result: higher MTF (up to 80% at 2.5 lp/mm), higher DQE (≥0.8 at 70 kV), and meaningfully lower patient dose for the same diagnostic quality.

Which imaging programs are included?

+

Panoramic mode: standard adult panoramic, pediatric panoramic, typically TMJ lateral and TMJ PA views.

Cephalometric mode: lateral ceph (the ortho workhorse), PA (posterior-anterior) ceph, and carpus (hand-wrist) for orthodontic skeletal age assessment.

Exact program mix depends on the software bundle installed on the unit — confirm with FOB Dental at quote stage.

What is the condition of the unit in stock?

+

The PAPAYA Plus unit photographed is a pre-owned Grade-A tested unit currently in our Shanghai warehouse. It has been powered on, calibrated, test-imaged, and photographed as-is (actual unit, not stock photography). Minor cosmetic marks on the housing are visible in the gallery photos. Functional warranty is offered; exact terms are confirmed at quote stage.

What software does it need?

+

PAPAYA Plus connects via Giga Ethernet and is traditionally bundled with Genoray's own Triana or Dental Studio imaging software, and is DICOM-capable for integration with third-party PACS or practice-management systems (Dentrix, Eaglesoft, Romexis, etc.). We will confirm which software license comes with your unit.

Can it run on 110 V / US mains?

+

The PAPAYA Plus is specified for 220 V, 50/60 Hz. For deployment on 110 V North-American mains, a step-up isolation transformer is required (easily sourced locally). We can also quote a voltage-converter kit pre-configured for your unit.

How do I order from FOB Dental?

+

Message us on WhatsApp at or email . We intentionally do not use contact forms — direct chat lets us share large files, test images, and live quotations in real time. Typical response under 4 business hours, Monday–Saturday.
