Implagraphy . Pre-owned. Better-than-new-priced.

Products / Imaging Systems / CBCT

Certified Pre-Owned · Tested · Calibrated · Warrantied

VATECH · Made in Korea

Implagraphy. Pre-owned. Better-than-new-priced.

A true 3-in-1 dental imaging platform combining Cone-Beam CT, Panoramic and Cephalometric X-ray in a single, implant-grade workstation. Our certified pre-owned units are fully tested, calibrated, and priced at a fraction of new.

30fps Sensor refresh 0.1mm Min. slice 200+ Implant library

SYS.READY · CBCT.MODE · FOV 12×8.5

↔ FIELD OF VIEW

REC · 001

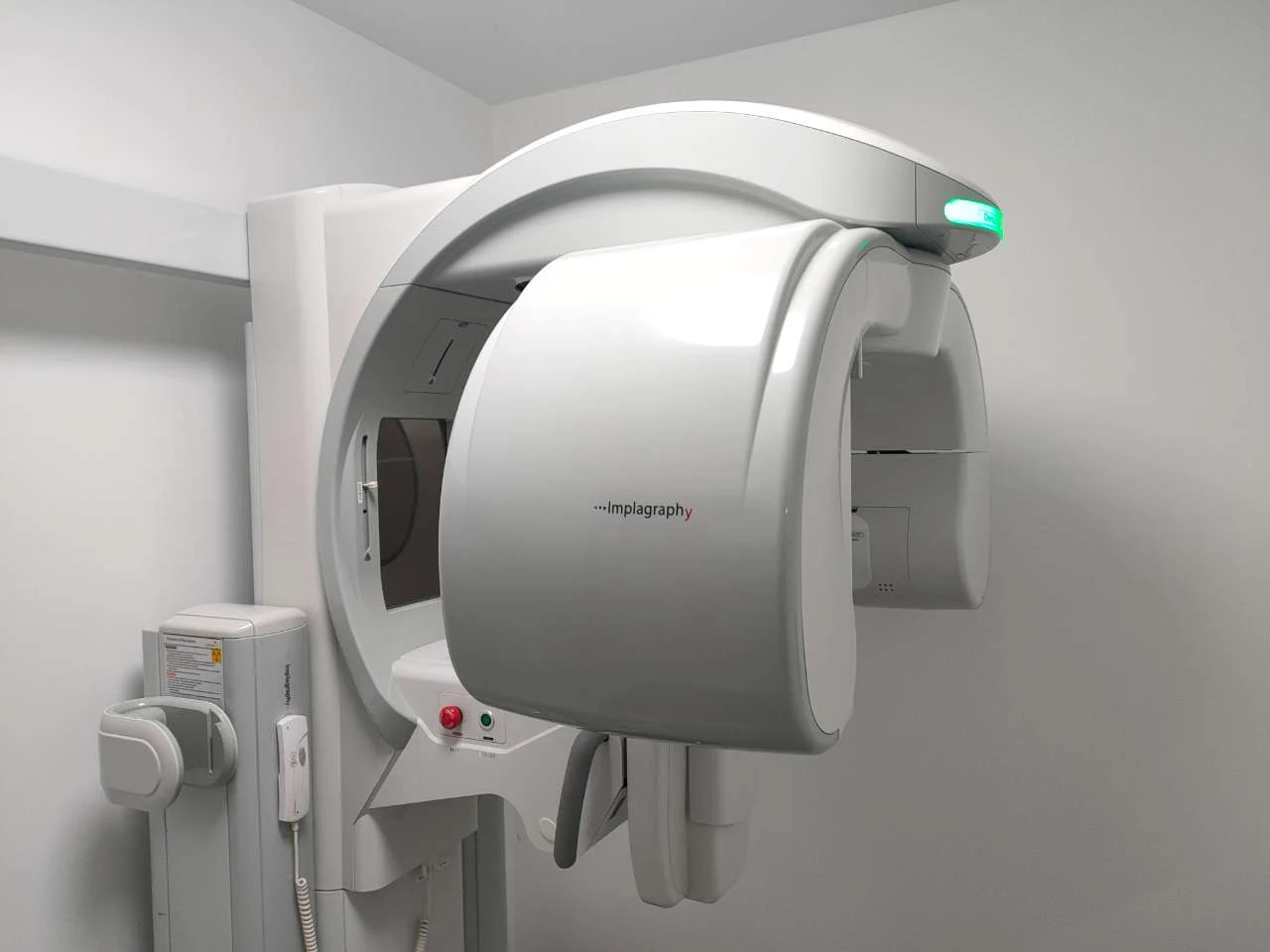

Fig. 01 · CBCT rotating arm Shanghai Carejoy showroom

Authorized distributor · CE marked · ISO 13485 · DICOM 3.0 compliant · Serving 40+ countries

01 Technology

Unlike 2-in-1 units that reconstruct panoramic and cephalometric views from 3D data, Implagraphy drives each modality with a dedicated capture mode — dramatically lowering patient radiation dose and preserving diagnostic image quality.

/ 3D

Cone-Beam CT

Volumetric 3D reconstruction for surgical implant planning, impacted tooth localization and TMJ diagnostics. Up to 12×8.5 cm FOV covers bilateral arches.

FOV options4 modes Voxel size0.1 mm Scan time~15 s

/ 2D

Panoramic X-ray

True panoramic capture with a dedicated acquisition geometry — not a CBCT-derived MPR. Sharper detail for routine screening and endodontic review.

ModeReal Pano Child modeYes ExposurePulsed

/ CEPH

Cephalometric

Full lateral and AP skull imaging for orthodontic cephalometric analysis, growth tracking and surgical orthognathic planning — scan-mode acquisition.

MethodScan Ceph ViewsLat / AP / Hand DoseOptimized

02 Real Unit · In Operation

Every unit is pre-tested, calibrated and inspected on-site before ocean or air shipment.

01 / FULL SYSTEM Complete installation with Ceph arm — room-ready configuration 02 / PATIENT SPACE Forehead rest, chin support and bite positioner 03 / C-ARM DETAIL Rotating gantry with integrated flat-panel detector

Additional photos, installation videos and sample DICOM files available on request.

03 Field of View

From 5×5 cm endodontic precision to full 12×8.5 cm bilateral TMJ coverage — choose the smallest appropriate scan volume to minimize patient dose.

8.5 cm ⟵ 12 cm ⟶ 12 × 8.5 Full skull

Bilateral TMJ, full arch surgery, third molar impaction

8.5 cm ⟵ 8.5 cm ⟶ 8.5 × 8.5 Full arch

Complex implant planning, single-side TMJ diagnosis

5 cm ⟵ 8 cm ⟶ 8 × 5 Single arch

Upper or lower full jaw, single / multi implant

5 cm ⟵ 5 cm ⟶ 5 × 5 Endodontic

Single-tooth endo, impacted tooth, lowest dose

ALARA-friendly design. Smaller FOV modes proportionally reduce scan time and patient exposure, aligning with international "As Low As Reasonably Achievable" radiation protection principles for pediatric and repeat imaging.

04 Ez3D-i Software

The bundled Ez3D-i workstation turns raw volume data into actionable surgical plans — nerve tracing, bone density mapping, 200+ implant library, DICOM 3.0 export.

// NERVE_MAPPING

Inferior Alveolar Nerve Tracing

Interactive IAN annotation with 3D mandibular canal visualization — critical for avoiding paresthesia in posterior implant placement.

// BONE_DENSITY

HU Bone Density Analysis

Quantitative Hounsfield unit measurement at the implant site — pre-op bone quality assessment and post-op osseointegration verification.

// IMPLANT_LIBRARY

200+ Implant Database

Pre-loaded catalogs from major manufacturers with realistic 3D models for surgical simulation — Straumann, Nobel, Osstem, Dentium and more.

// MPR_SLICING

Multi-Planar Reconstruction

Axial / sagittal / coronal views with down to 0.1 mm slice thickness — ultra-thin sections for fine pathology and root canal work.

// SEGMENTATION

Regional Segmentation

Isolate individual teeth, lesions or bony structures for focused 3D review — particularly useful for impacted tooth assessment.

// DICOM_3.0

Universal DICOM Export

Fully DICOM 3.0 compliant — integrates with PACS systems, third-party surgical guide software and lab CAD/CAM workflows globally.

05 Specifications

Full technical manual, CE certificate and installation requirements available on request.

X-Ray Generator

Tube voltage

50 – 90 kVp

Tube current

4 – 10 mA

Focal spot

0.5 mm (IEC 336)

Exposure mode

Pulsed DC

Detector

Sensor type

Flat panel CMOS

Active area

85 × 85 mm (CT)

Pixel pitch

0.1 mm

Frame rate

30 fps

Grayscale

14-bit

Imaging Performance

FOV options

12×8.5 / 8.5×8.5 / 8×5 / 5×5 cm

Voxel size (CT)

0.1 – 0.3 mm selectable

CT scan time

~15 s typical

Reconstruction

~1 min typical

Panoramic time

~14 s

Cephalometric

Scan-mode (Lat / AP / Hand)

Physical & Electrical

Power input

AC 220 V / 50 – 60 Hz

Power consumption

~1.5 kVA

Weight (approx.)

~230 kg

Installation

Floor-mounted, min. 2.0×1.5 m room

Software & Compatibility

Viewer

Ez3D-i (included)

File standard

DICOM 3.0

OS support

Windows 10 / 11

PACS integration

Yes

Language

English, Chinese, multilingual

* Specifications are typical values and may vary by configuration. Please confirm final specs with our sales engineer before ordering.

06 Sourcing from Shanghai

We are an authorized dental equipment exporter based in Shanghai, China. For over a decade we've been helping dental clinics, distributors and dealers across Europe, Latin America, the Middle East, Africa and Southeast Asia source high-end imaging equipment — at FOB Shanghai pricing that's genuinely competitive.

• 01 Pre-shipment QC Every unit tested and calibrated before crating — video evidence provided.
• 02 Remote installation support Engineers available via video call during your local installation — no need to pay flight costs.
• 03 OEM / rebranding available For qualifying dealer orders — your logo, your packaging, your documentation.
• 04 Spare parts stock Critical spares maintained in Shanghai warehouse for fast global dispatch.

Track record 10+ years exporting

dental equipment 40+ countries served

across 5 continents 500+ CBCT units

shipped to date 24h inquiry response

time, business days

07 FAQ What is included in the standard package? +

The complete Implagraphy 3-in-1 gantry with integrated cephalometric arm, Ez3D-i viewer software with license, dedicated workstation PC, patient positioning accessories (chin rest, temple supports, bite block), remote exposure handswitch, operator manual, and all installation consumables. Shipping crate designed for sea or air freight.

Do you provide CE certificates and regulatory documentation? +

Yes. The Implagraphy is CE-marked by VATECH (Korea). We provide a full document pack including CE certificate, ISO 13485 manufacturer certificate, declaration of conformity, test reports and — where applicable — country-specific registration support (e.g. ANVISA assistance for Brazil, COFEPRIS for Mexico).

What is the typical lead time and shipping cost? +

In-stock units ship within 7–10 business days after payment confirmation. Sea freight to most major ports is 25–45 days; air freight is 5–10 days. Exact shipping cost depends on destination — we can provide FOB Shanghai, CIF or DDP quotes.

How does warranty and after-sales service work internationally? +

Standard warranty is 12 months on the main unit and 24 months on the flat panel detector from the date of installation. During warranty we provide free replacement of defective parts (shipping borne by buyer). Remote diagnostic support is available 24/7 via TeamViewer, and our engineers can join your on-site technician via video call for guided installation and troubleshooting.

Can I see sample DICOM files before ordering? +

Absolutely — we encourage it. Message us on WhatsApp and we'll share a set of real DICOM files captured on the exact unit configuration you're considering, along with screen-recorded walkthroughs of the Ez3D-i software. Your radiologist or dentist can evaluate image quality hands-on before committing.

What payment terms do you accept? +

T/T bank wire is most common — typically 30% deposit on order, 70% before shipment. L/C at sight is also accepted for orders above USD 30,000. For repeat dealer customers, more flexible terms can be negotiated.

09 Get a quote

We skip the contact forms on purpose — WhatsApp gets you a real human reply faster, usually within the same hour on business days. Include your country, preferred quantity, and any specific questions about condition, tube hours or documentation.

Showroom & warehouse Shanghai Carejoy Dental Co., Ltd. — Shanghai, China Visits by appointment · multiple units in stock
