New design of Office LED Down Light

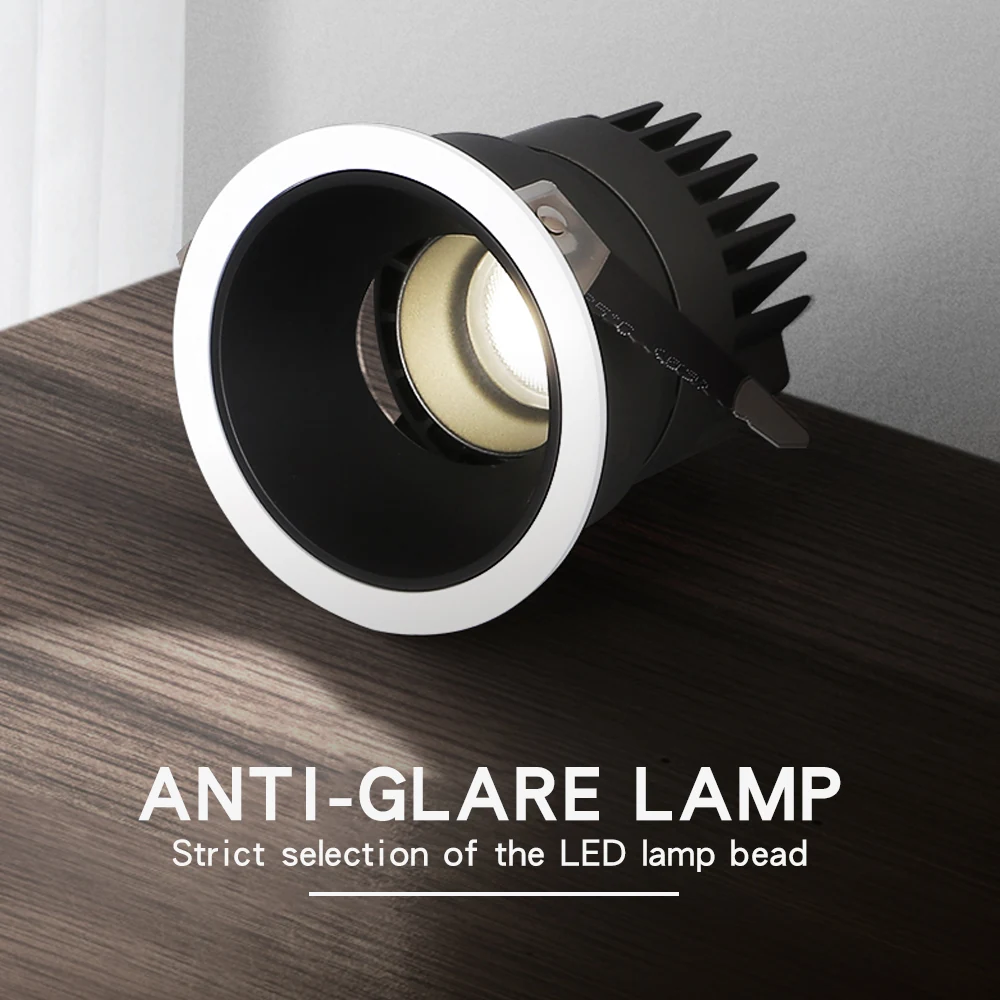

The FD-ND010R07 is a 7W recessed office LED down light designed for commercial ceiling installations where a compact, low-profile fixture is needed. The fixture has a diameter of D85 x H80mm and requires a D75mm cut-out, making it suitable for standard ceiling grids. It operates on AC85-265V, allowing compatibility with standard building wiring. The light uses a Philips LED chip and a Dark Energy driver, delivering consistent performance in office and light commercial environments.
| Model | FD-ND010R07 |
|---|---|
| Power | 7W |
| Input Voltage | AC85-265V |
| IP Rating | IP20 |
| Dimension | D85 x H80 mm, Hole D75 mm |
| LED Chip | Philips |
| Driver | Dark Energy |
Key Benefits
- Compact size fits standard ceiling grids with minimal cut-out, reducing installation time
- AC85-265V input supports standard building voltage without need for special transformers
- Philips LED chip ensures stable light output and long life in continuous office use
- Dark Energy driver provides reliable operation with minimal flicker or noise
- IP20 rating is sufficient for dry indoor environments like offices and corridors
- Low power consumption at 7W reduces energy use in large-scale installations
Application Scenarios
- Recessed ceiling installation in office buildings with suspended ceiling grids
- Corridor and hallway lighting in commercial buildings with limited ceiling space
- Lighting in small meeting rooms and private offices where minimal profile is required
- Retail space ceiling lighting where a clean, unobtrusive look is needed
Who It Is For
- Commercial office contractors installing recessed lighting in new builds or retrofits
- Lighting designers specifying low-profile fixtures for ceiling-restricted spaces
- Electrical wholesalers supplying office lighting to regional distributors
- Brand owners sourcing OEM down lights under their own label for commercial projects
Problems It Solves
- Large down lights require oversized cut-outs, which disrupt ceiling grid layouts
- Fixtures with high power draw increase energy costs in large office installations
- Non-standard drivers can cause compatibility issues with existing control systems
- Poorly rated fixtures may fail in long-term office use due to heat or driver issues
- Lack of standard cut-out sizes complicates bulk ordering and installation planning
Technical Features
- Recessed design with D85 x H80mm body and D75mm cut-out hole
- AC85-265V input for compatibility with standard building power
- Philips LED chip for consistent light output and reliability
- Dark Energy driver for stable performance and low noise
- IP20 rating suitable for dry indoor environments
- Compact form factor fits standard ceiling grids without structural modification

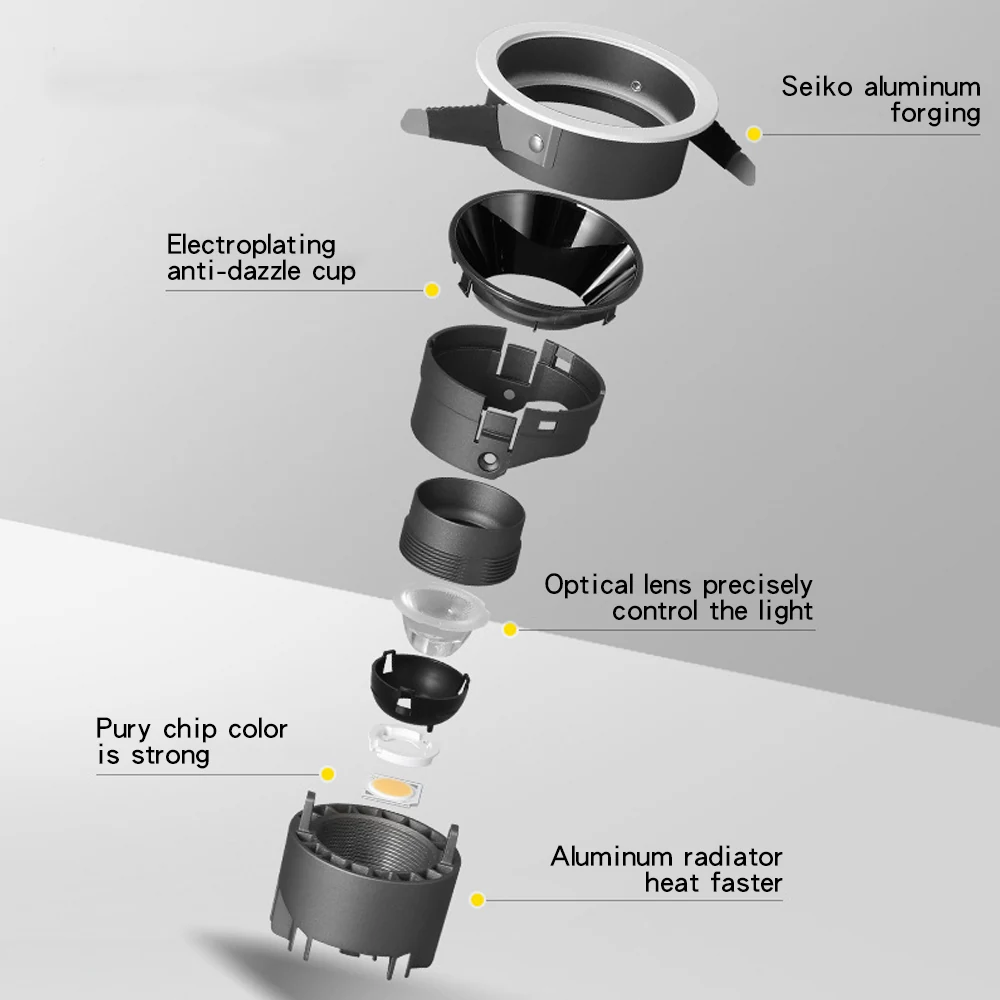

Materials
- Aluminium body for heat dissipation and structural rigidity
- Polycarbonate diffuser for even light distribution and impact resistance
- Steel mounting frame for secure ceiling attachment
Manufacturing Process
- Aluminium body die-casting and surface treatment
- Polycarbonate diffuser moulding and anti-glare coating
- LED board assembly with Philips chips and Dark Energy driver
- Fixture sealing and electrical connection testing
- Final inspection and ageing test before packing
Quality Control
- Incoming inspection of Philips LED chips and Dark Energy drivers
- Electrical continuity and insulation resistance test before final assembly
- Aged operation test for 24 hours under full load before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied fitted or omitted when centralised drivers are used
- Available in standard white finish; custom finishes not specified
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Surface-mounted office down light
Requires more ceiling space and has a higher profile, but avoids cut-out work in existing ceilings
Higher power down light (e.g. 15W)
Uses more energy and generates more heat, but provides higher lumen output for larger rooms
LED panel light
Offers wider light spread but requires full ceiling coverage; this down light allows targeted lighting in grid layouts
Use Guide
- Cut a D75mm hole in the ceiling grid to fit the fixture body
- Ensure the ceiling structure can support the fixture weight before mounting
- Connect to AC85-265V power supply; verify voltage matches local supply
- Do not install in wet or high-moisture areas due to IP20 rating
- Clean the diffuser periodically with a soft cloth to maintain light output
New design of Office LED Down Light Questions
What is the cut-out size for this down light?
The fixture requires a D75mm hole in the ceiling for installation.
Can it run on 24V DC?
No. The model is designed for AC85-265V input only. It does not support DC24V.
Is the driver included?
Yes. The fixture comes with a Dark Energy driver fitted. It can also be supplied without a driver if centralised drivers are used.
What is the warranty?
This model carries a 2 year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
Is the fixture suitable for wet locations?
No. The IP20 rating is only for dry indoor environments. Do not install in bathrooms, kitchens, or outdoor areas.
