Remote Controller RGB DC24V LED Strip Light
The FD-LS030L120 is a 10-meter roll of RGB LED strip light designed for commercial office and linear lighting applications. It operates on DC24V and is supplied without a driver, allowing integration into systems where central or remote drivers are already installed. The strip has 120 LEDs per meter and is rated IP20, suitable for dry indoor environments. The copper conductor ensures stable current flow across the full length of the roll.
| Model | FD-LS030L120 |
|---|---|
| Power | 8W/m |
| Input Voltage | DC24V |
| IP Rating | IP20 |
| Dimension | W8 mm, 10 meters/roll |
| Material | Copper |
| LED Chip | 120 LEDS/m |
| Driver | Not included |
| Warranty | 3 Years |
Key Benefits
- DC24V input allows use with standard office and commercial lighting control systems
- No driver included, so it fits into projects with central or remote driver setups
- 120 LEDs per meter provides high density for even, bright illumination in linear applications
- 10-meter roll reduces the number of joints needed in long runs, simplifying installation
- Copper material ensures consistent power delivery and reduces voltage drop over distance
- RGB capability enables dynamic colour changes for branding, mood lighting or zoning
Application Scenarios
- Linear ceiling lighting in office workspaces where colour flexibility is needed
- Accent lighting along reception desks, conference tables or display cabinets

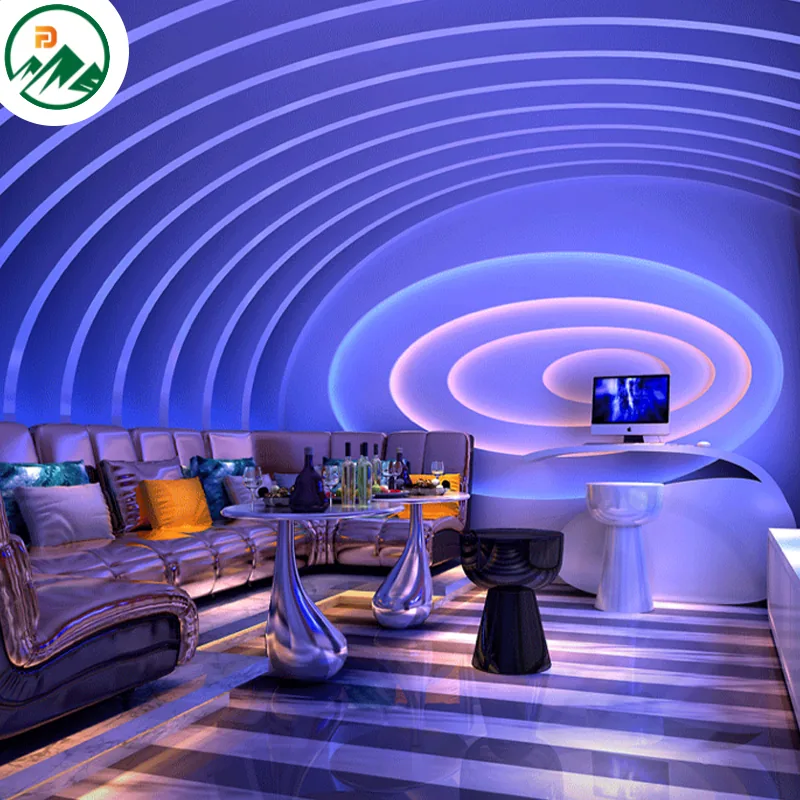

- Interior architectural features in commercial lobbies or retail spaces

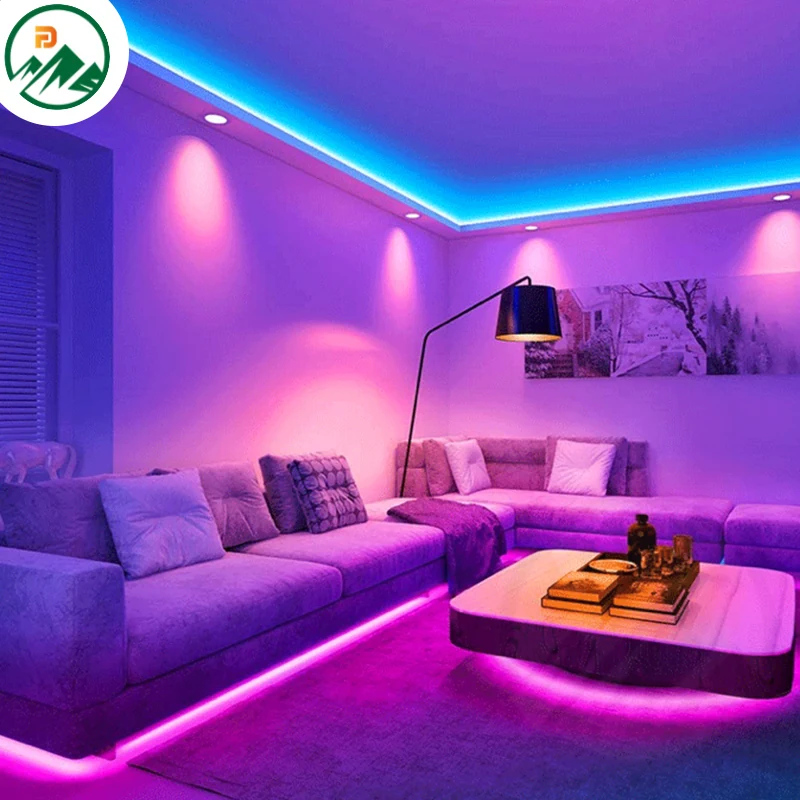

- Mood lighting in meeting rooms or collaborative zones with remote colour control
Who It Is For
- Commercial office lighting contractors installing linear LED strips in office fit-outs
- Lighting designers specifying RGB linear lighting for branded or dynamic interior schemes
- Electrical wholesalers supplying office lighting components to contractors in Europe and the Middle East
- Brand owners sourcing OEM LED strips under their own label with custom logo printing
Problems It Solves
- Fixed driver integration forces a single voltage or control type, limiting compatibility with existing systems
- Shorter rolls increase the number of joints, raising installation time and risk of failure
- Aluminium or lower-grade conductors cause voltage drop over long runs, leading to dimming at the far end
- Lack of RGB capability in standard strips limits use in branding or multi-functional spaces
- Inconsistent LED density leads to uneven light output in linear runs
Technical Features

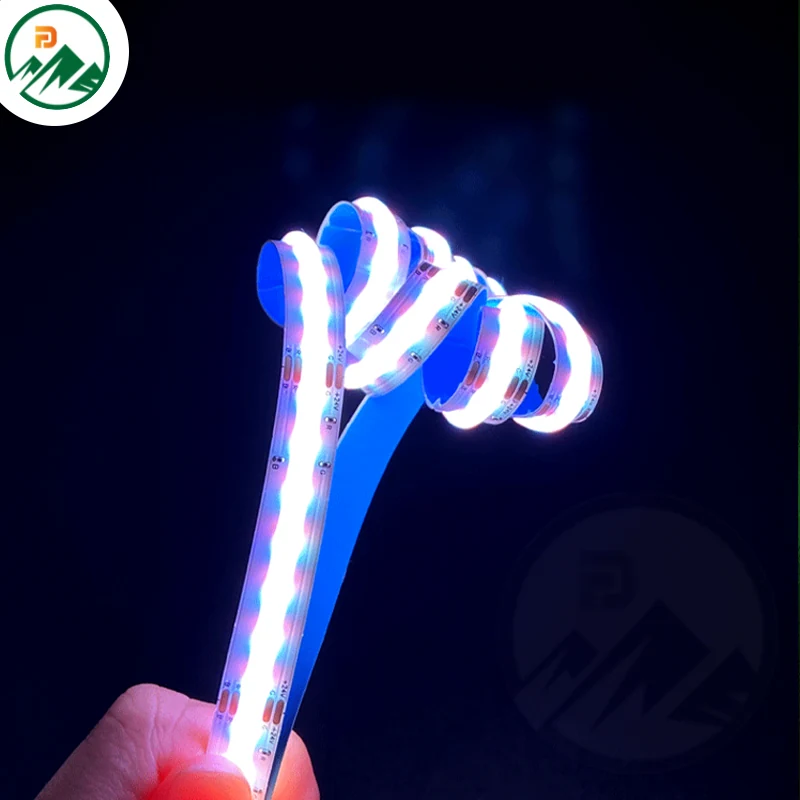

- RGB LED strip with 120 LEDs per meter for high-density, even illumination
- DC24V input voltage for compatibility with commercial control systems
- Supplied without a driver, so it can be used with central or remote drivers
- 10-meter roll reduces the number of splices needed in long installations
- Copper conductor ensures stable current flow and minimizes voltage drop
- IP20 rating suitable for dry indoor environments only
Materials
- Copper conductor for reliable electrical conductivity

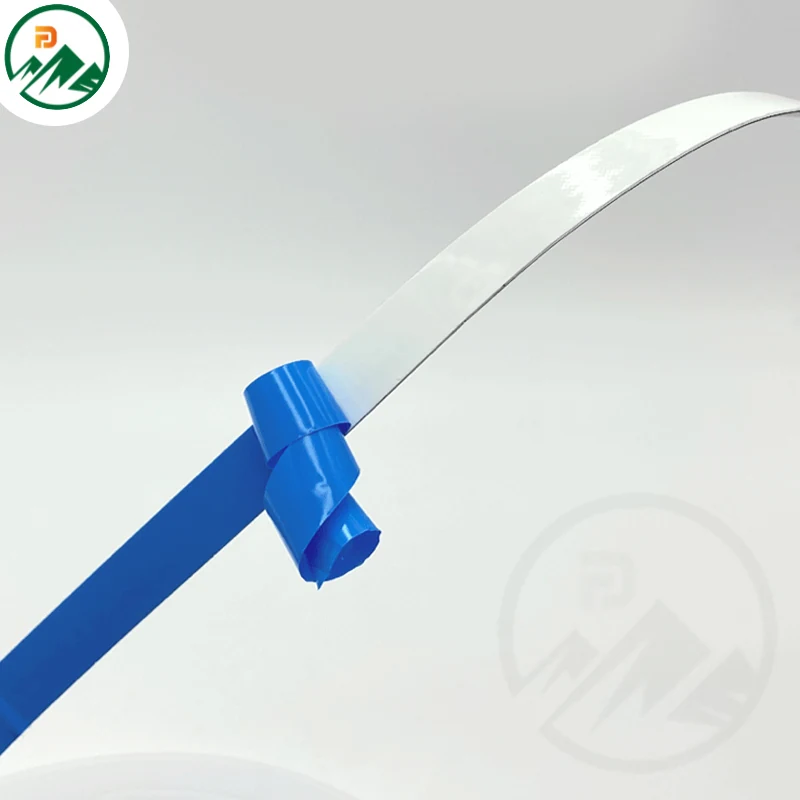

- Flexible PVC housing to protect the LED circuit and wires
- RGB LED packages mounted on a flexible printed circuit board
Manufacturing Process
- Copper conductor and LED board assembly on a flexible substrate
- Soldering and testing of each LED segment for continuity and colour accuracy
- Encapsulation in PVC for mechanical and environmental protection
- Cutting to 10-meter rolls with pre-marked cut lines for easy segmentation
- Final inspection and testing under DC24V before packaging
Quality Control
- Incoming inspection of copper conductors and LED packages
- Continuity and colour test on each roll before cutting
- Voltage drop test across the full 10-meter length
- Stated defective rate below 0.2%
- Final visual and functional check before packing
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied without driver to match site-specific control strategies
- Available in 10-meter rolls with pre-marked cut lines for easy segmentation
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
LED strip with built-in driver
More expensive per meter, but reduces need for external driver in small or standalone projects
Aluminium conductor strip
Higher resistance leads to voltage drop over long runs; copper maintains consistent brightness
Lower LED density strip (e.g. 60 LEDs/m)
Less bright and less even, not suitable for high-visibility linear applications
Use Guide
- Cut the strip only at marked lines to avoid damaging the circuit
- Ensure the DC24V power supply matches the total load of the strip run
- Use a remote controller with RGB control for dynamic colour changes
- Avoid installation in damp or wet areas due to IP20 rating
- Keep the strip away from sharp edges during installation to prevent conductor damage
Remote Controller RGB DC24V LED Strip Light Questions
What is the input voltage for this LED strip?
The strip operates on DC24V, suitable for commercial lighting control systems.
Is the driver included in the strip?
No. The strip is supplied without a driver, so it can be used with central or remote drivers already in the system.
How many LEDs are on each meter?
There are 120 LEDs per meter, providing high-density, even illumination.
What is the length of each roll?
Each roll is 10 meters long, reducing the number of joints needed in long runs.
Can I cut the strip to a shorter length?
Yes, but only at the marked cut lines to avoid damaging the circuit.
Is this strip suitable for wet areas?
No. The IP20 rating means it is only for dry indoor environments. Use an IP65 or higher rated strip for damp or outdoor use.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
