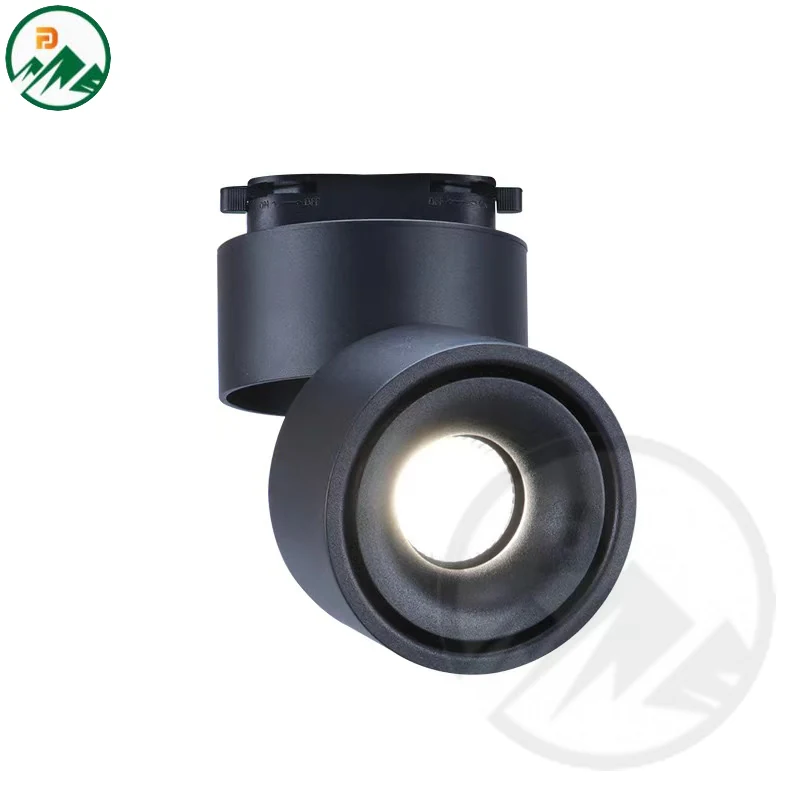

Foldable LED Surface Down Light 7W
The FD-SD210R07 is a 7W surface-mounted LED down light designed for commercial office environments where a compact, flush-fitting fixture is needed. The die-casting aluminium body provides structural rigidity and heat dissipation. The light is available in 3000K, 4000K, and 6500K colour temperatures and operates on AC85-265V, making it compatible with standard office electrical systems. It features a simple ON/OFF system and uses a Dark Energy driver. The IP20 rating indicates it is suitable for dry indoor use only.
| Model | FD-SD210R07 |
|---|---|
| Power | 7W |
| Input Voltage | AC85-265V |
| IP Rating | IP20 |

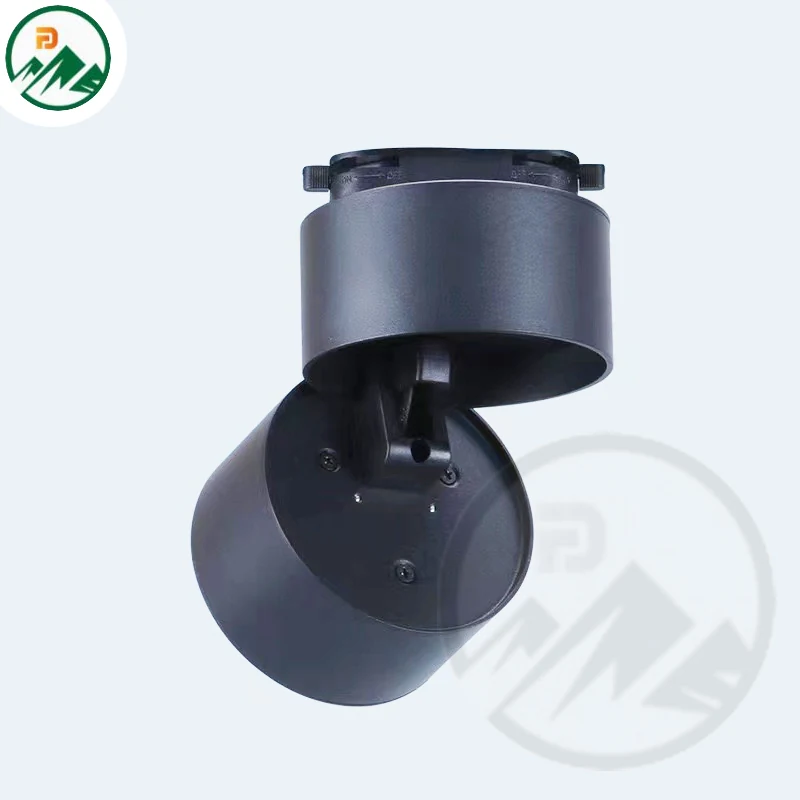

| Dimension | D100 x H105 mm |
| Material | Die-casting Aluminium |
| LED Chip | Philip |
| Driver | Dark Energy |
| Colour Temperature | 3000K/4000K/6500K |
| Control System | ON/OFF |
| Warranty | 3 Years warranty |
Key Benefits
- Compact D100 x H105 mm size fits in tight ceiling spaces common in office ceilings
- Die-casting aluminium body provides good heat dissipation and mechanical strength
- AC85-265V input covers standard voltage ranges in commercial buildings
- Three colour temperature options allow matching to different office lighting schemes
- Simple ON/OFF control avoids complexity in basic office lighting circuits
- Dark Energy driver ensures stable performance under varying input voltages
Application Scenarios
- Ceiling installation in open-plan office spaces with limited ceiling cavity depth
- Lighting in corridor and hallway areas where a low-profile fixture is preferred
- Office partitions and private meeting rooms requiring consistent, uniform lighting
- Commercial buildings with existing AC85-265V wiring that do not require dimming
Who It Is For
- Commercial office lighting contractors installing ceiling fixtures in new builds
- Facility managers specifying standard down lights for office refurbishments
- Electrical wholesalers supplying office lighting components to regional distributors
- Brand owners sourcing OEM down lights for private label distribution
Problems It Solves
- Low ceiling cavities in office buildings make standard down lights too deep for installation
- Inconsistent colour temperature across office zones leads to visual discomfort
- Complex dimming systems are unnecessary in basic office lighting, so simple ON/OFF is preferred
- Poor heat dissipation in plastic or thin metal fixtures reduces LED lifespan
- Incompatible input voltage ranges force the use of multiple fixture types in different regions
Technical Features
- Die-casting aluminium body for structural strength and heat dissipation
- AC85-265V input compatible with standard commercial power supplies
- ON/OFF system for straightforward control in basic lighting circuits
- Dark Energy driver for stable operation under varying voltage conditions
- Available in 3000K, 4000K, and 6500K colour temperatures to match office environments
- IP20 rating suitable for dry indoor environments only
Materials
- Die-casting aluminium body for heat dissipation and mechanical durability
- Plastic or polymer diffuser for light distribution (implied by standard down light design)
- Internal wiring and driver housing with insulating materials
Manufacturing Process
- Die-casting of aluminium body with precision moulding
- Surface finishing and anti-corrosion treatment of the aluminium body
- Assembly of LED board with Philips chips
- Installation of Dark Energy driver and wiring
- IP20 sealing check before final assembly
- Powered testing and ageing before packing
Quality Control
- Incoming inspection of Philips LED chips and Dark Energy drivers
- Visual and dimensional checks on die-cast bodies
- Sealing integrity test for IP20 compliance
- Powered ageing test under full voltage for 24 hours
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Available in 3000K, 4000K, and 6500K for matching project lighting schemes
- OEM and ODM production available for buyers selling under their own brand
- Supplied with or without driver depending on site control strategy
Compared With the Alternatives
Standard plastic down light
More durable and better heat dissipation, but heavier and more expensive
Dimmable LED down light
Simpler control and lower cost, but lacks dimming flexibility for dynamic lighting scenes
Ceiling recessed down light
Requires deeper ceiling cavity, but offers flush mounting and better light distribution
Use Guide
- Ensure ceiling cavity depth is at least 105 mm to accommodate the fixture height
- Mount the fixture securely to a supporting structure using the provided fixing points
- Connect to AC85-265V power supply with correct polarity and grounding
- Select the desired CCT (3000K, 4000K, or 6500K) based on office environment requirements
- Avoid installation in wet, humid, or outdoor areas due to IP20 rating
- Use only in dry indoor environments such as offices, corridors, and meeting rooms
Foldable LED Surface Down Light 7W Questions
What is the size of this down light?
The fixture measures D100 x H105 mm, so ensure the ceiling cavity is at least 105 mm deep.
Can it be used in a damp or wet area?
No. The IP20 rating means it is only suitable for dry indoor environments.
What colour temperatures are available?
It is available in 3000K, 4000K, and 6500K to suit different office lighting needs.
Is the driver included?
Yes, the Dark Energy driver is included. It can also be supplied without the driver if centralised drivers are used.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty varies between 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, with shipping via DHL, UPS, FedEx, or TNT taking 3-5 days in transit.
