Ivory Shape New Design LED Down Light

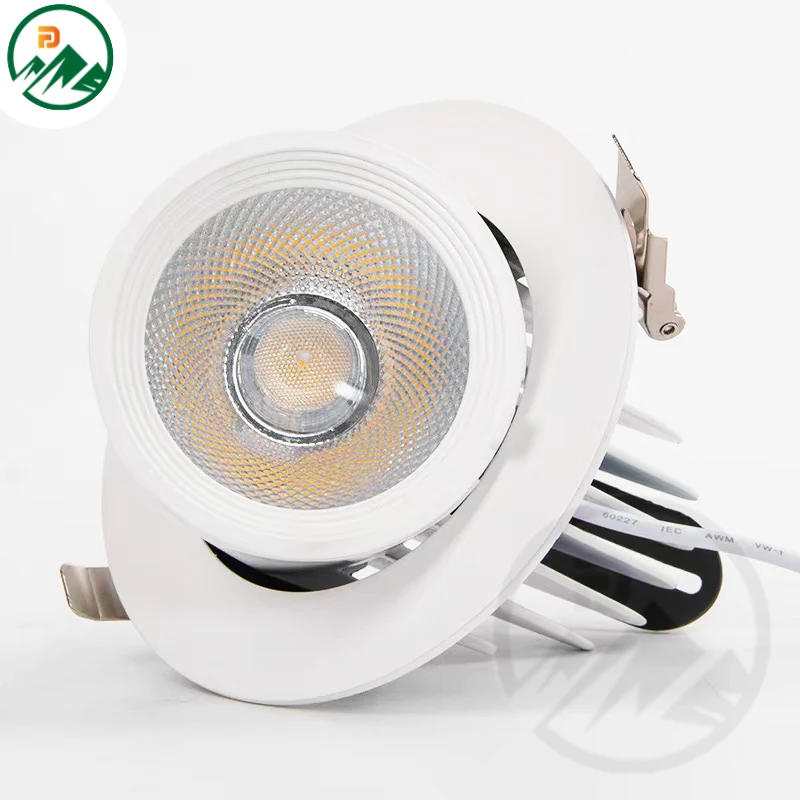

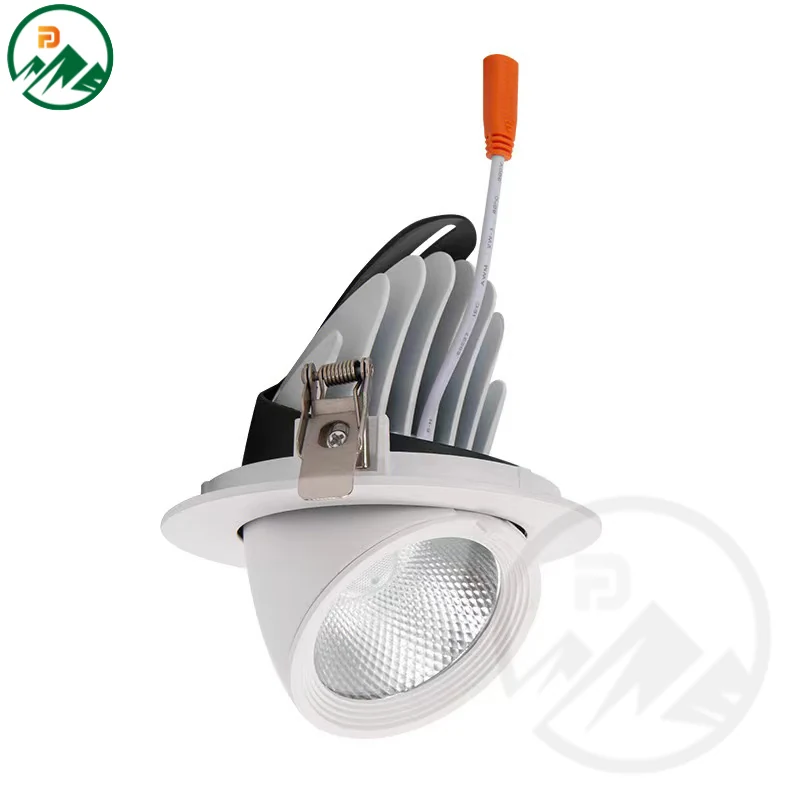

The FD-ID10R30 is a 30W recessed LED downlight designed for commercial office environments where a clean, minimalist ceiling finish is required. The fixture has a circular body with an ivory-shaped diffuser and a 360-degree rotatable beam angle, allowing the light direction to be adjusted after installation. It is built with an aluminium body for heat dissipation and uses CREE LED chips with a DARK ENERGY driver. The unit operates on AC85-265V and is rated IP20, suitable for dry indoor spaces without exposed wiring or moisture.
| Model | FD-ID10R30 |
|---|---|
| Power | 30W |
| Input Voltage | AC85-265V |
| IP Rating | IP20 |
| Dimension | D135 mm, Hole D115 mm |
| Material | Aluminium |
| LED Chip | CREE |
| Driver | DARK ENERGY |
| Colour Temperature | 2800-6500K |
| Beam Angle | 45°（360° Rotate） |
| Warranty | 3 Years |
Key Benefits
- 360-degree beam rotation allows aiming after installation, reducing alignment errors during ceiling work
- Aluminium body provides efficient heat transfer and structural rigidity in ceiling-mounted applications
- CREE LED chips ensure consistent lumen output and long life in office lighting schemes
- 30W power level offers sufficient output for standard office ceiling layouts
- IP20 rating is appropriate for dry indoor environments with no exposure to water or dust
- Rotatable beam angle enables precise lighting control without changing fixture position

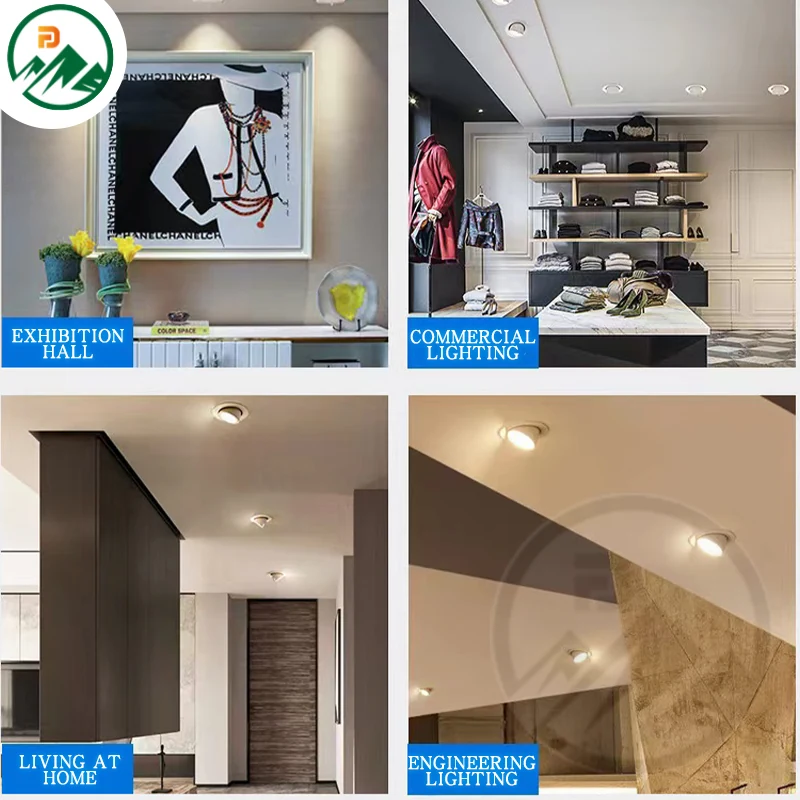

Application Scenarios
- Recessed ceiling lighting in open-plan office spaces with uniform light distribution
- Adjustable downlighting in conference rooms where beam direction needs to be fine-tuned after ceiling installation
- Ceiling-mounted lighting in commercial buildings with limited ceiling cavity depth
- Office environments requiring a clean, modern aesthetic with minimal visible fixture components
Who It Is For
- Commercial office lighting contractors installing recessed downlights in new builds and retrofits
- Lighting designers specifying adjustable beam angles for office ceiling layouts
- Electrical wholesalers supplying office lighting components to regional distributors
- Brand owners sourcing OEM downlights under their own label for commercial projects
Problems It Solves
- Fixed-beam downlights require precise aiming before ceiling work is complete, increasing rework risk
- Non-rotatable fixtures force early decisions on beam direction, which may not match final furniture or partition layouts
- Poor heat dissipation in plastic or thin metal bodies can reduce LED lifespan in enclosed ceiling spaces
- Lack of beam adjustment after installation leads to uneven lighting or glare in office environments
Technical Features
- 360-degree rotatable beam angle for on-site aiming after the fixture is mounted
- Aluminium body for heat dissipation and structural stability in ceiling installations
- CREE LED chip for consistent performance and long operational life
- DARK ENERGY driver for stable operation across wide input voltage range
- AC85-265V input supports global voltage standards without need for voltage converters
- IP20 rating suitable for dry indoor environments with no water or dust exposure
Materials
- Aluminium body for heat dissipation and structural strength
- Ivory-shaped diffuser for soft, even light distribution
- Internal mounting hardware for secure ceiling attachment
Manufacturing Process
- Aluminium body machining and surface finishing
- LED board assembly with CREE chips and DARK ENERGY driver
- Diffuser fitting and alignment with rotatable beam mechanism
- Sealing and electrical connection testing
- Final inspection and ageing test before packing
Quality Control
- Incoming inspection of CREE LED chips and DARK ENERGY drivers
- Functional test of beam rotation and electrical connections
- Aged operation test under full load before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied with or without driver to match site-specific control systems
- AC85-265V input standard, no other voltage options listed
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Fixed-beam downlight
Higher cost per unit, but avoids rework when aiming is decided too early in the project
Surface-mounted downlight
Requires more ceiling space, but allows easier beam adjustment without ceiling access
Plastic-bodied downlight
Less heat dissipation, shorter lifespan; aluminium body supports longer operational life in enclosed ceilings
Use Guide
- Cut a D115mm hole in the ceiling and install the fixture into the cavity
- Adjust the beam angle after mounting to align with workstations or partitions
- Ensure the ceiling cavity is dry and free of debris before installation
- Use the provided mounting hardware to secure the fixture to the ceiling structure
- Avoid installing in areas with moisture or dust exposure due to IP20 rating
Ivory Shape New Design LED Down Light Questions
What is the cut-out size for this downlight?
The fixture requires a D115mm hole in the ceiling, with a body diameter of D135mm.
Can the beam angle be adjusted after installation?
Yes. The beam angle is 45° and can be rotated 360° after the fixture is mounted.
Is the driver included?
Yes. The fixture is supplied with a DARK ENERGY driver as standard.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
Is this fixture suitable for wet or dusty environments?
No. The IP20 rating means it is only suitable for dry indoor environments with no exposure to water or dust.
