Indoor Europe Type Bedroom LED Wall Lamp
The FD-IW010X06 is a 6W indoor LED wall lamp designed for bedroom and commercial office environments in Europe. It features an aluminium and acrylic construction with a slim profile, suitable for wall mounting in spaces where minimal visual impact and consistent light output are required. The fixture operates on AC85-265V, allowing compatibility with standard European mains voltage. It is rated IP20, indicating it is suitable for dry indoor use only. The lamp uses a Philip LED chip and a Dark Energy driver, ensuring stable performance in continuous operation.
| Model | FD-IW010X06 |
|---|---|
| Power | 6W |
| Input Voltage | AC85-265V |
| IP Rating | IP20 |
| Dimension | 195 x 55 x 110 mm |
| Material | Aluminium+Acrylic |
| LED Chip | Philip |
| Driver | Dark Energy |
| Warranty | 3 Years |
Key Benefits
- Slim 195*55*110mm profile fits in tight wall spaces without obstructing movement
- AC85-265V input matches standard European mains voltage without needing a transformer
- IP20 rating confirms suitability for dry indoor environments like bedrooms and offices
- Aluminium body aids heat dissipation, supporting long-term LED performance
- Acrylic diffuser provides even light distribution without glare
- 3 year warranty covers defects in materials and workmanship
Application Scenarios
- Wall-mounted lighting in European residential bedrooms where space is limited
- Office corridor or reception wall lighting where a low-profile fixture is needed
- Hotel guest room wall lighting with consistent output and minimal visual bulk
- Commercial office spaces requiring uniform, low-glare wall-mounted lighting
Who It Is For
- Lighting project contractors installing wall lights in European residential and commercial projects
- Facility managers specifying low-profile indoor lighting for office or hotel installations
- Electrical wholesalers supplying LED wall lamps to European markets
- Brand owners sourcing OEM wall lamps under their own label for European distribution
Problems It Solves
- Bulkier wall lamps obstruct movement or interfere with furniture placement in small rooms
- Non-uniform light distribution from poor diffusers causes glare or dark spots
- Incompatible input voltage requires additional power conversion equipment
- Lack of warranty coverage leads to higher long-term replacement costs
- Poor heat dissipation shortens LED lifespan in enclosed wall fixtures
Technical Features
- 6W power consumption for low energy use in residential and office settings
- AC85-265V input range for stable operation across European voltage fluctuations
- IP20 rating for dry indoor use only, suitable for bedrooms and offices

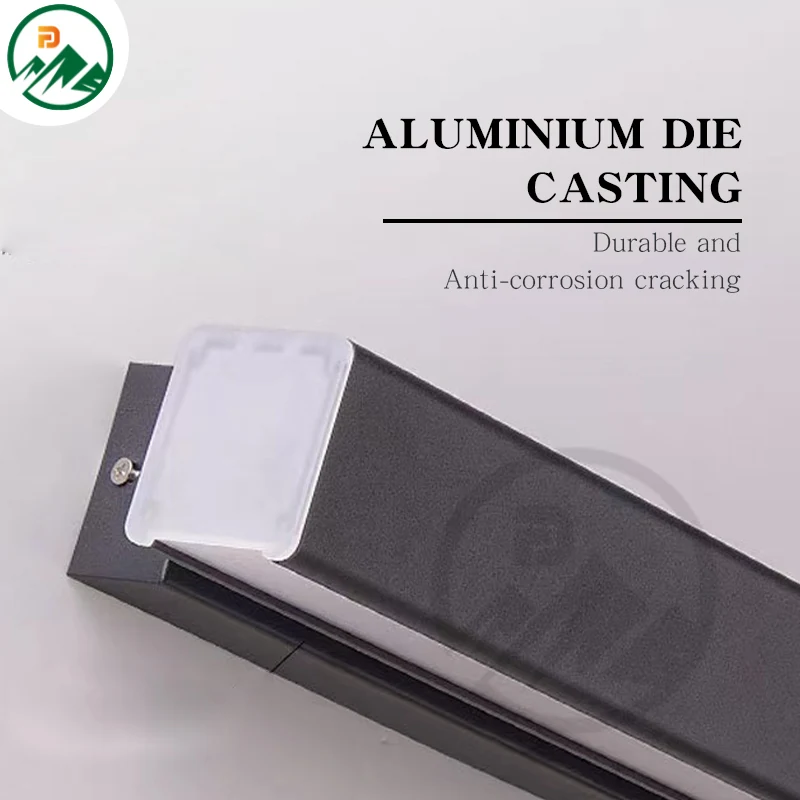

- Aluminium body for effective heat transfer and structural rigidity
- Acrylic diffuser for even light spread and reduced glare
- Philip LED chip for consistent colour and lumen output
- Dark Energy driver for reliable power regulation and long-term stability
Materials
- Aluminium body for heat dissipation and structural support
- Acrylic diffuser for even light distribution and impact resistance
- Internal components including Dark Energy driver and Philip LED chip
Manufacturing Process
- Aluminium body machining and surface finishing
- Acrylic diffuser cutting and edge polishing
- LED board assembly with Philip chips
- Driver integration and electrical connection
- Fixture assembly with sealing and mounting hardware
- Final inspection and powered testing before packing
Quality Control
- Incoming inspection of Philip LED chips and Dark Energy drivers
- Visual and dimensional check of aluminium and acrylic components
- Powered test run to verify light output and driver stability
- Stated defective rate below 0.2%
- Final packaging with protective foam to prevent transit damage
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Available in standard configuration or with driver omitted for site-supplied driver systems
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Plastic wall lamp
More durable and better heat dissipation, but higher material cost
Surface-mounted ceiling light
Saves wall space and avoids obstruction, but requires ceiling access and wiring
Wall lamp with higher IP rating
Suitable for wet areas, but not needed for dry indoor bedrooms or offices
Use Guide
- Mount the fixture on a flat wall surface using the provided mounting hardware
- Ensure the wall is dry and free of moisture before installation
- Do not install in bathrooms, kitchens, or other wet areas due to IP20 rating
- Connect to AC85-265V mains supply with proper electrical grounding
- Clean the acrylic diffuser with a soft cloth and mild detergent to maintain light output
Indoor Europe Type Bedroom LED Wall Lamp Questions
What is the input voltage range for this wall lamp?
The fixture operates on AC85-265V, which covers standard European mains voltage.
Is this lamp suitable for bathrooms or kitchens?
No. It is rated IP20, which is for dry indoor use only. Use an IP44 or higher rated fixture in wet areas.
Can the driver be omitted for centralised control?
Yes. The lamp can be supplied with or without the driver, depending on the site's electrical design.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
Is logo printing available?
Yes. Customer logo printing is available, and the design is confirmed against an approved sample before production begins.
