8W LED Underground Step Light

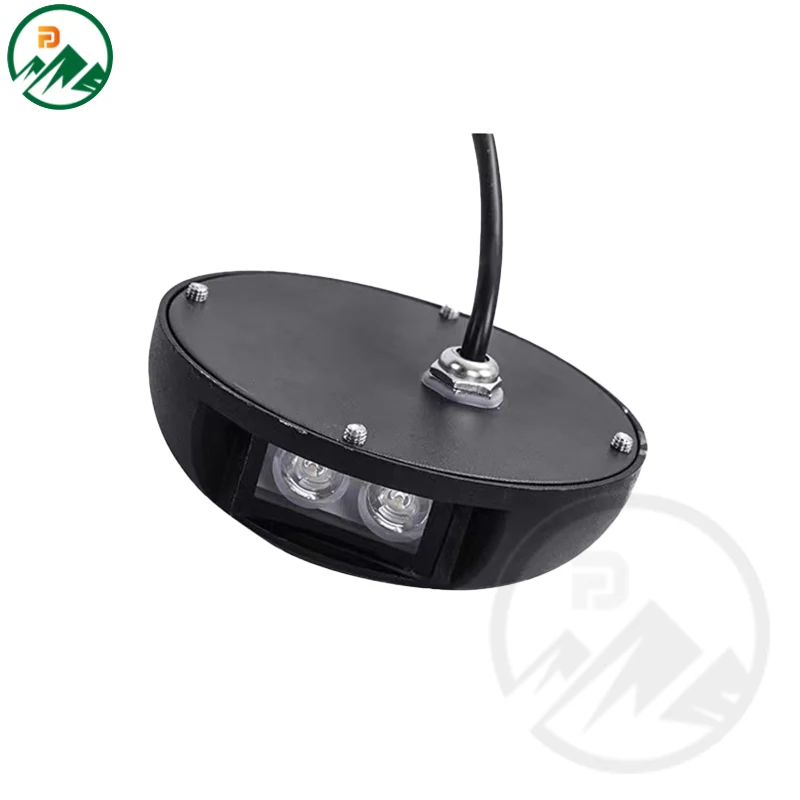

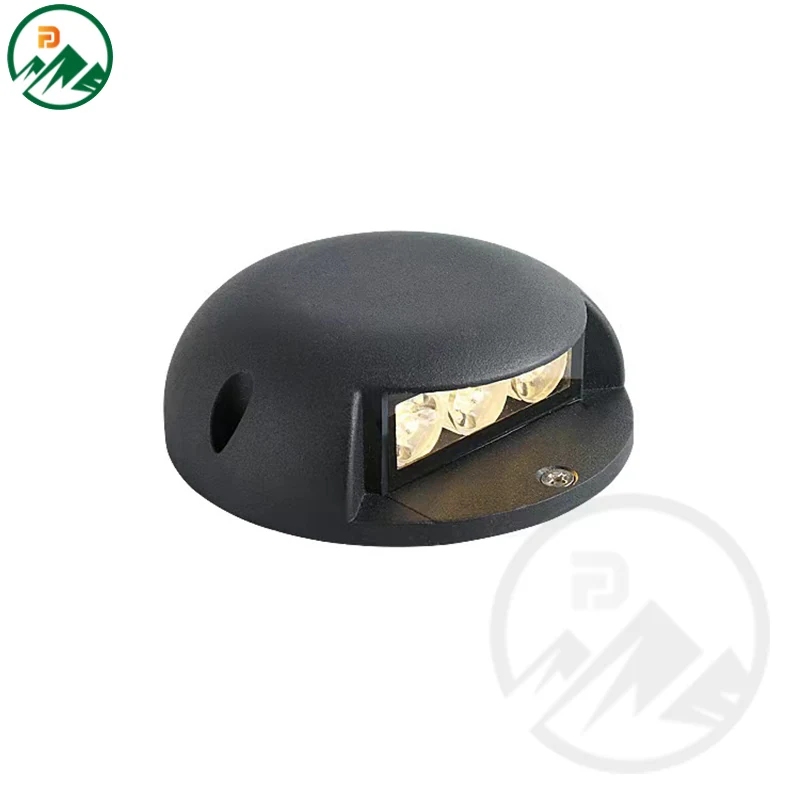

The FD-US020R08 is an 8W recessed step light designed for pedestrian pathways, stair edges, and architectural transitions where low-profile, durable lighting is needed. The fixture is built into the ground with a die-cast aluminium body and a flush-mounted cover, suitable for areas with foot traffic. It operates on DC24V and is supplied without a driver, allowing integration into systems with centralised power supplies. The IP67 rating ensures it remains functional in wet conditions, including standing water after rain.
| Model | FD-US020R08 |
|---|---|
| Power | 8W |
| Input Voltage | DC24V |
| IP Rating | IP67 |

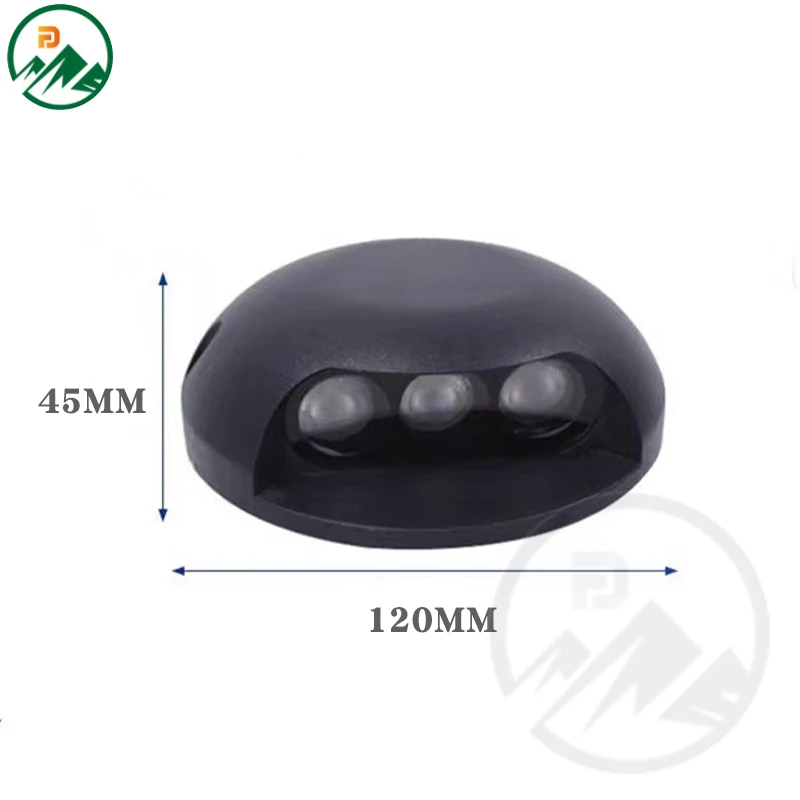

| Dimension | D150 x Thickness 45 mm |
| Material | Die-casting Aluminium |
| LED Chip | CREE |
| Driver | Not included |
| Warranty | 3 Years |
Key Benefits
- Flush installation maintains a smooth walking surface with no trip hazard
- IP67 rating protects against water ingress in wet or flooded conditions
- DC24V input allows use in low-voltage systems common in landscape and architectural lighting
- No driver supplied enables integration with centralised power distribution
- CREE LED chip ensures consistent output and long life in high-traffic areas

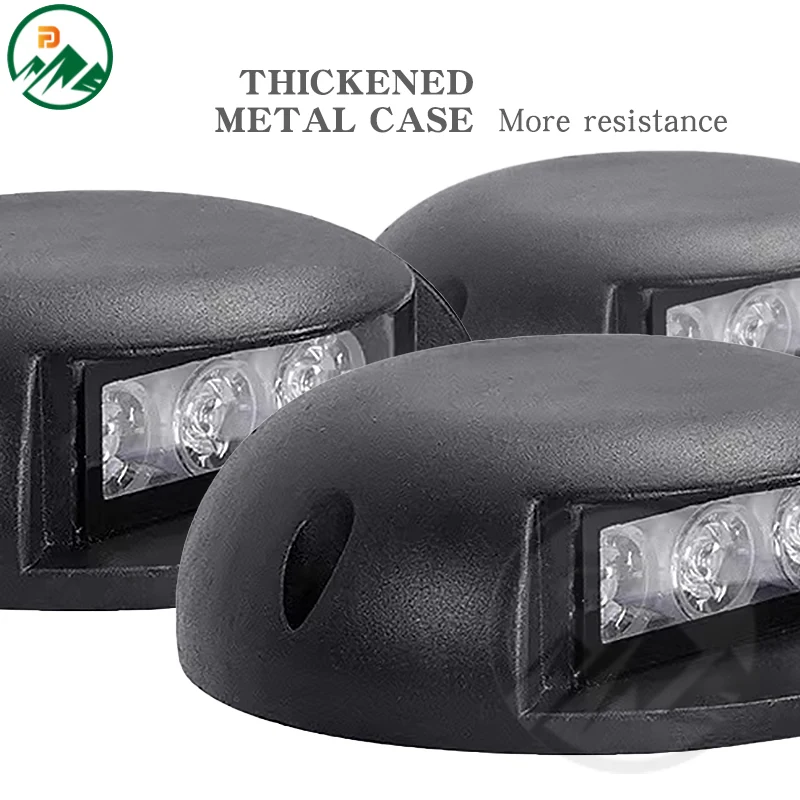

- Die-cast aluminium body provides structural strength and heat dissipation
Application Scenarios
- Lighting stair edges in public buildings, hotels, and shopping centres

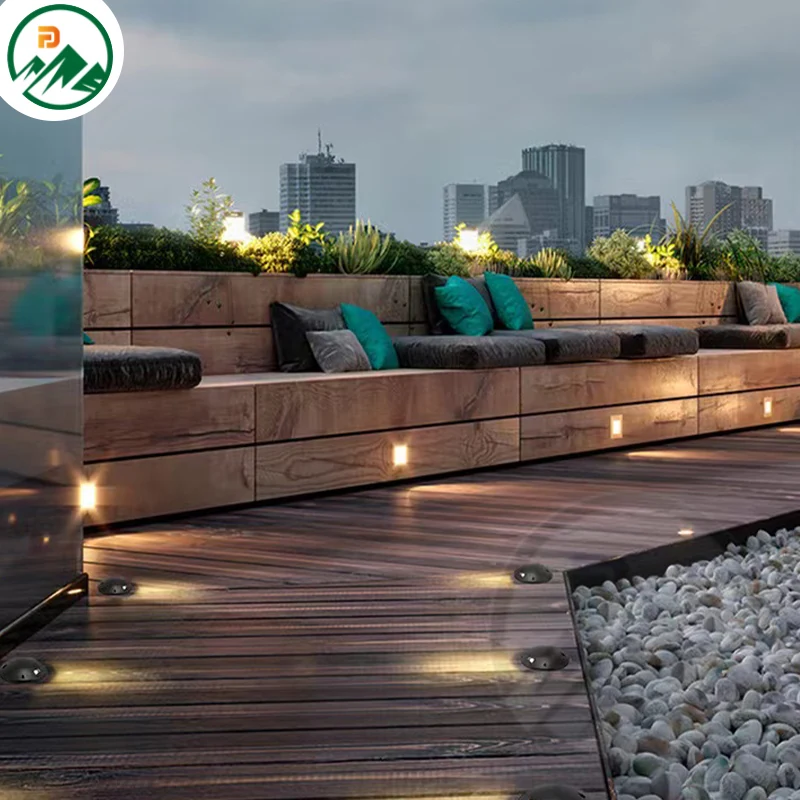

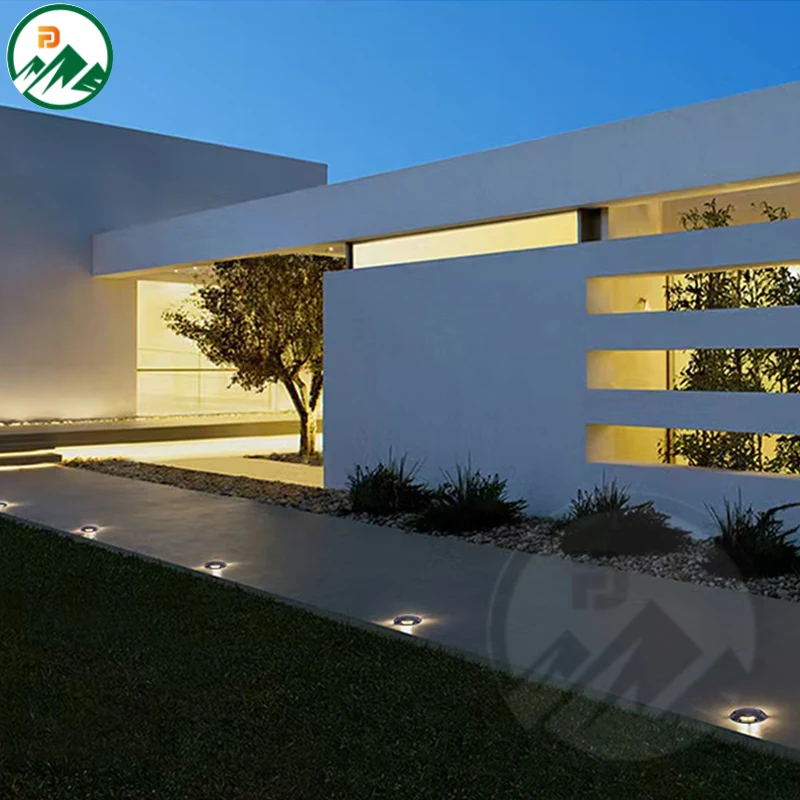

- Marking pedestrian pathways in parks and gardens with minimal visual impact
- Highlighting architectural transitions such as building entrances and level changes
- Illuminating walkways in coastal or high-moisture environments where corrosion is a concern
Who It Is For
- Facility managers installing lighting in public walkways and staircases
- Lighting contractors specifying low-profile in-ground lights for safety and aesthetics
- Electrical wholesalers supplying components for landscape and architectural projects
- Brand owners sourcing OEM step lights under their own label with custom logo
Problems It Solves
- Raised or protruding lights create trip hazards on frequently walked paths
- Non-IP67 fixtures fail when exposed to standing water after rain or flooding
- Fixed driver integration complicates system design when centralised power is used
- Low-quality materials degrade quickly in high-traffic or wet environments
Technical Features
- Recessed design with flush mounting for safe pedestrian access
- Die-cast aluminium body for structural integrity and heat dissipation
- IP67 sealing for protection against water and dust ingress
- CREE LED chip for reliable performance and long life
- DC24V input with driver omitted for use in systems with centralised drivers
- Supplied without a driver to match site-specific power distribution
Materials
- Die-cast aluminium body for strength and thermal management
- Flush-mounted cover designed to withstand foot traffic
- Sealing gasket to maintain IP67 rating under repeated loading
Manufacturing Process
- Die-casting of aluminium housing and surface finishing
- Assembly of CREE LED module with driver-free configuration
- Sealing with gasket and pressure test to ensure IP67
- Final inspection and powered ageing test before packing
Quality Control
- Incoming inspection of CREE LED chips and driver components
- IP67 sealing verification using pressure and water test
- Powered ageing run under normal operating conditions
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied without driver to match centralised power systems
- OEM and ODM production available for buyers selling under their own brand
Compared With the Alternatives
Surface-mounted step light
Lower profile and flush fit reduce trip risk, but requires deeper excavation and drainage
Mains-powered in-ground light
DC24V avoids high-voltage risks in wet areas, but requires a compatible low-voltage power system
Aluminium body with painted finish
Die-cast aluminium resists deformation and corrosion better than painted surfaces in high-traffic zones
Use Guide
- Cut a D150 mm hole with a depth sufficient to accommodate the 45mm thickness and allow drainage
- Ensure the base is level and the surrounding backfill is compacted to prevent settling
- Install the fixture flush with the finished surface to avoid tripping hazards
- Connect to a DC24V power source with a centralised driver to avoid on-board driver issues
- Clean the lens during maintenance to maintain consistent light output
8W LED Underground Step Light Questions
What is the cut-out size for this step light?
The fixture requires a D150 mm hole with a depth of at least 45mm for the thickness.
Can it run on DC24V only?
Yes. The model is designed for DC24V input and does not include a driver.
Is the driver included?
No. The fixture is supplied without a driver, allowing integration with centralised power systems.
Is IP67 sufficient for wet areas?
Yes. IP67 protects against temporary immersion, which covers exposure to standing water after rain.
What is the warranty?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long is mass production lead time?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
