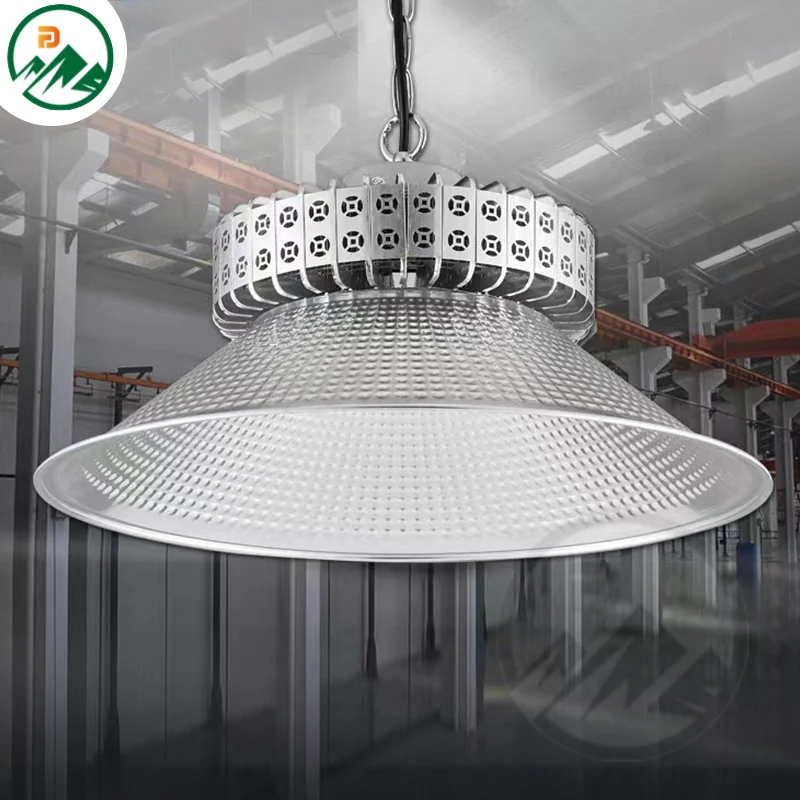

150W High Bay Light for Factory Lighting

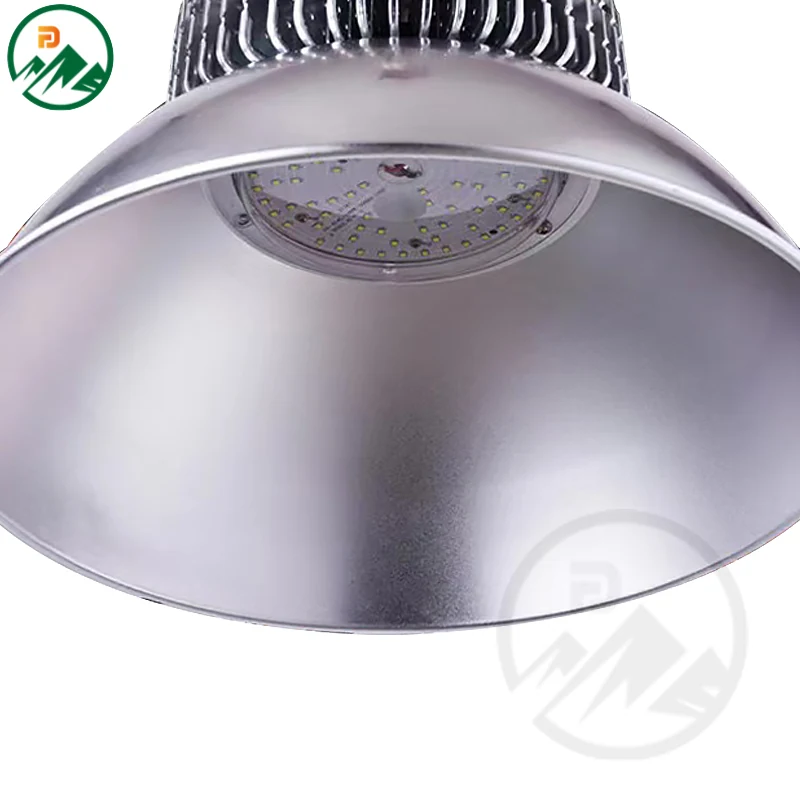

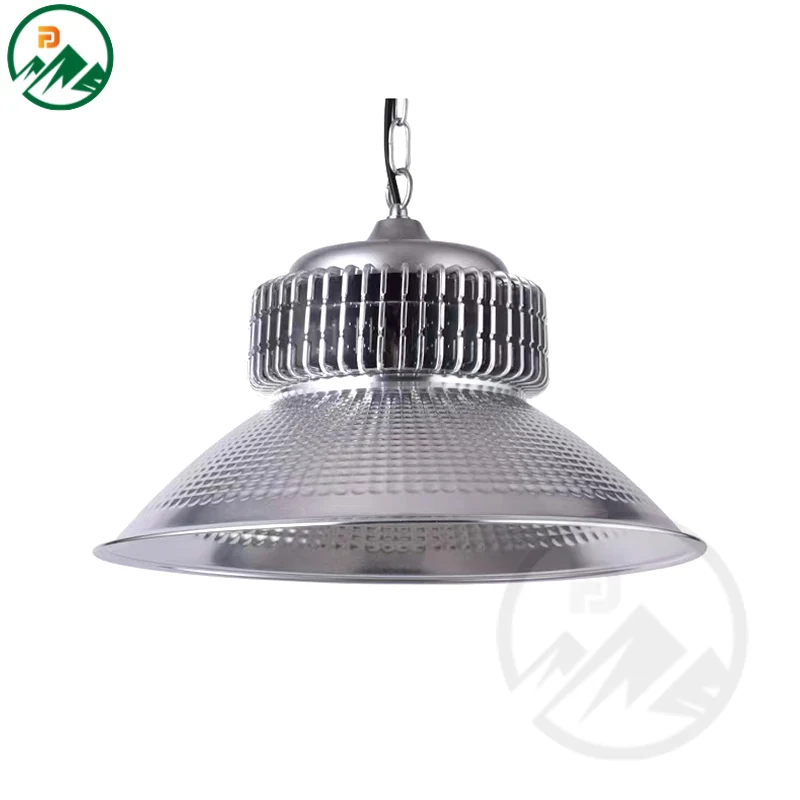

The FD-HB010H150 is a 150W high bay luminaire designed for industrial and commercial ceiling installations where consistent illumination over large areas is required. The die-casting aluminium housing provides structural strength and efficient heat dissipation. It operates on AC85-265V, making it compatible with standard industrial power supplies across multiple regions. The IP65 rating ensures protection against dust and water jets, suitable for environments with high humidity or periodic cleaning. The fixture is available in black or silver finish, with a diameter of D430mm (black) or D450mm (silver) and a height of H230mm (black) or H250mm (silver).
| Model | FD-HB010H150 |
|---|---|
| Power | 150W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |
| Dimension | Black D430 x H230 mm, Sliver D450 x H250 mm |
| Material | Die-casting aluminium |
| LED Chip | OSRAM |
| Driver | Included |
| Warranty | 3 Years |
Key Benefits
- 150W power delivers high output for large industrial spaces without requiring multiple fixtures
- AC85-265V input supports stable operation across varying voltage conditions in industrial sites
- IP65 rating protects against dust ingress and water jets, suitable for wet or dusty factory environments
- Die-casting aluminium body ensures robust mechanical strength and effective heat dissipation

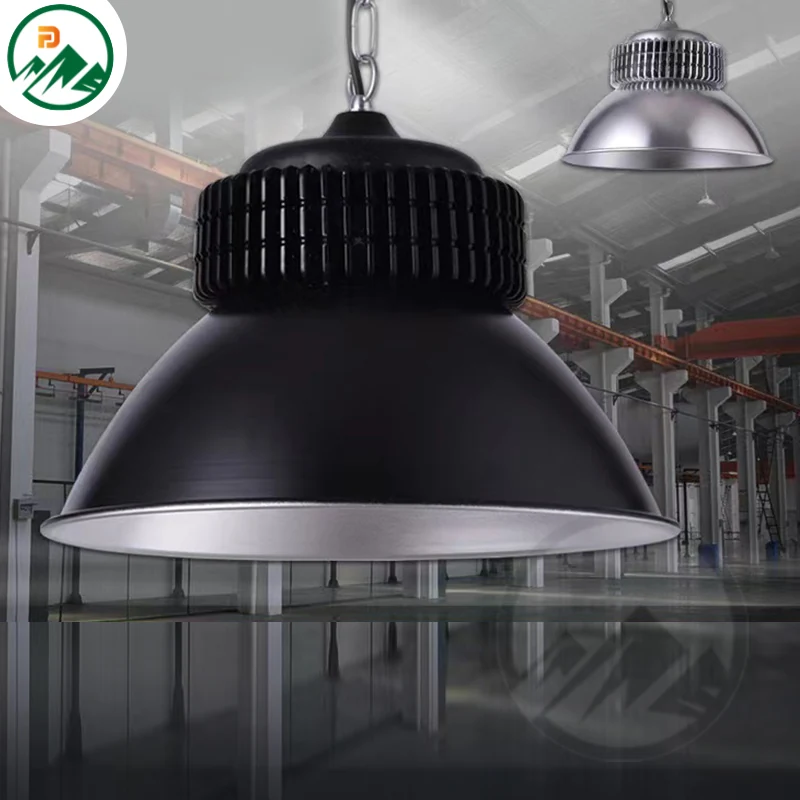

- Available in black or silver finish to match facility aesthetics or branding requirements
- 3-year warranty provides long-term reliability for maintenance planning
Application Scenarios

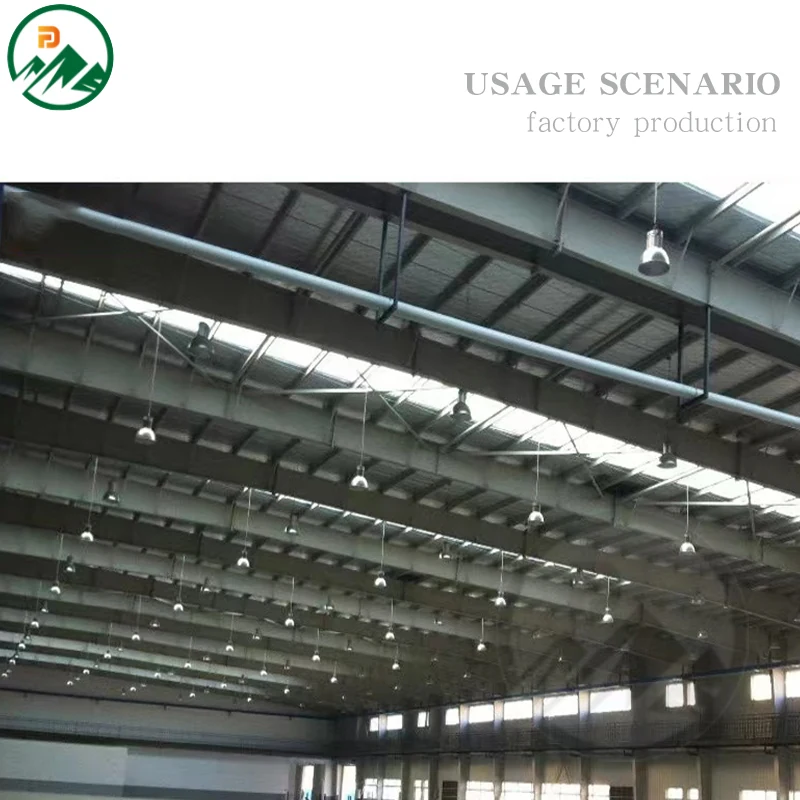

- Lighting large production halls and assembly lines in manufacturing facilities
- Illuminating warehouse storage areas with high ceilings and high foot traffic
- Providing consistent lighting in distribution centers with frequent cleaning and high humidity
- Equipping workshops and maintenance bays where dust and moisture are present
Who It Is For
- Industrial facility managers sourcing lighting for high-ceiling production spaces
- Lighting contractors installing high bay fixtures in factories and warehouses
- Electrical wholesalers supplying industrial lighting in Europe and the Middle East
- Brand owners requiring OEM high bay lights under their own label
Problems It Solves
- Low-power fixtures require more units to cover large factory areas, increasing installation and wiring costs
- Non-IP65 rated lights fail prematurely in dusty or wet industrial environments
- Inconsistent voltage supply in older factories can damage sensitive lighting systems
- Lack of finish options limits integration with facility design or branding
- Short warranty periods increase long-term ownership cost and risk
Technical Features
- 150W power output for high-lumen industrial lighting
- AC85-265V input voltage range for compatibility with regional power supplies
- IP65 rating for protection against dust and water jets
- Die-casting aluminium housing for structural integrity and heat dissipation
- OSRAM LED chip for consistent light output and longevity
- DONE driver supplied with the fixture for immediate installation
Materials
- Die-casting aluminium body for structural strength and heat dissipation
- Powder-coated finish in black or silver for durability and visual consistency
- OSRAM LED chip for stable light output and long life
- DONE driver for reliable power conversion and fixture operation
Manufacturing Process
- Die-casting of aluminium housing with precision moulding
- Surface treatment and powder coating in black or silver
- Assembly of OSRAM LED modules onto the heat sink
- Installation of DONE driver and internal wiring
- IP65 sealing and gasket fitting to ensure environmental protection
- Final power test and ageing run before packing
Quality Control
- Incoming inspection of OSRAM LED chips and DONE drivers
- IP65 sealing verification using pressure and spray test
- Powered ageing test for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Available in black or silver finish to match project or branding requirements
- Driver can be supplied fitted or omitted when centralised drivers are used
- OEM and ODM production for buyers selling under their own brand
Compared With the Alternatives
100W high bay light
Higher power delivers greater coverage per fixture, reducing total fixture count and installation complexity
Non-IP65 rated high bay
IP65 protects against dust and water jets, suitable for industrial cleaning and humid environments
Plastic-bodied high bay
Die-casting aluminium offers better heat dissipation and mechanical durability in harsh industrial settings
Use Guide
- Mount the fixture at the recommended height using the provided mounting hardware
- Ensure the power supply matches the AC85-265V input range before connecting
- Clean the lens periodically to maintain light output, especially in dusty environments
- Avoid direct contact with the fixture during operation to prevent heat exposure
- Use the correct cable size to prevent voltage drop over long runs
150W High Bay Light for Factory Lighting Questions
What is the input voltage range for this high bay light?
The fixture operates on AC85-265V, suitable for standard industrial power supplies across multiple regions.
Is the driver included?
Yes. The model comes with a DONE driver fitted, but it can be supplied without if centralised drivers are used.
What does IP65 mean for this fixture?
IP65 means the fixture is protected against dust ingress and water jets, suitable for industrial environments with cleaning or humidity.
What are the dimensions of the black and silver versions?
Black version: D430 x H230 mm. Silver version: D450 x H250 mm.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, the warranty is 2 to 5 years depending on the product.
