10W IP65 Outdoor LED Wall Lamp
The FD-IW080X10 is a 10W outdoor LED wall lamp designed for commercial office and architectural applications where weather resistance and consistent light output are required. It features a compact aluminium body with an IP65 rating, suitable for mounting on exterior walls exposed to rain and dust. The fixture uses five 2W Philips LED chips and a Dark Energy driver, delivering reliable performance across a wide input voltage range of AC85-265V. It is suitable for both new builds and retrofit projects in the Middle East and Europe.
| Model | FD-IW080X10 |
|---|---|
| Power | 5*2W |
| Input Voltage | AC85-265V |
| IP Rating | IP65 |
| Dimension | D90 x H260 mm |
| Material | Aluminium |
| LED Chip | Philip |
| Driver | Dark Energy |
| Warranty | 3 Years |
Key Benefits

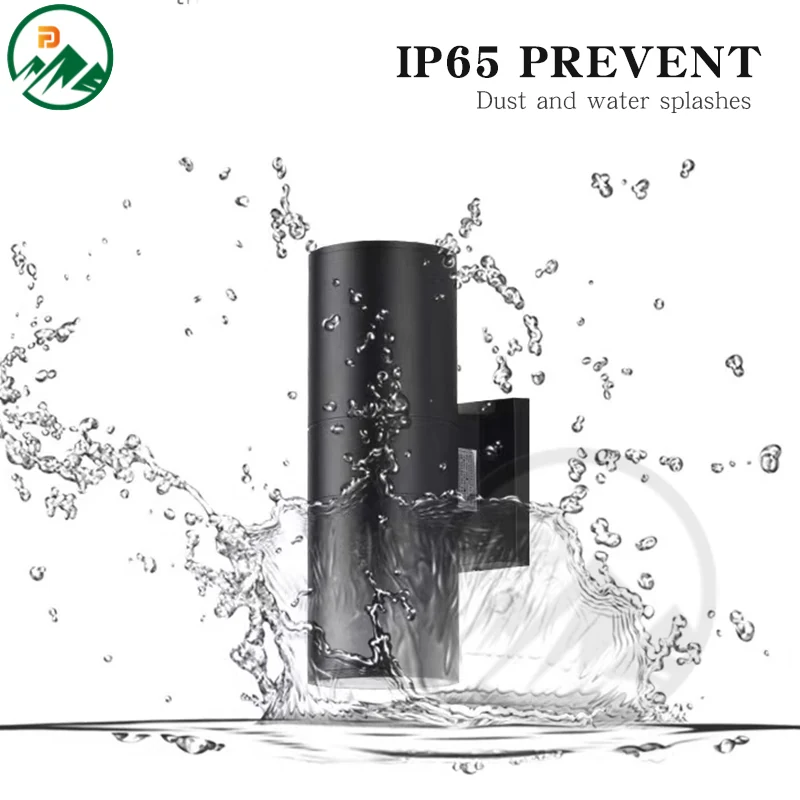

- IP65 rating ensures protection against dust and water jets, suitable for exterior wall mounting in wet climates
- AC85-265V input supports stable operation across varying mains voltages in different regions
- Aluminium body provides efficient heat dissipation and long-term durability in outdoor conditions
- Five 2W Philips LED chips deliver consistent light output with a stable driver
- Compact D90 x H260 mm size fits standard wall mounting positions without obstructing access or sightlines
- 3-year warranty provides confidence in long-term performance for commercial projects
Application Scenarios

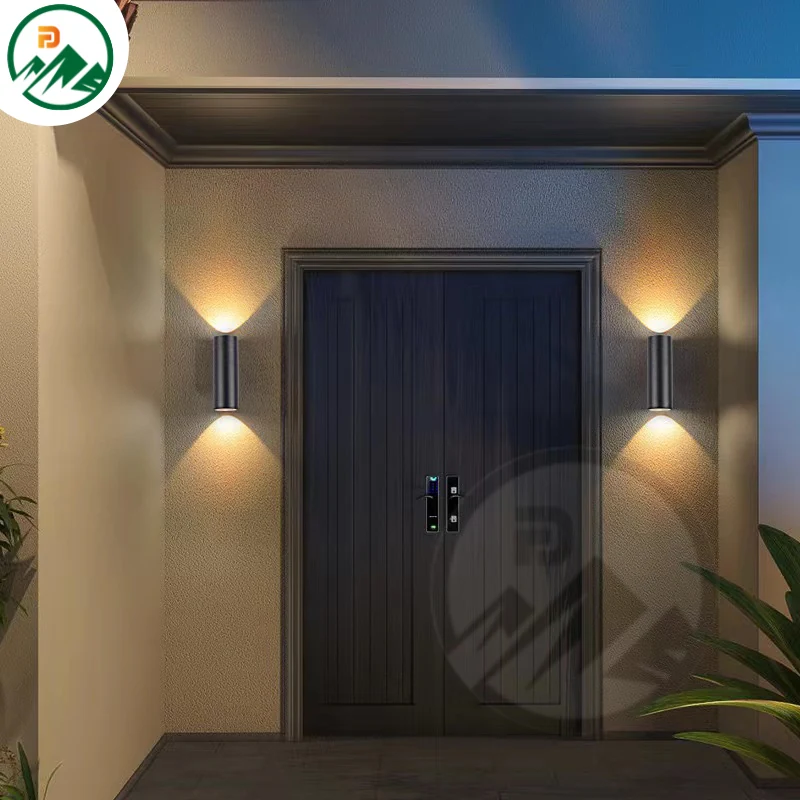

- Mounting on exterior walls of office buildings for perimeter lighting and security illumination
- Installing along the façade of commercial buildings to enhance architectural detail at night
- Retrofitting into existing wall-mounted lighting positions in renovation projects
- Lighting entrances and corridors in commercial complexes exposed to outdoor weather
Who It Is For
- Commercial office building contractors installing exterior lighting in the Middle East and Europe
- Lighting designers specifying durable wall-mounted fixtures for architectural façades
- Electrical wholesalers supplying outdoor lighting for commercial and public sector projects
- Brand owners sourcing OEM wall lamps under their own label with custom logo printing
Problems It Solves
- Non-weatherproof fixtures fail prematurely in outdoor wall applications due to dust and moisture ingress
- Voltage fluctuations in different regions can cause flickering or failure in low-quality drivers
- Inadequate heat dissipation in plastic or thin metal housings reduces LED lifespan
- Lack of standardised mounting dimensions complicates retrofitting into existing wall positions
- Short warranty periods increase risk for project owners when specifying outdoor lighting
Technical Features
- Five 2W Philips LED chips for consistent light output and long life
- Dark Energy driver for stable performance under varying input voltage
- IP65 rating for protection against dust and water jets from any direction
- Aluminium body for effective heat transfer and structural rigidity
- AC85-265V input range compatible with standard mains supply across Europe and the Middle East
- Compact D90 x H260 mm dimensions allow for discreet wall mounting
Materials
- Aluminium body for heat dissipation and structural strength
- Philips LED chips for consistent lumen output and reliability
- Dark Energy driver for stable current regulation and long life
- Sealed gasket and housing joints to maintain IP65 rating
Manufacturing Process
- Aluminium body machining and surface finishing
- LED board assembly with five Philips 2W chips
- Driver integration with Dark Energy unit
- Sealing and gasket fitting to achieve IP65
- Powered ageing test before packing
Quality Control
- Incoming inspection of Philips LED chips and Dark Energy drivers
- IP65 sealing verification using spray test before final closure
- Powered ageing run for 24 hours before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Supplied with or without driver to match site-specific control systems
- OEM and ODM production available for buyers selling under their own brand
- Custom mounting brackets or finishes available upon request
Compared With the Alternatives
Plastic-bodied wall lamp
More durable and heat-resistant, but higher cost; suitable for long-term outdoor use
IP64-rated wall lamp
Less protection against water jets; not suitable for direct exposure to rain or cleaning hoses
Non-weatherproof indoor wall lamp
Fails quickly in outdoor conditions; not suitable for exterior mounting
Use Guide
- Mount the fixture on a solid wall surface with appropriate fixings to support the weight
- Ensure the mounting position is free from obstructions and allows for proper heat dissipation
- Use the supplied gasket to seal the housing during installation to maintain IP65 rating
- Connect to AC85-265V mains supply; verify voltage compatibility with local grid
- Clean the lens periodically with a soft cloth to maintain light output and appearance
10W IP65 Outdoor LED Wall Lamp Questions
What is the power consumption of this wall lamp?
The fixture consumes 10W total, using five 2W Philips LED chips.
Is the driver included?
Yes, the fixture is supplied with a Dark Energy driver.
What is the IP rating and what does it mean?
The fixture has an IP65 rating, meaning it is dust-tight and protected against water jets from any direction.
Can it be used in cold climates?
Yes, the AC85-265V input and aluminium body allow stable operation in varying temperature conditions.
What is the warranty period?
This model carries a 3-year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
