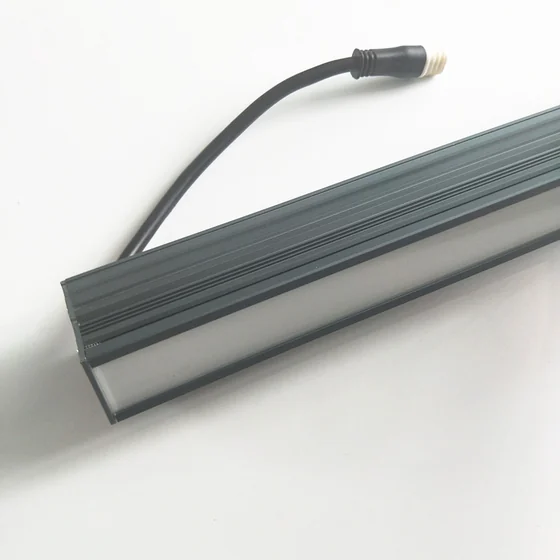

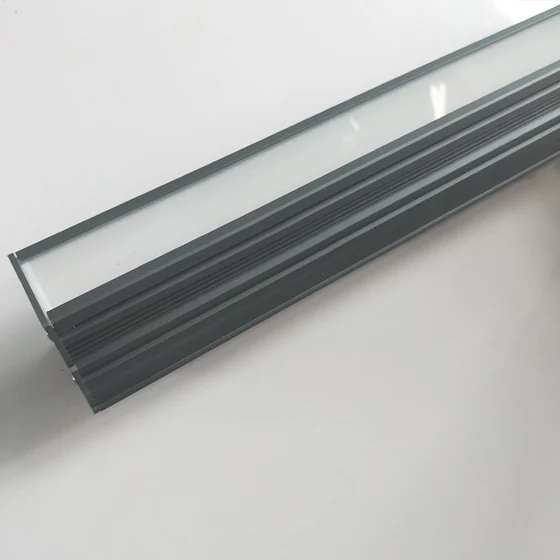

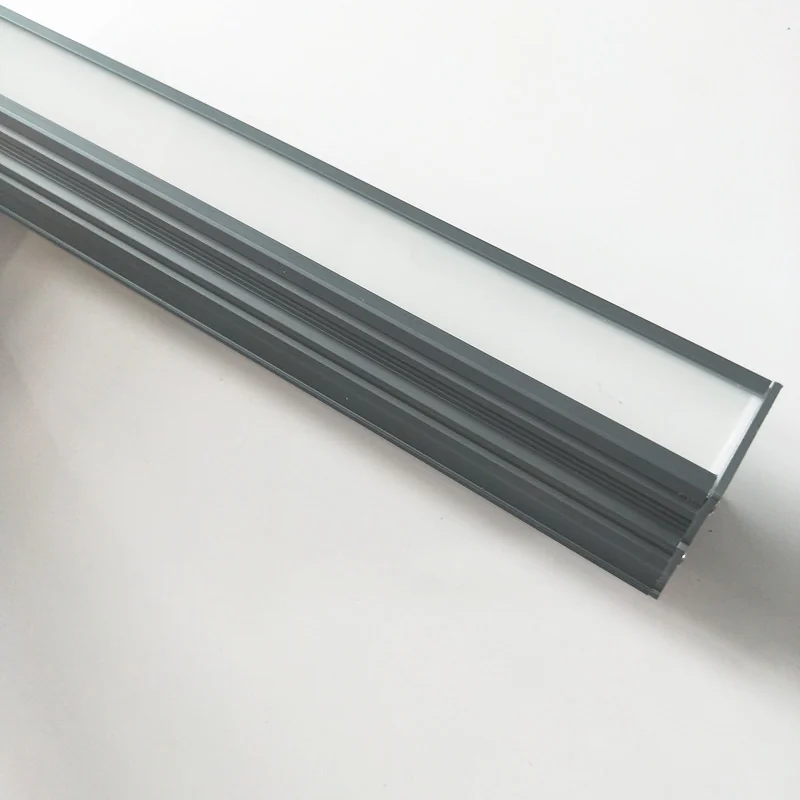

LED Linear Light
Outdoor Linear Light RGB
Glass diffuser linear light connecting up to 60 pieces without voltage drop
IP67Rating
Frosted or clear glassDiffuser
Up to 60 pcsCascade
Class IIISafety
Have a drawing? Send the DXF or PDF over WhatsApp or email and our engineers will mark the fixture positions. CAD files are supplied on request via WhatsApp.
Product Overview
What This Fixture Is
Glass diffuser linear light connecting up to 60 pieces without voltage drop.
Key Benefits
- Continuous runs with no dark area where two bars meet
- Imported diffusers cut glare while keeping surface brightness
- Cables hidden inside the curtain wall so the daytime look stays clean
- Customisable length, housing colour and LED colour to match the mullion
Outdoor Linear Light Rgb Application
- Small power pixel light,low power consumption.
- Foreign import material diffuser with even and soft light effect;
- Support every kinds of customization: glass diffuser （frosted or clear cover);the color of aluminum,lamp length,led color(RGB,RGBW or Monocolor)
- IP67 rated,Anti-UV,flame retardant V0,Class III of Electrical safety Level can effectively ensure the stability of lamps in all eather outdoor environment.
- Flexible installation performance,support for every kind of irregular curtain wall structure and difference media solution.
Outdoor Linear Light Rgb Performance
- Combination of RGBW,RGB,Monocolor and more light source to satisfy more model requirements;
- Soft light effect reduce maximize glare polution and ensure surface brightness at the same time,which increase visual comfort;
- 16bit color resolution make the video wall more smooth and delicate.
- Inside electronic drive to protect the over temperature and overload.
Outdoor Linear Light Rgb Structure
- The design of lamp structure simple reasonable can combine with curtain wall ideally.
- High quality material to guarantee even light,also no dark area in continous splicing;
- Lamp color is according to curtain wall customization,installation structure is reasonable and easy,and the embedded or side is fixed;
- Adapting to diverse curtain wall structures;
- In order to perfect mix with curtain wall structure,we can hide cable in continous splicing
Control
- Standard DMX512 Dimming,multi-pixel or mono color to be choosen;
- Unique design can connect lights up to 60pc without voltage drop;
- Match standard control system can achieve several scenes change;
- High grey and high refresh rate to ensure the picture smooth and delicate
- Details of the outdoor linear light rgb
Who It Is For
- Curtain wall contractors integrating light into mullions and transoms
- Architectural lighting designers specifying continuous runs with no dark gaps
- Media facade integrators building low resolution video walls from linear pixels
- Sign and advertising board makers who need IP67 rated colour changing bars
Problems It Solves
- High quality diffusers give even output with no dark area in continuous splicing
- Soft light effect cuts glare pollution while keeping surface brightness
- Unique design lets up to 60 pieces connect together without voltage drop on selected models
- Invisible cable routing hides wiring inside the curtain wall structure
Application Scenarios
- Building facade lighting
- Landscape lighting and advertising boards
- Stage and bar environment lighting
- Media facade video walls
Specifications
Technical Parameters
| Rating | IP67 |
|---|---|
| Diffuser | Frosted or clear glass |
| Cascade | Up to 60 pcs |
| Safety | Class III |
Full parameter sheet for this model is supplied on request. Message us on WhatsApp and we will send the datasheet as a PDF.
Materials
| Body | Stretched or extruded aluminium, anodised |
|---|---|
| Diffuser | Imported acrylic or glass, frosted or clear |
| Lens | Optical PC |
| Seal | PU potting and structural sealing |
| Finish | Housing colour customised to the curtain wall |
Manufacturing Process
- Aluminium extrusion cut to the ordered length
- Anodising and colour finishing
- Board assembly and lens or diffuser fitting
- End cap sealing and cable exit moulding
- Waterproof test, colour test and continuous splicing check
Details And Drawings
Dimensions Wiring And Application Views
Comparison
How This Model Compares Inside The Range
| Model | Best For | Control | Key Difference |
|---|---|---|---|
| Acrylic Cover LED Linear Light | Building facade lighting | DMX512 | Imported diffuser linear bar that hides its cable inside the curtain wall structure |
| Outdoor Linear Light RGB (this model) | Building facade lighting | DMX512 / TTL | Glass diffuser linear light connecting up to 60 pieces without voltage drop |
| Outdoor Linear Light For Facade Lighting | Building facade lighting | DMX512 | Low power linear bar for irregular curtain wall structures and media solutions |
| LED Light Bar With Wide Diffuser Area | Building facade lighting | DMX512 | Light emitted from two sides through a light guide board for a wide even luminous face |
| Outdoor Light Bar With Acrylic Diffuser | Building facade lighting | DMX512 / TTL | Thick acrylic diffuser for smooth output with embedded or flat installation |
| LED Light Bar For Facade Lighting Project | Building facade lighting | TTL | TTL protocol linear pixel bar for large facade media installations |
Comparison values are taken from the published parameters of each model. Ask an engineer if you need a side by side photometric comparison for a specific mounting height.
Use Guide
Installing And Commissioning
Mount the bar into the mullion or on the supplied bracket, join runs end to end for a continuous line, hide the cable inside the curtain wall cavity and dim or colour change over DMX512.
- Confirm the layout. Mark fixture positions on the elevation and check point spacing against viewing distance.
- Fix the mounting. Use the supplied bracket, profile or steel wire fixing and leave a service loop at each connector.
- Power and address. Inject power at the recommended interval, then address the line from the sub controller.
- Commission. Load a test pattern, correct white balance and store the show programme on the master controller.
Quality Control
How We Keep The Defect Rate Below 0.2 Percent
- LED chips selected from CREE, OSRAM, Epistar and other high quality suppliers
- Full colour lamps built with high grey level and high refresh rate driver ICs
- High power lamps supplied with professional lens light distribution
- Products produced under a strict quality control system, defective rate below 0.2 percent
- 2 to 5 year warranty, with replacements shipped alongside your next order
Related Products
Other Models Worth Comparing
Linear Light
Acrylic Cover LED Linear Light
Imported diffuser linear bar that hides its cable inside the curtain wall structure
Linear Light
Outdoor Linear Light For Facade Lighting
Low power linear bar for irregular curtain wall structures and media solutions
Linear Light
LED Light Bar With Wide Diffuser Area
Light emitted from two sides through a light guide board for a wide even luminous face
Linear Light
Outdoor Light Bar With Acrylic Diffuser
Thick acrylic diffuser for smooth output with embedded or flat installationCases
Cases Using This Range
Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.
Bridge
Bridge Night View
Arch spans outlined with colour changing lines running a slow programmed sequence over the river.
Architectural
Synchronised Linear Light Project
Vertical linear runs on two towers driven from one master controller so both buildings stay in step.
Landscape
Park Feature Structure
An angular pavilion outlined in magenta linear runs that read clearly from across the park.
Landscape
Underpass And Approach Lighting
Approach walls and parapets grazed with linear light to guide drivers into an underpass.
FAQ
Outdoor Linear Light RGB FAQ
What is the protection rating of the Outdoor Linear Light RGB?
IP67
Can the length, colour or lens be customised?
Yes. Lamp length or point spacing, housing colour, LED colour and lens angle are all made to the project requirement.
Is a sample available before I place a production order?
Yes. One piece is available for sample checking and samples ship in 3 to 5 days.
How is this fixture controlled?
It runs on the control protocol listed in the parameters above and works with our master and slave controllers, which also support mixed lamp types on one system.
What happens if a unit fails after installation?
Our defective rate is below 0.2 percent. Within the 2 to 5 year warranty we send replacements with your next order, and for a defective batch we repair and resend or agree another solution with you.
Ready To Price This Model
Send quantity, run length and mounting condition and we will quote the Outdoor Linear Light RGB together with drivers and controllers.
