LED RGB Linear Light LL3618
Series LL3618
Anodised stretched aluminium bar with 512 grey levels and frosted acrylic cover
Have a drawing? Send the DXF or PDF over WhatsApp or email and our engineers will mark the fixture positions. CAD files are supplied on request via WhatsApp.
What This Fixture Is
Anodised stretched aluminium bar with 512 grey levels and frosted acrylic cover.
Key Benefits
- Continuous runs with no dark area where two bars meet
- Imported diffusers cut glare while keeping surface brightness
- Cables hidden inside the curtain wall so the daytime look stays clean
- Customisable length, housing colour and LED colour to match the mullion
LED Rgb Linear Light Specification
- The main body shell material is made of stretched aluminum, the surface is anodized, anti-aging, anti-ultraviolet, light transmittance is 80%, anti-UV radiation
- Low power LED are environmentally friendly, energy efficient, etc。
- It can produce a variety of color optical effects, the optical output is RGB three primary colors, the gray level can reach 512 levels, RGB can be combined into 16777216 colors
- The light source is flexible and can meet the requirements of light mixing at short distances
- DMX512 control system can realize colorfull,running watar,chazing,etc
- Acrylic cover with better performing
Lighting Performance
RGBW,RGB,Monochrome and other light source combination to meet more requirements.Imported material deffuser,uniform and soft light effect,to ensure surface brightness. Minmized glare pollution,increese visual confort. color resolution 18Bit,the picture more delicate and smooth. Build-in electronic driver with over-temperature overload protection
Structure
the structure of the lamp body is simple,reasonable and beautiful,can be combined with the structure of the building.Frosted acylic cover with good outlook.The installation structure is reasonale and simple,can be slidably fixed to the mounting bracket. The operation is simple and suitable for a variety of building structures. the cables are hidden at the bottom of the linear and perfectly integrated with the building structure
Control
The linear used standard DMX protocol,Multi-pixel or monochrome optional,with the standard control system,can achieve a variety of scene changes. Hight grey level high refresh frequency,to ensure that the picture is smooth.
Led Rgb Linear Light Applications
- Building facade lighting
- Landscape lighting,advertising board；
- Stage lighting,bar evironment decoration lighting.
- 12w acrylic cover led linear light for outdoor project
- Note: we supply project design and customized products according to project demands
Who It Is For
- Curtain wall contractors integrating light into mullions and transoms
- Architectural lighting designers specifying continuous runs with no dark gaps
- Media facade integrators building low resolution video walls from linear pixels
- Sign and advertising board makers who need IP67 rated colour changing bars
Problems It Solves
- High quality diffusers give even output with no dark area in continuous splicing
- Soft light effect cuts glare pollution while keeping surface brightness
- Unique design lets up to 60 pieces connect together without voltage drop on selected models
- Invisible cable routing hides wiring inside the curtain wall structure
Application Scenarios
- Building facade lighting
- Landscape lighting and advertising boards
- Stage and bar environment lighting
- Media facade video walls
Technical Parameters
| Transmittance | 80% |
|---|---|
| Grey scale | 512 levels |
| Colours | 16,777,216 |
| Control | DMX512 |
Full parameter sheet for this model is supplied on request. Message us on WhatsApp and we will send the datasheet as a PDF.
Materials
| Body | Stretched or extruded aluminium, anodised |
|---|---|
| Diffuser | Imported acrylic or glass, frosted or clear |
| Lens | Optical PC |
| Seal | PU potting and structural sealing |
| Finish | Housing colour customised to the curtain wall |
Manufacturing Process
- Aluminium extrusion cut to the ordered length
- Anodising and colour finishing
- Board assembly and lens or diffuser fitting
- End cap sealing and cable exit moulding
- Waterproof test, colour test and continuous splicing check

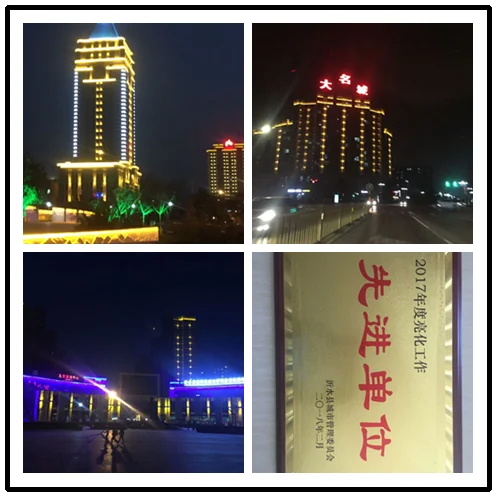

Dimensions Wiring And Application Views
How This Model Compares Inside The Range
| Model | Best For | Control | Key Difference |
|---|---|---|---|
| LED RGB Linear Light LL3618 (this model) | Building facade lighting | DMX512 | Anodised stretched aluminium bar with 512 grey levels and frosted acrylic cover |
| Acrylic Cover LED Linear Light | Building facade lighting | DMX512 | Imported diffuser linear bar that hides its cable inside the curtain wall structure |
| Outdoor Linear Light RGB | Building facade lighting | DMX512 / TTL | Glass diffuser linear light connecting up to 60 pieces without voltage drop |
| Outdoor Linear Light For Facade Lighting | Building facade lighting | DMX512 | Low power linear bar for irregular curtain wall structures and media solutions |
| LED Light Bar With Wide Diffuser Area | Building facade lighting | DMX512 | Light emitted from two sides through a light guide board for a wide even luminous face |
| Outdoor Light Bar With Acrylic Diffuser | Building facade lighting | DMX512 / TTL | Thick acrylic diffuser for smooth output with embedded or flat installation |
Comparison values are taken from the published parameters of each model. Ask an engineer if you need a side by side photometric comparison for a specific mounting height.
Installing And Commissioning
Mount the bar into the mullion or on the supplied bracket, join runs end to end for a continuous line, hide the cable inside the curtain wall cavity and dim or colour change over DMX512.
- Confirm the layout. Mark fixture positions on the elevation and check point spacing against viewing distance.
- Fix the mounting. Use the supplied bracket, profile or steel wire fixing and leave a service loop at each connector.
- Power and address. Inject power at the recommended interval, then address the line from the sub controller.
- Commission. Load a test pattern, correct white balance and store the show programme on the master controller.
How We Keep The Defect Rate Below 0.2 Percent
- LED chips selected from CREE, OSRAM, Epistar and other high quality suppliers
- Full colour lamps built with high grey level and high refresh rate driver ICs
- High power lamps supplied with professional lens light distribution
- Products produced under a strict quality control system, defective rate below 0.2 percent
- 2 to 5 year warranty, with replacements shipped alongside your next order
Other Models Worth Comparing
Linear Light
Acrylic Cover LED Linear Light
Imported diffuser linear bar that hides its cable inside the curtain wall structure
Linear Light
Outdoor Linear Light RGB
Glass diffuser linear light connecting up to 60 pieces without voltage drop
Linear Light
Outdoor Linear Light For Facade Lighting
Low power linear bar for irregular curtain wall structures and media solutions
Linear Light
LED Light Bar With Wide Diffuser Area
Light emitted from two sides through a light guide board for a wide even luminous faceCases Using This Range
Real installations photographed on site: facades, bridges, mesh screens, parks and waterfronts.
Bridge
Bridge Night View
Arch spans outlined with colour changing lines running a slow programmed sequence over the river.
Architectural
Synchronised Linear Light Project
Vertical linear runs on two towers driven from one master controller so both buildings stay in step.
Landscape
Park Feature Structure
An angular pavilion outlined in magenta linear runs that read clearly from across the park.
Landscape
Underpass And Approach Lighting
Approach walls and parapets grazed with linear light to guide drivers into an underpass.
LED RGB Linear Light LL3618 FAQ
What is the protection rating of the LED RGB Linear Light LL3618?
Can the length, colour or lens be customised?
Is a sample available before I place a production order?
How is this fixture controlled?
What happens if a unit fails after installation?
Ready To Price This Model
Send quantity, run length and mounting condition and we will quote the LED RGB Linear Light LL3618 together with drivers and controllers.
