LED Pixel Light
30mm DMX512 Pixel Light
Series D30
16 bit 30 mm dot light with flat or sphere cover and profile mounting options
D30Series
16 BitBit depth
DC12VVoltage
IP66Protection
Have a drawing? Send the DXF or PDF over WhatsApp or email and our engineers will mark the fixture positions. CAD files are supplied on request via WhatsApp.
Product Overview
What This Fixture Is
16 bit 30 mm dot light with flat or sphere cover and profile mounting options.
Key Benefits
- Bends and twists with the cable so special shaped facades need no custom bracket
- Full PU potting with lightning and ESD protection for exposed outdoor positions
- High grey level driver ICs give smooth video and animation across a whole elevation
- Point spacing and cover shape customised to the viewing distance of the project
30mm Dmx 512 Pixel Light Introduction
D30 Led Dot light is a low power LED string product designed for outdoor landscape lighting. It adopts engineering grade flame-retardant plastic PC shell, which is sealed and waterproof by high thermal conductivity and weather-resistant PU glue; The dot light is small size and exquisite in appearance; the light string is connected by the national standard flexible cable, which can be bent and deformed flexibly, and supports the installation of special-shaped façade; Product spacing, color can be customized; suitable for large-area display or lighting of building facades, bridges, skylights, etc.
Specifications
- Standard DMX512 protocol
- Integrated wireless button and jointless anti-smash connection design
- High thermal conductivity glue full potting waterproof design
- Outdoor lightning protection and static electricity (ESD) special protection design
- Flexible application, multiple mounting methods
- Wire installation light transmittance up to90%
Dimension

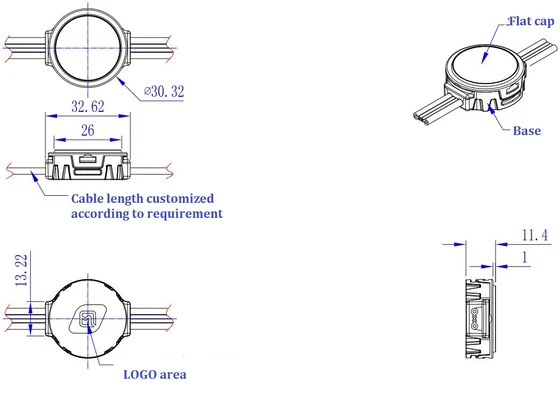

- 1.Flat cover base installation size:
- 2.Standard

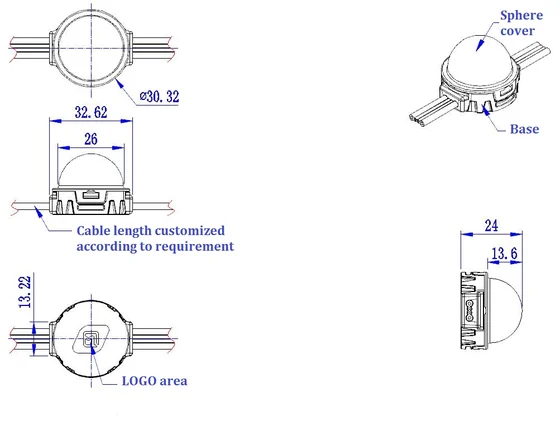

- Sphere cover base installation size:

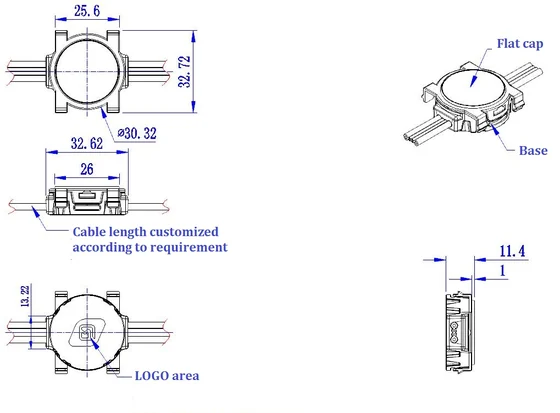

- 3.Flat cover with profile installation size:

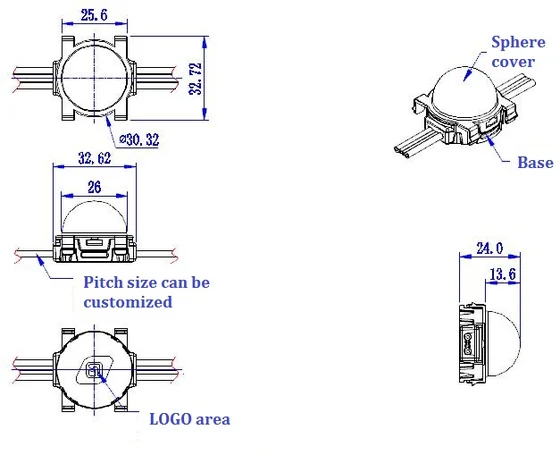

- Sphere cover with profile installation size:
- Paramters:
Who It Is For
- Facade and media architecture contractors building low resolution pixel screens on curtain walls
- Bridge and municipal night view contractors covering long spans with addressable point sources
- Lighting designers who need a pixel pitch and cover shape matched to a specific viewing distance
- Distributors serving landscape, mall and hotel projects that need DMX512 or TTL point sources
Problems It Solves
- Flexible cable strings bend and twist freely so special shaped facades can be wired without custom brackets
- DMX512 and dual channel real time backup protocols keep the display alive if one line fails
- Full potting with high thermal conductivity weather resistant PU glue plus lightning and ESD protection
- Small pixel bodies and mesh mounting keep light transmittance up to 90 to 94 percent
Application Scenarios
- Building facades and curtain walls
- Bridges and viaducts
- Sky screens and ceilings
- Malls, hotels and restaurant halls
- Tree and landscape decoration
Specifications
Technical Parameters
| Basic parameters | ||
| Bit | 16Bit | |
| LED type | 3535/5050 | |
| Material | ABS | |
| Lifespan | >50,000h | |
| Lighting paramters | ||
| Input voltage | DC12V | |
| RGB brightness | 15cd | |
| Bean Angle | Flat120°/ Sphere160° | |
| Others | ||
| Working Temp | -20°C to 50°C | |
| Protection | IP66 | |
Materials
| Housing | Engineering grade flame retardant PC |
|---|---|
| Cover | Flame retardant PC, flat or sphere |
| Heat sink | Aluminium on high power models |
| Potting | High thermal conductivity weather resistant PU glue |
| Cable | National standard customised flexible cable |
Manufacturing Process
- LED and driver IC placement on the pixel board
- Shell moulding in flame retardant PC
- Full potting with high thermal conductivity PU glue
- Cable crimping and buckle assembly into strings
- Ageing test, addressing test and colour check before packing
Details And Drawings
Dimensions Wiring And Application Views
Comparison
How This Model Compares Inside The Range
| Model | Best For | Control | Key Difference |
|---|---|---|---|
| High Power LED Dot Light 3W | Building facades and curtain walls | DMX512 / dual channel backup | Plastic shell plus independent aluminium heat sink at half the weight of die cast aluminium |
| V020 LED DMX Pixel Light | Building facades and curtain walls | DMX512 / TTL | Three, four or six LED pixel with 4096 to 65536 grayscale for facade media screens |
| D40 RGB LED Point Light | Building facades and curtain walls | DMX512 + dual channel backup | Dual channel real time backup plus standard DMX512 in a 40 mm point body |
| RGB LED Point Light D40 | Building facades and curtain walls | Standard DMX512 | Standard DMX512 point light for building facades bridges and skylights |
| 30mm DMX512 Pixel Light (this model) | Building facades and curtain walls | DMX512 / TTL | 16 bit 30 mm dot light with flat or sphere cover and profile mounting options |
| LED Transparent Mesh Display | Building facades and curtain walls | DMX512 / TTL | Single LED mesh pixel that keeps up to 94 percent transmittance across a glass facade |
Comparison values are taken from the published parameters of each model. Ask an engineer if you need a side by side photometric comparison for a specific mounting height.
