Mini Paper Bubble Making Machine
400 kg bench scale paper bubble machine for samples and low volume runs
Product Overview

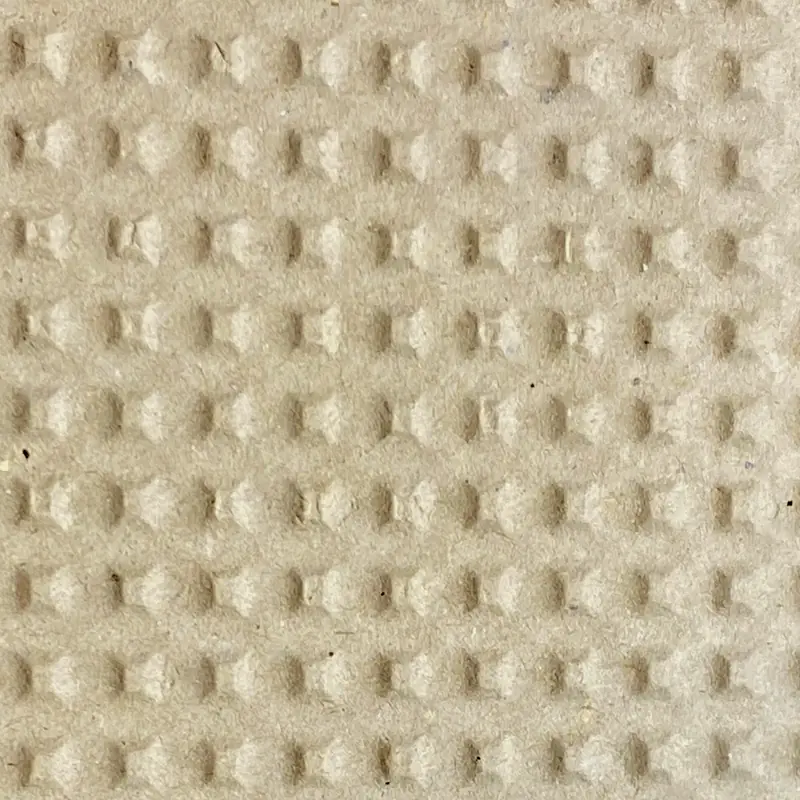

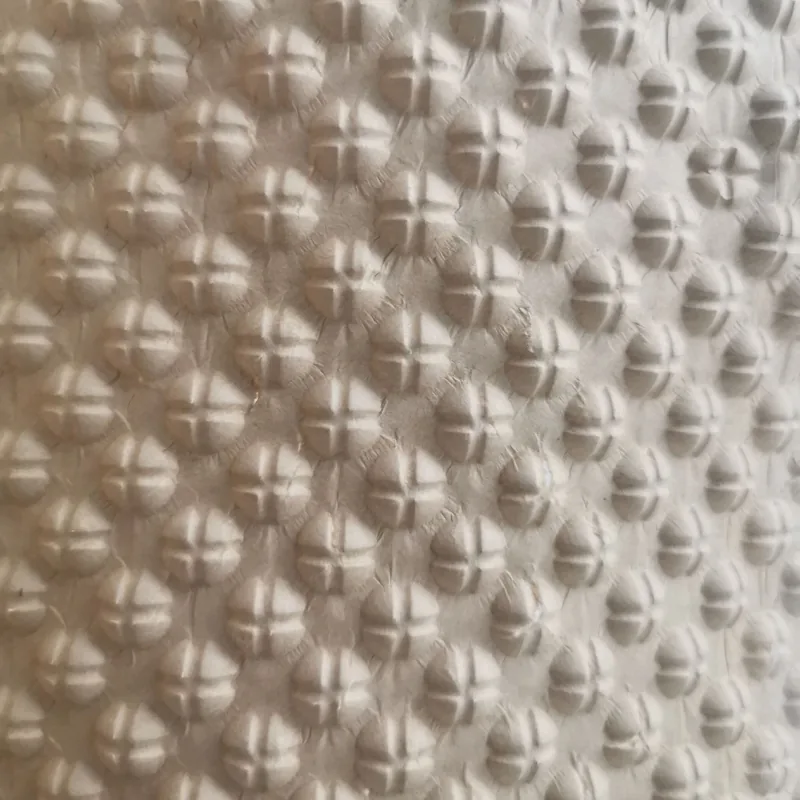

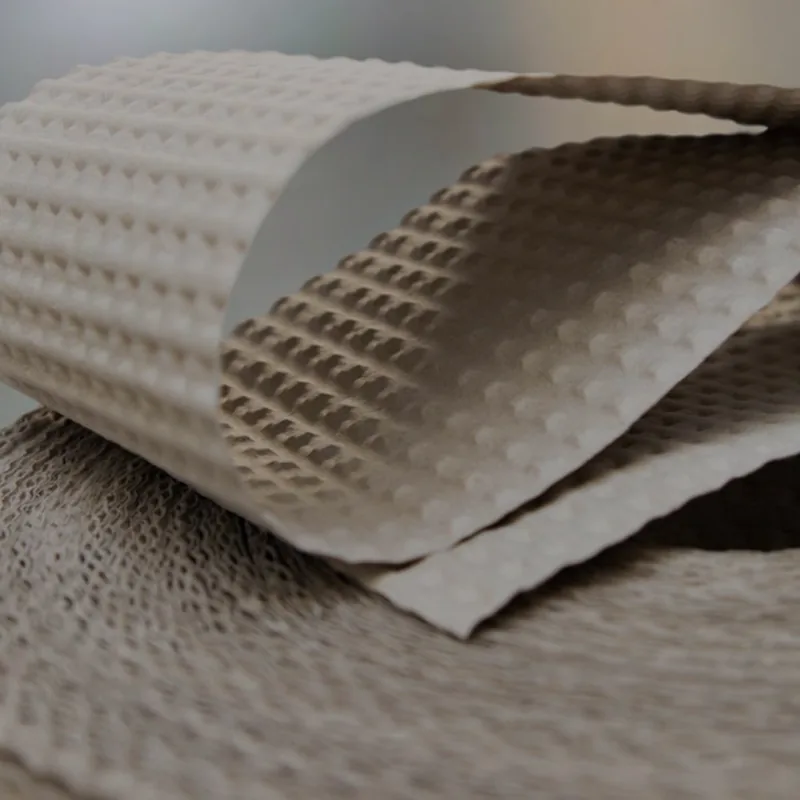

The EM-PB600 Mini Paper Bubble Making Machine embosses recycled kraft into paper bubble wrap at 600 mm wide and zero to 45 m per minute. Unwinding is by hand and the finished roll winds to 300 mm, which keeps the machine at 400 kg on a 1200 x 800 x 1300 mm footprint. It is the machine to buy when you need real paper bubble material for samples, trials or a small packing operation without committing to a production line.
Key Benefits
- 400 kg and 1200 x 800 x 1300 mm, small enough for a sample room or a packing hall corner
- Runs recycled kraft from 60 gsm, the same material grade as the production machines
- Manual unwinding removes the cost and complexity of a lifting system
- Produces genuine embossed paper bubble for customer trials, not a mock-up
What This Machine Fixes
- A production line cannot be tied up making a single sample roll
- Small operations cannot justify an 800 mm production machine
- Buying sample material from a converter is slow and reveals your customer to them
Who Buys It
- Converters who need a sample machine alongside a production line
- Small packers making their own protective wrap
- Distributors demonstrating paper bubble to their own customers
Where The Output Is Used
- Making sample rolls for customer approval before a production order
- Small e-commerce operations wrapping their own shipments
- Packaging laboratories testing paper bubble against plastic film
- Low volume production of specialty widths
How It Is Built
- Maximum material width 600 mm, minimum paper thickness 60 gsm
- Working speed zero to 45 m per minute

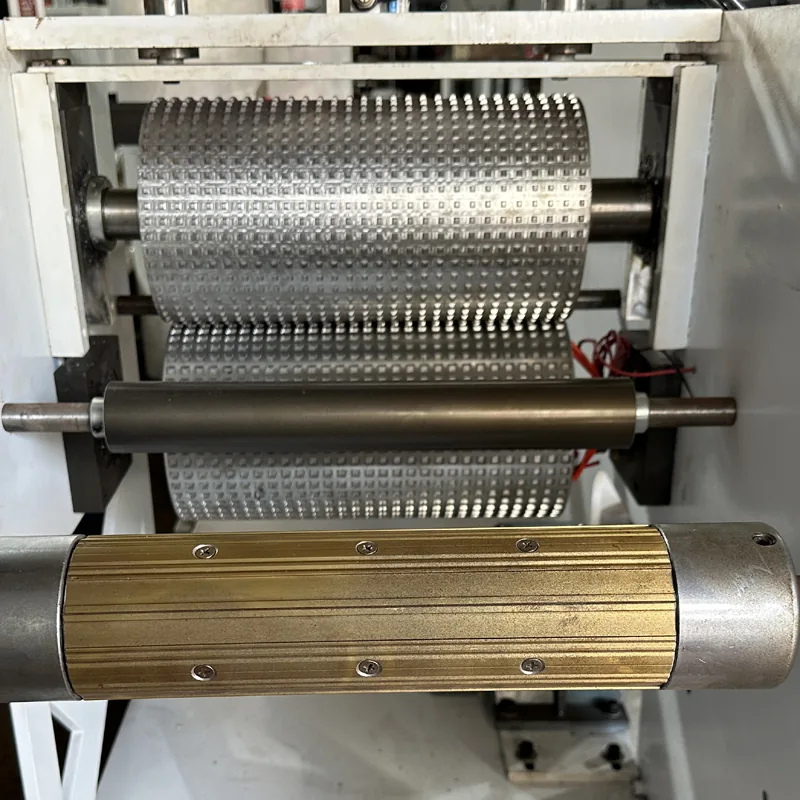

- Vertical upper and lower concave-convex embossing rollers with electric heating
- Maximum unwinding diameter 600 mm, maximum rewinding diameter 300 mm
- Manual unwinding, 3 inch inflatable air shafts
- Machine size 1200 x 800 x 1300 mm at 400 kg
Published Specification
Every figure below is the specification published for this machine. Where a value is not listed it is confirmed with the quotation rather than estimated.
| Machine model | EM-PB600 |
|---|---|
| Max material width | 600mm |
| Paper thickness | Min. 60gsm |
| Machine working speed | 0-45m/min |
| Embossing form | vertical upper and lower concave-convex rollers |
| Heating model | Electric heating |
| Max Unwinding diameter | 600mm |
| Max Rewinding diameter | 300mm |
| Unwinding type | By manual |
| Unwinding shaft | 3" inflatable air shaft |
| Rewinding shaft | 3" inflatable air shaft |
| Machine size | 1200x800x1300mm |
| Machine weight | 400KG |
Materials
- Recycled kraft paper from 60 gsm
- Virgin kraft grades
Customization Options
- Working width set within the 600 mm maximum
- Emboss roller pattern specified to match a production line
- Power supply built to the destination market's voltage and phase
The Process This Machine Runs
Manual roll loading
Stage 1 of the mini paper bubble making machine process.
Unwinding
Stage 2 of the mini paper bubble making machine process.
Heated embossing
Stage 3 of the mini paper bubble making machine process.
Rewinding
Stage 4 of the mini paper bubble making machine process.
Quality Control
- Emboss depth checked against the production machine output when matching a sample
- Heating held steady before running approval samples
- Finished roll checked for even winding at the reduced 300 mm diameter
Use Guide
- Load the parent roll by hand within the 600 mm unwinding diameter limit
- Let the heating stabilise before running an approval sample
- Keep sample rolls below the 300 mm rewinding limit so winding stays even
- Record the speed and emboss settings used for each approved sample
How It Compares With The Alternatives
Compared with Kraft Paper Bubble Making Machine EM-PB800
The EM-PB800 is 800 mm wide, runs to 60 m per minute, lifts the parent roll automatically and winds to 1000 mm. The mini trades all of that for 400 kg and a small footprint.
Compared with Paper Bubble Sheet Making Machine
The sheet machine cuts and stacks sheets at 300 pieces per minute. The mini winds a small roll.
Mini Paper Bubble Making Machine FAQ
How small is this machine?
1200 x 800 x 1300 mm and 400 kg, the smallest paper bubble machine in the range.
What width and speed does it run?
600 mm maximum material width at zero to 45 m per minute.
Is the unwinding automatic?
No, unwinding is by manual loading. The automatic lifting system is on the EM-PB800.
What roll sizes does it handle?
Unwinding up to 600 mm diameter and rewinding up to 300 mm diameter.
Will samples from this machine match production output?
It uses the same vertical concave-convex embossing principle and electric heating. Specify the emboss pattern to match your production rollers when you order.
What paper weight does it need?
Recycled or virgin kraft from 60 gsm.
