Kraft Paper Bubble Making Machine
Embosses kraft into paper bubble wrap and winds it to a 1000 mm roll
Product Overview
The EM-PB800 embosses kraft paper between vertical upper and lower concave-convex rollers to form the bubble structure, heats it electrically to set the emboss, and rewinds the finished material into a roll up to 1000 mm in diameter. It takes paper from 60 gsm upward at up to 800 mm wide and runs at zero to 60 m per minute. The output is the roll of paper bubble wrap that e-commerce packing stations use in place of plastic film.
Key Benefits
- 800 mm working width, the widest paper bubble format in the range
- Rewinds to a 1000 mm roll, so packing stations change rolls less often
- Automatic lifting unwinding system handles parent rolls up to 1200 mm without a hoist
- Electric heating with vertical concave-convex embossing rollers gives a consistent bubble form
What This Machine Fixes
- Plastic bubble film has to be separated from paper waste by the receiver
- Imported paper bubble rolls carry freight cost on a mostly air product
- Narrow rolls force frequent changes at the packing bench
Who Buys It
- Protective packaging converters adding a paper bubble line
- Distributors who currently import finished paper bubble rolls
- Large packers producing wrap for their own fulfilment network
Where The Output Is Used
- Producing paper bubble rolls for e-commerce packing benches
- Supplying protective wrap to electronics and glassware shippers
- Replacing plastic bubble film on an existing packing line
- Converting parent kraft reels into a saleable finished roll
How It Is Built
- Maximum material width 800 mm, minimum paper thickness 60 gsm
- Working speed zero to 60 m per minute

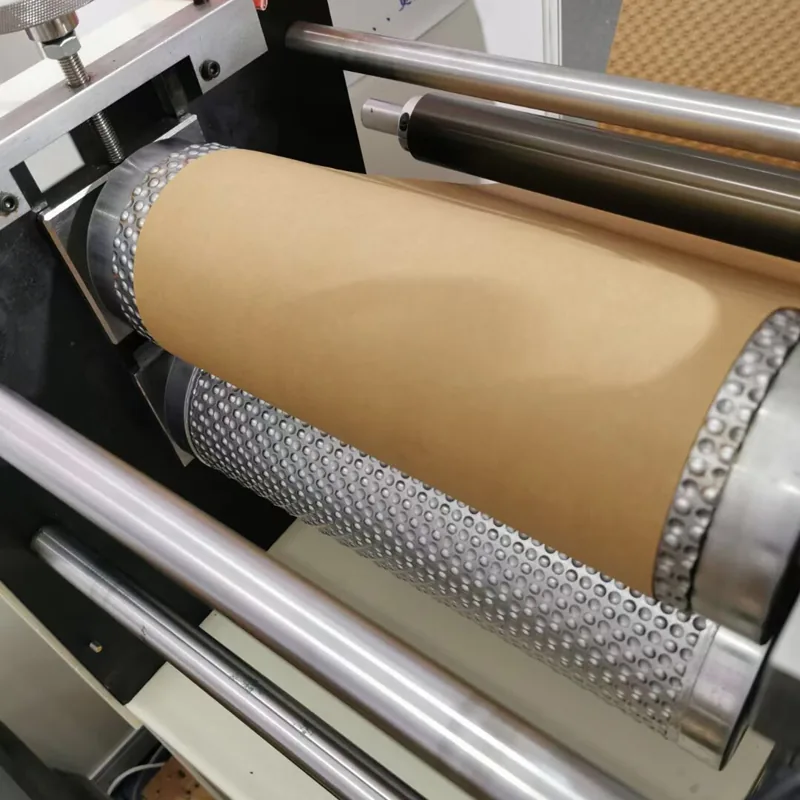

- Embossing by vertical upper and lower concave-convex rollers
- Electric heating model
- Maximum unwinding diameter 1200 mm, maximum rewinding diameter 1000 mm
- Automatic lifting unwinding, 3 inch inflatable air shafts on unwind and rewind
- Machine size 1500 x 1200 x 1400 mm at 1200 kg
Published Specification
Every figure below is the specification published for this machine. Where a value is not listed it is confirmed with the quotation rather than estimated.
| Machine model | EM-PB800 |
|---|---|
| Max material width | 800mm |
| Paper thickness | Min. 60gsm |
| Machine working speed | 0-60m/min |
| Embossing form | vertical upper and lower concave-convex rollers |
| Heating model | Electric heating |
| Max Unwinding diameter | 1200mm |
| Max Rewinding diameter | 1000mm |
| Unwinding type | Automatic lifting system |
| Unwinding shaft | 3" inflatable air shaft |
| Rewinding shaft | 3" inflatable air shaft |
| Machine size | 1500x1200x1400mm |
| Machine weight | 1200KG |
Materials
- Kraft paper from 60 gsm
- Recycled kraft grades
Customization Options
- Emboss pattern roller specified with the order
- Working width set within the 800 mm maximum
- Power supply built to the destination market's voltage and phase
The Process This Machine Runs
Automatic roll lifting
Stage 1 of the kraft paper bubble making machine process.
Unwinding
Stage 2 of the kraft paper bubble making machine process.
Heated embossing
Stage 3 of the kraft paper bubble making machine process.
Rewinding
Stage 4 of the kraft paper bubble making machine process.
Quality Control
- Emboss depth checked on the first metres after every roll change
- Heating temperature held steady before production speed is raised
- Finished roll diameter and tension checked before wrapping
Use Guide
- Bring the heating up to temperature before running production paper
- Check emboss depth on a sample before committing the roll
- Use the automatic lifting system for parent rolls rather than lifting by hand
- Keep rewind tension consistent so the 1000 mm roll does not telescope
How It Compares With The Alternatives
Compared with Mini Paper Bubble Making Machine EM-PB600
The mini machine is 600 mm wide, runs to 45 m per minute, unwinds by hand and weighs 400 kg. The EM-PB800 is the production machine: wider, faster, automatic lifting and a 1000 mm finished roll.
Compared with Paper Bubble Sheet Making Machine
The sheet machine cuts and stacks finished sheets instead of winding a roll. Choose by whether the packing station uses a dispenser or a pile.
Kraft Paper Bubble Making Machine FAQ
What is the maximum paper width and roll size?
800 mm material width, unwinding to 1200 mm diameter and rewinding to 1000 mm diameter.
What is the minimum paper weight?
60 gsm. Lighter paper than that is outside the published range for this machine.
How is the bubble formed?
By vertical upper and lower concave-convex embossing rollers with electric heating.
How fast does it run?
Zero to 60 m per minute, adjustable.
What is the machine footprint?
1500 x 1200 x 1400 mm at 1200 kg.
Can the emboss pattern be changed?
The embossing rollers determine the pattern, so specify the pattern you need with the order.
