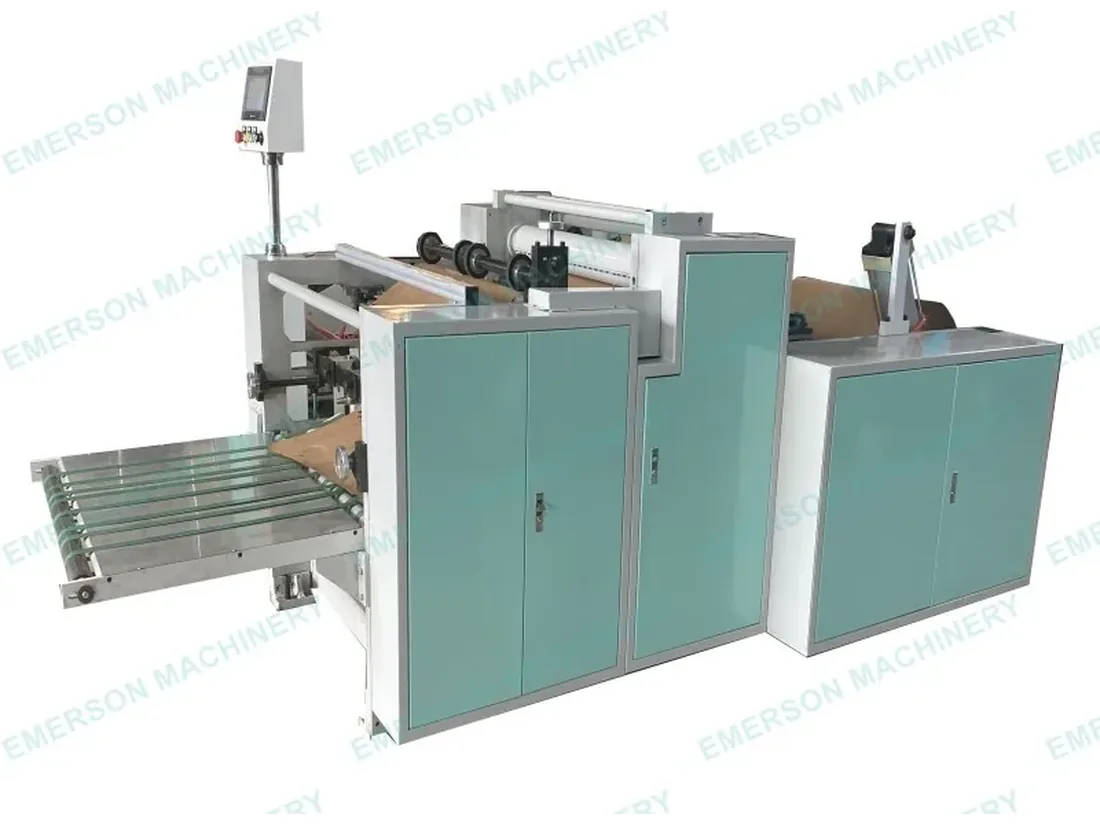

High Speed Fanfold Kraft Paper Folding Machine Model 800
The 780 mm wide build of the high speed folder for large format void fill
Product Overview
Model 800 is the wide build of the same high speed fanfold platform. It takes kraft paper up to 780 mm wide and runs at 150 m per minute, against 470 mm and 200 m per minute on the 500. The extra width is for customers whose dispensers or wrapping formats are larger, and the frame is built heavier at 2500 kg with 5 kW installed power to carry the wider web.
Key Benefits
- 780 mm working width, 310 mm more than the 500 build, for large format wrapping and void fill
- 150 m per minute keeps high volume contracts supplied at the wider format
- Heavier 2500 kg frame and 5 kW drive sized for the wider web
- Shares the perforation and folding module range with the 500, so spares and know-how carry over
What This Machine Fixes
- Narrow fanfold forces double wrapping on larger items and wastes paper
- Slitting a wide parent reel down to 470 mm adds a step and creates trim waste
- Running two unrelated machines for two widths doubles the spares inventory
Who Buys It
- Converters serving customers who pack bulky goods
- Distributors who need both a narrow and a wide fanfold format
- Packaging producers standardising on one platform in two widths
Where The Output Is Used
- Wrapping large or irregular items where a 470 mm sheet is too narrow
- Producing wide fanfold stacks for furniture and appliance packing
- Supplying fulfilment operations that run mixed dispenser widths
- Converting wide parent reels without slitting them down first
How It Is Built
- Maximum material width 780 mm
- Paper thickness 40 gsm to 150 gsm
- Working speed 150 m per minute
- Perforation and folding length 8 to 15 inch, standard 11 inch
- Machine size 3500 x 1500 x 1600 mm, 5 kW, 2500 kg
- Automatic lifting unwinding to 1200 mm diameter, Weinview touch screen
Published Specification
Every figure below is the specification published for this machine. Where a value is not listed it is confirmed with the quotation rather than estimated.
| Machine model | SD-PF500B/PF800B |
|---|---|
| Max material width | 470mm/780mm |
| Paper thickness | 40-150gsm |
| Machine working speed | 200m/min(model 800 150m/min) |
| Perforation and Folding length | 8-15inch (Standard 11inch,need to change module) |
| Unwinding diameter | 0-1200mm |
| Stacking system | By conveyor |
| Unwinding type | Automatic lifting system |
| Unwinding shaft | 3" inflatable air shaft |
| Inverter and PLC | Local brand |
| Touch screen | Weinview brand |
| Motor | Local brand |
| Machine size | 3500*1200*1600mm(LxWxH)/3500*1500*1600mm |
| Machine power | 3.5kw/5 KW |
| Machine weight | 2000KG/2500KG |
| Power supply | 380V 3 Phase |
Materials
- Kraft paper 40 gsm to 150 gsm
- Recycled kraft grades
Customization Options
- Folding module supplied for the required perforation length
- Conveyor and stacking height matched to the customer's banding station
- Power supply built to the destination market's voltage and phase
The Process This Machine Runs
Automatic roll lifting
Stage 1 of the high speed fanfold kraft paper folding machine model 800 process.
Unwinding
Stage 2 of the high speed fanfold kraft paper folding machine model 800 process.
Perforating
Stage 3 of the high speed fanfold kraft paper folding machine model 800 process.
Fanfolding
Stage 4 of the high speed fanfold kraft paper folding machine model 800 process.
Conveyor stacking
Stage 5 of the high speed fanfold kraft paper folding machine model 800 process.
Quality Control
- Fold registration checked across the full 780 mm width
- Perforation tear checked on both edges of the wide web
- Stack height and squareness verified before banding
Use Guide
- Check web guiding across the full width before speeding up on a wide reel
- Confirm the folding module is the wide format version
- Keep the stack banded close to the conveyor so a tall wide pile does not lean
- Record the running speed that gives a clean tear on each paper grade
How It Compares With The Alternatives
Compared with SD-PF500B high speed folder
The 500 build is narrower at 470 mm but faster at 200 m per minute and lighter at 2000 kg. Pick by format width first and speed second.
Compared with Fanfold Kraft Paper Folding Machine with C-Fold Inline EM-PF800A
The C-fold machine also runs 800 mm but feeds two rolls and folds them into a two layer web for a stronger cushion. Model 800 produces a single layer fanfold.
High Speed Fanfold Kraft Paper Folding Machine Model 800 FAQ
How wide is the model 800?
Maximum material width is 780 mm, against 470 mm on the 500 model.
What is the running speed?
150 m per minute. The narrower 500 model runs at 200 m per minute.
What power and weight should we plan for?
5 kW installed power and 2500 kg machine weight, on a 3500 x 1500 x 1600 mm footprint.
Is the perforation length the same as the 500?
Yes, 8 to 15 inch with 11 inch standard, and the module is changed to move to another length.
What paper does it run?
Kraft paper from 40 gsm to 150 gsm.
Can both widths be ordered on one project?
Yes. The 500 and 800 are the same platform, so a plant can run both and share spares.
