Silicone Rubber Liquid
Silicone Rubber For Mold
This mold silica rubber belongs to the two-component room temperature sulfide silicone rubber, which is widely used in wedding candles, simulation food model, simulation of animal and plant sculpture, architectural decoration, resin…
- Product line
- Silicone Rubber Liquid
- Certification
- ISO 9001 quality system
- Origin
- Hangzhou, Zhejiang, China
Overview
What Silicone Rubber For Mold Is

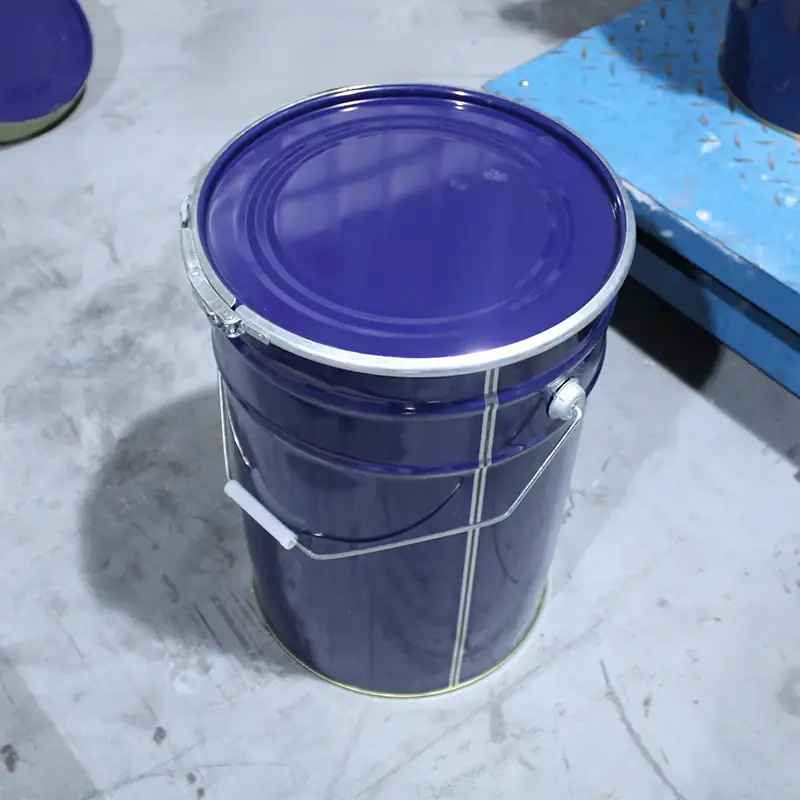

This product is packaged in iron barrels in two specifications: 5kg and 25kg.
Synonyms: Silicone Rubber For Mold
Key benefits
Why Formulators Choose It
- Description:
- Features:
- Good mobility, easy foaming and easy perfusion.
- High-temperature resistance, acid and alkali resistance, and low shrinkage rate.
- High tensile resistance, high tear resistance, and more mold turning times.
- Technical parameter:
- Parameters are for reference only, and the above product performance can be adjusted according to customer requirements.
- Use process:
- Before mixing, the curing agent (component B) is shaken before use.
- When mixing, according to the weight ratio of group A: group B = 100:2, and the weight shall be weighed by the electronic scale.
- When using, mix A and B and stir well for 3-4 minutes. The bottom of the container and the wall of the container must be stirred until now. Then vacuum exhaust bubble, debubble at-0.1 MPa for 2 minutes can be used.
- Attention:
- If it is a large product, choose silicone rubber with high hardness. If the product is a fine pattern, you need to use silicone rubber with low hardness.
- The mixing ratio of silicone rubber and curing agent is 100:2-4, for example, 100 g of silicone rubber, add 2-4 g of curing agent. Add 2% curing agent, 30 minutes operation time, 4-6 hours mold can completely cure. The curing time is affected by the amount of curing agent, the more the curing agent is added, the faster the silicone curing. If you need a very short or a very long operation time, please contact us.
- There is no need to add silicone oil to adjust the hardness or fluidity. For products with soft mold or very fine patterns, the amount of silicone oil is recommended to not exceed 10%.
- The container should not be too full during vacuum, otherwise the silicone is easy to overflow the container during vacuum treatment.
- In order to achieve the best effect, the silicone mold is best placed for 24 hours before use.
- The production of the outer mold is to prevent the deformation of the silicone mold and increase the service life of the silicone mold. The method that small product uses commonly is to surround around mold with rubber board or board, pour gypsum water to fill mold frame completely. Large products use the way of resin brushing, brushing a layer of resin to paste a layer of glass fiber cloth, and then coating brush and paste, repeated two or three layers can complete the mold mold.
- Packaging specifications:
- Storage and Transportation:
- The storage period of this product is 12 months, should be stored at room temperature, dry bath and sealed containers, do not contact with water to prevent deterioration.
- Such products are non-dangerous goods and can be transported as general chem
Technical index
Specifications for Silicone Rubber For Mold
These are the release values this grade is tested against under our ISO 9001 system. The batch result is issued as a certificate of analysis with the shipment. Any value not listed here is not published — ask and we will measure it rather than guess.
| Type | Colort / dynamic viscosity (mPa.s) / hardness (Shao's A) / tensile strength (Mpa) / tear strength (kN/m) / elongation (%) / mixing ratio A:B / operate time (h) / curing time (h) |
|---|---|
| 05# | Half through / white / 5000 / 5±2 / 2.0±2 / 10±2 / 350 / 100:2 / 0.5 / 4-6 |
| 10# | Half through / white / 7000 / 10±2 / 3.2±2 / 13±2 / 400 / 100:2 / 0.5 / 4-6 |
| 15# | Half through / white / 15000 / 15±2 / 4.0±2 / 18±2 / 380 / 100:2 / 0.5 / 4-6 |
| 20# | Half through / white / 17000 / 20±2 / 4.5±2 / 22±2 / 420 / 100:2 / 0.5 / 4-6 |
| 25# | Half through / white / 21000 / 25±2 / 5.3±2 / 26±2 / 460 / 100:2 / 0.5 / 4-6 |
| 30# | Half through / white / 22000 / 30±2 / 5.3±2 / 26±2 / 440 / 100:2 / 0.5 / 4-6 |
| 35# | Half through / white / 27000 / 35±2 / 6.2±2 / 26±2 / 380 / 100:2 / 0.5 / 4-6 |
| 40# | Half through / white / 17000 / 40±2 / 5.2±2 / 22±2 / 210 / 100:2 / 0.5 / 4-6 |
Application scenarios
Where Silicone Rubber For Mold Is Used
- This mold silica rubber belongs to the two-component room temperature sulfide silicone rubber, which is widely used in wedding candles, simulation food model, simulation of animal and plant…
Who it is for
Industries That Specify This Grade
Matched from this product's own published application text — not from a generic industry list.
Construction & Building Protection
This mold silica rubber belongs to the two-component room temperature sulfide silicone rubber, which is widely used in wedding candles, simulation food model, simulation of animal and plant sculpture, architectural…
Plastics, Rubber & Mould Release
This mold silica rubber belongs to the two-component room temperature sulfide silicone rubber, which is widely used in wedding candles, simulation food model, simulation of animal and plant sculpture, architectural…
Electronics & Thermal Management
Dielectric protection, potting and heat transfer
Industrial Processing & Defoaming
Foam control, lubrication and vacuum service in continuous plant
IndustryConstruction & Building ProtectionFacade, concrete and masonry water repellencySee the fit IndustryPlastics, Rubber & Mould ReleaseDie casting, injection and extrusion release without downstream contaminationSee the fit IndustryElectronics & Thermal ManagementDielectric protection, potting and heat transferSee the fit IndustryIndustrial Processing & DefoamingFoam control, lubrication and vacuum service in continuous plantSee the fit
Packing
How It Is Supplied
Packing is confirmed per order — pails, 200kg drums, 1000kg IBC totes or packing to your requirement.
Shipments leave from Hangzhou, Zhejiang, China with commercial invoice, packing list, certificate of origin, TDS and SDS prepared before booking.
Comparison
Against Neighbouring Grades
| Grade | Appearance | Headline value |
|---|---|---|
| Silicone Rubber For Mold | — | — |
| Heat Conduction Silicone Rubber | — | — |
| Silicone Foam | — | — |
| Silicone Pressure Sensitive Adhesive | — | — |
Related grades
Other Grades in Silicone Rubber Liquid
Silicone Foam
Silicone Foam
Silicone foam is a type of foaming material made from addition molded polysiloxane. It is made by using silicone raw materials and curing agents in…
View technical index
Silicone Pressure Sensitive Adhesive
Silicone Pressure Sensitive Adhesive
The organic silicon pressure-sensitive adhesive is mainly composed of a combination of organic silicon pressure-sensitive adhesive main agent,…
View technical index
Silicone Release Coating
Silicone Release Coating
Our company's release silicone oil is mainly composed of a combination of release silicone oil main agent, cross-linking agent, catalyst, and other…
View technical index
Related Reading
Answers
Silicone Rubber For Mold — Questions
What is Silicone Rubber For Mold?
This mold silica rubber belongs to the two-component room temperature sulfide silicone rubber, which is widely used in wedding candles, simulation food model, simulation of animal and plant sculpture, architectural decoration, resin crafts, gypsum crafts, Buddha carving ornaments, tires and other industries of product replication and mold production.
Can I get a sample of Silicone Rubber For Mold before ordering?
Yes. Samples of Silicone Rubber For Mold are available for evaluation. Message us on WhatsApp or email [email protected] with your application, target viscosity or solid content and the trial quantity you need, and we will confirm availability and lead time.
What is the minimum order quantity?
MOQ depends on the pack size you choose — drum, IBC or bulk packing. Tell us your annual volume and we will quote the most economical packing and shipping route from Hangzhou, China.
Quote Silicone Rubber For Mold
Send your application, the annual volume and the destination port. We return the technical data sheet, the safety data sheet, packing options and a price with lead time from Hangzhou.
