Heat Conduction Silicone Rubber
Heat Conduction Silicone Rubber
Thermal conductive gaskets are used to fill the air gap between heating devices and heat sinks or metal bases, and their flexible and elastic characteristics enable them to cover very uneven surfaces. Heat is transferred from the…
- Product line
- Heat Conduction Silicone Rubber
- Certification
- ISO 9001 quality system
- Origin
- Hangzhou, Zhejiang, China
Overview

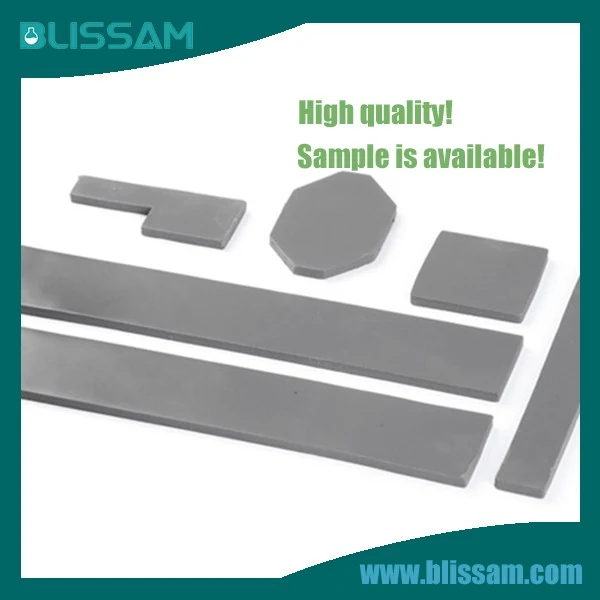

What Heat Conduction Silicone Rubber Is
Heat Conduction Silicone Rubber is produced by Blissam in Hangzhou. It is released against the technical index below under our ISO 9001 system, and every shipment carries the certificate of analysis for its batch.
Synonyms: Heat Conduction Silicone Rubber
Key benefits
Why Formulators Choose It
- With self-adhesive properties without the need for additional surface adhesive or adhesive backing, it has good elasticity and resilience, and can adapt to pressure changes and temperature fluctuations;
- It has good thermal conductivity, effectively protecting the lifespan and safety of the working body;
- Different thicknesses and sizes can be provided according to actual applications;
- Good processing performance, easy installation and compression, non adhesive sealing surface, and easy disassembly;
- Low hardness, good compliance, low stress, more effective protection of electrical components;
- Excellent high and low temperature resistance, chemical and mechanical stability, weather resistance, radiation resistance, and excellent dielectric properties;
- Suitable for all industries that require heat dissipation, such as electronics, healthcare, batteries, mobile phones, computers, etc., such as computer storage chips, display driver ICs, CD-ROM DVDs, LCD TV backlight units, communication devices between CPUs and heat sinks, etc.
- TECHNIACL DATA
Technical index
Specifications for Heat Conduction Silicone Rubber
These are the release values this grade is tested against under our ISO 9001 system. The batch result is issued as a certificate of analysis with the shipment. Any value not listed here is not published — ask and we will measure it rather than guess.
| Product Type | Thermal Conductivity, W/m*K / Hardness, Shore A / Thickness, mm / Density , g/cm 3 / Dielectric strength, KV/mm / Volume Resistivity / Fire Rating |
|---|---|
| BL-H711 | 1.50 ± 0.3 / 40-70 / 0.5-5.0 / 2.60 ± 0.05 / ≥ 12 / ≥ 10 13 / UL94-V0 |
| BL-H712 | 2.50 ± 0.5 / 40-70 / 0.5-5.0 / 2.83 ± 0.05 / ≥ 12 / ≥ 10 13 / UL94-V0 |
| BL-H713 | 3.50 ± 0.5 / 40-70 / 0.5-5.0 / 3.05 ± 0.05 / ≥ 12 / ≥ 10 13 / UL94-V0 |
| BL-H714 | 4.50 ± 0.5 / 40-70 / 0.5-5.0 / 3.23 ± 0.05 / ≥ 12 / ≥ 10 13 / UL94-V0 |
| BL-H715 | 5.50 ± 0.5 / 40-70 / 1.0-5.0 / 3.40 ± 0.05 / ≥ 12 / ≥ 10 13 / UL94-V0 |
| BL-H716 | 6.50 ± 0.5 / 40-70 / 1.0-5.0 / 3.50 ± 0.05 / ≥ 12 / ≥ 10 13 / UL94-V0 |
Application scenarios
Where Heat Conduction Silicone Rubber Is Used
- Thermal conductive gaskets are used to fill the air gap between heating devices and heat sinks or metal bases, and their flexible and elastic characteristics enable them to cover very uneven…
Who it is for
Industries That Specify This Grade
Matched from this product's own published application text — not from a generic industry list.
Plastics, Rubber & Mould Release
Die casting, injection and extrusion release without downstream contamination
Electronics & Thermal Management
Thermal conductive gaskets are used to fill the air gap between heating devices and heat sinks or metal bases, and their flexible and elastic characteristics enable them to cover very uneven surfaces. Heat is…
Packing
How It Is Supplied
50KG, 200KG or 1000KG Drum or other package according to customers’ requirement.
Shipments leave from Hangzhou, Zhejiang, China with commercial invoice, packing list, certificate of origin, TDS and SDS prepared before booking.
Comparison
Against Neighbouring Grades
| Grade | Appearance | Headline value |
|---|---|---|
| Heat Conduction Silicone Rubber | — | — |
| Silicone Foam | — | — |
| Silicone Pressure Sensitive Adhesive | — | — |
| Silicone Release Coating | — | — |
Related grades
Other Grades in Heat Conduction Silicone Rubber
Silicone Pressure Sensitive Adhesive
Silicone Pressure Sensitive Adhesive
The organic silicon pressure-sensitive adhesive is mainly composed of a combination of organic silicon pressure-sensitive adhesive main agent,…
View technical index
Silicone Release Coating
Silicone Release Coating
Our company's release silicone oil is mainly composed of a combination of release silicone oil main agent, cross-linking agent, catalyst, and other…
View technical index
Silicone Rubber Liquid
Silicone Rubber For Mold
This mold silica rubber belongs to the two-component room temperature sulfide silicone rubber, which is widely used in wedding candles, simulation…
View technical index
Related Reading
Answers
Heat Conduction Silicone Rubber — Questions
What is Heat Conduction Silicone Rubber?
Thermal conductive gaskets are used to fill the air gap between heating devices and heat sinks or metal bases, and their flexible and elastic characteristics enable them to cover very uneven surfaces. Heat is transferred from the separation device or the entire PCB to the metal casing or diffusion plate, which can improve the efficiency and service life of the heating electronic components from the surface.
How is Heat Conduction Silicone Rubber supplied?
50KG, 200KG or 1000KG Drum or other package according to customers’ requirement.
Can I get a sample of Heat Conduction Silicone Rubber before ordering?
Yes. Samples of Heat Conduction Silicone Rubber are available for evaluation. Message us on WhatsApp or email [email protected] with your application, target viscosity or solid content and the trial quantity you need, and we will confirm availability and lead time.
What is the minimum order quantity?
MOQ depends on the pack size you choose — 50KG, 200KG or 1000KG Drum or other package according to customers’ requirement.. Tell us your annual volume and we will quote the most economical packing and shipping route from Hangzhou, China.
Quote Heat Conduction Silicone Rubber
Send your application, the annual volume and the destination port. We return the technical data sheet, the safety data sheet, packing options and a price with lead time from Hangzhou.
