Q/L/U Type Airbag Filling Machine
Q/L/U type airbag filling machine AWPACK-008 inflates air column bags from continuous rolls on demand. The machine handles film widths from 200 mm to 1150 mm and produces U and L shaped air columns with uniform pressure. It runs at a maximum speed of 20 m/min and uses a plug-compatible power input for global use. The compact size and simple English interface allow fast setup and operation in tight packing areas.
- Inflates U and L type air column bags from rolls on demand, eliminating pre-formed stock
- Handles film widths from 200 mm to 1150 mm, covering small and large carton formats
- Uniform air pressure across each column ensures consistent protection during transit
- Compact size fits in small packing stations without requiring floor space
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Inflates U and L type air column bags from rolls on demand, eliminating pre-formed stock
- Handles film widths from 200 mm to 1150 mm, covering small and large carton formats
- Uniform air pressure across each column ensures consistent protection during transit
- Compact size fits in small packing stations without requiring floor space
- Adjustable speed allows matching the inflator to the packing line pace
- Plug-compatible power input (110-220VAC, 50/60Hz) supports use in multiple countries
Where It Is Used
- Inflating Q-shaped air column bags for wine bottles shipped in export cartons
- Creating L/U type air columns to block and brace fragile glass containers in e-commerce packs
- Protecting electronics and high-value components in FCL and LCL shipments
- Filling voids around irregularly shaped items in custom cartons during manual packing
- Supporting high-speed packing lines where pre-inflated bags would require storage
Who It Is For
- Exporters shipping wine, glassware, or fragile items in FCL and LCL containers
- E-commerce fulfilment centres packing irregular or high-value items
- Third-party logistics warehouses needing on-demand void fill without storage
- Contract packers replacing hand-inflated or pre-formed air bags
- Manufacturers of ceramics, pharmaceuticals, and electronics requiring consistent cushioning
Problems It Solves
- Pre-formed air column bags take up floor space that could hold saleable inventory
- Manual inflation of air bags slows packing lines and varies in consistency
- Inconsistent air pressure in columns leads to uneven protection during transit
- Lack of a universal machine that handles multiple bag shapes and widths
- Packers needing to switch between different machines for U, L, and Q type bags
Technical Features
- Maximum speed of 20 m/min with adjustable speed control for line matching
- Inlet air pressure range of 0.6 to 0.8 MPa for stable inflation across all columns
- Handles film widths from 200 mm to 1150 mm, covering standard and wide carton needs
- Uniform air pressure across each column ensures consistent cushion performance
- All English operation interface with plug compatibility for global power outlets
- Compact machine size of 800*800*400 mm, fits in tight packing areas
Published Data for Q/L/U Type Airbag Filling Machine
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Model | AWPACK-008 |
|---|---|
| Voltage | 110-220VAC, 50/60Hz |
| Power | 300W |
| Max Speed | 20 m/min |
| Inlet Air Pressure | 0.6~0.8 MPa |
| Net Weight | 52 kg |
| Gross Weight | 60 kg |
| Machine Size | 800*800*400 mm |
| Packaging Size | 915*768*650 mm |
| Film Width Range | 200 mm to 1150 mm |
| Bag Types | U type, L type, Q type air column bags |
| Operation Interface | All English |
Materials
- Steel frame and housing for durable operation in industrial environments
- Internal air channels and seals made for consistent pressure distribution
- Plugs and connectors rated for international voltage and plug types
How It Is Made
Incoming film roll loaded into the machine with alignment guides
Film threaded through the inflation chamber and guide rollers
Air pressure regulated to 0.6–0.8 MPa for consistent column inflation
Machine speed adjusted to match the packing line rate
Inflated air columns formed and cut at the perforation line for easy separation
How It Is Checked
Incoming power supply tested for voltage and frequency compatibility
Air pressure regulator checked for consistent output across the operating range
Seal and inflation test run on a sample roll to verify uniform column pressure
Speed control verified at multiple settings to ensure adjustability
Final machine inspection before packaging against the packing list
Customisation Options
- Adjustable speed control to match different packing line speeds
- Perforation pattern selected for easy tear and clean separation
- Film width set to match the roll being used, from 200 mm to 1150 mm
- Optional custom interface language on request (English is standard)
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Manual inflation with hand pumps | Machine inflates columns at 20 m/min, reducing labour and inconsistency |
|---|---|
| Pre-inflated air column bags | Rolls take less space and are inflated on demand, avoiding storage needs |
| Fixed-width inflators | Handles film from 200 mm to 1150 mm, reducing need for multiple machines |
| Non-uniform pressure inflators | Each column receives uniform air pressure, improving protection consistency |
How to Use It
Place the machine on a stable, level surface with access to power and air supply
Load the air column roll into the machine and thread the film through the guides
Set the machine speed to match your packing line pace using the adjustable control
Test a short length to confirm uniform inflation and correct perforation tear
Cut the inflated column at the perforation line and place it in the carton
Store unused rolls flat and away from heat and sharp objects
Q/L/U Type Airbag Filling Machine in Detail

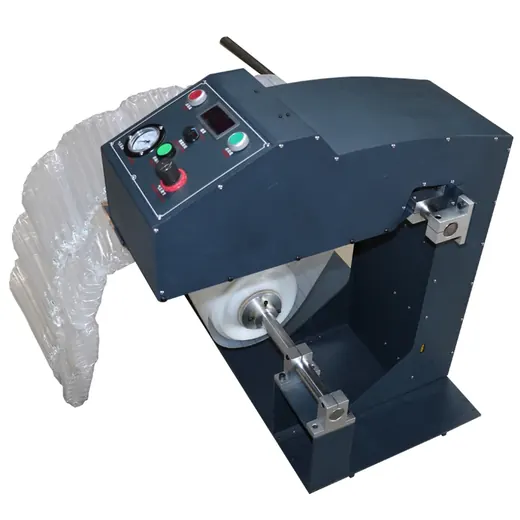

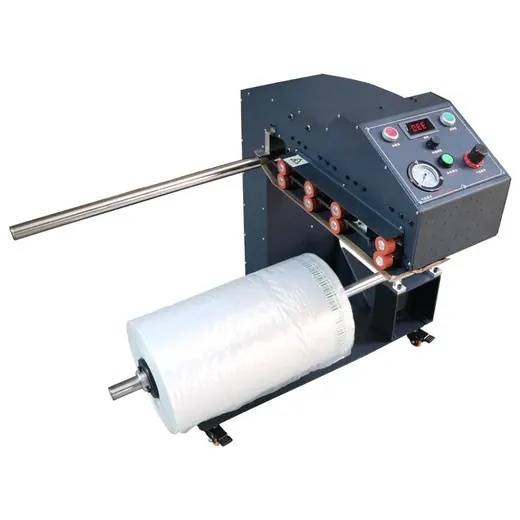

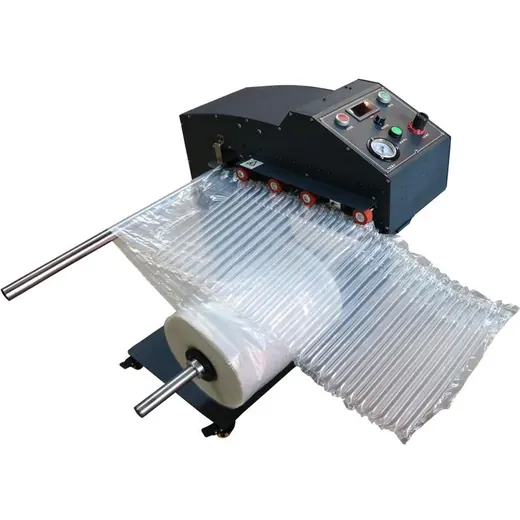

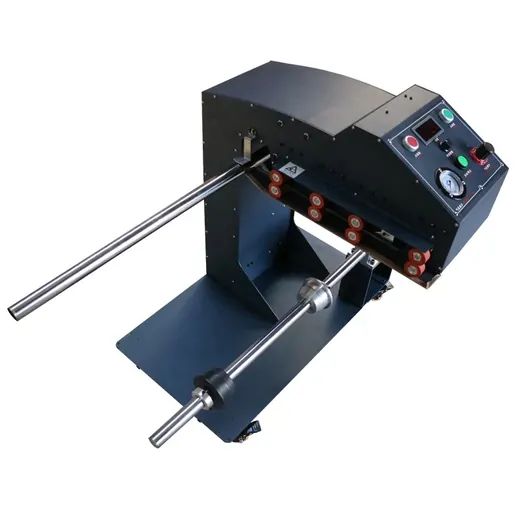

Photographs of the actual product as supplied, not renders.
Q/L/U Type Airbag Filling Machine Questions
What is the maximum film width this machine can handle
The machine handles film widths from 200 mm to 1150 mm. Confirm the exact width with us before ordering.
Can this machine inflate both U and L type air column bags
Yes, the AWPACK-008 inflates U and L type air column bags from continuous rolls.
What power supply does the machine require
The machine uses 110-220VAC, 50/60Hz. It supports plugs from all countries.
How fast does the machine run
The maximum speed is 20 m/min, with adjustable speed control for line matching.
Is the operation interface in English
Yes, the machine has a full English interface for easy setup and operation.
How is the machine packed for export
The machine ships in a packaging size of 915*768*650 mm, with a gross weight of 60 kg.
