High Speed Industrial Air Column Bag Making Machine
High speed industrial air column bag making machine AWPACK-007 automatically inflates air column rolls into U, L, or straight column bags. It runs at up to 20 m/min with adjustable speed, fits in small spaces, and uses a uniform air pressure system to seal each column independently. The machine operates on 110-220VAC, 50/60Hz, with a plug compatible with global outlets and an all-English interface for simple setup and operation.
- Inflates U, L, and straight air column bags from a single roll without manual intervention
- Adjustable speed up to 20 m/min allows matching production to packing line pace
- Compact size 600*330*330 mm saves floor space in tight packing areas
- Uniform air pressure per column ensures consistent inflation and load-bearing performance
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Inflates U, L, and straight air column bags from a single roll without manual intervention
- Adjustable speed up to 20 m/min allows matching production to packing line pace
- Compact size 600*330*330 mm saves floor space in tight packing areas
- Uniform air pressure per column ensures consistent inflation and load-bearing performance
- All-English interface and universal plug compatibility reduce training time and setup delays
- Inflates both roll-fed and pre-cut air column formats for flexible use across carton sizes
Where It Is Used
- Automating air column bag production in a high-volume e-commerce fulfilment centre
- Inflating U and L-shaped air columns to brace heavy electronics in export cartons
- Creating custom air column bags for irregularly shaped items in a contract packaging line
- Securing stacked ceramic tiles or glass panels during container shipment
- Producing air column bags on demand to avoid storing pre-made bags in warehouse
Who It Is For
- E-commerce fulfilment centres needing fast, consistent air column bag production
- Third-party logistics warehouses with limited space for bulk void fill storage
- Exporters shipping fragile goods in FCL and LCL containers who need reliable on-site inflation
- Contract packers replacing hand-inflated or pre-made air column bags with automated output
- Manufacturers of ceramics, electronics, and pharmaceuticals requiring precise, repeatable cushioning
Problems It Solves
- Manual inflation of air columns slows packing lines and causes inconsistent seal quality
- Pre-made air column bags take up warehouse space and require inventory management
- Inconsistent air pressure across columns leads to uneven load distribution and product damage
- Lack of adjustable speed forces packers to run machines too fast or too slow for the task
- Non-universal power plugs and unclear interfaces delay machine setup in international facilities
Technical Features
- Automatic inflating system for U, L, and straight air column bags from roll-fed film
- Adjustable speed up to 20 m/min to match packing line throughput
- Inlet air pressure range 0.6 to 0.8 MPa for stable, uniform column inflation
- All-English operation interface with plug compatibility for 110-220VAC, 50/60Hz outlets worldwide
- Compact machine size 600*330*330 mm with gross weight 47 kg for easy placement in tight areas
- Supports film widths from 20 cm to 110 cm, covering standard carton and export bag formats
Published Data for High Speed Industrial Air Column Bag Making Machine
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Model | AWPACK-007 |
|---|---|
| Voltage | 110-220VAC, 50/60Hz |
| Power | 320W |
| Max Speed | 20 m/min |
| Inlet Air Pressure | 0.6~0.8 MPa |
| Net Weight | 43 kg |
| Gross Weight | 47 kg |
| Machine Size | 600*330*330 mm |
| Packaging Size | 650*400*430 mm |
| Film Width Range | 20 cm to 110 cm |
| Operation Interface | All English |
| Plug Compatibility | Global outlets supported |
Materials
- Steel frame and durable plastic housing for stable operation under continuous use
- Internal air channels and sealing components designed for consistent pressure distribution
- Electrical components rated for 110-220VAC, 50/60Hz environments
How It Is Made
Film fed from roll into the machine inlet at the selected width
Air pressure applied through the inlet to inflate each column in sequence
Sealing bars heat seal each column independently to prevent air loss
Machine adjusts speed to match film feed rate and maintain consistent inflation
Finished air column bags exit the machine ready for placement in cartons
How It Is Checked
Incoming power supply tested for correct voltage and frequency before machine operation
Seal strength verified during test runs to ensure no air leakage in individual columns
Air pressure uniformity checked across multiple inflation cycles
Speed and feed alignment tested to prevent film misalignment or jamming
Final machine inspection before packaging, including plug and interface verification
Customisation Options
- Film width and inflation pattern (U, L, straight) set via machine interface
- Speed adjustment to match specific packing line throughput
- Custom packaging size or mounting brackets available on request
- Optional language interface or label on machine panel upon request
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Manual air column inflation | Eliminates human error in sealing and pressure control, reduces operator fatigue on long shifts |
|---|---|
| Pre-made air column bags | No need to store finished bags; inflation happens on demand, reducing warehouse space use |
| Low-speed automatic machines | 20 m/min max speed allows higher output than slower models, better for high-volume lines |
| Non-universal plug machines | Global plug compatibility avoids delays in setup when shipping to different countries |
How to Use It
Place the air column roll onto the machine’s feed roller and thread the film through the inlet
Set the desired speed using the adjustable control panel, up to 20 m/min
Adjust the film width to match the roll using the width guide and clamps
Power on and run a test length to confirm even inflation and clean seals
Place finished air column bags into cartons as needed, ensuring columns are aligned for load support
Store unused rolls flat and away from heat sources to prevent film deformation

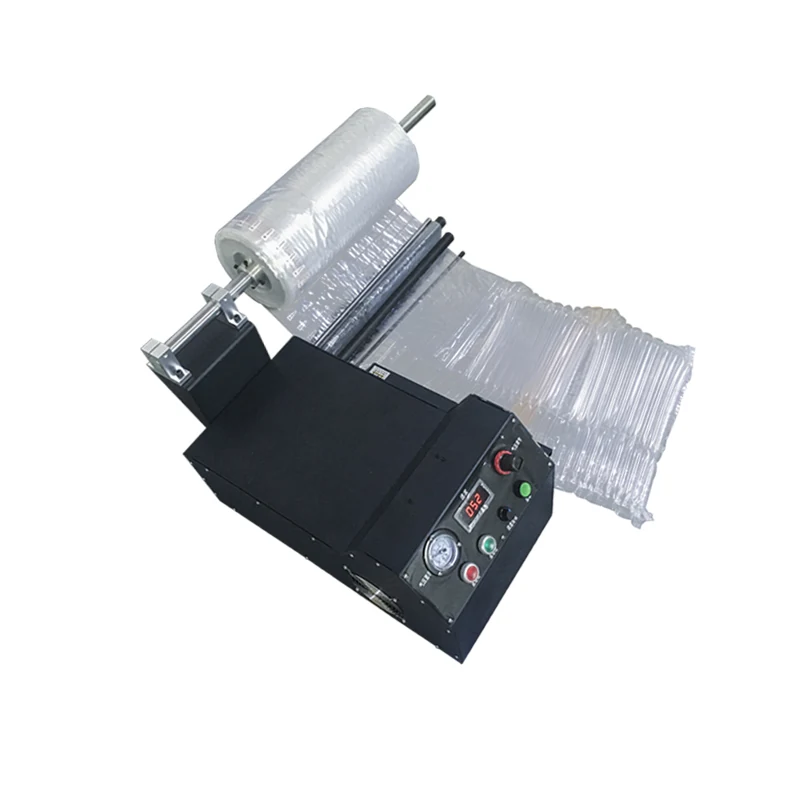

High Speed Industrial Air Column Bag Making Machine in Detail
Photographs of the actual product as supplied, not renders.
High Speed Industrial Air Column Bag Making Machine Questions
What is the maximum speed of the AWPACK-007 air column bag making machine
The machine runs at a maximum speed of 20 m/min, with adjustable speed to match your packing line.
Can the machine handle different film widths
Yes, the machine supports film widths from 20 cm to 110 cm, covering standard roll formats.
What voltage does the machine require
The machine operates on 110-220VAC, 50/60Hz, with plug compatibility for global outlets.
Is the interface available in English
Yes, the machine has an all-English operation interface for easy setup and use.
How much does the machine weigh
The net weight is 43 kg, and the gross weight including packaging is 47 kg.
What types of air column bags can it produce
The machine can produce U-type, L-type, and straight air column bags from a single roll.
