Air Column Machine Airbag Inflating Machine
Air column machine is an automatic inflating system that converts flat air column film into sealed, pressurised bags in U, L, or straight tube formats. The machine operates at adjustable speeds up to 15 m/min and inflates film widths from 20 cm to 110 cm. It delivers consistent air pressure across each column, ensuring uniform protection for fragile or high-value goods during long-distance shipping.
- Adjustable speed from 0 to 15 m/min allows matching the machine to packing line throughput
- Compact size (730*300*290 mm) fits in tight spaces without requiring dedicated floor area
- Uniform air pressure in each column prevents weak spots and ensures consistent cushioning
- Simple English interface and universal plug compatibility support use in multiple countries
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Adjustable speed from 0 to 15 m/min allows matching the machine to packing line throughput
- Compact size (730*300*290 mm) fits in tight spaces without requiring dedicated floor area
- Uniform air pressure in each column prevents weak spots and ensures consistent cushioning
- Simple English interface and universal plug compatibility support use in multiple countries
- Inflates U, L, and straight tube air column bags from a single roll, reducing changeover time
- Low power consumption (320W) and lightweight design (22 kg net) reduce energy and handling costs
Where It Is Used
- Inflating U-shaped air columns to block and brace bottles or jars in export cartons
- Creating L-shaped air columns to protect corners of large electronics or industrial components
- Producing straight tube air columns for cushioning long or irregularly shaped items
- Filling voids in FCL and LCL containers with custom-length air columns on demand
- Supporting e-commerce fulfilment lines that need fast, consistent packaging without pre-formed inserts
Who It Is For
- Exporters loading fragile goods into FCL and LCL containers who need on-site inflation
- Third-party logistics warehouses that require consistent void fill without pre-formed stock
- E-commerce fulfilment centres packing mixed SKUs with variable void sizes
- Contract packers replacing hand-inflated or pre-made air bags with automated inflation
- Manufacturers of ceramics, electronics, and pharmaceuticals shipping high-value items
Problems It Solves
- Manual inflation of air columns leads to inconsistent pressure and weak seals
- Pre-formed air column bags take up warehouse space and require inventory management
- Inconsistent air pressure across columns causes uneven protection during transit
- Lack of machine compatibility across regions slows down international operations
- Packing lines slow down when operators must cut, fold, and seal air columns by hand
Technical Features
- Automatic inflating system for U, L, and straight tube air column bags
- Adjustable speed range from 0 to 15 m/min to match production pace
- Inlet air pressure requirement of 0.6 to 0.8 MPa for stable inflation
- Film width capacity from 20 cm to 110 cm to support various bag formats
- Voltage input of 110–220VAC, 50/60 Hz for global plug compatibility
- English-language operation interface for easy training and use across regions
Published Data for Air Column Machine Airbag Inflating Machine
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Model | AWPACK-006 |
|---|---|
| Voltage | 110–220VAC, 50/60 Hz |
| Power | 320W |
| Speed | 0–15 m/min |
| Inlet Air Pressure | 0.6–0.8 MPa |
| Net Weight | 22 kg |
| Gross Weight | 25 kg |
| Machine Size | 730*300*290 mm |
| Packaging Size | 780*370*390 mm |
| Film Width Capacity | 20 cm to 110 cm |
| Bag Types | U-type, L-type, straight tube |
Materials
- Machine built with durable metal housing and sealed electrical components
- Air inlet and pressure regulator system designed for consistent flow across all columns
How It Is Made
Film fed from a roll into the machine and guided through the sealing and inflation zone
Air pressure regulated to maintain uniform inflation across all columns
Sealing bars heat-seal the film at set intervals to form individual columns
Machine adjusts speed and pressure based on film width and bag type selected
Final air column bags exit the machine ready for placement in cartons
How It Is Checked
Incoming electrical components tested for voltage and frequency compatibility
Seal strength verified during test runs to ensure no air leakage at joints
Air pressure uniformity checked across multiple columns during operation
Final machine tested under load before packaging and shipment
Cartons inspected at container loading against the packing list
Customisation Options
- Adjustable speed settings to match different production line speeds
- Film width and bag type (U, L, straight) selected via machine interface
- Optional custom colour or branding on machine housing on request
- Support for different film gauges within the 20 cm to 110 cm width range
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Manual inflation with hand pumps | Machine ensures consistent pressure and faster output, reducing operator fatigue and variation |
|---|---|
| Pre-formed air column bags | No inventory of finished bags needed; machine produces on demand, saving warehouse space |
| Fixed-speed inflation machines | Adjustable speed allows better integration with variable packing line throughput |
| Non-uniform air pressure systems | This machine maintains even pressure across all columns, improving protection consistency |
How to Use It
Place the air column film roll onto the machine’s feed roller and thread the film through the guide
Set the desired speed using the control panel to match your packing line pace
Select the bag type (U, L, or straight) via the English interface
Run a test length to confirm seal integrity and air pressure uniformity
Place the inflated air columns into cartons around the product, then close the box

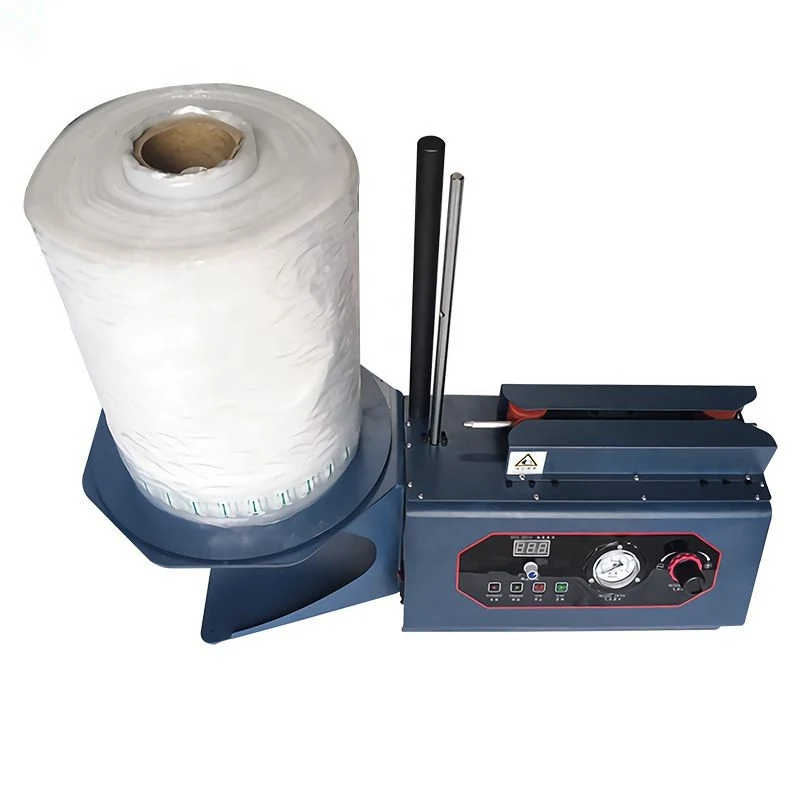

Air Column Machine Airbag Inflating Machine in Detail
Photographs of the actual product as supplied, not renders.
Air Column Machine Airbag Inflating Machine Questions
What is the maximum film width this machine can handle
The AWPACK-006 handles film widths from 20 cm to 110 cm.
Can the machine run at different speeds
Yes, the machine speed is adjustable from 0 to 15 m/min.
What voltage does the machine use
The machine operates on 110–220VAC, 50/60 Hz, compatible with plugs from most countries.
How is the air pressure regulated
The machine uses a built-in pressure regulator to maintain 0.6–0.8 MPa inlet air pressure.
Is the interface in English
Yes, the machine has a fully English operation interface.
How much does the machine weigh
The net weight is 22 kg, and the gross weight including packaging is 25 kg.
