Factory Price Air Cushion Quilt Film 4 Row Bag Rolls
Air cushion quilt film is a continuous roll of small bubble or small tube chambers sealed in a flat film. It is inflated on demand at the packing bench using an air cushion machine, forming a flexible, lightweight cushion that conforms to the shape of the product. The film is made from 100% new raw material, so the seals hold pressure during long transit without going soft. One 300 m roll replaces multiple pallets of pre-formed void fill, reducing warehouse space use and packing line delays.
- One 300 m roll inflates on demand, so void fill does not occupy warehouse space
- Small chambers can be torn by hand to match the exact void size, reducing over-packaging
- Film made from 100% new raw material ensures strong seals that hold pressure through long transit
- Inflated cushions absorb shock and protect against impact damage during transport
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- One 300 m roll inflates on demand, so void fill does not occupy warehouse space
- Small chambers can be torn by hand to match the exact void size, reducing over-packaging
- Film made from 100% new raw material ensures strong seals that hold pressure through long transit
- Inflated cushions absorb shock and protect against impact damage during transport
- Lighter weight per carton than paper or foam void fill, reducing dimensional freight charges
- Available in multiple small sizes to fit a wide range of product shapes and package voids
Where It Is Used
- Filling small voids around electronics and circuit boards in export cartons
- Protecting glass containers and fragile art ware during long-distance shipping
- Cushioning cosmetics and small bottles in e-commerce fulfilment centres
- Securing handbags and luggage in transit without over-filling the carton
- Padding precise instruments and household electrical appliances during warehouse storage and transport
- Supporting hardware products and furniture components in mixed shipments
Who It Is For
- E-commerce fulfilment centres packing small to medium SKUs with irregular voids
- Third-party logistics warehouses needing void fill without dedicated storage for pre-formed materials
- Exporters shipping fragile goods in FCL and LCL containers with variable carton sizes
- Contract packers replacing loose fill and hand-cut foam on manual packing lines
Problems It Solves
- Pre-formed void fill takes up warehouse space that could hold saleable stock
- Loose fill migrates in transit and leaves products unprotected at the top of the carton
- Hand-cut foam and crumpled paper slow the packing bench and vary in quality between packers
- Over-filled cartons attract dimensional weight charges on courier and air freight
- Inconsistent cushion size leads to under-protection or over-packaging of fragile items
Technical Features
- Continuous roll of small bubble or small tube chambers sealed in flat film
- Inflated on site using an air cushion machine to form a custom fit cushion
- 20 um film gauge balances puncture resistance against material cost per cushion
- 300 m roll length covers a full packing shift without frequent roll changes
- Chambers are sealed separately so a puncture only affects one cushion
- Available in multiple small sizes to match different package voids
Published Data for Factory Price Air Cushion Quilt Film 4 Row Bag Rolls
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | Air cushion quilt film roll |
|---|---|
| Material | 100% new raw material PE film |
| Film Thickness | 20 um |
| Roll Length | 300 m per roll |
| Sizes | 400*320 mm, 400*250 mm, 400*140 mm |
| Roll Weight | 4.9 kg per roll |
| Packing | 2 rolls per carton |
Materials
- PE film extruded from 100% new raw material with no recycled regrind in the seal layer
- Biodegradable film available on request for buyers with packaging waste targets
How It Is Made
Film blowing from virgin PE resin
Chamber and channel sealing to form the small bubble or small tube pattern
Slitting to the ordered web width
Roll winding to 300 m and length verification
Seal and inflation test before carton packing
How It Is Checked
Incoming resin checked as 100% pure virgin material before extrusion
Seal strength sampled during the sealing run so weak chambers are caught on the line
Sample rolls inflated and held to confirm the cushions do not go soft
Roll length and web width verified at winding
Cartons checked at container loading against the packing list
Customisation Options
- Web width and roll length to your carton programme
- Chamber format selected as air pillow, bubble, quilt or small tube
- Printed film with your logo on the roll
- Biodegradable film grade on request
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Loose fill chips | Cushions stay where the packer places them and do not migrate to the top of the carton in transit |
|---|---|
| Traditional bubble wrap on the roll | Ships flat and is inflated on site so it needs a fraction of the storage space for the same protected volume |
| Paper void fill | Lighter per carton, though paper is the better answer where the buyer needs a plastic-free pack |
| Cut foam inserts | No tooling and no SKU-specific inserts, at the cost of a less precise fit for very heavy items |
How to Use It
Load the roll onto the air cushion machine and thread the film past the sealing bar
Set the machine width to match the film so the chambers inflate evenly
Run a short length first and check the seals hold before packing production
Tear the cushion by hand to the required length and place it around the product
Store unused rolls flat and away from direct heat
Factory Price Air Cushion Quilt Film 4 Row Bag Rolls in Detail

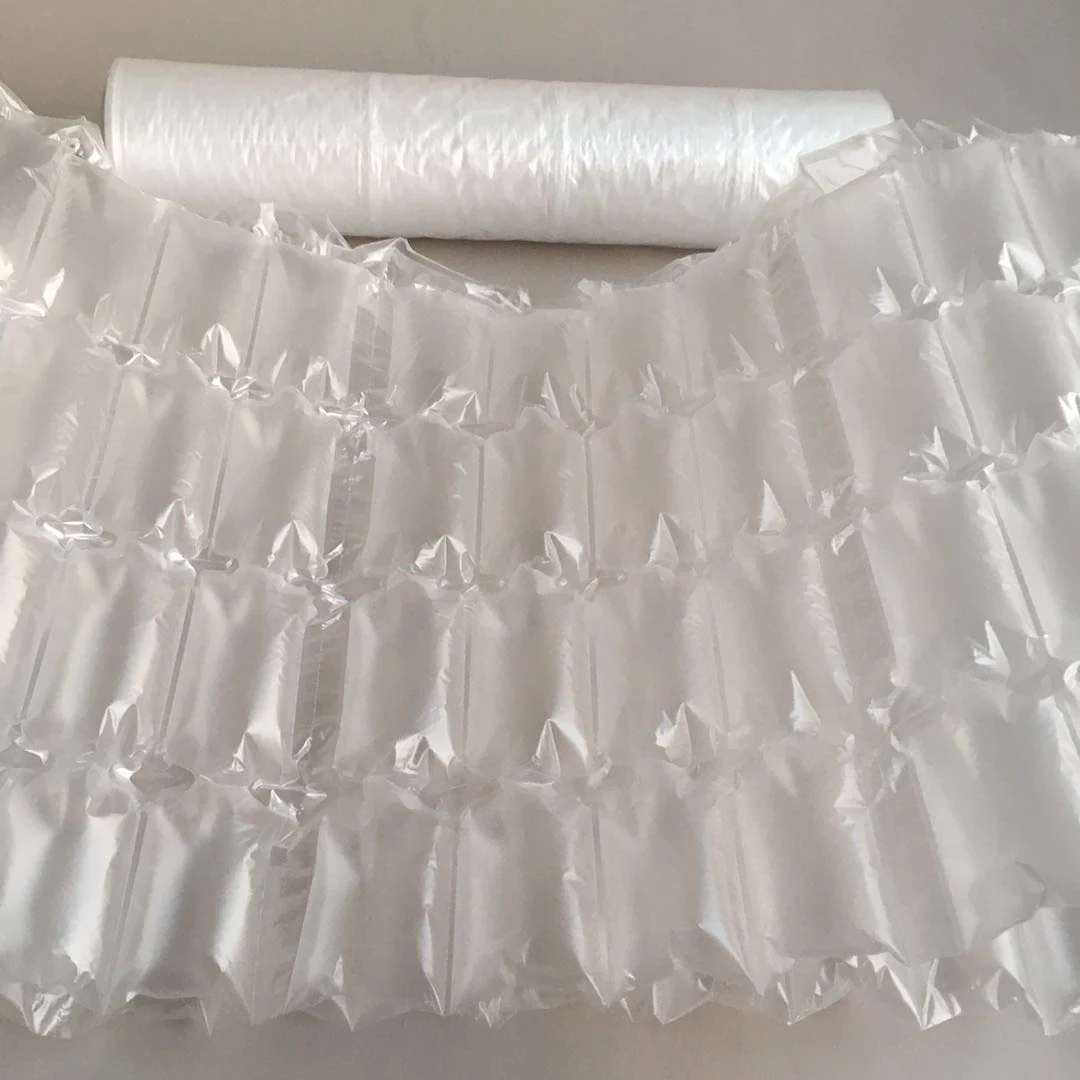

Photographs of the actual product as supplied, not renders.
Factory Price Air Cushion Quilt Film 4 Row Bag Rolls Questions
What is the minimum order quantity for air cushion quilt film
Order quantity depends on width and film grade. Send us the widths and monthly volume you need on WhatsApp and we will confirm the minimum for that specification.
Which machine do I need to inflate this film
Any air cushion machine matched to the film width. AWPACK-004 handles film up to 600 mm at 10 m per minute, and AWPACK-005 handles film up to 800 mm at 28 m per minute.
How long do the inflated cushions hold their air
Cushions made from this film hold pressure for three to six months, which covers ocean transit and warehouse dwell before final delivery.
Can you print our logo on the film
Yes. We print on our own film printing line, so logo film can run in the same order as plain film. Send artwork and the width you need.
Is a biodegradable version available
Yes, we supply a biodegradable air cushion film in the same roll formats for buyers with packaging waste targets.
