AWPACK-004 Mini Type Air Cushion Machine
AWPACK-004 Mini Type Air Cushion Machine is a compact, lightweight machine designed for small-scale packaging operations. It runs at 10 m/min and produces both air pillow bags and bubble bags from continuous film rolls. Its vertical structure and low, consistent speed make it suitable for retailers, vendors, and micro businesses that need on-demand cushioning without floor space or high setup costs.
- Compact design fits in small workspaces like retail backrooms or micro warehouse corners
- Produces both air pillow and bubble bags from the same machine for flexible void fill options
- Runs at a steady 10 m/min speed, reducing operator fatigue during long shifts
- Lightweight at 5.5 kg, easy to move and reposition on the packing bench
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Compact design fits in small workspaces like retail backrooms or micro warehouse corners
- Produces both air pillow and bubble bags from the same machine for flexible void fill options
- Runs at a steady 10 m/min speed, reducing operator fatigue during long shifts
- Lightweight at 5.5 kg, easy to move and reposition on the packing bench
- Uses standard 50.8 mm air inflator tubes, compatible with common air sources
- Affordable entry point for businesses that need protective packaging but not full production lines
Where It Is Used
- Creating air cushion bags for small e-commerce orders in a retail store backroom
- Producing bubble bags for fragile cosmetics or glassware in a micro business packing station
- Filling voids in export cartons for small-batch shipments from a local warehouse
- Generating protective packaging on demand during seasonal peak periods without investing in large machinery
- Supporting a vendor’s packing line that handles mixed SKUs with varying void sizes
Who It Is For
- Retailers packing online orders from a small backroom or kiosk
- Vendors and micro businesses shipping high-value or fragile items from home or small office
- Small e-commerce fulfilment centres with limited floor space
- Contract packers handling low to medium volume orders with variable carton sizes
- Exporters shipping small batches of fragile goods in LCL containers
Problems It Solves
- High-cost or bulky air cushion machines are not feasible for small operations
- Manual packing with cut foam or loose fill leads to inconsistent protection and wasted time
- Lack of on-site cushioning capability forces reliance on pre-formed void fill that takes up storage space
- Inconsistent cushion size from hand-cut methods increases product damage risk
- No affordable machine option for businesses that need air cushion protection but not industrial-scale output
Technical Features
- Mini type air cushion machine with vertical structure and compact footprint
- Runs at a consistent 10 m/min maximum speed for reliable output
- Uses 50.8 mm air inflator tubes for standard air supply compatibility
- Controlled by PLC system for stable operation and repeatable results
- Supports both air pillow and bubble bag formats on the same machine
- Power supply AC 220V 50Hz, standard for most small industrial and commercial sites
Published Data for AWPACK-004 Mini Type Air Cushion Machine
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Model | AWPACK-004 Mini Type Air Cushion Machine |
|---|---|
| Max Speed | 10 m/min |
| Power Supply | AC 220V 50Hz |
| Inflator Caliber | 50.8 mm |
| Control System | PLC |
| Dimensions | L48 cm × W29 cm × H36 cm |
| Weight | 5.5 kg |
| Output Types | Air pillow bag, bubble bag |
| Machine Type | Mini type, vertical structure |
Materials
- Steel frame and housing for durable, stable operation
- Plastic and metal components designed for low-maintenance use
- Standard 50.8 mm air inflator tubes compatible with common air compressors
How It Is Made
Film fed from roll into the machine’s sealing and inflation zone
PLC-controlled sealing bar forms chambers and seals the film
Inflator tube inserts air into each chamber at 50.8 mm diameter
Machine cuts the finished bag at the end of each cycle
Finished bags are discharged for immediate use in packing
How It Is Checked
Incoming air inflator tubes checked for correct diameter and fit
Seal strength tested during initial run to confirm chamber integrity
PLC system monitored for consistent speed and timing across production
Final output inspected for uniform inflation and clean cuts
Machine tested for stable operation before packaging and shipment
Customisation Options
- Available with different chamber patterns for pillow or bubble formats
- Optional blade sets for custom bag length or shape
- Power cord length can be adjusted to suit local electrical standards
- Machine can be supplied with or without a pre-mounted air inflator
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Full-size air cushion machines | AWPACK-004 is lighter, smaller, and cheaper, but limited to 10 m/min and smaller bag sizes |
|---|---|
| Manual inflation with hand pumps | Machine produces consistent, sealed bags faster and with less effort than hand inflation |
| Pre-formed air pillows | Machine inflates on demand so no inventory is needed, but requires a film roll and air supply |
| Bubble wrap on a roll | Produces sealed, inflated cushions that don’t collapse or shift in transit, unlike loose bubble wrap |
How to Use It
Place the film roll onto the machine and thread the film through the guide rollers
Attach the 50.8 mm air inflator tube to the machine’s inlet and connect to an air source
Set the PLC control to the desired bag length and seal pattern (pillow or bubble)
Run a test length to confirm seal strength and inflation consistency
Begin production and collect finished bags for packing, storing unused rolls flat
AWPACK-004 Mini Type Air Cushion Machine in Detail

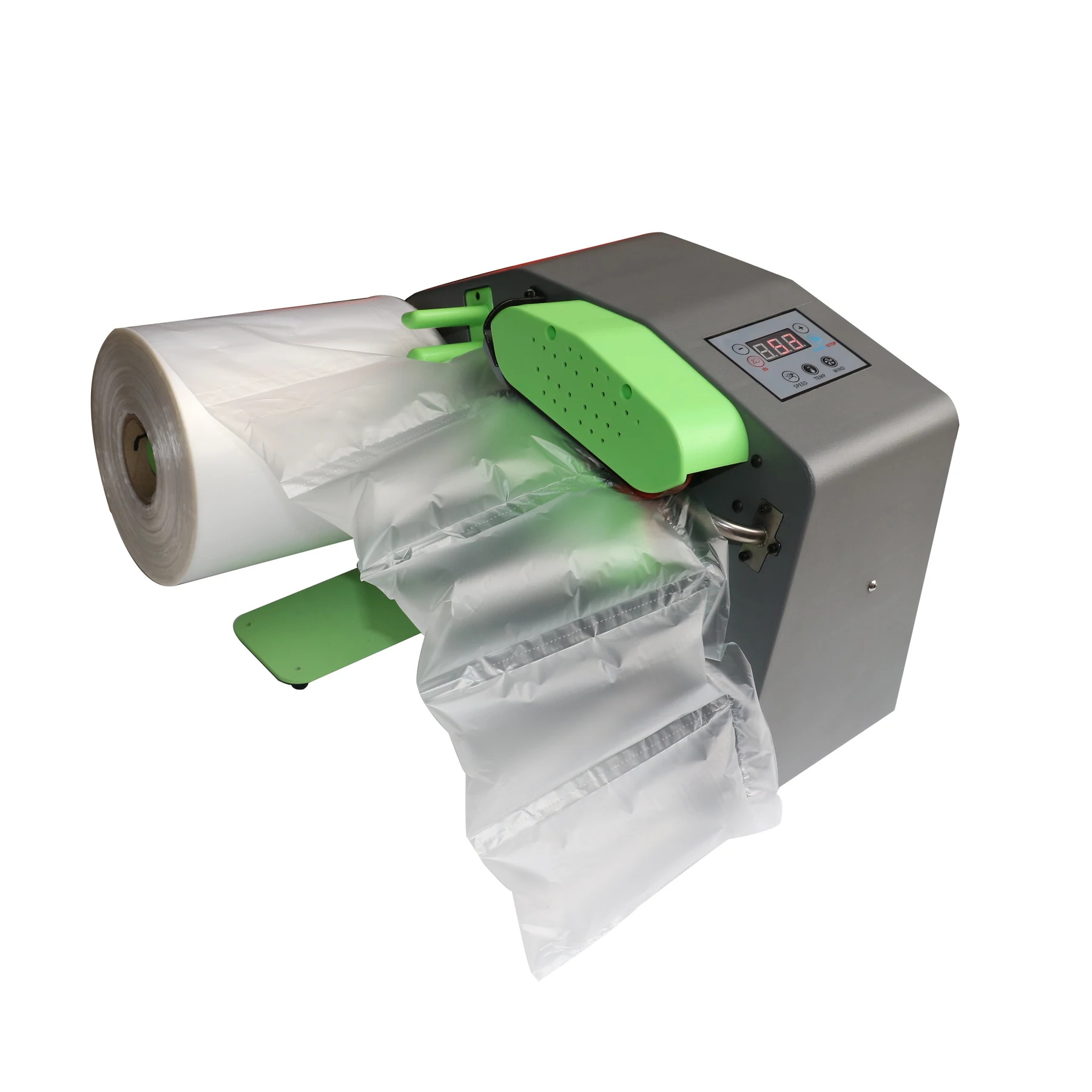

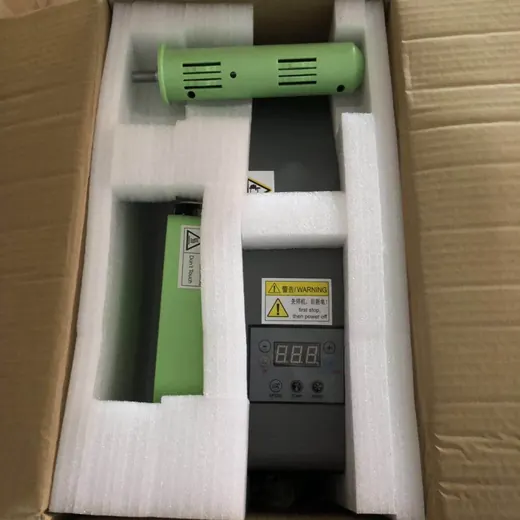

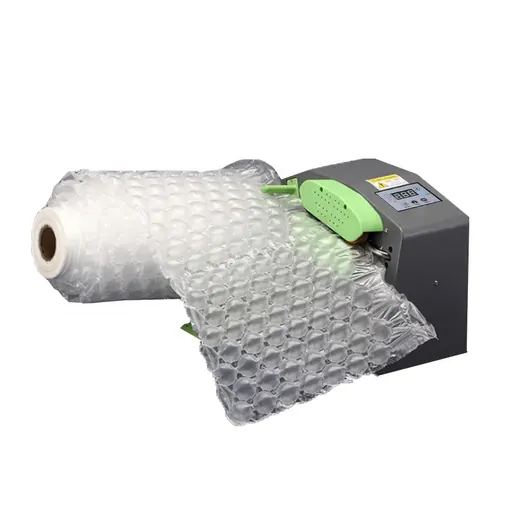

Photographs of the actual product as supplied, not renders.
AWPACK-004 Mini Type Air Cushion Machine Questions
What is the minimum order quantity for the AWPACK-004 machine
Order quantity is confirmed on request. Send your required quantity and delivery location via WhatsApp or email.
Can the AWPACK-004 produce both pillow and bubble bags
Yes, the machine can produce both air pillow bags and bubble bags using the same film roll.
What air supply is needed to run the machine
The machine uses a 50.8 mm air inflator tube, compatible with standard air compressors or shop air systems.
Is the machine easy to move and set up
Yes, at 5.5 kg and with a compact footprint, it can be moved and set up in small workspaces.
What spare parts are available
Spare parts include blades and power cords. Contact us via WhatsApp or email to order replacements.
Does the machine require special electrical supply
It runs on standard AC 220V 50Hz, common in most small industrial and commercial sites.
