Kraft Paper Air Dunnage Bag
Kraft paper air dunnage bag is a multi-layered, reusable bag made from kraft paper and PE film with an inner PA film layer, designed to secure cargo in containers and on trucks by preventing impact damage and load collapse. It inflates on site using a standard air inflator, holds pressure up to 0.2 bar, and can be reused multiple times. The bag is heat sealed at the edges and features a multi-use valve for easy inflation and deflation.
- Reusable and recyclable design reduces packaging waste per shipment
- Multi-layer construction with PA film inner layer prevents air loss and maintains pressure
- Inflates on site to fit any void size, eliminating pre-formed fill stock
- Supports loads up to 20 tons, ideal for securing heavy or unstable cargo
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Reusable and recyclable design reduces packaging waste per shipment
- Multi-layer construction with PA film inner layer prevents air loss and maintains pressure
- Inflates on site to fit any void size, eliminating pre-formed fill stock
- Supports loads up to 20 tons, ideal for securing heavy or unstable cargo
- Heat sealed edges and multi-use valve allow multiple inflation cycles
- Available in sizes from 500*1000 mm to 1200*2400 mm to fit various container and truck spaces
Where It Is Used
- Securing stacked cartons inside a 20-foot container to prevent shifting during ocean transport
- Stabilizing loose or irregularly shaped goods in a truck trailer during road haulage
- Preventing load collapse in high-density pallet stacks during long-distance shipping
- Protecting fragile industrial components during export from Asia to Europe
- Adjusting cushion size on the fly to fit different voids in a single shipment
Who It Is For
- Exporters loading FCL and LCL containers with mixed or heavy goods
- Third-party logistics warehouses managing high-volume container loading
- Manufacturers of industrial equipment, machinery, or automotive parts shipping long distance
- Freight forwarders needing reusable, space-saving load stabilizers
- Contract packers handling diverse cargo sizes without pre-cut fill
Problems It Solves
- Cargo shifting and impact damage during long-haul transport due to poor load restraint
- Overuse of disposable void fill that adds weight and volume to shipments
- Manual packing of loose fill that slows down loading and increases labour cost
- Inconsistent cushion fit when using pre-formed or cut foam inserts
- Lack of reusability in single-use plastic or paper dunnage bags
Technical Features
- Multi-layer construction: kraft paper + PE film + PA film for air retention
- Heat sealed edges and multi-use valve for repeated inflation and deflation
- Working pressure limited to 0.2 bar (20 kPa / 2.8 PSI) to prevent over-inflation
- Inflated void fill range from 100 mm to 600 mm depending on bag size
- Weight range from 0.3 kg to 1.49 kg per bag depending on size
Published Data for Kraft Paper Air Dunnage Bag
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | Kraft Paper Air Dunnage Bag |
|---|---|
| Material | Kraft Paper + PE Film + PA Film |
| Color | Brown, White |
| Layer | Multi Layer |
| Sealing | Heat Seal |
| Handle | Multi-use Valve |
| Max Load | 20 Tons |
| Working Pressure | Do not exceed 0.2 Bar / 20 kPa / 2.8 PSI |
| Inflated Void Fill | 100 mm to 600 mm |
| Cargo Height Range | 900 mm to 2300 mm |
| Model No. | AW-0510 to AW-1224 |
Materials
- Kraft paper with high tensile strength for outer layers
- PE film layer for moisture and puncture resistance
- PA film inner layer to prevent air leakage and maintain pressure
- Heat seal adhesive used at edges for durable closure
- Multi-use valve made for repeated inflation and deflation
How It Is Made
Kraft paper and film layers laminated under controlled pressure and temperature
PA film layer applied as inner air barrier to prevent leakage
Heat sealing performed along edges to form the bag structure
Multi-use valve installed and tested for proper inflation and retention
Final bag inspected for seal integrity and material uniformity
How It Is Checked
Incoming kraft paper and film checked for thickness and strength before lamination
Seal strength tested on sample bags to confirm no air leakage under pressure
Dimensions and weight verified against the model specification
Cartons inspected at container loading against the packing list
Customisation Options
- Custom sizes available upon request to match specific container or load dimensions
- Logo or branding printed on the kraft paper surface on request
- Alternative film grades (e.g. biodegradable) available on request
- Valve type can be adjusted for faster inflation or longer retention
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Single-use plastic dunnage bags | Reusable and recyclable, reduces long-term packaging cost and waste |
|---|---|
| Paper void fill | More durable and pressure-retaining, suitable for heavy or long-haul shipments |
| Foam inserts | No tooling cost and no need for SKU-specific shapes, though less precise for very heavy items |
| Wooden blocks | Lighter, easier to handle, and does not require special tools for placement |
How to Use It
Place the bag in the void space between cargo or between pallets
Attach the air inflator to the multi-use valve and inflate to desired firmness
Do not exceed 0.2 bar (20 kPa / 2.8 PSI) to avoid over-inflation and damage
After shipment, deflate the bag and store flat for reuse
Inspect the bag before reuse for seal damage or film wear
Kraft Paper Air Dunnage Bag in Detail

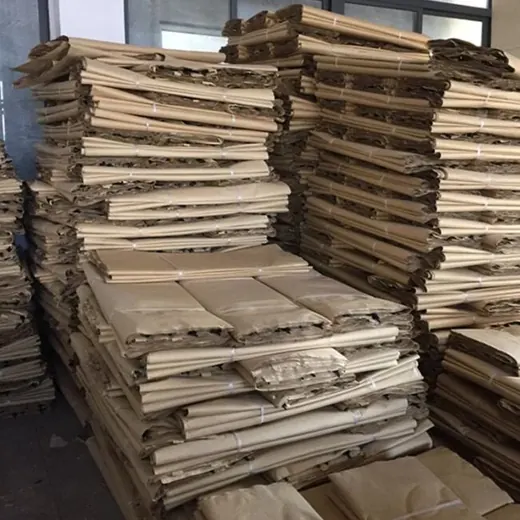

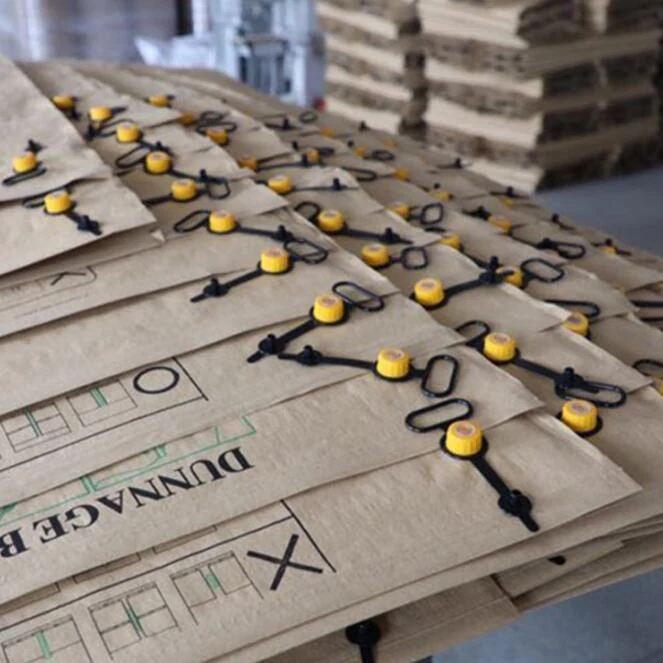

Photographs of the actual product as supplied, not renders.
Kraft Paper Air Dunnage Bag Questions
What is the minimum order quantity for kraft paper air dunnage bags
Order quantity depends on model and size. Send us the model numbers and monthly volume you need on WhatsApp and we will confirm the minimum for that specification.
Can the bags be reused after one shipment
Yes, the multi-use valve and durable construction allow multiple inflation and deflation cycles for reuse.
What is the maximum pressure the bag can hold
Do not exceed 0.2 bar (20 kPa / 2.8 PSI) to prevent damage or rupture.
Is a custom size available
Yes, custom sizes can be made to fit your specific load or container dimensions. Contact us with your requirements.
Can you print our logo on the bag
Yes, we can print your logo on the kraft paper surface. Send artwork and the model you need.
