Inflatable Bag Air Dunnage Bag for Cargo Securing
Air dunnage bag is a multi-layered inflatable bag made from kraft paper and PE film, designed to secure cargo in trucks, trailers, and overseas containers. It prevents load collapse and impact damage during transport by filling voids and stabilizing goods. The bag is reusable and recyclable, with a multi-use valve and heat-sealed construction that maintains pressure. Each column is sealed separately, so a puncture does not release all air.
- Prevents load collapse and impact damage in road and ocean transport
- Reusable and recyclable with a multi-use valve for multiple shipments
- Fills irregular voids in containers and trailers without overpacking
- Heat-sealed construction maintains pressure and prevents air loss
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Prevents load collapse and impact damage in road and ocean transport
- Reusable and recyclable with a multi-use valve for multiple shipments
- Fills irregular voids in containers and trailers without overpacking
- Heat-sealed construction maintains pressure and prevents air loss
- Separate column sealing means one puncture does not deflate the whole bag
- Lightweight and flat when deflated, so it does not take up storage space
Where It Is Used
- Securing heavy machinery and industrial equipment in FCL and LCL containers
- Stabilizing stacked cartons and pallets during long-haul truck transport
- Preventing shifting of goods in trailers during road haulage across continents
- Protecting fragile or high-value items from impact during overseas shipping
Who It Is For
- Exporters shipping goods in FCL and LCL containers
- Third-party logistics providers managing freight in trucks and trailers
- Warehouses handling high-value or heavy industrial goods
- Manufacturers shipping equipment and components internationally
- Freight forwarders needing reliable, reusable cargo securing solutions
Problems It Solves
- Cargo shifting and collapse during transit due to empty spaces in containers
- Damage from impact when goods move inside the container during transport
- Overuse of wooden blocks or foam inserts that add weight and cost
- Lack of reusable solutions that can be used across multiple shipments
- Inconsistent performance from single-use or low-quality dunnage bags
Technical Features
- Multi-layer construction: kraft paper + PE film + PA film for strength and air retention
- Heat-sealed seams and separate column sealing for pressure retention
- Multi-use valve allows repeated inflation and deflation
- Maximum working pressure of 0.2 bar / 20 kPa / 2.8 PSI
- Available in sizes from 500 mm to 1200 mm wide and 1000 mm to 2400 mm long
- Weight range from 0.3 kg to 1.49 kg depending on size
- Can secure loads up to 20 tons when properly inflated
Published Data for Inflatable Bag Air Dunnage Bag for Cargo Securing
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | Inflatable air dunnage bag |
|---|---|
| Material | Kraft paper + PE film + PA film |
| Layers | Multi-layered construction |
| Sealing | Heat seal with multi-use valve |
| Working Pressure | Do not exceed 0.2 bar / 20 kPa / 2.8 PSI |
| Max Load Capacity | Up to 20 tons |
| Void Fill Range | 100 mm to 600 mm |
| Inflation Method | Manual or air inflator |
| Reusability | Reusable with proper handling |
| Recyclability | Recyclable after use |
| Model Range | AW-0510 to AW-1224 |
Materials
- Kraft paper for outer layer with high tensile strength
- PE film as inner layer to prevent air leakage
- PA film as innermost layer for enhanced air retention
- All materials are layered and heat-sealed to maintain integrity
- No recycled content in the film layers; material is virgin
How It Is Made
Kraft paper and film layers are laminated under controlled tension
Heat sealing applied to form individual columns and edges
Multi-use valve inserted and sealed into the bag structure
Final inspection for seal integrity and valve function
Bag deflated and packed flat for shipment
How It Is Checked
Incoming kraft paper and film checked for thickness and strength
Seal strength tested on sample bags before shipment
Valve function verified with inflation and pressure hold test
Final bag inspected for visual defects and correct dimensions
Packing list verified at container loading against order
Customisation Options
- Custom sizes available to match specific container or load voids
- Custom model numbers for internal tracking and inventory
- Logo or brand marking on the bag surface on request
- Alternative materials such as PP film available upon request
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Wooden blocks | Lighter, reusable, and easier to store; no risk of splinters or damage to goods |
|---|---|
| Foam inserts | Reusable across multiple shipments; no waste after one use |
| Paper dunnage | Higher strength and air retention; suitable for heavier loads and long transit |
| Single-use plastic bags | Reusable and recyclable; lower environmental impact over time |
How to Use It
Inspect the bag for damage before inflation
Place the bag in the void space between cargo and container wall
Attach the valve to an air inflator and inflate to maximum pressure
Check that the bag is fully expanded and not bulging unevenly
Deflate and store flat after use for reuse in future shipments
Do not exceed 0.2 bar / 20 kPa / 2.8 PSI to avoid rupture

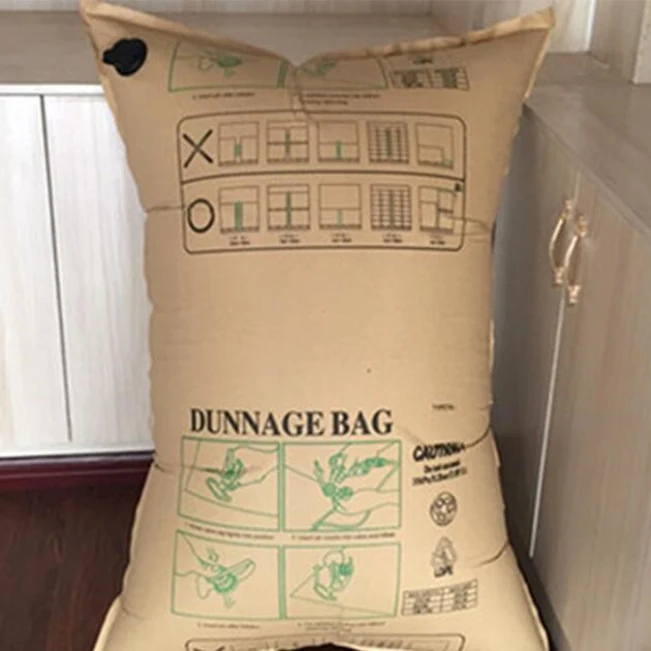

Inflatable Bag Air Dunnage Bag for Cargo Securing in Detail
Photographs of the actual product as supplied, not renders.
Inflatable Bag Air Dunnage Bag for Cargo Securing Questions
What is the maximum pressure I can use on the air dunnage bag
Do not exceed 0.2 bar / 20 kPa / 2.8 PSI. Exceeding this may cause rupture.
Can I reuse the air dunnage bag after one shipment
Yes, the multi-use valve allows multiple inflations and deflations if the bag is undamaged.
How do I know which size to order for my container
Choose a size that fits the void space. Refer to the model list and dimensions in the product sheet. Send us your container or load dimensions and we will recommend a size.
Is the bag recyclable
Yes, the bag is recyclable after use. The kraft paper and films can be processed in standard recycling streams.
Can you print our logo on the bag
Yes, we can print your logo on the bag surface. Send artwork and the size you need.
What is the minimum order quantity
Order quantity depends on size and material. Send us the model numbers and monthly volume you need on WhatsApp and we will confirm the minimum for that specification.
