Copper Recovery From PCB Etching Waste Liquid
Direct electrolysis that returns the etchant to the production line
Project Challenge
PCB etching produces a large volume of waste liquid carrying 100-170 g/L of copper together with ammonia, salt and ammonium chloride. The traditional route is to sell it on, where neutralisation and precipitation make sponge copper while a large quantity of ammonium ions and a small amount of copper go unused.
Our Solution
The copper is recovered by direct electrolysis instead. Electrolytic deposition extracts high purity electrolytic copper, the copper ions in the alkaline etching waste liquid are reduced, and the etching solution is reused on the production line after component preparation.
Process Steps
Step
The customer's liquid composition, processing volume and processing target are provided.
Step
The machine is designed and manufactured around those figures.
Step

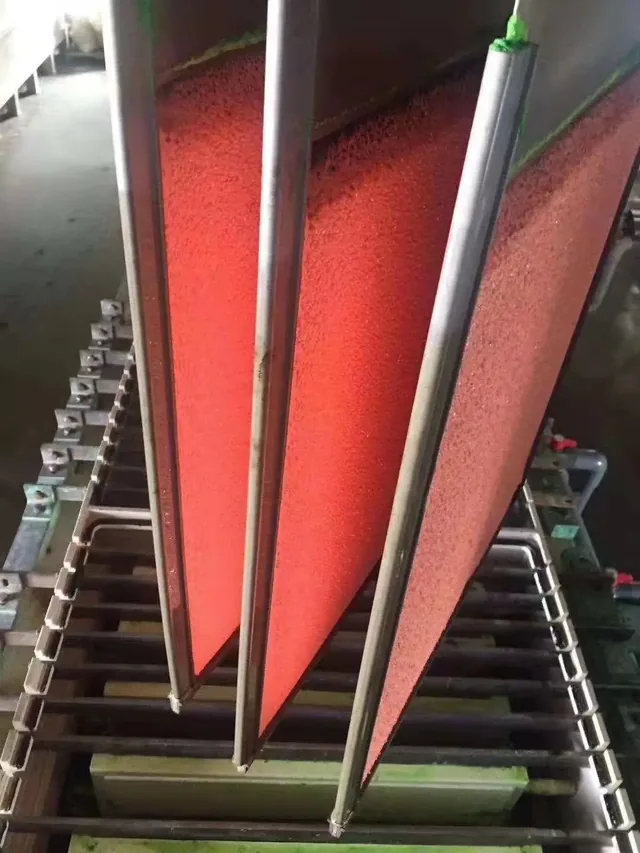

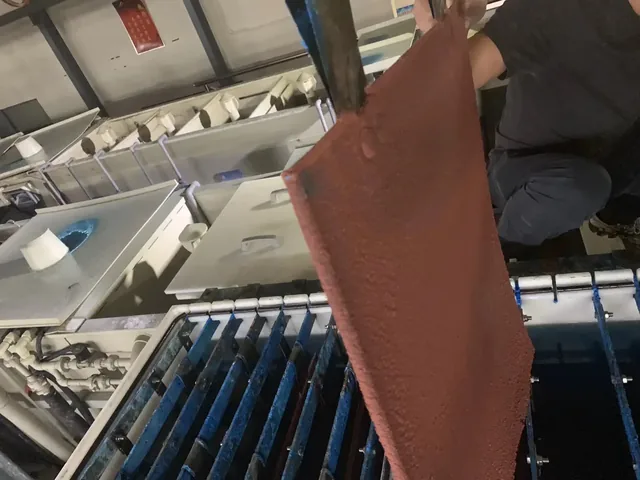

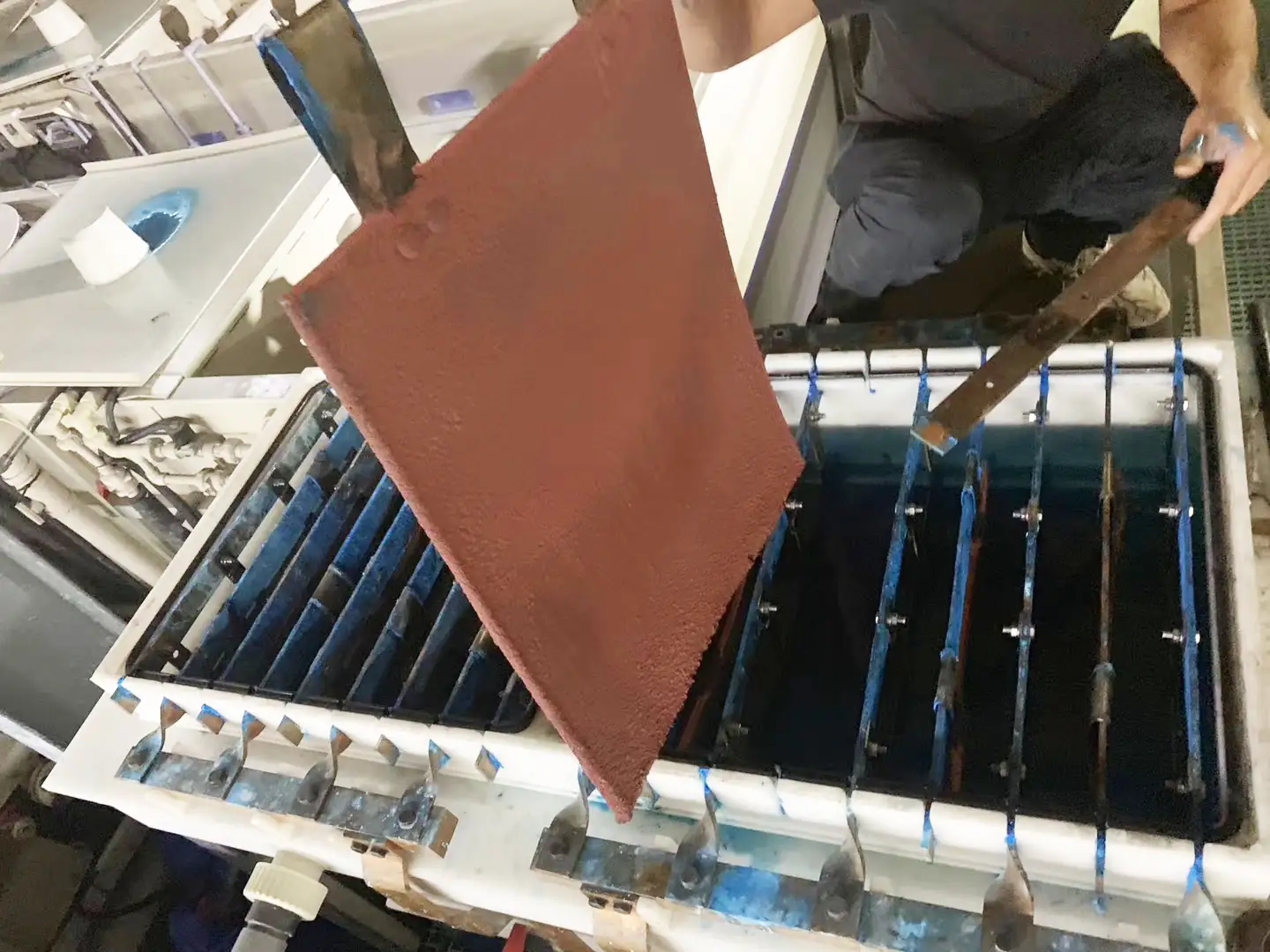

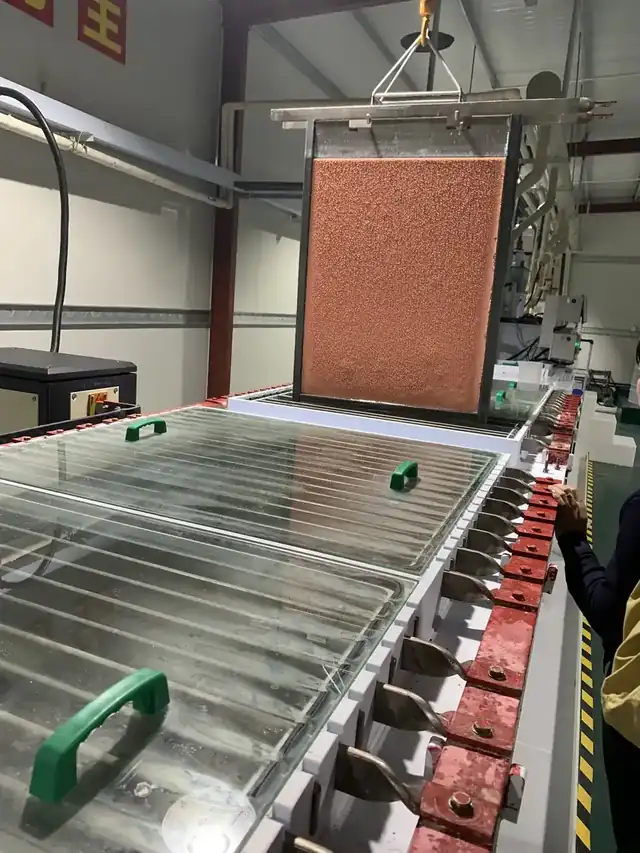

Waste etchant is electrolysed so copper deposits on the cathode plate.
Step
The treated etchant is made up and returned to the etching line.
What The Machine Delivers
- High purity electrolytic copper recovered on site
- Etching solution reused in the production line rather than replaced
- Sewage treatment cost reduced along with production material cost
- Where the etchant is not recycled, copper is still removed and pollutants treated to the required concentration
Equipment Used On This Application
Equipment In This Case
Copper Electrolysis Recovery Machine For PCB Etching And Plating Solution
Direct electrolysis of alkaline etchant and copper plating bath so the etchant returns to the line
View machine
Copper Electrolysis Refining Machine For 80 Percent Copper To 99.9 Percent
Basket or plate anode cell at 3KG and 50KG per 24 hours with high frequency pulse rectifier
View machine
Questions About This Case
Is this a named customer reference?
Customer identity not disclosed. The machine for this application is designed around each customer's own solution composition and volume.
Can the same configuration be built for us?
Yes. The machines used here are standard production and can also be built to your own solution composition and volume.
What figures are quoted in the result?
They are the published performance figures for the machines used, not a claim about a particular installation.
How do we get a quotation?
Send the metal, the solution analysis and the daily volume by WhatsApp or email and we will confirm the model.
Configure This For Your Own Process
Tell us what your solution contains and how much of it you handle each day.
