W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater
The W Shaped Silicon Carbide Heating Element is a high-performance SiC heater designed with three shanks, shaped like the letter “W”. This configuration is especially suitable for horizontal installation in large industrial or laboratory furnaces, providing excellent thermal uniformity, balanced electrical loading,...
Introduction
The W Shaped Silicon Carbide Heating Element is a high-performance SiC heater designed with three shanks, shaped like the letter “W”. This configuration is especially suitable for horizontal installation in large industrial or laboratory furnaces, providing excellent thermal uniformity, balanced electrical loading, and longer service life in demanding environments.
Manufactured using recrystallized silicon carbide, ZYLAB W Shaped heating elements operate efficiently in temperatures up to 1500°C in oxidizing or neutral atmospheres.
Available Models & Customization

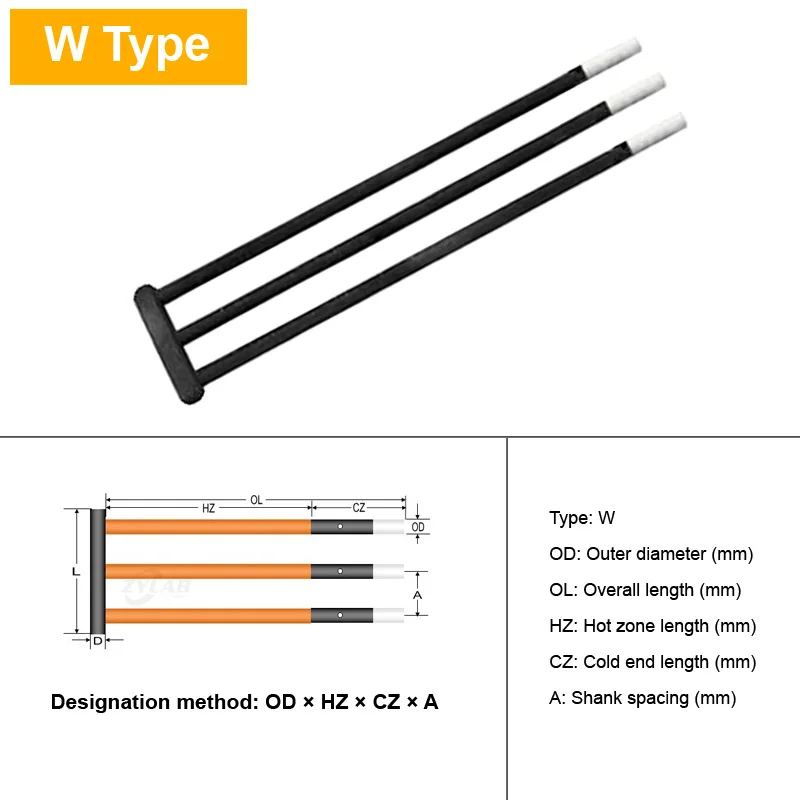

Type: W
OD: Outer diameter (mm)
OL: Overall length(mm)
HZ:Hot zone length(mm)
CZ: Cold end length (mm)
A: Shank spacing (mm)
Standard Diameters: 14、16、18、20、25、30 mm
Voltage: 220V–380V (customizable)
Custom Specs Example: OD = 18 mm, HZ = 400 mm, CZ = 450 mm, A = 70 mm
Need help with specifications?
Share your parameters and we’ll deliver a tailor-made solution.
Contact us for free consultation or a quote!
ZYLAB also offers a full range of accessories for SiC heating elements to ensure safe and efficient installation.
Applications of W Shaped Silicon Carbide Heating Element
Ceramic and Powder Metallurgy Sintering Furnaces
Horizontal High-Temperature Box Furnaces
Glass Melting and Annealing Ovens
Laboratory and Pilot-Scale Furnaces
Heat Treatment of Metals and Alloys
Industrial Kilns and Continuous Heating Systems
High-Temperature Debinding and Pre-sintering
Features & Benefits
Maximum Working Temperature: 1500°C
W-shaped three-leg design for stable horizontal positioning
Made of high-purity recrystallized silicon carbide (SiC)
High power density and energy efficiency
Easy to replace and install in box or tunnel furnaces
Custom resistance values and dimensions available
Ideal for applications requiring wide heating zones
W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
1700°C High-Purity MoSi₂ Heating Element for Dental Sintering Furnaces
I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces
DB Type Silicon Carbide Heating Element | SiC Heater for High Temperature Furnaces
H Type Silicon Carbide Heating Element | SiC Heater
U Type Silicon Carbide Heating Element | High Temperature SiC Heater
ED Type Silicon Carbide Heating Elements | SiC Heater Rods for High Temperature Furnaces
L-Shaped MoSi₂ Heating Element for Laboratory High-Temperature Furnaces
U-Shaped MoSi₂ Heating Element for High-Temperature Furnaces
Ordering W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater
What is W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater typically used for?
The W Shaped Silicon Carbide Heating Element is a high-performance SiC heater designed with three shanks, shaped like the letter “W”. This configuration is especially suitable for horizontal installation in large industrial or laboratory furnaces, providing ex
How quickly can W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater be shipped?
Most standard ZYLAB models are held in stock. After testing and packing we normally ship W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater within 3 to 7 days. Customised builds are scheduled after the drawing is confirmed, and we give you the date in writing before the order is placed.
Is there a minimum order quantity for W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater?
No. ZYLAB has no minimum order requirement, so a single unit of W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater is a normal order. Occasionally a component supplier imposes a minimum quantity of their own, and we tell you as soon as we are notified.
Can we get technical help before ordering W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater?
Yes, and it is free. Our technical staff help with model selection, troubleshooting, manuals and application questions whether or not you have ordered from us before. Write to [email protected] or message us on WhatsApp.
What if W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater is damaged in transit?
Contact your ZYLAB sales engineer immediately with photographs. We arrange a substitute delivery promptly and handle the claim with the carrier.
Quote For W Shaped Silicon Carbide Heating Element | High-Temperature SiC Heater
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
