L-Shaped MoSi₂ Heating Element for Laboratory High-Temperature Furnaces

Introduction

The L-Shaped MoSi₂ Heating Element by ZYLAB is specially designed for high-temperature laboratory and research furnaces that demand accuracy, efficiency, and durability. Made from high-purity molybdenum disilicide (MoSi₂), this element supports temperatures up to 1800°C, delivering stable performance in controlled experimental conditions.

Ideal for horizontal or inclined heating zones, L-shaped elements are widely used in material testing, ceramic sintering, and small-batch thermal experiments where space efficiency and temperature uniformity are critical.

Engineered with stability and longevity in mind, ZYLAB MoSi₂ elements exhibit:

• Stable electrical resistance even after long-term use

• Compatibility between old and new elements in series

• Fast thermal cycling with no performance degradation

• Self-healing SiO₂ protective layer in oxidizing atmospheres

• Custom dimensions for optimized fit and efficiency

Available Models & Customization

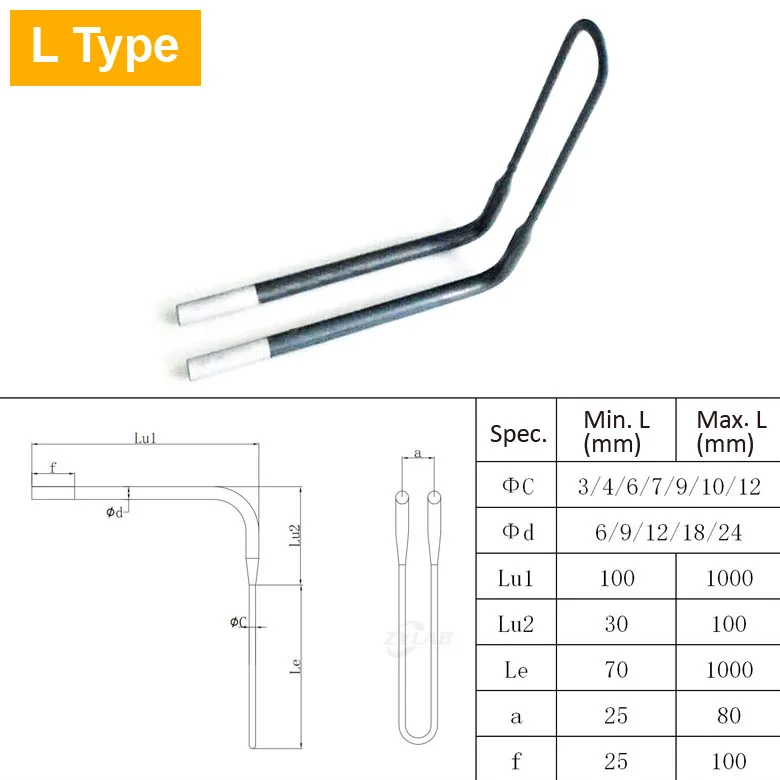

L1 Type

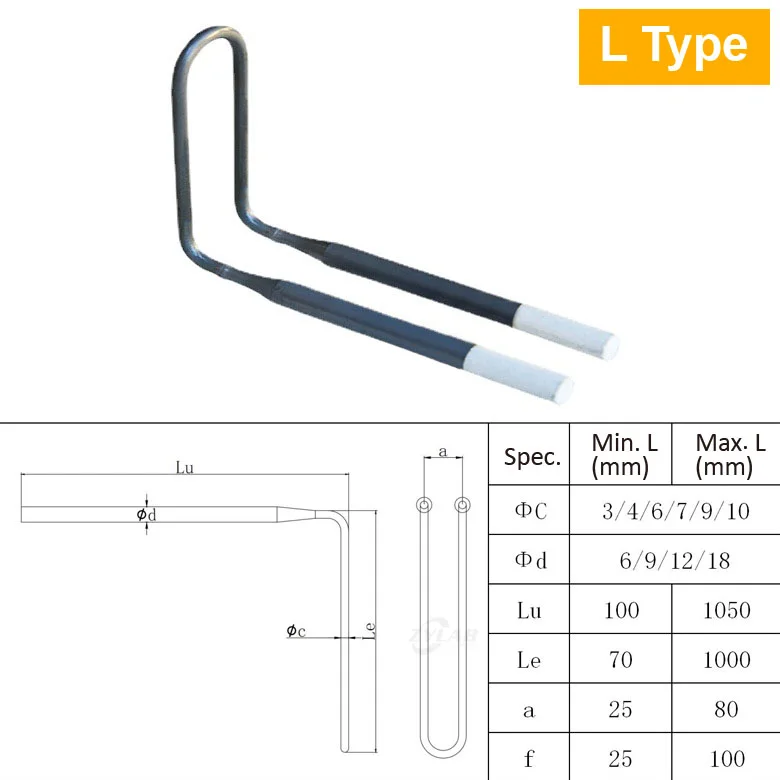

L2 Type

L3 Type

• Model: L-shaped MoSi₂ Heating Element

• Grades: 1700 / 1800

• Standard Diameters: 3/6, 4/9, 6/12, 7/12, 9/18, 10/18, 12/24 mm

• Voltage: 220V–380V (customizable)

• Custom Specs Example: φc/φd = 6/12 mm, Le = 300 mm, Lu = 350 mm, a = 60 mm, Grade = 1800

Need help with specifications?

Share your parameters and we’ll deliver a tailor-made solution.

Contact us for free consultation or a quote!

ZYLAB also offers a full range of accessories for MoSi₂ heating elements to ensure safe and efficient installation.

1. Laboratory and Research Furnaces

• Small-scale material sintering

• Ceramic and metal powder testing

• Thermal post-processing for additive manufacturing (3D printing)

• Controlled atmosphere thermal experiments

2. Ceramics and Powder Metallurgy

• Firing and sintering of advanced ceramics and metal composites

• Heat treatment of small ceramic components

• Batch testing for new material formulations

3. Glass and Electronic Materials

• Sample heating for glass composition research

• ITO sintering and MLCC development

• Semiconductor material processing (e.g., diffusion, annealing)

4. Heat Treatment of Metals

• Precision annealing, hardening, and tempering of metal specimens

• Carburizing experiments under controlled lab-scale conditions

5. Industrial Pilot Lines

• Prototype furnace systems

• Small production runs with repeatable heating cycles

Features & Benefits

• Maximum temperature: Up to 1800°C

• Excellent high-temperature oxidation resistance

• Quick thermal response for fast heating cycles

• Minimal resistance change—mixing old and new elements is possible

• Long service life with low maintenance frequency

• Compact and customizable design for space-limited lab setups

MoSi₂ Heating Element Installation Guidelines

Because MoSi₂ elements are brittle at room temperature and ductile at high temperature, careful handling is required:

General Recommendations

• Install with the L-bend supported to avoid breakage.

• The cone ends must extend into the furnace chamber.

• Do not overtighten the power connectors initially. Tighten again when heated to avoid breakage.

• Use matching ceramic spacers to separate the shanks.

Installation Steps

• Remove the wooden block from between the shanks.

• Insert the element through the ceramic spacer into the mounting hole.

• Push the element in until it touches the wooden block inside the furnace.

• Fill any gaps with alumina fiber.

• Install the ceramic fixture, aligning all screws in one direction.

• Once all elements are in place, install the power tracks, ensuring they do not contact the fixture to prevent short circuits.

Note: MoSi₂ rods are fragile and should be handled with caution at all times.
