H Type Silicon Carbide Heating Element | SiC Heater
The H Type Silicon Carbide Heating Element is a high-power SiC heater designed with a parallel dual-shank structure and a long heating section between them, forming an “H” shape. This configuration provides increased power density, enhanced heat uniformity, and is ideal for horizontal or vertical installation in...
Introduction

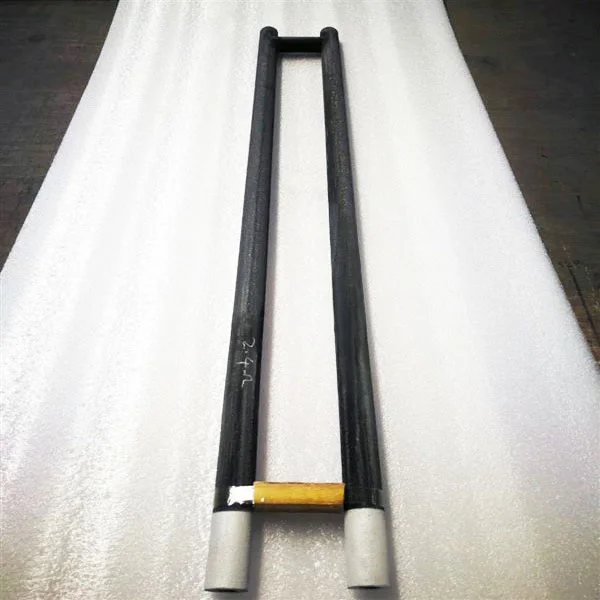

The H Type Silicon Carbide Heating Element is a high-power SiC heater designed with a parallel dual-shank structure and a long heating section between them, forming an “H” shape. This configuration provides increased power density, enhanced heat uniformity, and is ideal for horizontal or vertical installation in high-temperature furnaces. Operating in oxidizing or neutral atmospheres up to 1500°C, it is widely used in industrial kilns, sintering systems, and lab-scale high-temp processes.
ZYLAB offers standard and custom H Type SiC heating elements, with precise control over resistance, dimensions, and performance stability.
Available Models & Customization

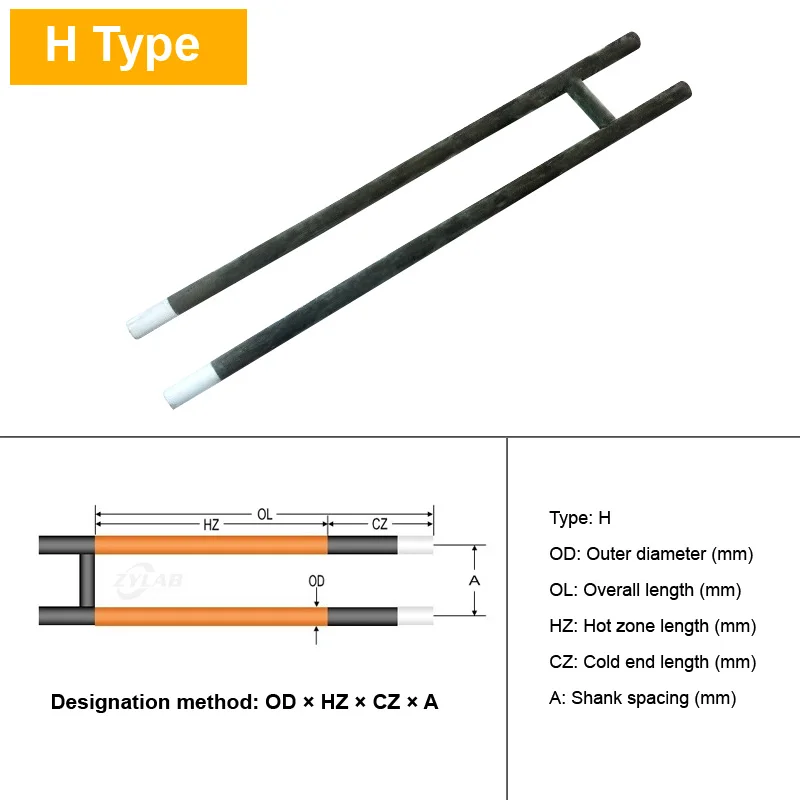

Type: H
OD: Outer diameter (mm)
OL: Overall length(mm)
HZ:Hot zone length(mm)
CZ: Cold end length (mm)
A: Shank spacing (mm)
Standard Diameters: 14、16、18、20、25、30 mm
Voltage: 220V–380V (customizable)
Custom Specs Example: OD = 18 mm, HZ = 400 mm, CZ = 450 mm, A = 70 mm
Need help with specifications?
Share your parameters and we’ll deliver a tailor-made solution.
Contact us for free consultation or a quote!
ZYLAB also offers a full range of accessories for SiC heating elements to ensure safe and efficient installation.
Applications of H Type Silicon Carbide Heating Element
Ceramic and Powder Metallurgy Sintering Furnaces
Glass Annealing and Melting Kilns
Debinding and Heat Treatment Furnaces
High-Temperature Laboratory Equipment
Industrial Tunnel and Box Furnaces
Semiconductor and Electronic Component Processing
High-Load Thermal Systems Requiring Stable Uniform Heat
Features & Benefits
Max Working Temperature: 1500°C in air
H-shaped parallel rod design for efficient power distribution
Recrystallized silicon carbide ensures high mechanical strength and oxidation resistance
Optimized for horizontal placement with superior thermal stability
High power loading capability, ideal for large-scale or demanding processes
Custom lengths, diameters, and resistance values available
