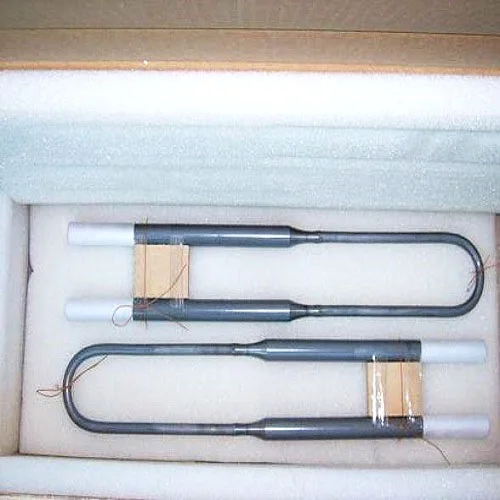

1700°C High-Purity MoSi₂ Heating Element for Dental Sintering Furnaces

Introduction

The 1700°C High-Purity MoSi₂ Heating Element from ZYLAB is specially designed for use in dental sintering furnaces, including furnaces for zirconia crown sintering and ceramic dental restoration processing. Manufactured with premium molybdenum disilicide (MoSi₂), this element delivers stable performance under high temperatures, outstanding oxidation resistance, and long service life.

Its compact design and high purity level ensure safe, efficient, and uniform heating in small dental furnaces with limited chamber space.

Available Models & Customization

• Model: U-shaped MoSi₂ Heating Element

• Standard Diameters: 3/6, 4/9, 5/10, 6/12, 7/14, 9/18, 10/18, 12/24 mm

• Voltage: 220V–380V (customizable)

• Custom Specs Example: φc/φd = 6/12 mm, Le = 350 mm, Lu = 300 mm, a = 60 mm

Need help with specifications?

Share your parameters and we’ll deliver a tailor-made solution.

Contact us for free consultation or a quote!

ZYLAB also offers a full range of accessories for MoSi₂ heating elements to ensure safe and efficient installation.

Applications of MoSi₂ Heating Element for Dental Sintering Furnaces

• Dental Zirconia Crown Sintering

• Ceramic Restoration Firing

• High-Temperature Dental Laboratory Furnaces

• Zirconia Block Preheating and Annealing

• Small-Scale Precision Sintering Equipment

Features & Benefits

• Rated for 1700°C Continuous Operation
  Ideal for dental zirconia sintering and high-temperature ceramic processing.

• Made from High-Purity MoSi₂ Material
  Ensures strong resistance to oxidation and chemical corrosion in air atmospheres.

• Fast Heating & Stable Output
  Rapid ramp-up speed and consistent electrical performance at high temperatures.

• Compact Size for Dental Furnace Chambers
  Tailored for small chamber volumes typically used in dental labs.

• Extended Service Life
  Forms a protective SiO₂ layer in oxidizing environments, reducing degradation.

• Custom Dimensions Available
  Support for OEM/ODM furnace models—length, diameter, and resistance value can be tailored.

MoSi₂ Heating Element Installation Guidelines

Because MoSi₂ elements are brittle at room temperature and ductile at high temperature, careful handling is required:

General Recommendations

• Always use vertical mounting for U-type elements. If horizontal mounting is needed, use high-temperature insulating supports.

• The cone ends must extend into the furnace chamber.

• Do not overtighten the power connectors initially. Tighten again when heated to avoid breakage.

• Use matching ceramic spacers to separate the shanks.

Installation Steps

• Remove the wooden block from between the shanks.

• Insert the element through the ceramic spacer into the mounting hole.

• Push the element in until it touches the wooden block inside the furnace.

• Fill any gaps with alumina fiber.

• Install the ceramic fixture, aligning all screws in one direction.

• Once all elements are in place, install the power tracks, ensuring they do not contact the fixture to prevent short circuits.

Note: MoSi₂ rods are fragile and should be handled with caution at all times.
