DB Type Silicon Carbide Heating Element | SiC Heater for High Temperature Furnaces
The DB Type Silicon Carbide Heating Element features a uniform-diameter hot zone (HZ) with two equal-diameter cold ends (CZ). This element is optimized for vertical or horizontal installation in high-temperature furnaces operating up to 1500°C. Its unique configuration minimizes terminal heat loss and improves thermal...
Introduction
The DB Type Silicon Carbide Heating Element features a uniform-diameter hot zone (HZ) with two equal-diameter cold ends (CZ). This element is optimized for vertical or horizontal installation in high-temperature furnaces operating up to 1500°C. Its unique configuration minimizes terminal heat loss and improves thermal efficiency, making it ideal for industrial heat treatment, ceramics sintering, and laboratory furnaces.

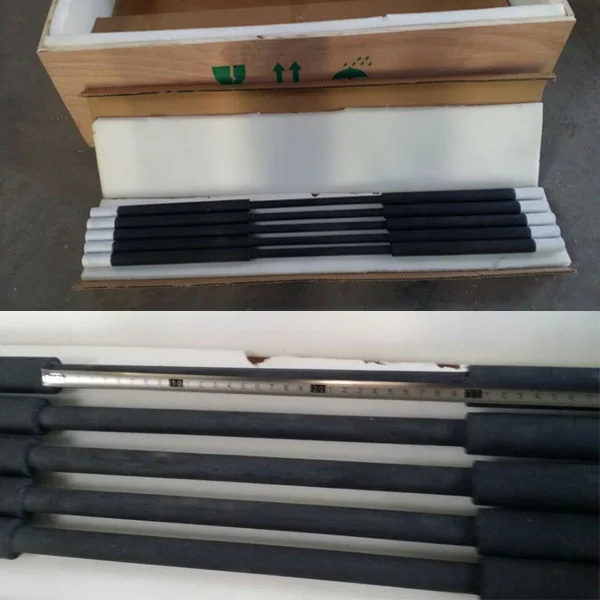

ZYLAB offers both standard and custom DB-type SiC heaters, engineered for stability, long service life, and precise resistance control.
Applications of DB Type Silicon Carbide Heating Element
Ceramic Kilns and Sintering Furnaces
Powder Metallurgy and Metal Heat Treatment
Laboratory High-Temperature Furnaces
Debinding and Pre-Sintering Systems
Glass Melting and Annealing Ovens
Horizontal and Vertical Industrial Furnaces
High-Efficiency Electric Thermal Systems
Features & Benefits
Maximum Operating Temperature: 1500°C (in air)
Straight hot zone structure
Made from high-purity recrystallized silicon carbide
Efficient electrical and thermal performance
Ideal for vertical or horizontal mounting
Replaceable and customizable to suit your furnace configuration
High power loading and resistance to thermal shock
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.

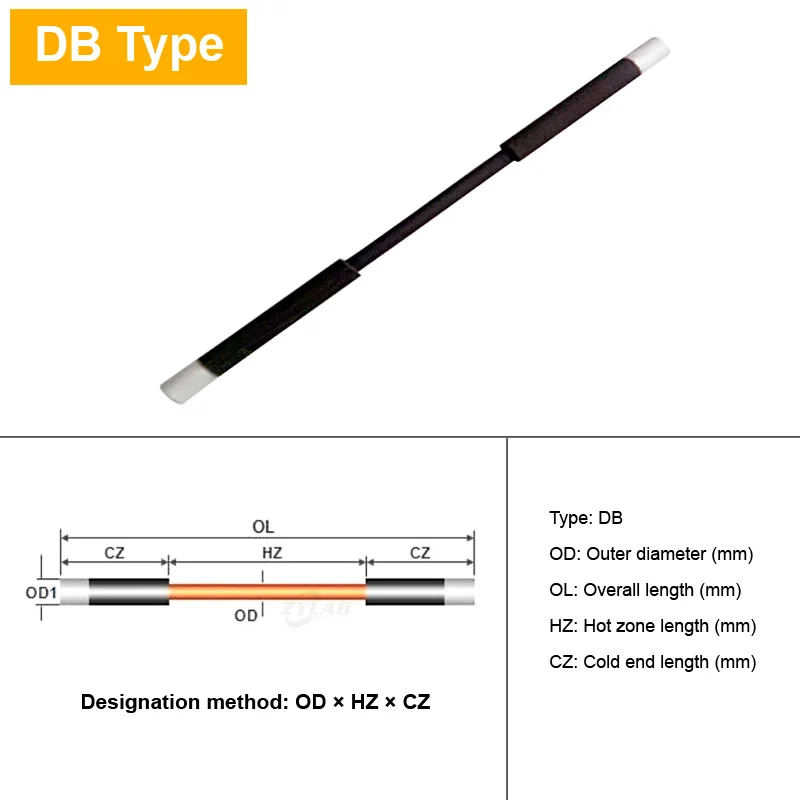

| OD(mm) | HZ(mm) | CZ(mm) | OD1(mm) | Resistance Range |
|---|---|---|---|---|
| 8 | 180 | 60 | 14 | 2.6-5.2 |
| 8 | 180 | 150 | 14 | 2.6-5.2 |
| 8 | 150 | 150 | 14 | 2.2-4.5 |
| 8 | 180 | 180 | 14 | 2.6-5.2 |
| 8 | 200 | 150 | 14 | 2.9-5.8 |
| 12 | 150 | 200 | 20 | 1.1-2.2 |
| 12 | 200 | 200 | 20 | 1.4-2.9 |
| 12 | 250 | 200 | 20 | 1.8-3.8 |
| 14 | 180 | 150 | 22 | 1.3-2.3 |
| 14 | 150 | 250 | 22 | 0.9-1.8 |
| 14 | 200 | 250 | 22 | 1.2-2.3 |
| 14 | 250 | 250 | 22 | 1.5-3.0 |
| 14 | 300 | 250 | 22 | 1.8-3.5 |
| 14 | 400 | 350 | 22 | 2.3-4.7 |
