U Type Silicon Carbide Heating Element | High Temperature SiC Heater
ZYLAB U Type Silicon Carbide Heating Element is a high-performance, double-leg SiC heater designed for use in high-temperature electric furnaces up to 1500°C. With two heating legs connected by a non-heating cold end, this element is ideal for vertical or horizontal installation, offering uniform heating, long service...
Introduction

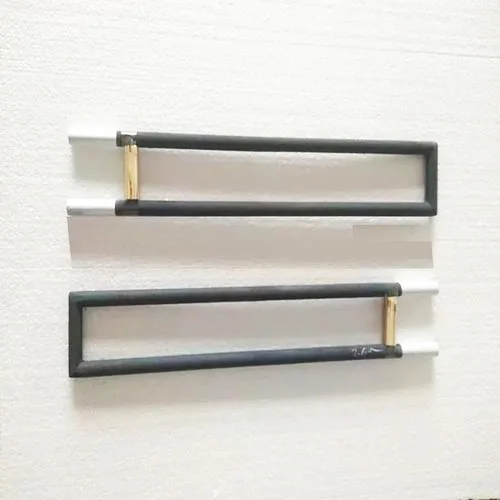

ZYLAB U Type Silicon Carbide Heating Element is a high-performance, double-leg SiC heater designed for use in high-temperature electric furnaces up to 1500°C.
With two heating legs connected by a non-heating cold end, this element is ideal for vertical or horizontal installation, offering uniform heating, long service life, and excellent oxidation resistance.
ZYLAB provides a wide range of standard sizes and supports custom fabrication based on your furnace design and process requirements.
Applications of U Type Silicon Carbide Heating Element
Laboratory Furnaces
For materials testing, thermal analysis, and academic research requiring temperatures up to 1500°C.Ceramic and Glass Processing
Used in sintering, annealing, glazing, and softening processes of technical ceramics and specialty glass.Metallurgical Heat Treatment
Suitable for hardening, tempering, and annealing of metal components and powder metallurgy sintering.Electronic Component Aging
Applied in burn-in ovens and thermal aging chambers for testing electronic parts under high temperatures.Debinding and Pre-sintering
For binder removal and pre-sintering of metal, ceramic, and composite parts in additive manufacturing.Industrial Box and Tunnel Kilns
As heating elements in continuous or batch kilns for production-scale thermal processing.Crystal Growth and Semiconductor Processing
Supporting high-purity, high-temperature processes in crystal growth and material research.
Features & Benefits
Maximum Operating Temperature: 1500°C
U-shaped structure with dual heating legs for even temperature distribution
Oxidation-resistant recrystallized SiC material for stable performance in air
Available in various diameters, hot zone lengths, and cold end configurations
Easy to replace and install, suitable for vertical or horizontal mounting
Custom design available for different furnace shapes and power ratings
Compatible with lab furnaces, industrial kilns, and thermal processing systems
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.

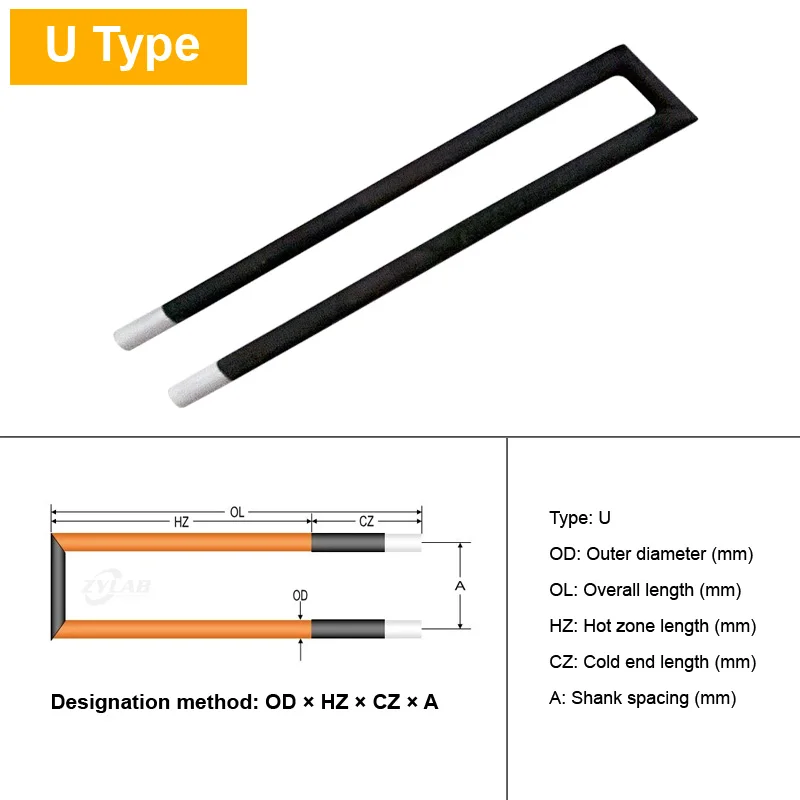

| OD(mm) | HZ(mm) | CZ(mm) | A(mm) | Resistance Range |
|---|---|---|---|---|
| 14 | 200 | 250 | 40 | 2.4-4.6 |
| 14 | 250 | 300 | 50 | 3.0-6.0 |
| 14 | 300 | 350 | 60 | 3.6-7.0 |
| 16 | 200 | 250 | 40 | 1.4-2.8 |
| 16 | 250 | 300 | 50 | 1.8-3.6 |
| 16 | 300 | 350 | 60 | 2.0-5.0 |
| 18 | 300 | 350 | 60 | 2.0-5.0 |
| 18 | 400 | 400 | 70 | 2.8-5.8 |
| 18 | 500 | 450 | 75 | 3.6-7.2 |
| 20 | 250 | 300 | 50 | 1.8-3.6 |
| 20 | 300 | 350 | 60 | 2.0-5.0 |
| 20 | 400 | 400 | 70 | 2.8-5.8 |
