I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces
The I-Shaped MoSi₂ Heating Element from ZYLAB is a high-performance, single-rod heating solution designed for use in electric furnaces operating up to 1800°C. Made from molybdenum disilicide (MoSi₂), this element provides excellent oxidation resistance and stable electrical properties, making it ideal for both...
Introduction
The I-Shaped MoSi₂ Heating Element from ZYLAB is a high-performance, single-rod heating solution designed for use in electric furnaces operating up to 1800°C. Made from molybdenum disilicide (MoSi₂), this element provides excellent oxidation resistance and stable electrical properties, making it ideal for both laboratory and industrial heat treatment applications.
With its simple, straight design, the I-shaped element is particularly suitable for vertical or custom furnace layouts requiring compact, direct heating.
Available Models & Customization
Model: I-shaped MoSi₂ Heating Element
Grades: 1700 / 1800

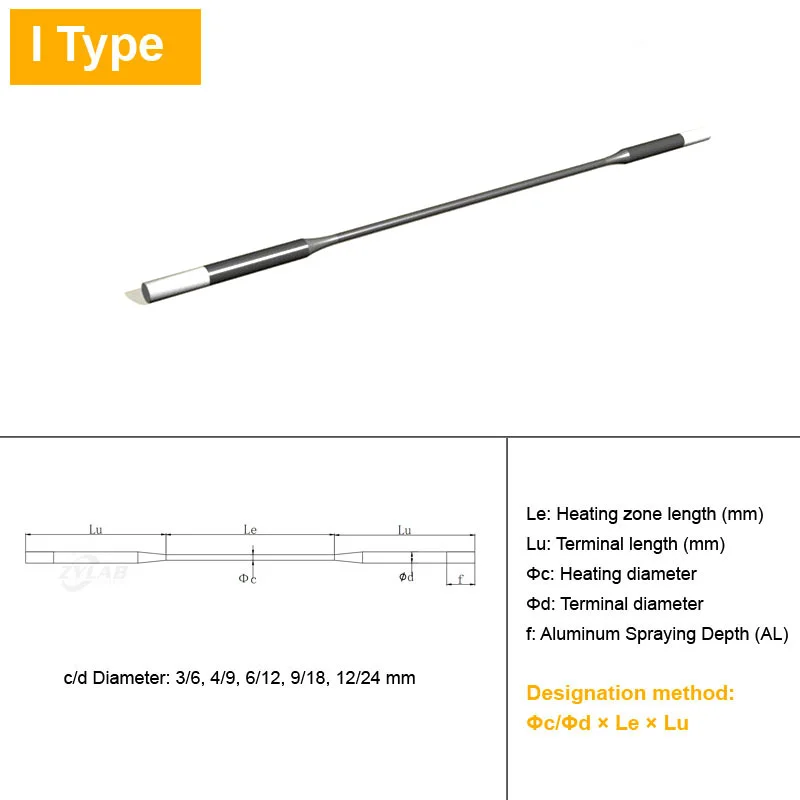

Standard Diameters: 3/6, 4/9, 6/12, 9/18, 12/24 mm
Voltage: 220V–380V (customizable)
Custom Specs Example: φc/φd = 6/12 mm, Le = 300 mm, Lu = 350 mm, Grade = 1700
Need help with specifications?
Share your parameters and we’ll deliver a tailor-made solution.
Contact us for free consultation or a quote!
ZYLAB also offers a full range of accessories for MoSi₂ heating elements to ensure safe and efficient installation.
Applications of I-Shaped MoSi₂ Heating Element
Laboratory High-Temperature Furnaces
Used in material analysis, thermal treatment, and ceramic sintering in research labs and universities.Vertical Tube Furnaces
Perfect for vertically mounted or space-constrained heating chambers requiring single-ended heating.Precision Heat Treatment of Advanced Materials
Enables stable and uniform heating in sintering, annealing, and calcining processes for ceramics, metals, and composites.Glass and Ceramic Processing
Provides direct and clean heating in controlled atmosphere conditions up to 1800°C.Semiconductor and Electronic Materials
Used in the thermal processing of wafers, substrates, and specialty powders.Industrial Furnaces and OEM Systems
Ideal for integration into custom furnace designs requiring high-efficiency and high-durability elements.
Features & Benefits
Straight Single-Rod Design
Ideal for limited-space installations or vertically mounted furnace chambers.High Temperature Resistance
Maximum operating temperature up to 1800°C in oxidizing atmospheres.Excellent Oxidation Performance
Forms a protective SiO₂ layer in air, significantly extending service life.Stable Electrical Conductivity
Consistent performance across a wide temperature range with low resistance drift.Customizable Dimensions
Tailored length, diameter, and resistance available to match your furnace specifications.Fast Heating Response
Low thermal mass ensures quick ramp-up and temperature stability.
Why Choose ZYLAB?
Expert in high-temperature furnaces and components
Global supplier to research and industrial users
Full customization service with fast lead times
Reliable technical support and after-sales service
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| Density | 5.6–5.8 g/cm³ |
|---|---|
| Bending Strength | ≥15 kg/mm² |
| Max Working Temperature | 1780°C |
| Surface Load | 5–15 W/cm² |
| Water Absorption | ≤0.2% |
| Thermal Elongation | ~4% |
I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Guides
- The Role of Vacuum Box Furnaces in High-Temperature Preparation of Oxidation-Sensitive Materials like Titanium Alloys and High-Purity Alumina Ceramics
- How Laboratory Molten Salt Electric Heating Furnaces Are Transforming the Aluminum Electrolysis Industry
- The Role of Ultra-High Pressure High-Temperature Sintering Furnace in Material Synthesis and Extreme Condition Research
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Quick Clamp Vacuum Sealing Assembly for Tube Furnace
Laboratory Ceramic Crucible
Fused Silica Quartz Ceramic Crucible
Protective Gas Box for Biochar Pyrolysis in Box Furnaces
Desktop Single-Channel MFC Gas Delivery System with Touchscreen Control
Weakly Corrosive Gas Preheater
Handheld K-Type Armored Thermocouple and Digital Thermometer
Recirculating Chillers – Cooling Solutions for Lab High-Temp Furnaces
Ordering I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces
What is I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces typically used for?
The I-Shaped MoSi₂ Heating Element from ZYLAB is a high-performance, single-rod heating solution designed for use in electric furnaces operating up to 1800°C. Made from molybdenum disilicide (MoSi₂), this element provides excellent oxidation resistance and sta
Can I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces be customised for our process?
Yes. Chamber or tube size, temperature profile, atmosphere, gas path, control system and data recording can all be adapted. Send us your process conditions and sample details and our engineers work out a configuration with you.
What warranty comes with I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces?
Most ZYLAB products carry a 2-year warranty, glass components excluded; the exact term for this model is the one printed in its specification table and repeated on the quotation. Within the warranty period any part that fails through no misuse of your own is replaced free of charge.
How can we pay for I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces?
Bank (wire) transfer, letter of credit for larger orders, major credit and debit cards, and PayPal. Bank details are printed on the invoice; send us the transfer confirmation and we start processing straight away.
How is I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces packed for export?
Packing is chosen for the safety of the machine against freight cost, typically a plywood or wooden crate with internal padding and vacuum-sealed accessories. Export documents such as Form A, Form E and Form F can be issued to help you save duty.
Quote For I-Shaped MoSi₂ Heating Element for High-Temperature Furnaces
Tell us the sample, the temperature and the atmosphere. You get the configuration, the price and the despatch date in one reply.
