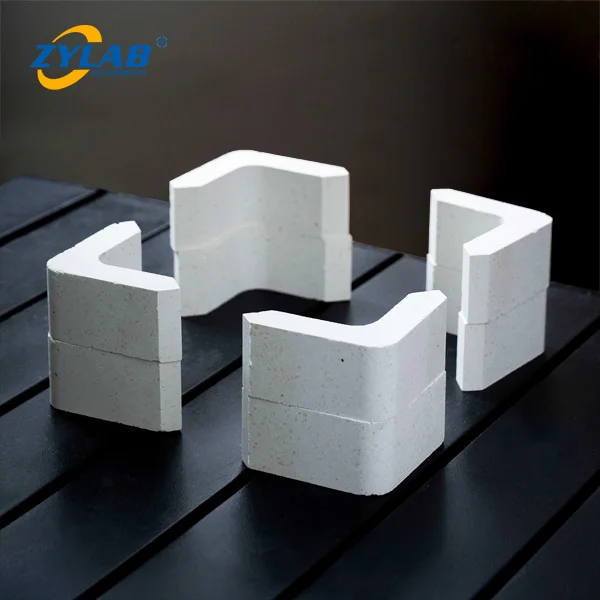

Support Pillar for Electric Furnace Kiln Furniture
The ZYLAB Support Pillar for Electric Furnace Kiln Furniture is a specialized refractory component designed to provide stable structural support for kiln shelves, alumina plates, and other kiln furniture within high-temperature electric furnaces. Made from durable refractory ceramics such as mullite, these pillars...
Introduction
The ZYLAB Support Pillar for Electric Furnace Kiln Furniture is a specialized refractory component designed to provide stable structural support for kiln shelves, alumina plates, and other kiln furniture within high-temperature electric furnaces. Made from durable refractory ceramics such as mullite, these pillars offer excellent thermal resistance, mechanical strength, and long service life in oxidizing or neutral atmospheres.
Ideal for laboratory kilns, industrial sintering systems, and custom-built electric furnaces, these support pillars ensure even load distribution and reliable insulation under extreme thermal cycling conditions.
We offer standard and customized kiln support pillars tailored to your furnace layout and load-bearing needs. Contact our technical team to discuss your specifications or request a drawing.
Key Features
Material: High-purity mullite
Temperature Resistance: Up to 1310°C
Mechanical Strength: Withstands vertical and lateral loading from kiln furniture
Thermal Stability: Resistant to warping and cracking under repeated heating
Corrosion Resistance: Stable in oxidizing and neutral atmospheres

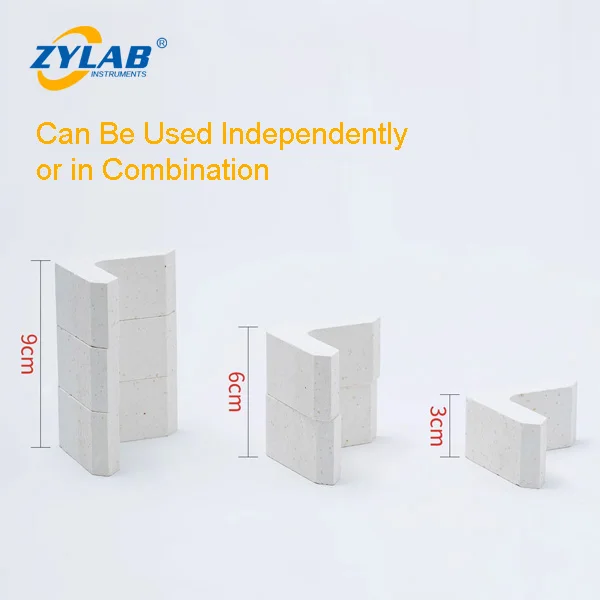

Custom Shapes Available: L-type, I-type, and other geometries per request
Applications of Support Pillar for Kiln Furniture
Supporting kiln shelves in electric box or chamber furnaces
Holding alumina setter plates in sintering or debinding furnaces
As load-bearing structures for multilayer thermal setups
Used in ceramic, metallurgy, powder, and material research
Support Pillar for Electric Furnace Kiln Furniture In Detail
